Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 4 illustrations

Illustrations

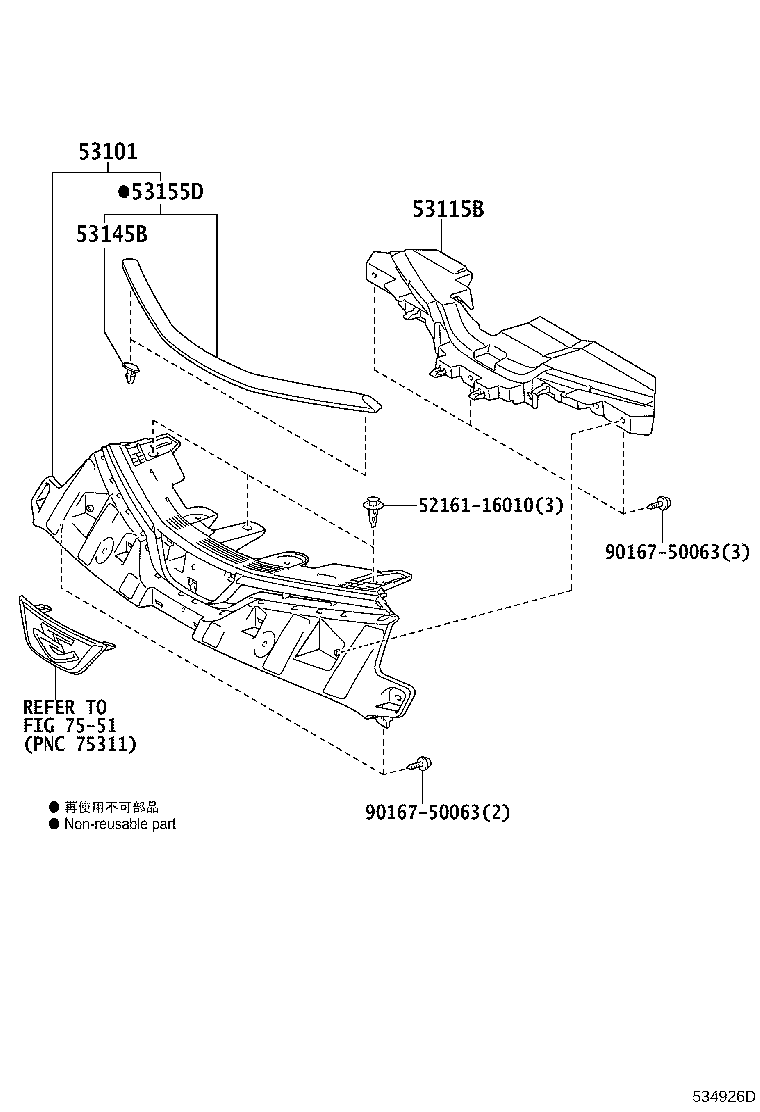

Figure 532162D 532162D 2006-01 → 2008-12 Figure 532946D 532946D 2008-12 → — Figure 533777C 533777C 2012-05 → 2016-05 Figure 534926D 534926D 2016-05 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53115B Bracket, Radiator Grille
53145B Clip, Radiator Grille Garnish
53152A Guide, Radiator Grille Air
53155D Seal, Radiator Grille, NO.1
53396D Seal, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
