Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 2 illustrations

Illustrations

Figure 641851G

641851G 2006-01 → —

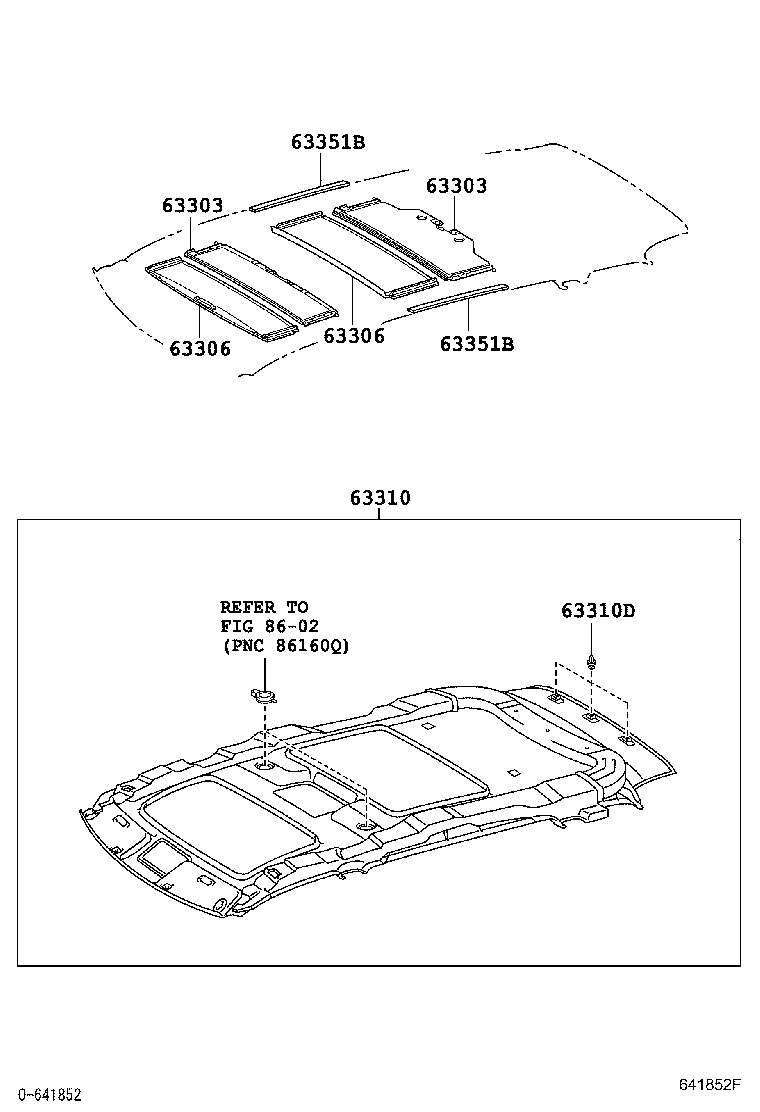

Figure 641852F

641852F 2006-01 → —

Part groups

PNC	Description
63303	Trim Sub-assy, Sunshade, NO.2
63306	Trim Sub-assy, Sunshade
63310	Headlining Assy, Roof
63310D	Clip, Roof Headlining
63341	Pad, Roof Silencer, NO.1
63342	Pad, Roof Silencer, NO.2
63351B	Pad, Roof Headlining

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
