Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

195 part groups · 15 illustrations

Illustrations

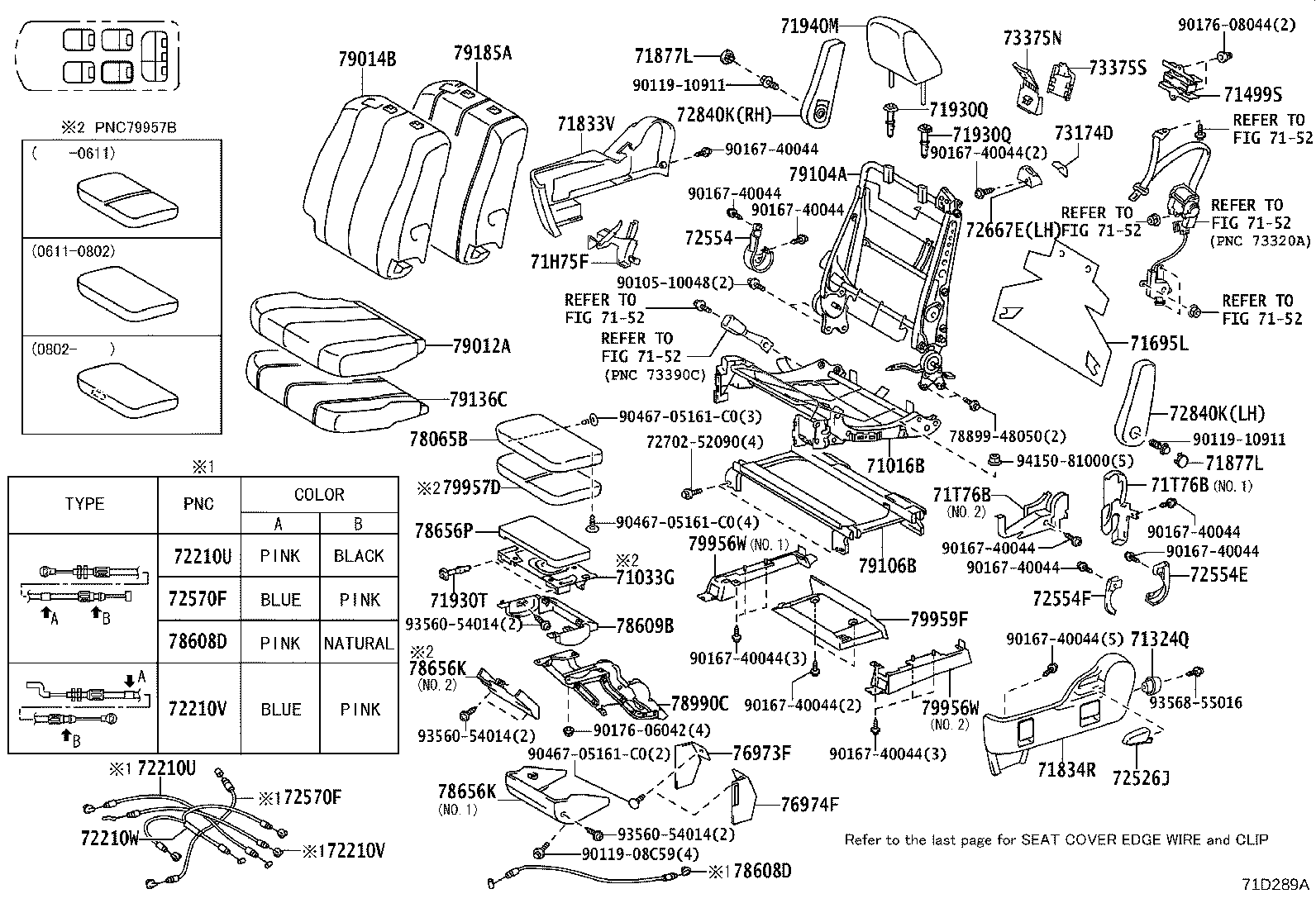

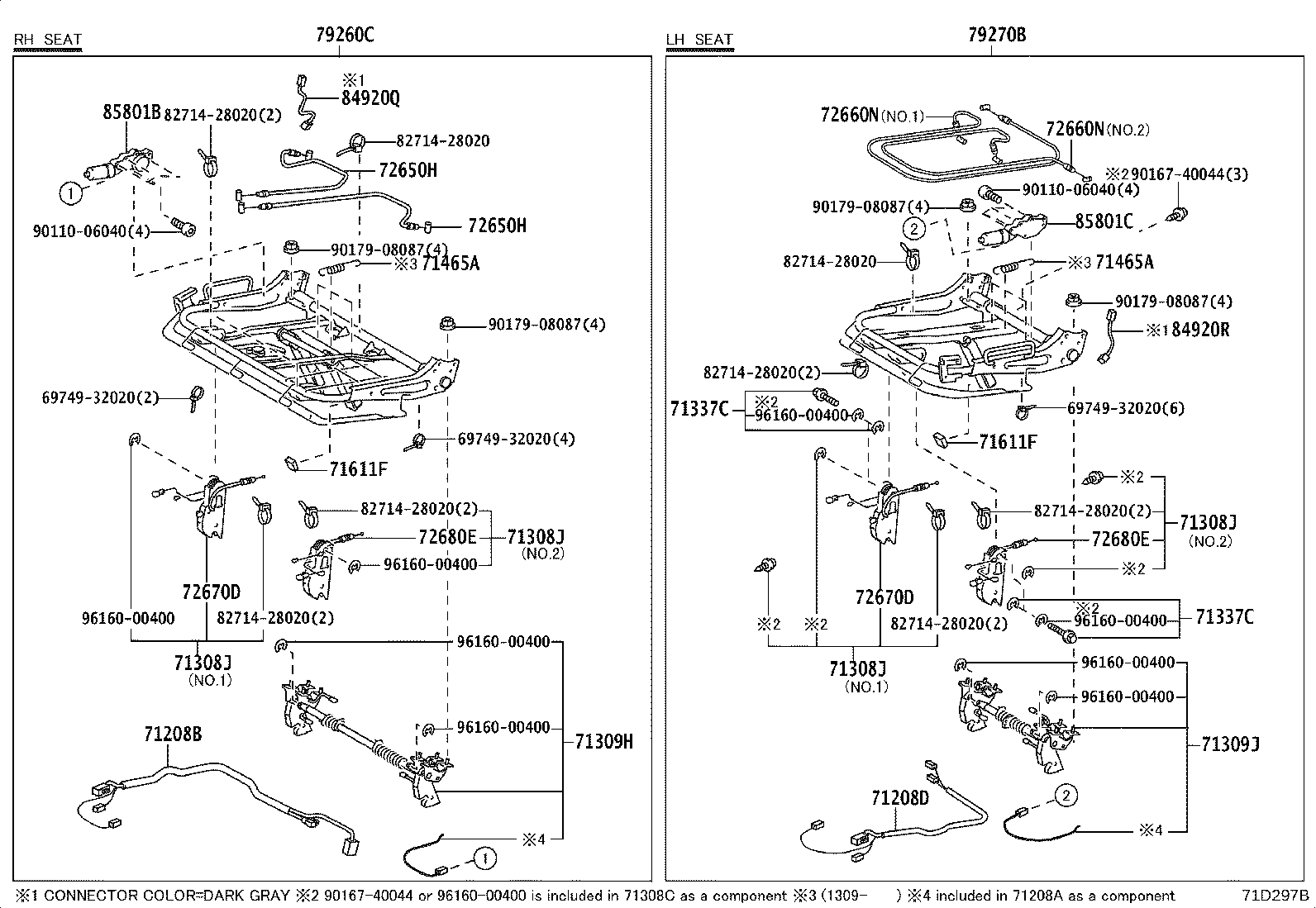

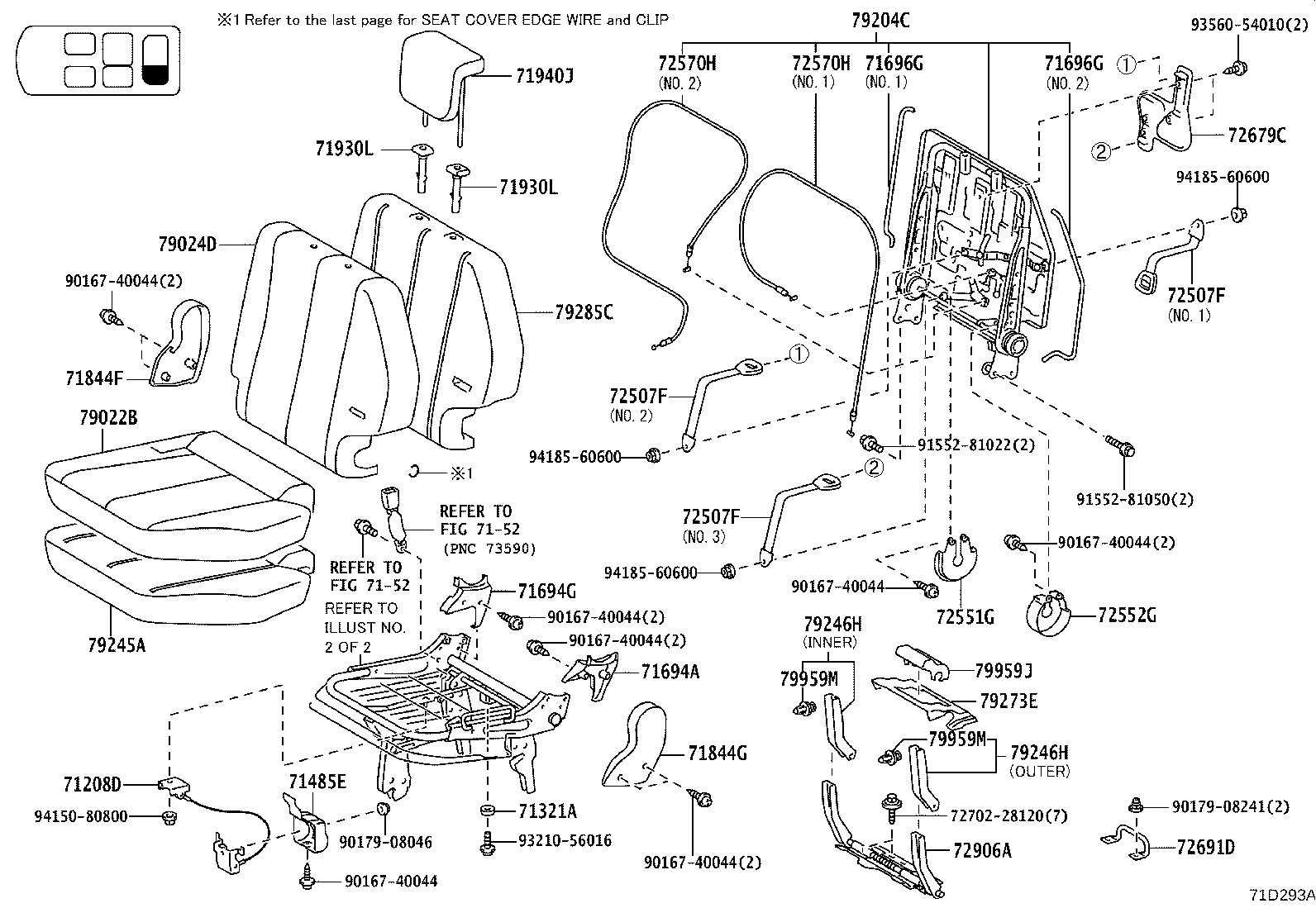

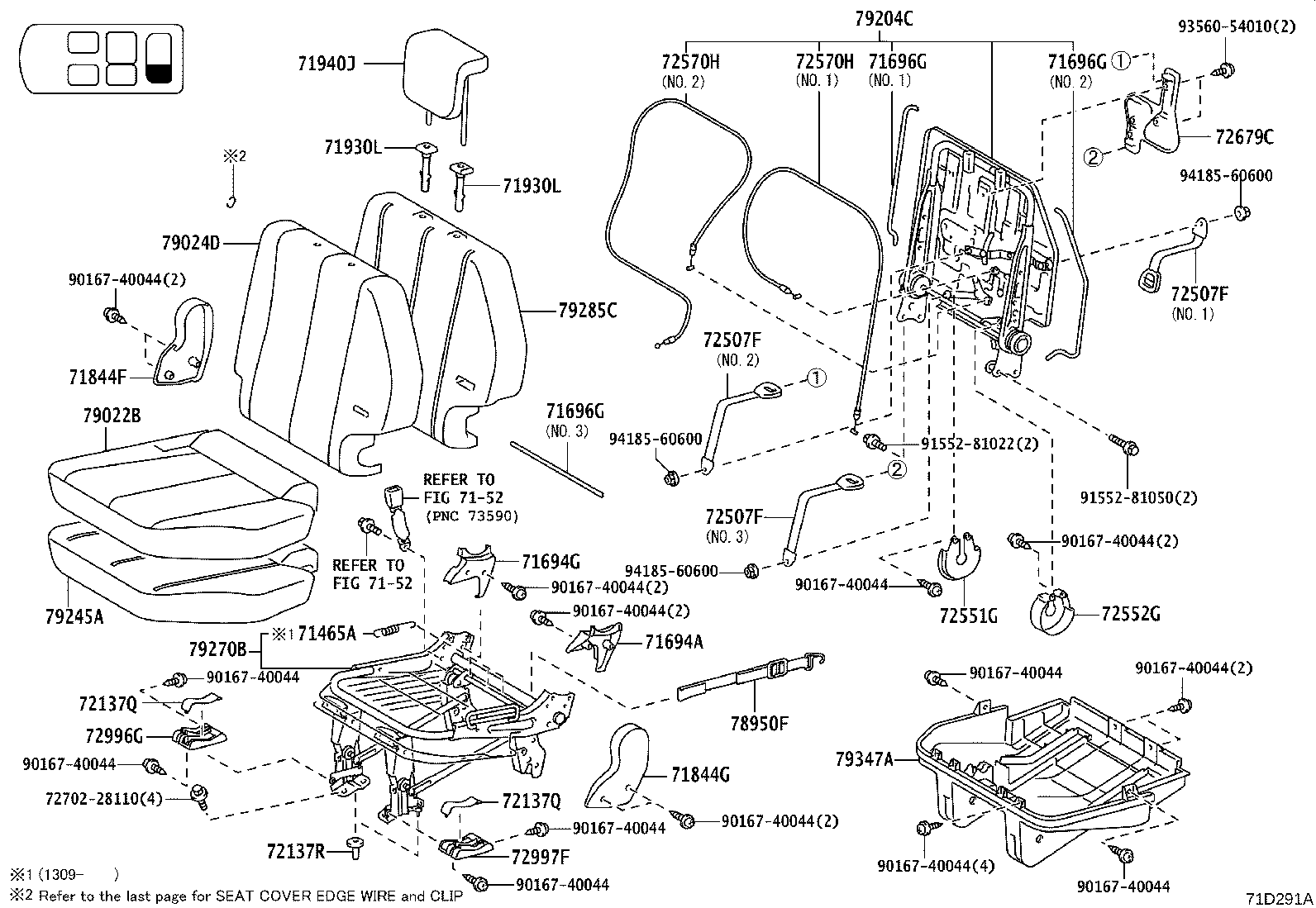

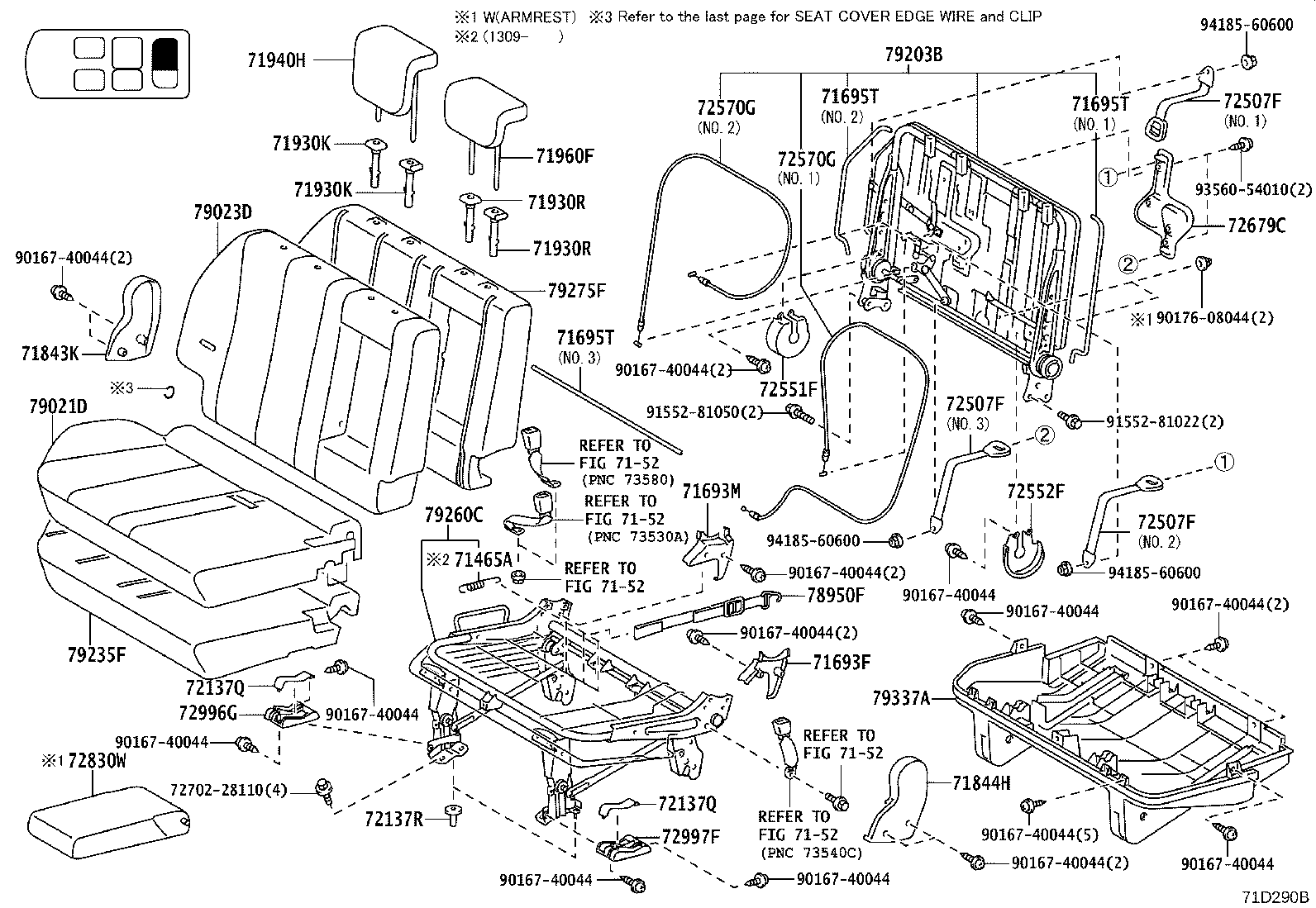

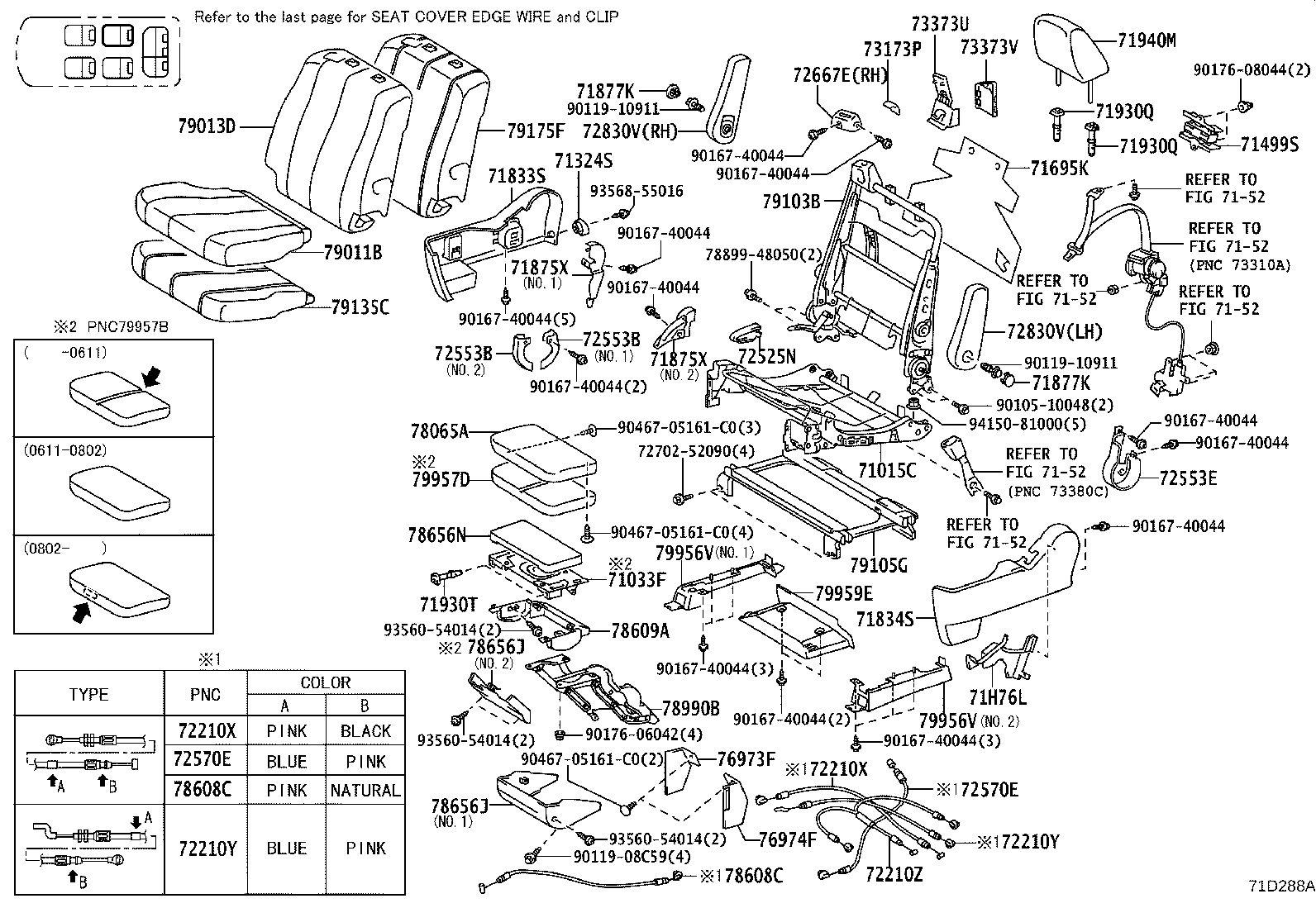

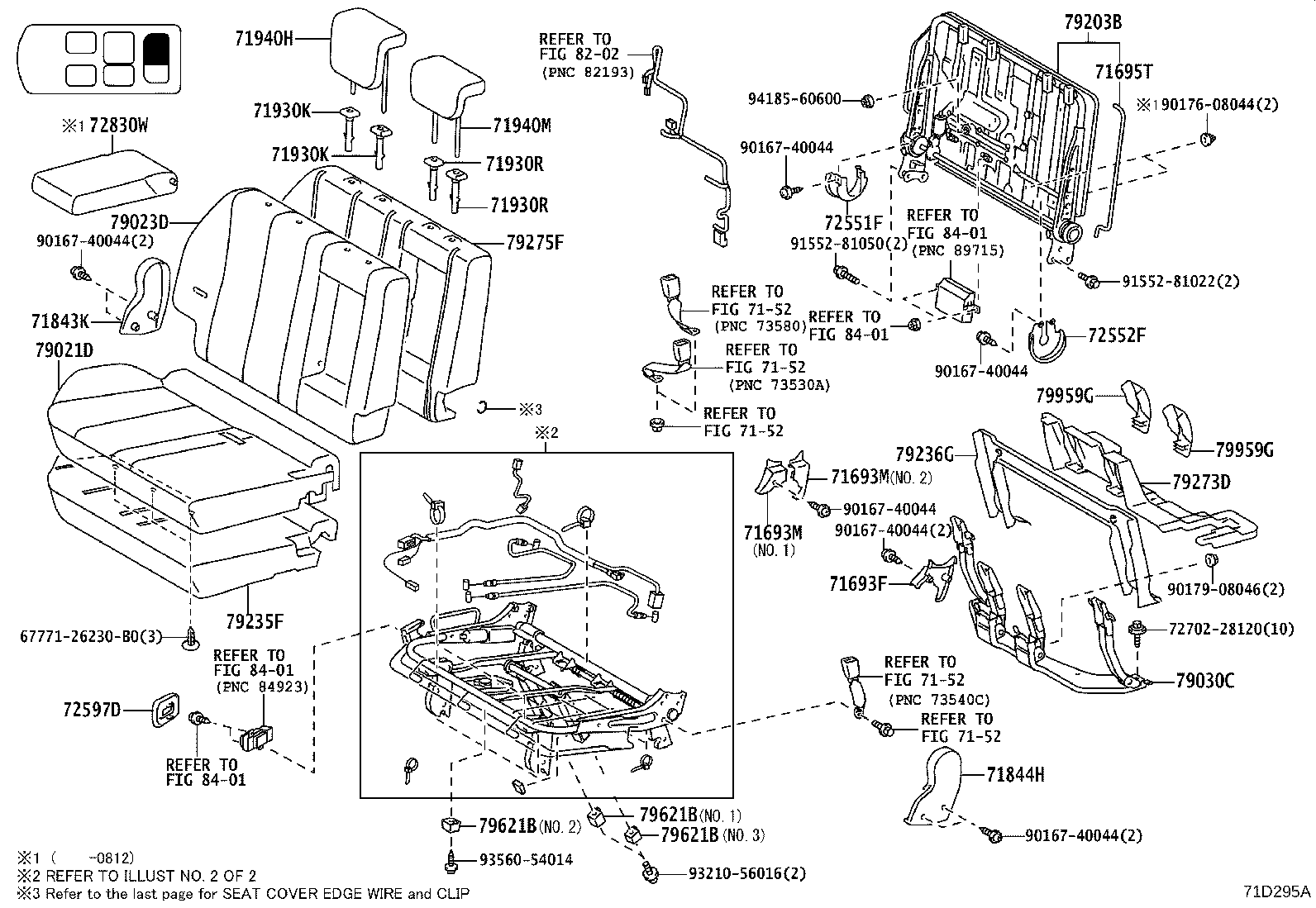

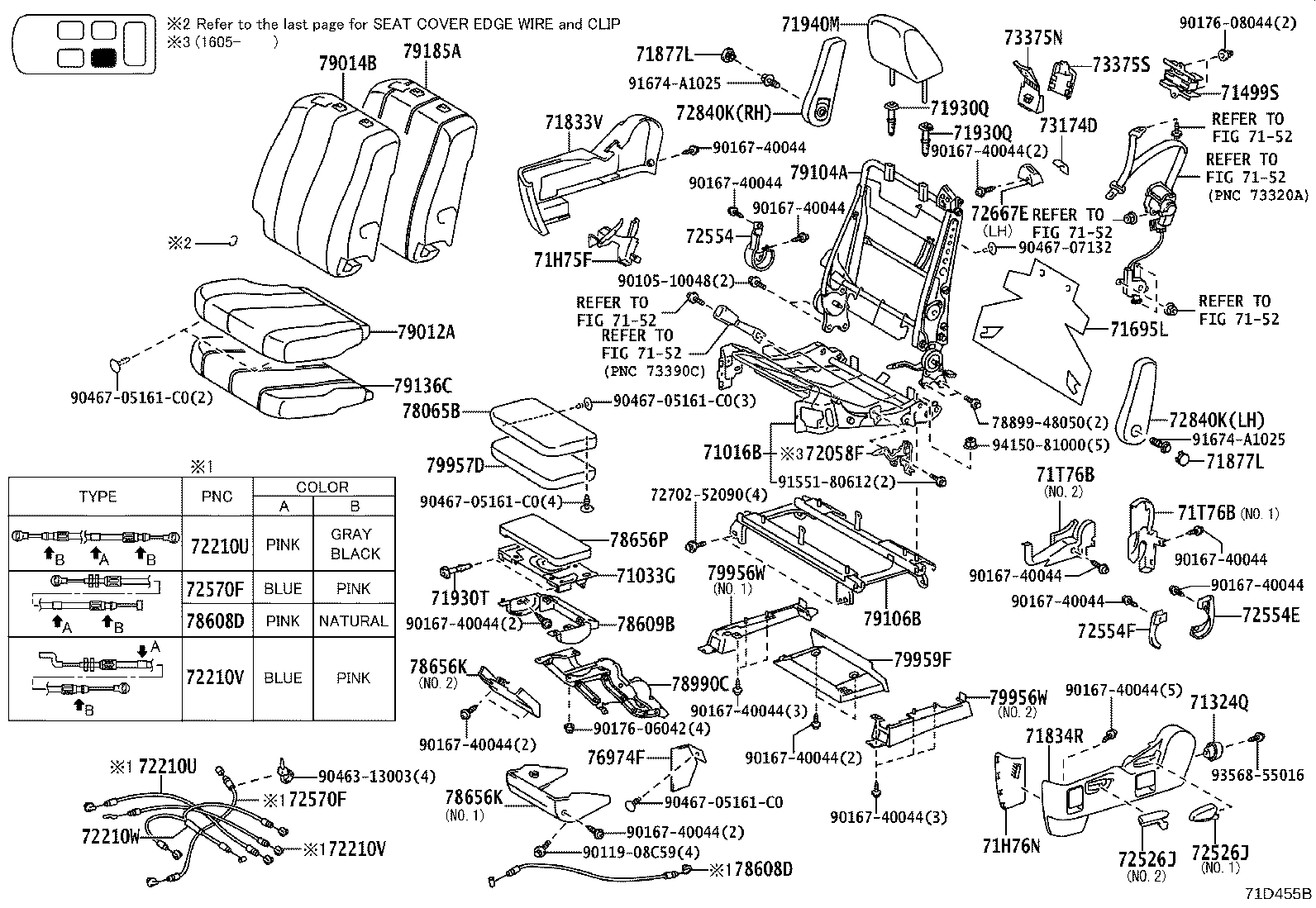

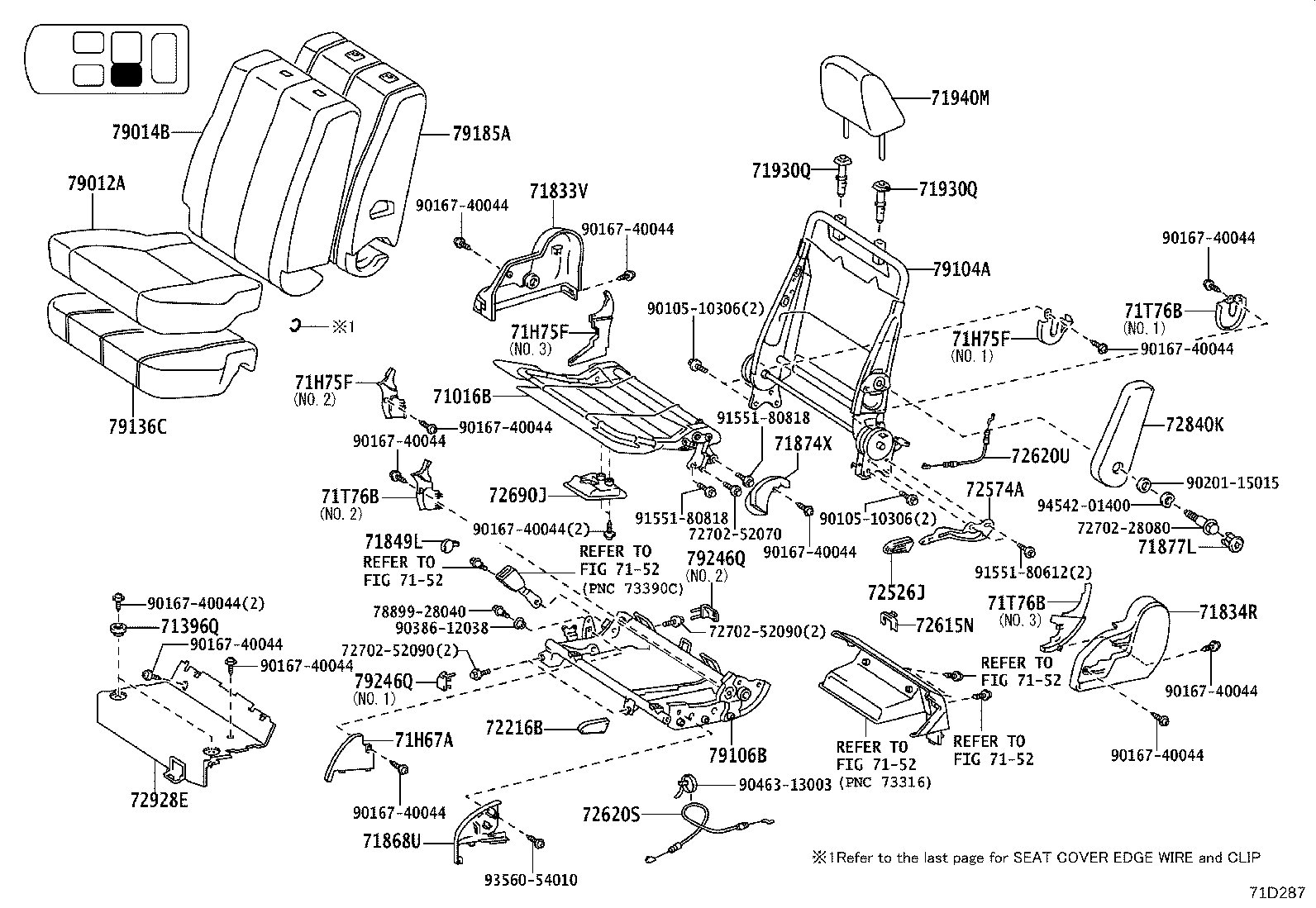

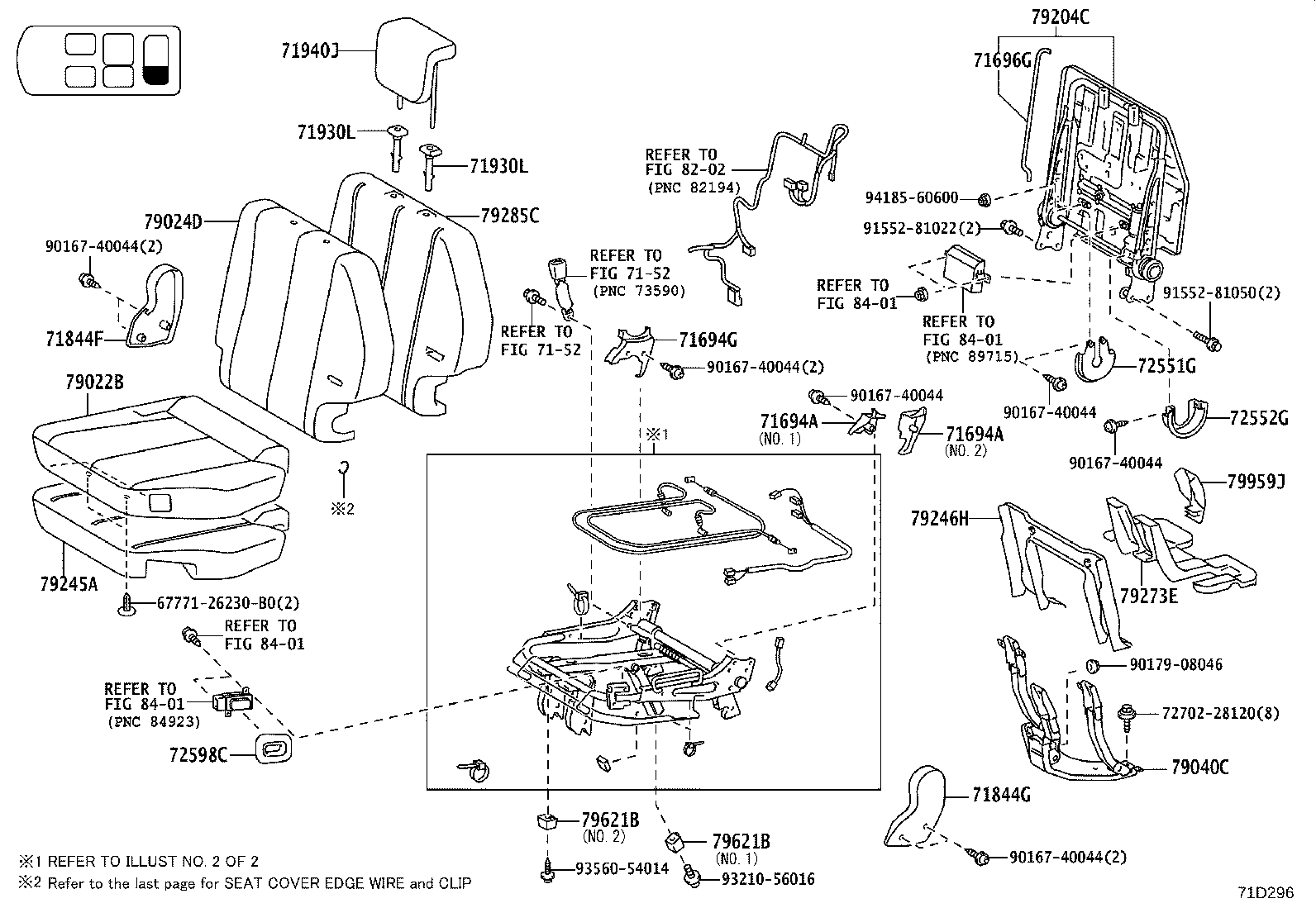

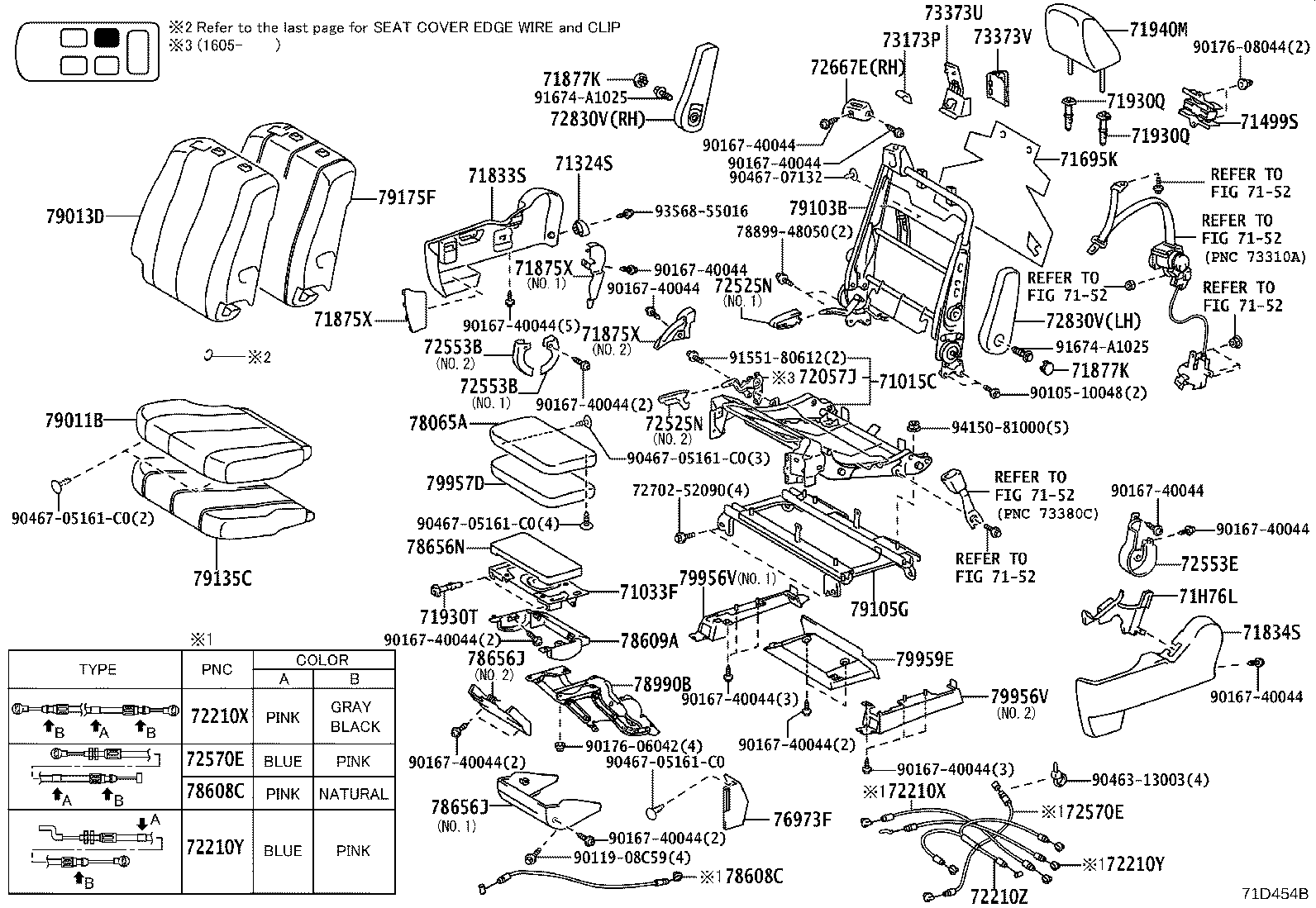

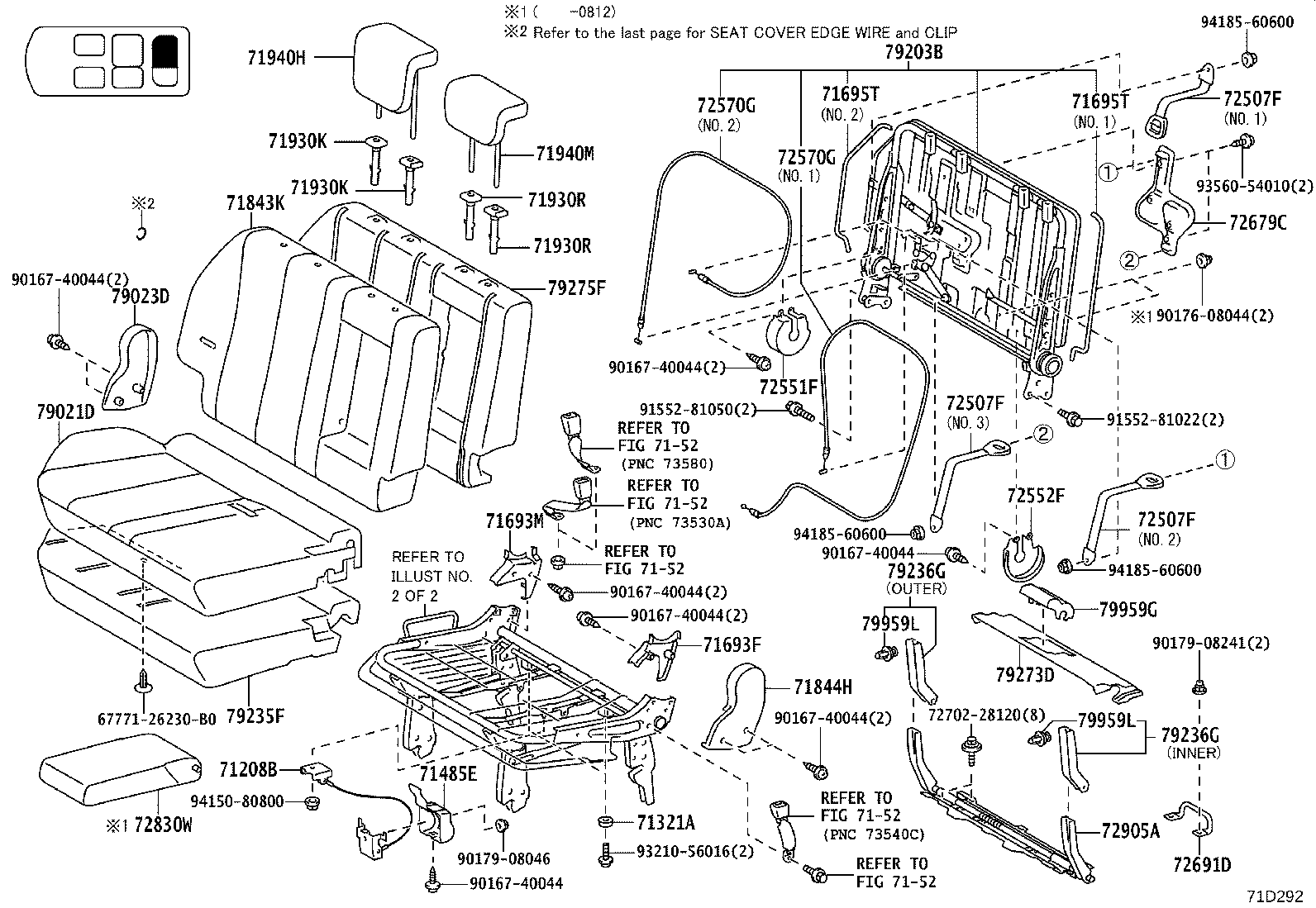

Figure 71D286 71D286 2006-01 → — Figure 71D287 71D287 2006-01 → — Figure 71D288A 71D288A 2006-01 → 2008-12 Figure 71D289A 71D289A 2006-01 → 2008-12 Figure 71D454B 71D454B 2008-12 → — Figure 71D455B 71D455B 2008-12 → — Figure 71D290B 71D290B 2006-01 → — Figure 71D291A 71D291A 2006-01 → — Figure 71D292A 71D292A 2006-01 → — Figure 71D293A 71D293A 2006-01 → — Figure 71D294 71D294 2006-01 → — Figure 71D295A 71D295A 2006-01 → — Figure 71D296 71D296 2006-01 → — Figure 71D297B 71D297B 2006-01 → — Figure 719024J 719024J 2006-01 → —

Part groups

PNCDescription
66990V Holder Assy, Cup
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71033F Leg Sub-assy, Rear Seat Cushion, RH
71033G Leg Sub-assy, Rear Seat Cushion, LH
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71281C Hinge, NO.1 Seat Center Armrest
71308J Bracket Sub-assy, Rear Seat Cushion Support, LH
71309H Leg Sub-assy, Rear Seat, Rear RH
71309J Leg Sub-assy, Rear Seat, Rear LH
71321A Cushion, Rear Seat
71324Q Cushion, NO.1 Seat, LH
71324S Cushion, Rear NO.1 Seat, RH
71337C Plate, Rear Seat Leg
71349F Cover, NO.1 Seatback Hinge, RH
71396Q Cushion, NO.1 Seat Support, Center
71465A Spring, Rear Seat Cushion, NO.5
71485E Cover, Rear Seat Hinge
71499S Damper, Seat Cushion Spring
71611F Pad, Rear Seat Cushion, A
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693M Cover, Rear Seat Cushion Hinge, Outer RH
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694G Cover, Rear Seat Cushion Hinge, Inner LH
71695K Protector, NO.1 Seatback, RH
71695L Protector, NO.1 Seatback, LH
71695T Protector, Rear Seat, NO.2
71696G Protector, NO.2 Seatback, LH
71833S Cover, Rear Seat Reclining, NO.1 RH
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71834R Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71834X Cover, Rear Seat Reclining, NO.2 LH
71843K Cover, Rear NO.2 Seat Reclining, NO.2 RH
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844G Cover, NO.2 Seat Reclining, NO.2 LH Outer
71844H Cover, Rear Seat Reclining, NO.2 LH
71848T Cap, NO.1 Seat Adjuster Cover, RH
71849L Cap, NO.1 Seat Adjuster Cover, LH
71868T Shield, Rear Seat Cushion, Inner NO.1 LH
71868U Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71874X Shield, Rear Seat Cushion, Lower LH
71875X Cover, Reclining Adjuster Inside, RH
71877K Cover, Rear Seat Armrest Hole RH
71877L Cover, Rear Seat Armrest Hole LH
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930Q Support Assy, Rear Seat Headrest
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71930T Support Assy, Rear Seat Legrest
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71940M Headrest Assy, Rear Seat
71960F Headrest Assy, Rear NO.2 Seat, Center
71960G Headrest Assy, Rear NO.1 Seat, Center
71H67 Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H73 Shield, Rear Seat Cushion, Lower RH
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76U Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72058F Lever Sub-assy, NO.1 Seat Lock Control, LH
72137Q Cover, Rear Seat Track, NO.2
72137R Cover, Rear Seat Track, NO.3
72210U Cable Assy, NO.1 Seat Track Control, LH
72210V Cable Assy, NO.1 Seat Track Control, LH NO.1
72210W Cable Assy, NO.1 Seat Track Control, LH NO.2
72210X Cable Assy, NO.1 Seat Track Control, RH
72210Y Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z Cable Assy, NO.1 Seat Track Control, RH NO.2
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72507F Handle Sub-assy, Rear Seat Reclining Release
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72551G Cover, Reclining Link, RH NO.2
72552F Cover, Reclining Link, LH NO.1
72552G Cover, Reclining Link, LH NO.2
72553B Protector, Reclining Cover, RH
72553E Protector, Reclining Cover, RH NO.1
72554 Protector, Reclining Cover, LH
72554E Protector, Reclining Cover, LH NO.1
72554F Protector, Reclining Cover, LH NO.2
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72570F Cable Assy, NO.1 Seat Reclining Adjusting, LH
72570G Cable Assy, NO.2 Seat Reclining Adjusting, RH
72570H Cable Assy, NO.2 Seat Reclining Adjusting, LH
72573D Lever, NO.1 Seat Reclining Control, RH
72574A Lever, Reclining Control, LH
72597D Bezel, Reclining Remote Control, RH
72598C Bezel, Reclining Remote Control, LH
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72620U Cable Assy, Rear NO.1 Seat Lock
72650H Cable Assy, Rear NO.2 Seat Lock, RH
72660N Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72667E Bezel, Rear Seatback Lock, Upper
72668G Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72670D Lock Assy, Rear Seat Cushion, RH
72670E Lock Assy, Rear Seat Cushion, NO.2 RH
72679C Bezel, Rear Seatback Lock Control
72680E Lock Assy, Rear Seat Cushion, LH
72680F Lock Assy, Rear Seat Cushion, NO.2 LH
72690H Lever Assy, NO.1 Seat Cushion Lock Release, RH
72690J Lever Assy, NO.1 Seat Cushion Lock Release, LH
72691D Striker, Rear Seat Cushion Lock
72830V Armrest Assy, Rear NO.1 Seat, RH
72830W Armrest Assy, Rear NO.2 Seat, RH
72830X Armrest Assy, Rear Seat, Center
72840K Armrest Assy, Rear NO.1 Seat, LH
72905A Link Sub-assy, 3RD Seat, RH
72906A Link Sub-assy, 3RD Seat, LH
72927F Cover, Rear Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72996G Cover, Rear Seat, NO.2 RH
72997F Cover, Rear Seat, NO.2 LH
73173P Cover, Rear Seat Belt Hole, RH
73174D Cover, Rear Seat Belt Hole, LH
73373U Cover, NO.1 Seat Shoulder Belt, RH NO.1
73373V Cover, NO.1 Seat Shoulder Belt, RH NO.2
73375N Cover, Rear NO.1 Seat Shoulder Belt, LH NO.1
73375S Cover, Rear NO.1 Seat Shoulder Belt, LH NO.2
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
78065A Cover Sub-assy, Rear Seat Legrest, RH
78065B Cover Sub-assy, Rear Seat Legrest, LH
78608C Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78609A Cover Sub-assy, Rear Seat Legrest Lock(FOR RH SEAT)
78609B Cover Sub-assy, Rear Seat Legrest Lock(FOR LH SEAT)
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78950F Band Assy, Fold Seat Stopper, NO.1
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79030C Leg Assy, Rear NO.2 Seat, RH
79040C Leg Assy, Rear NO.2 Seat, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79203B Frame Sub-assy, NO.2 Seatback, RH
79204C Frame Sub-assy, NO.2 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246H Cover, NO.2 Seat Leg, LH
79246Q Cover, Rear Seat Leg, RH (FOR LH SEAT)
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79273D Cover, NO.2 Seat Hinge, Rear RH
79273E Cover, NO.2 Seat Hinge, Rear LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79337A Carpet, NO.2 Seat Cushion Under, RH
79347A Carpet, NO.2 Seat Cushion Under, LH
79621B Stopper, NO.2 Seat Cushion
79908A Plate Sub-assy, Seat Hinge, LH
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79957D Pad, Rear Seat Leg Side
79959E Cover, NO.1 Seat Leg, RH
79959F Cover, NO.1 Seat Leg, LH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79959L Clip, NO.2 Seat Leg Cover, RH
79959M Clip, NO.2 Seat Leg Cover, LH
84920Q Switch Assy, Power Seat
84920R Switch Assy, Power Seat
85801B Motor Assy, Power Seat(FOR RH SEAT)
85801C Motor Assy, Power Seat(FOR LH SEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
