Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 3 illustrations

Illustrations

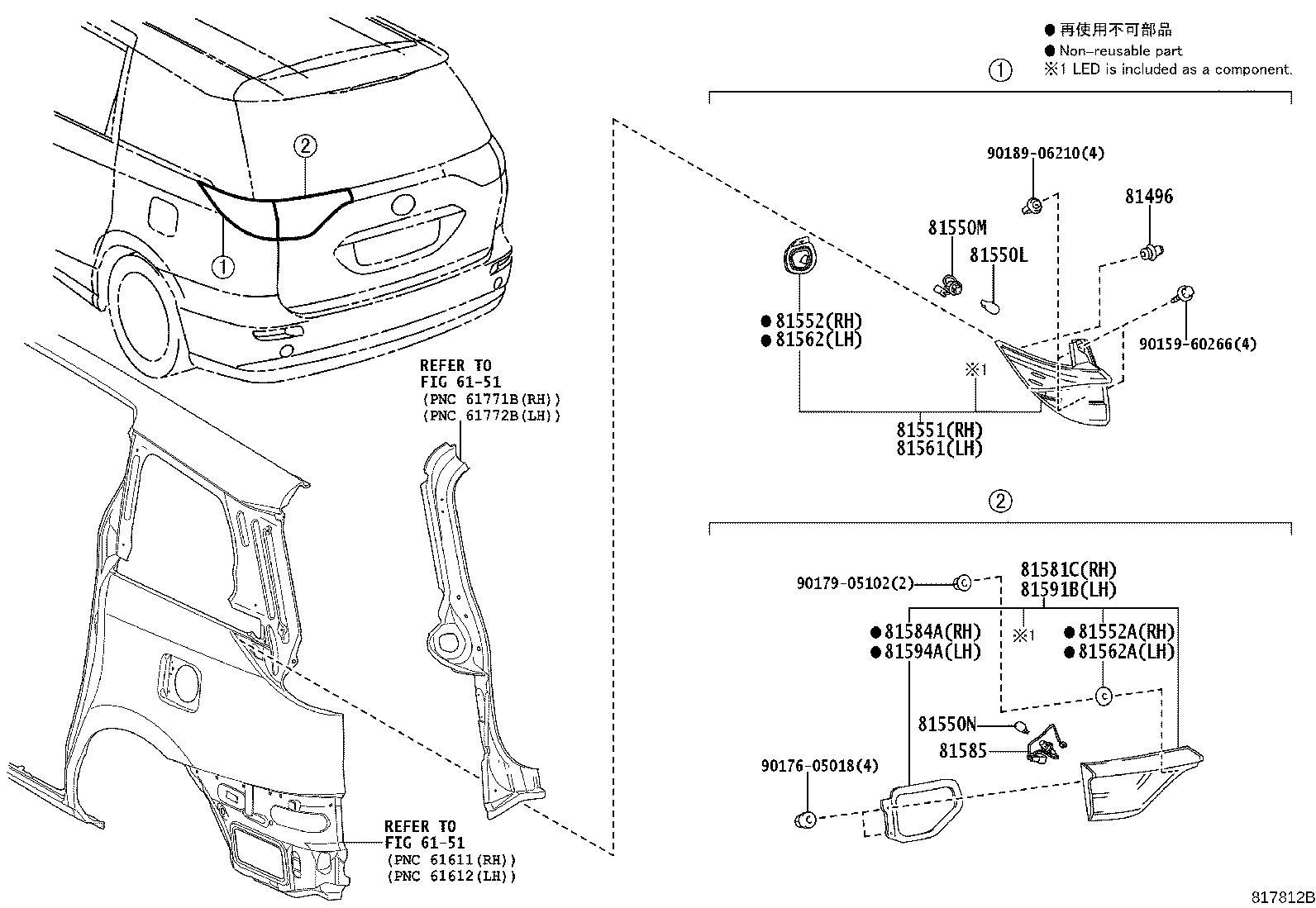

Figure 813631G 813631G 2006-01 → 2016-05 Figure 813631G 813631G 2016-05 → — Figure 817812B 817812B 2016-05 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81552A Gasket, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81562A Gasket, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
