Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

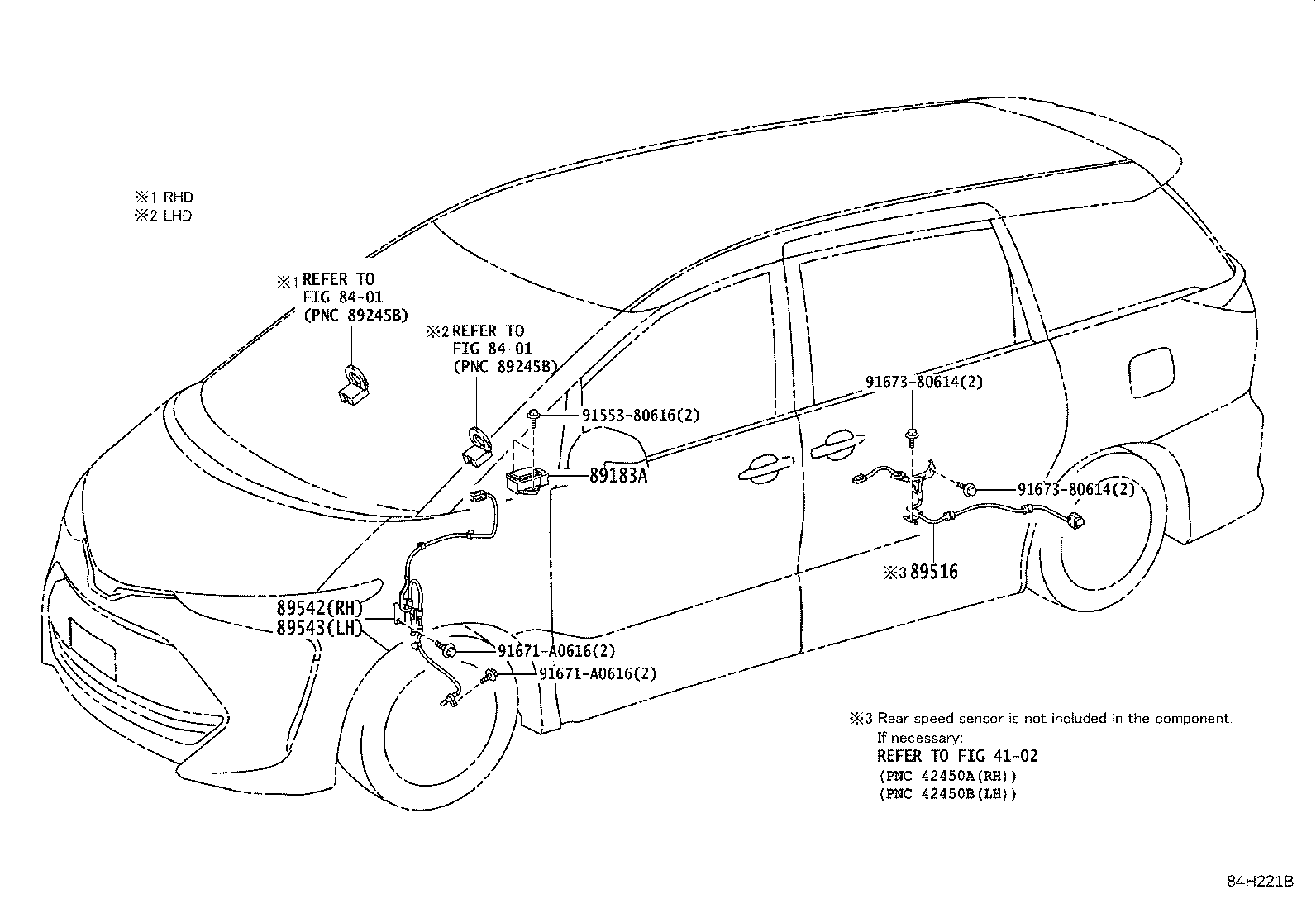

Figure 847783F 847783F 2006-01 → 2016-05 Figure 84H221B 84H221B 2016-05 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
89183A Sensor, Yawrate
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
