Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 5 illustrations

Illustrations

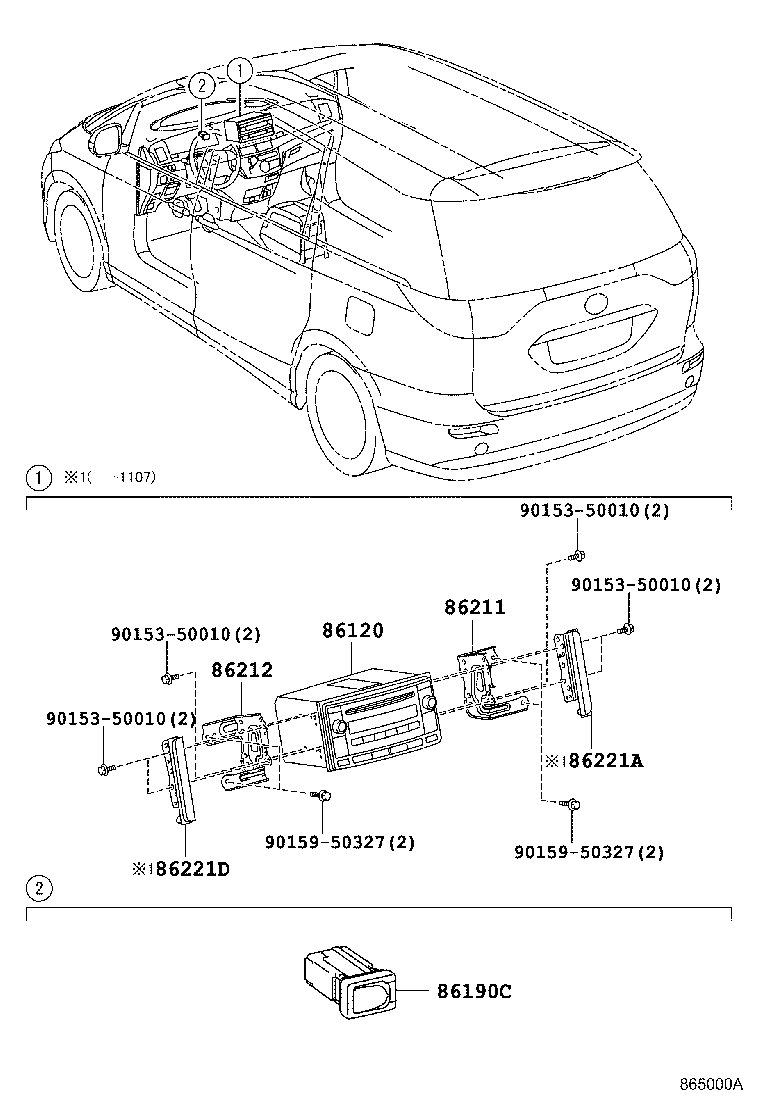

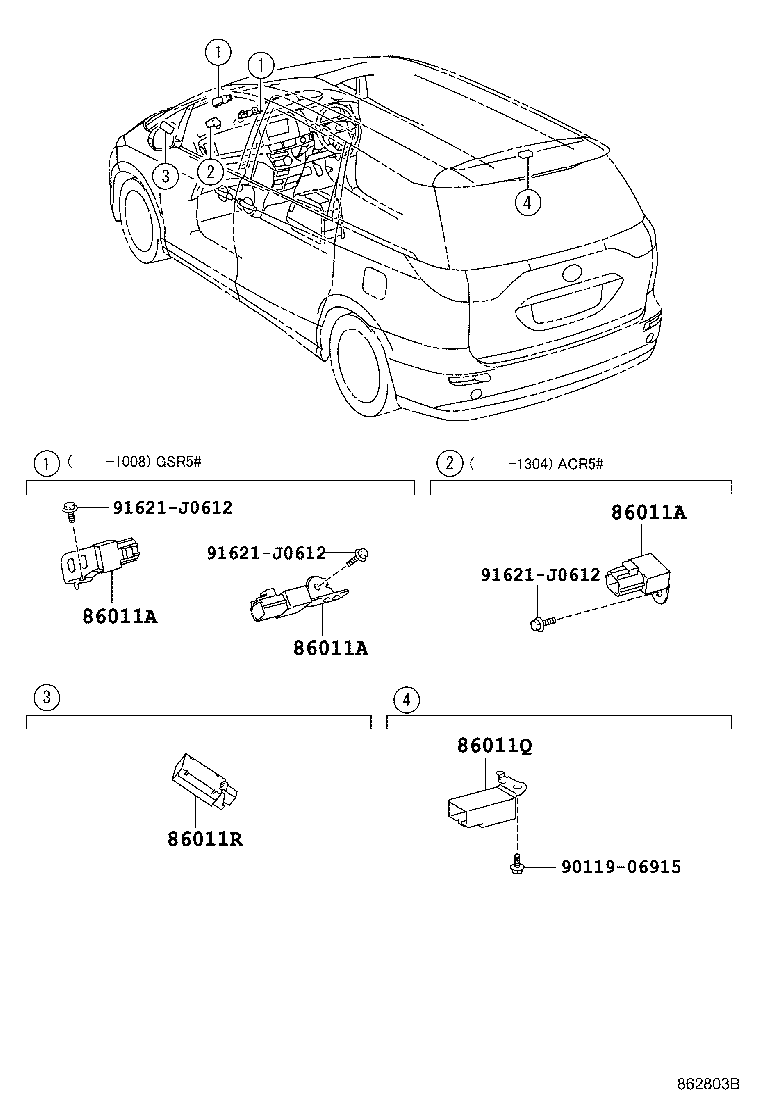

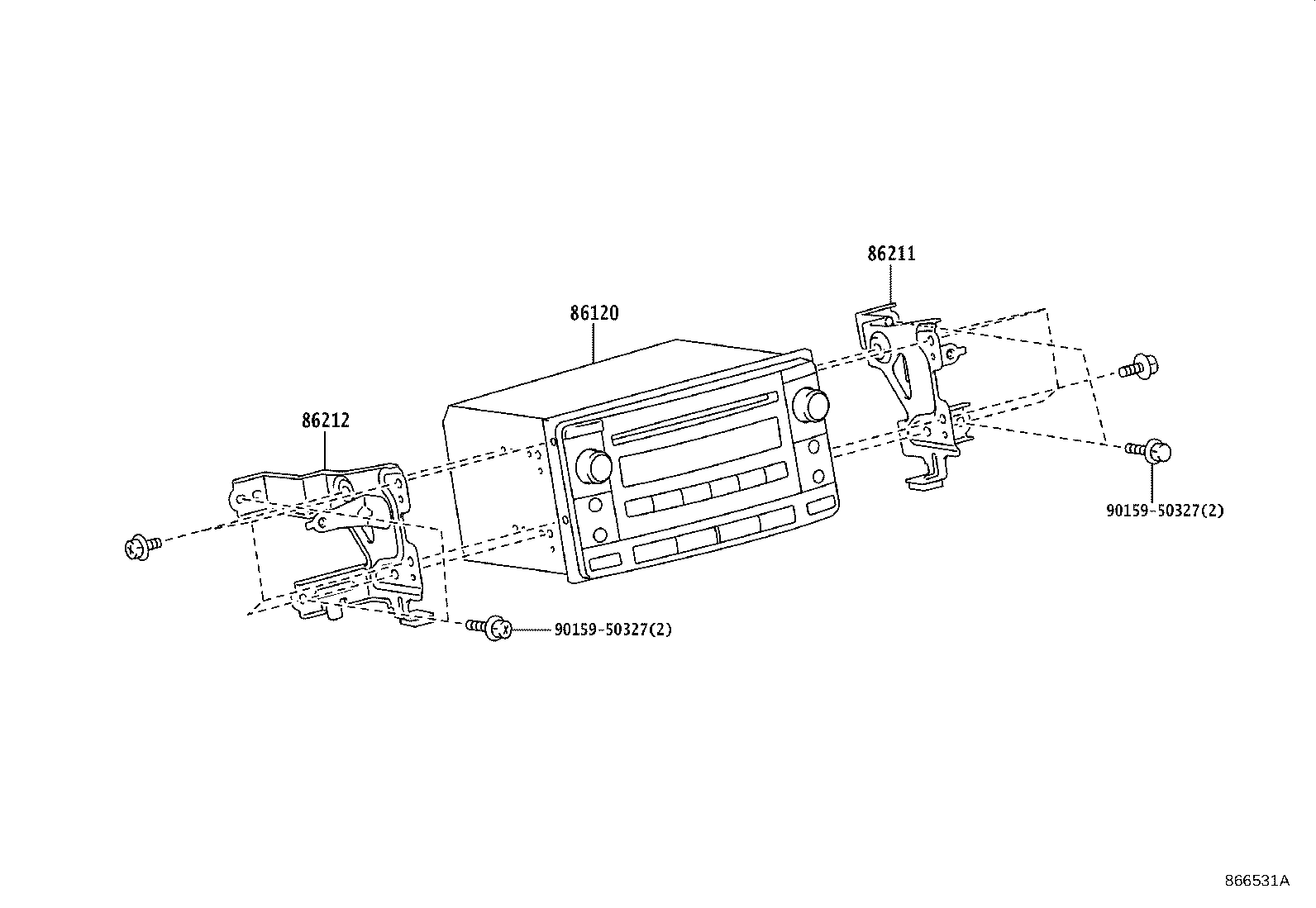

Figure 862742 862742 2006-01 → 2016-05 Figure 866531A 866531A 2016-05 → — Figure 865000A 865000A 2006-01 → — Figure 862743 862743 2006-01 → — Figure 862803B 862803B 2006-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
