Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 2 illustrations

Illustrations

Figure 878249A

878249A 2006-01 → —

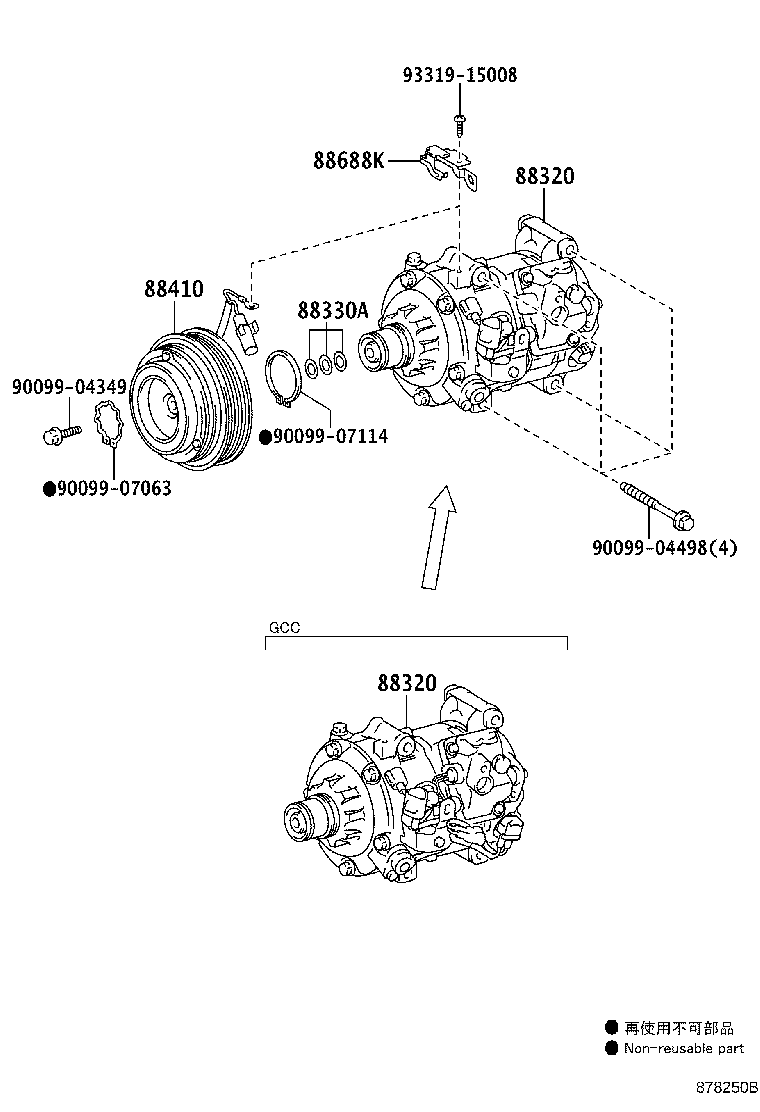

Figure 878250B

878250B 2006-11 → —

Part groups

PNC	Description
88310D	Compressor Assy, W/Pulley
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88688K	Bracket, Cooler Compressor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
