Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

24 part groups · 2 illustrations

Illustrations

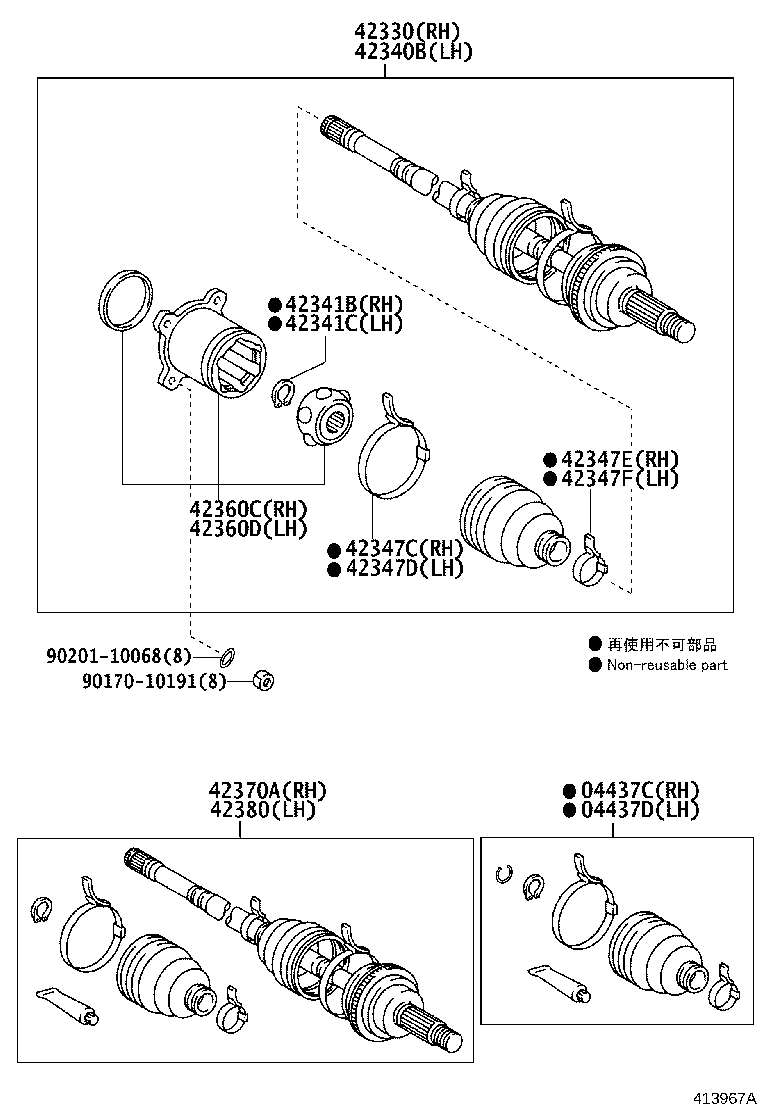

Figure 413966A 413966A 2013-04 → — Figure 413967A 413967A 2013-04 → —

Part groups

PNCDescription
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42341B Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C Ring, Snap (FOR REAR DRIVE SHAFT LH)
42347C Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360C Joint Assy, Rear Drive Shaft Inboard, RH
42360D Joint Assy, Rear Drive Shaft Inboard, LH
42370A Shaft Assy, Rear Drive Outboard Joint, RH
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42410 Hub & Bearing Assy, Rear Axle, RH
42424 Retainer, Rear Axle Bearing, Outer, RH
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
