Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

25 part groups · 3 illustrations

Illustrations

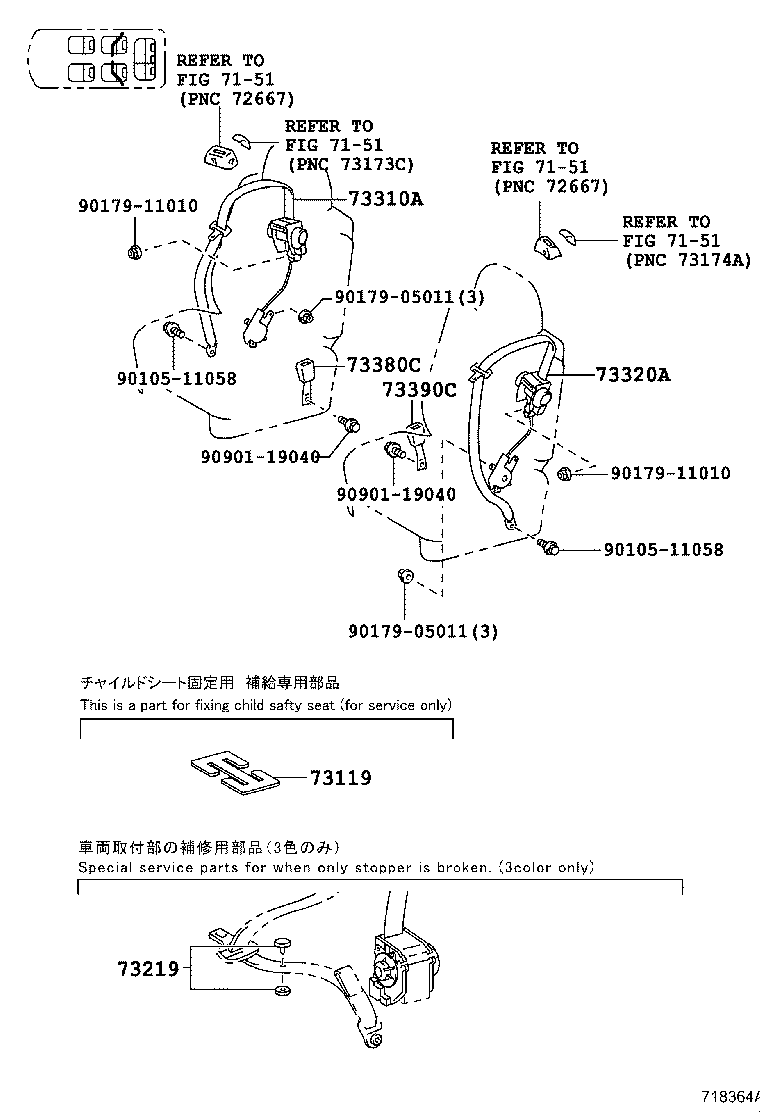

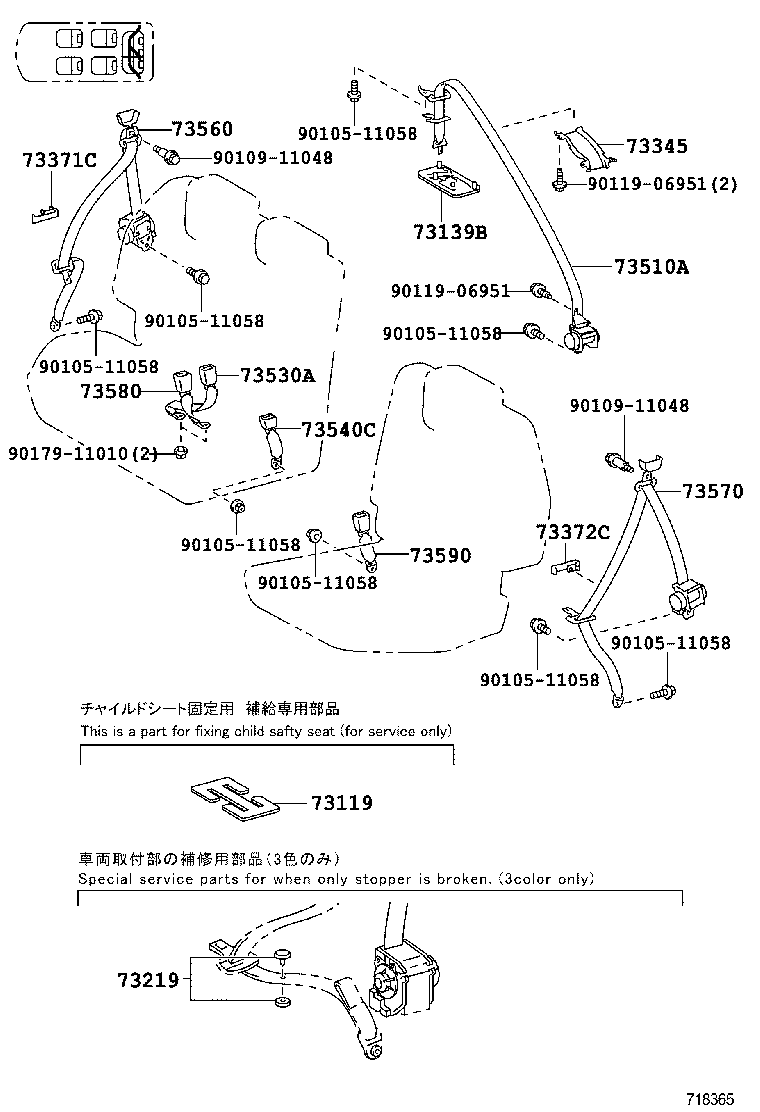

Figure 718363C 718363C 2013-04 → — Figure 718364A 718364A 2013-04 → — Figure 718365 718365 2013-04 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73139B Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540C Belt Assy, Rear NO.2 Seat Lap Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
