Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

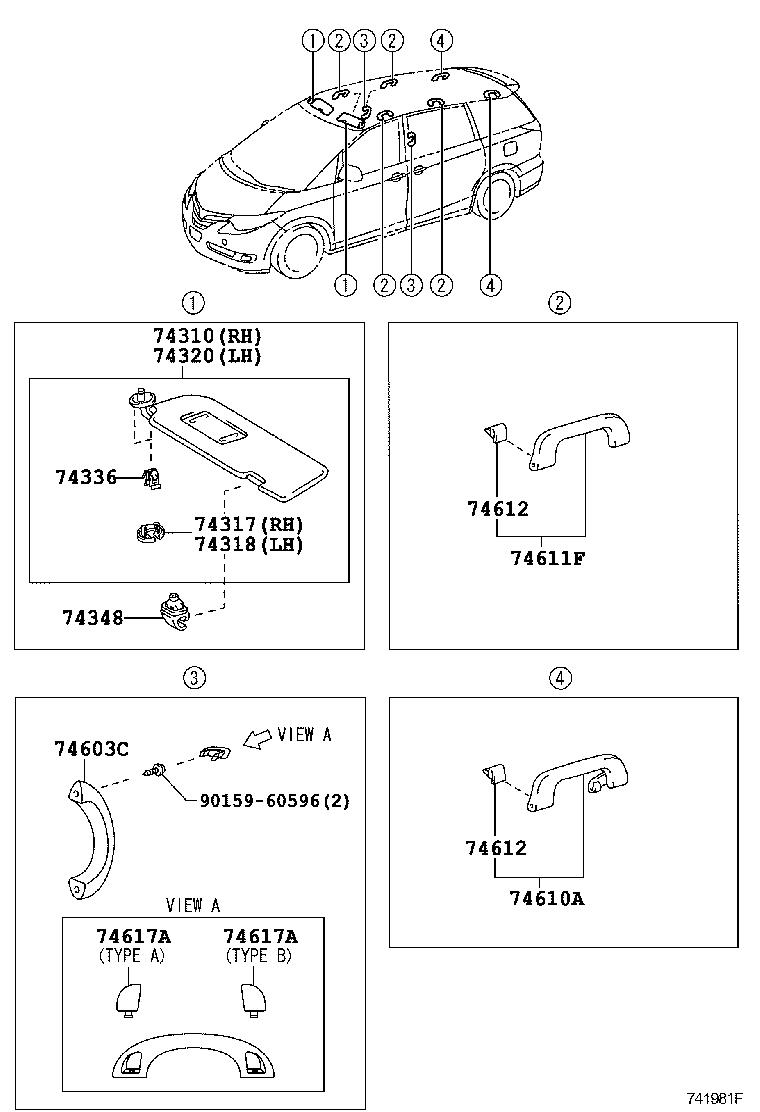

Figure 741982 741982 2013-04 → — Figure 741981F 741981F 2013-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74603C Grip Sub-assy, Assist
74610A Grip Sub-assy, Assist
74611F Grip, Assist, NO.1
74612 Cover, Assist Grip
74617A Plug, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
