Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

30 part groups · 3 illustrations

Illustrations

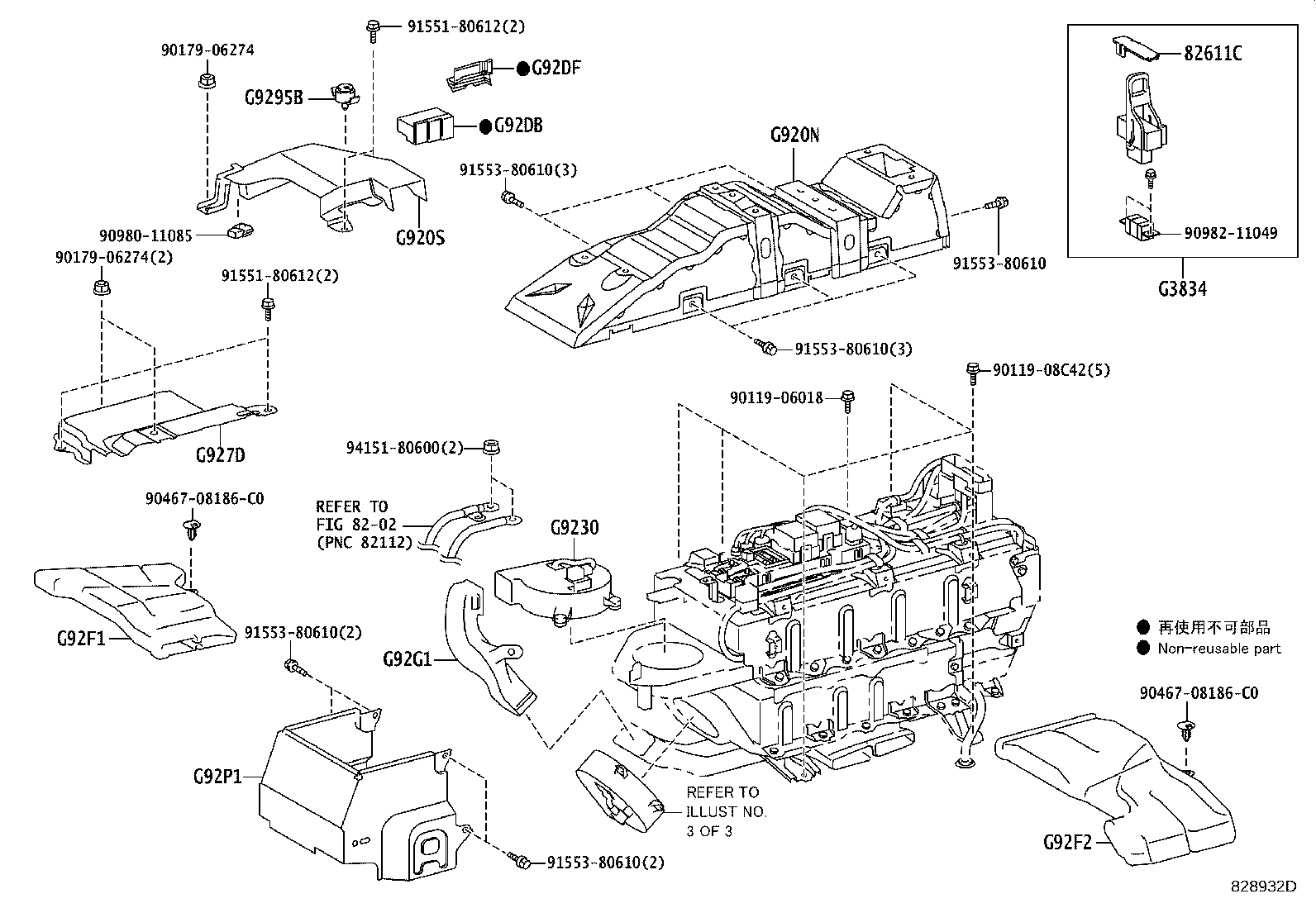

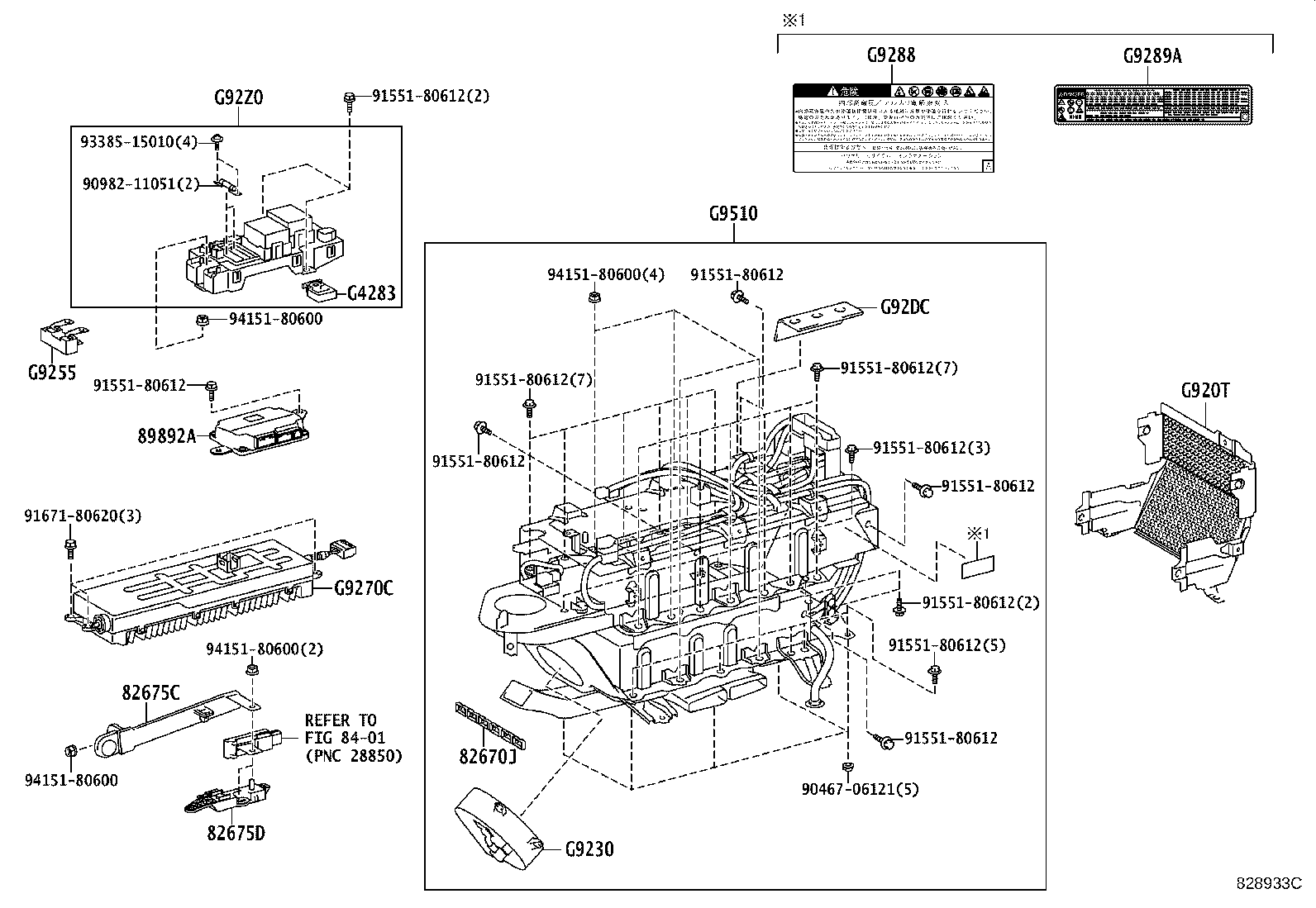

Figure 828931A 828931A 2013-04 → — Figure 828932D 828932D 2013-04 → — Figure 828933C 828933C 2013-04 → —

Part groups

PNCDescription
28800V Battery, W/Temperature Sensor
28885 Hose, Battery Room Ventilation
28899 Insulator, Battery
82611C Cover, Fuse Block
82621B Cover, Fusible Link
82670J Block Assy, Junction
82675C Terminal, Junction
82675D Terminal, Junction
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G4283 Sensor, Battery Current
G920N Cover Sub-assy, HV Battery, Upper NO.2
G920S Shield, Hybrid Converter
G920T Shield, Hybrid Battery W/Label, Rear
G9230 Blower Assy, Battery Cooling
G9255 Capacitor, Filter Noise
G9270C Converter, HV
G927D Protector, Hybrid Converter
G9288 Label, Battery Charging Notice
G9289A Label, Battery Caution
G9295B Striker, Battery Cover Lock
G92DB Seal, Hybrid Battery, NO.1
G92DC Seal, HV Battery, NO.2
G92DF Seal, Hybrid Battery Rear Shield, NO.1
G92F1 Duct, Hybrid Battery Exhaust, NO.1
G92F2 Duct, Hybrid Battery Exhaust, NO.2
G92G1 Duct, Hybrid Battery Exhaust, NO.1 LH
G92P1 Shield, Hybrid Battery, Front
G92Z0 Block Assy, HV Battery Junction
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
