Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

46 part groups · 11 illustrations

Illustrations

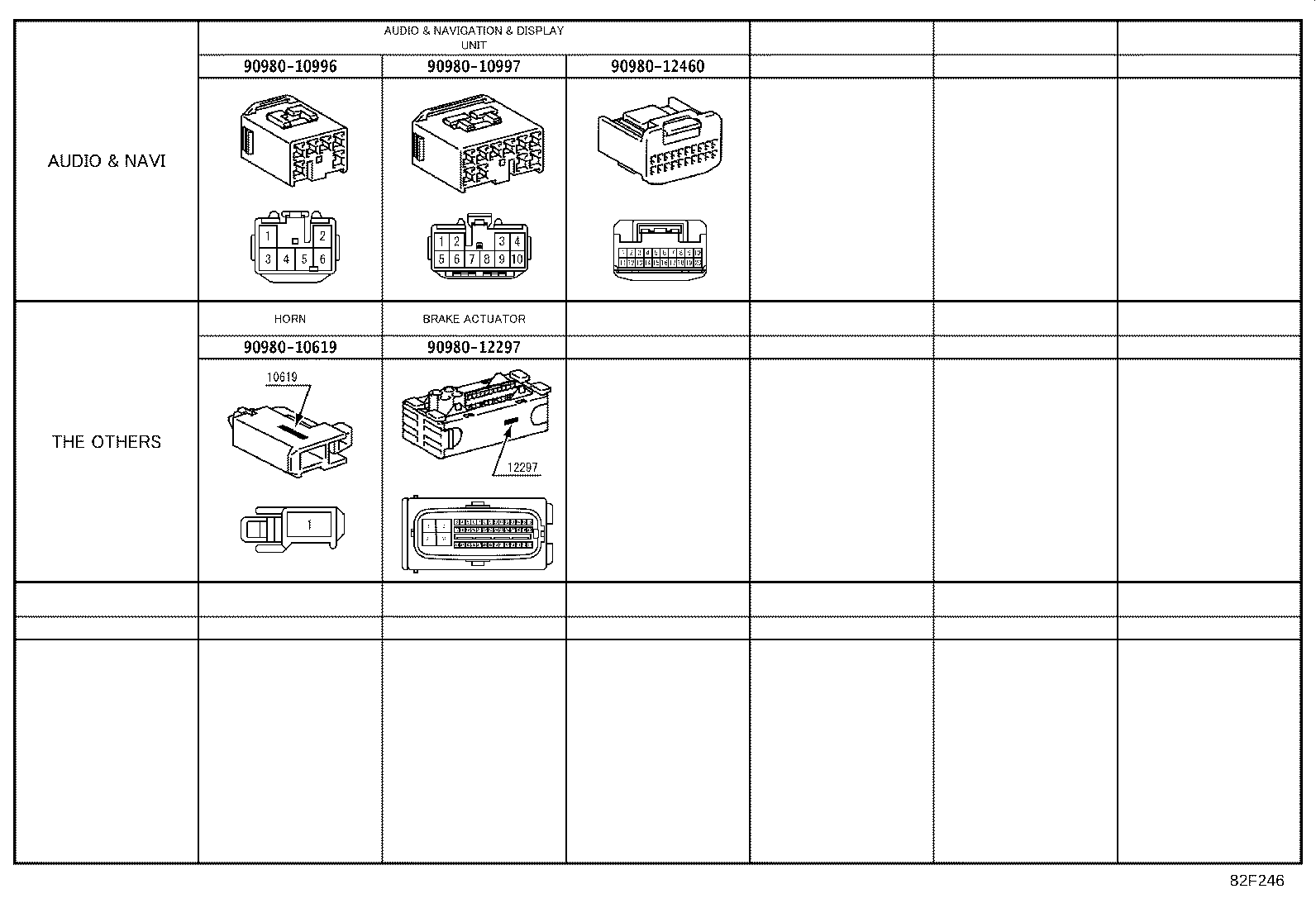

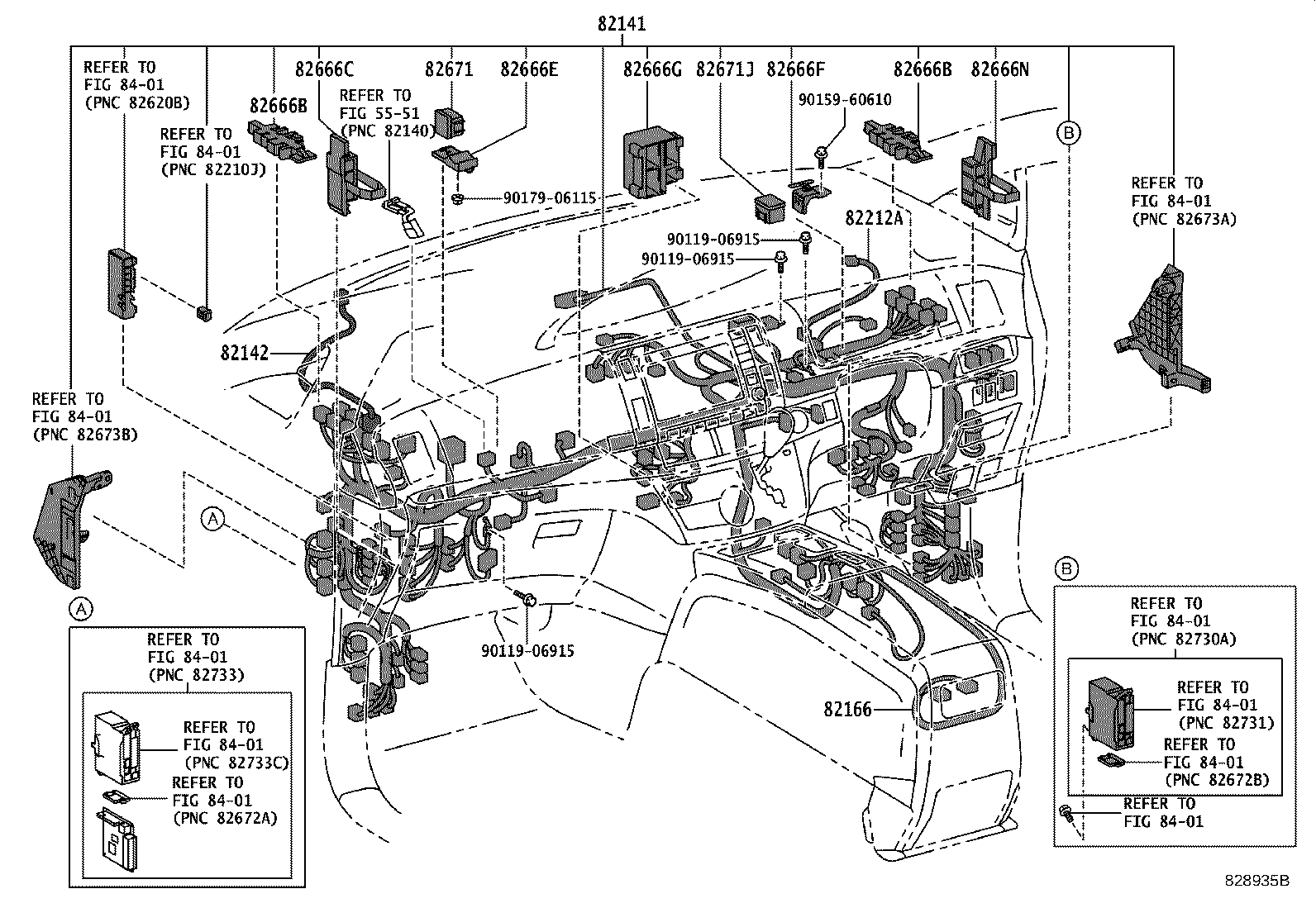

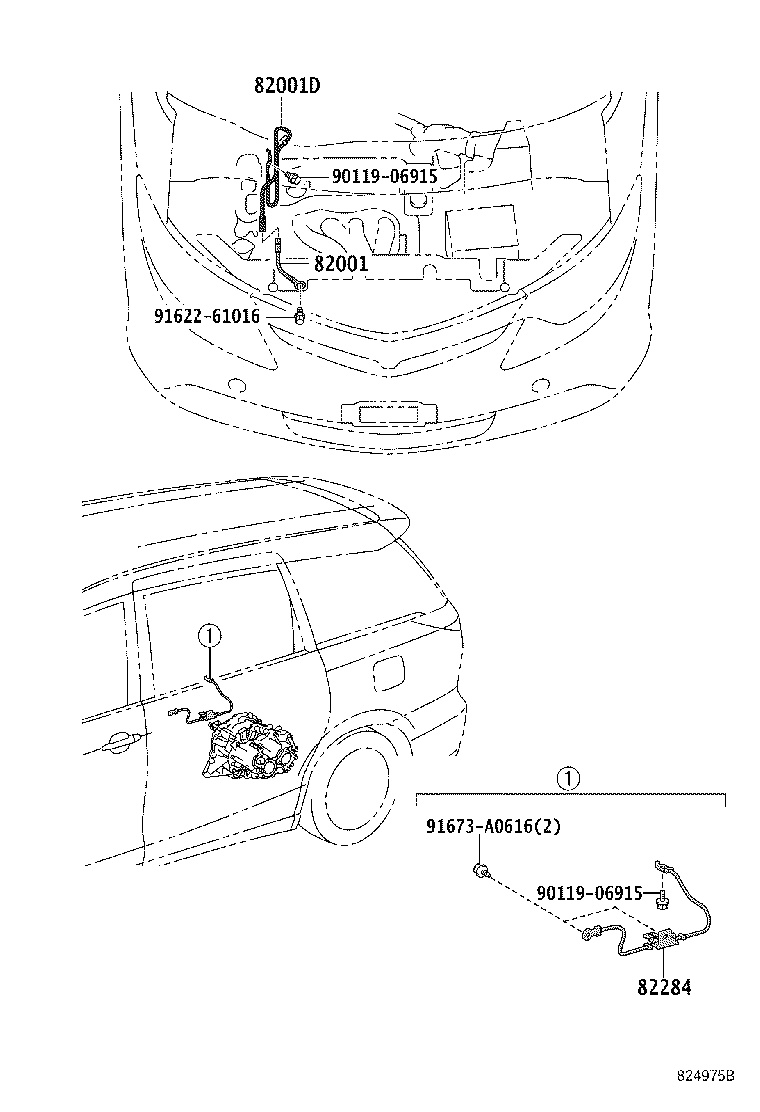

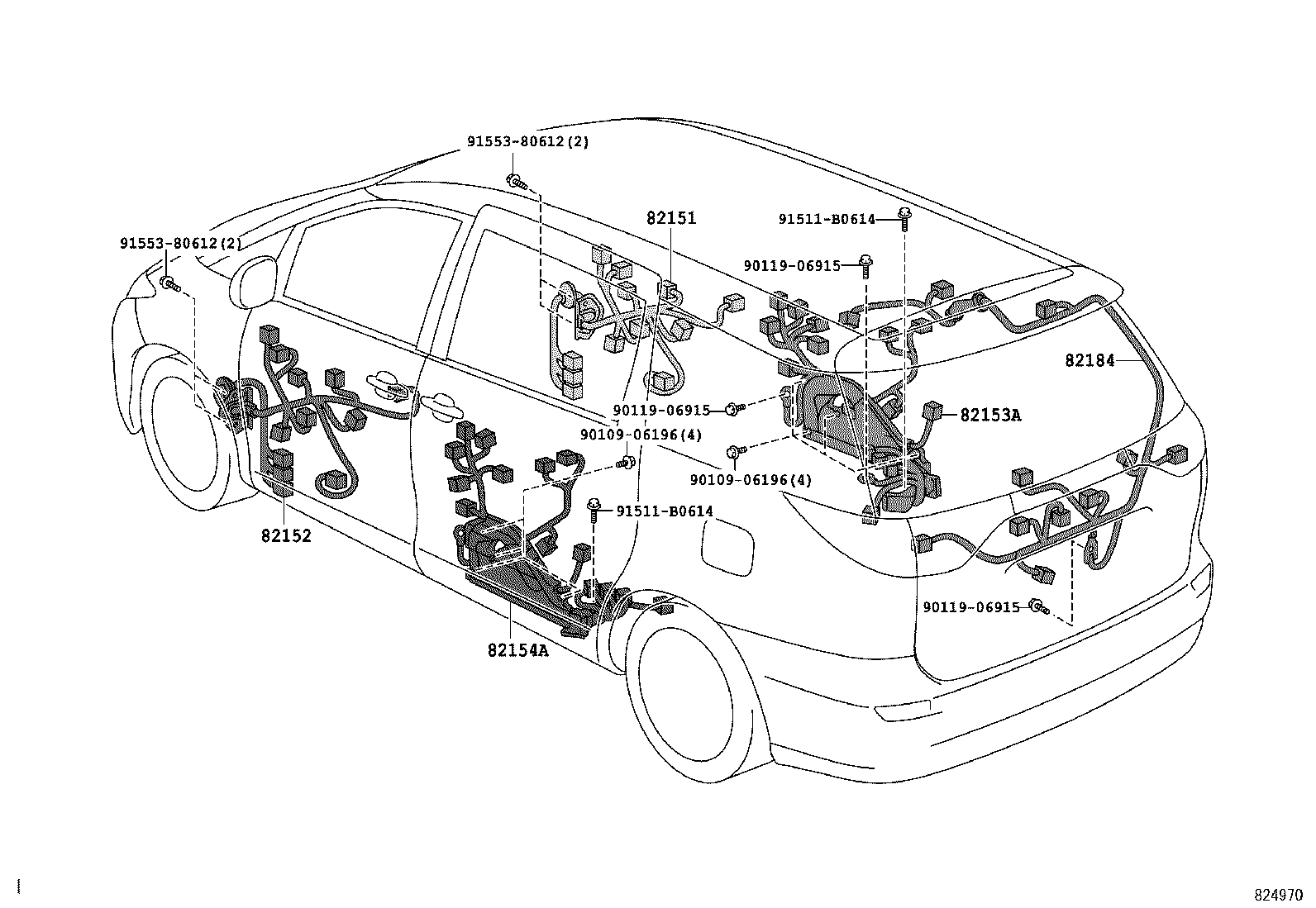

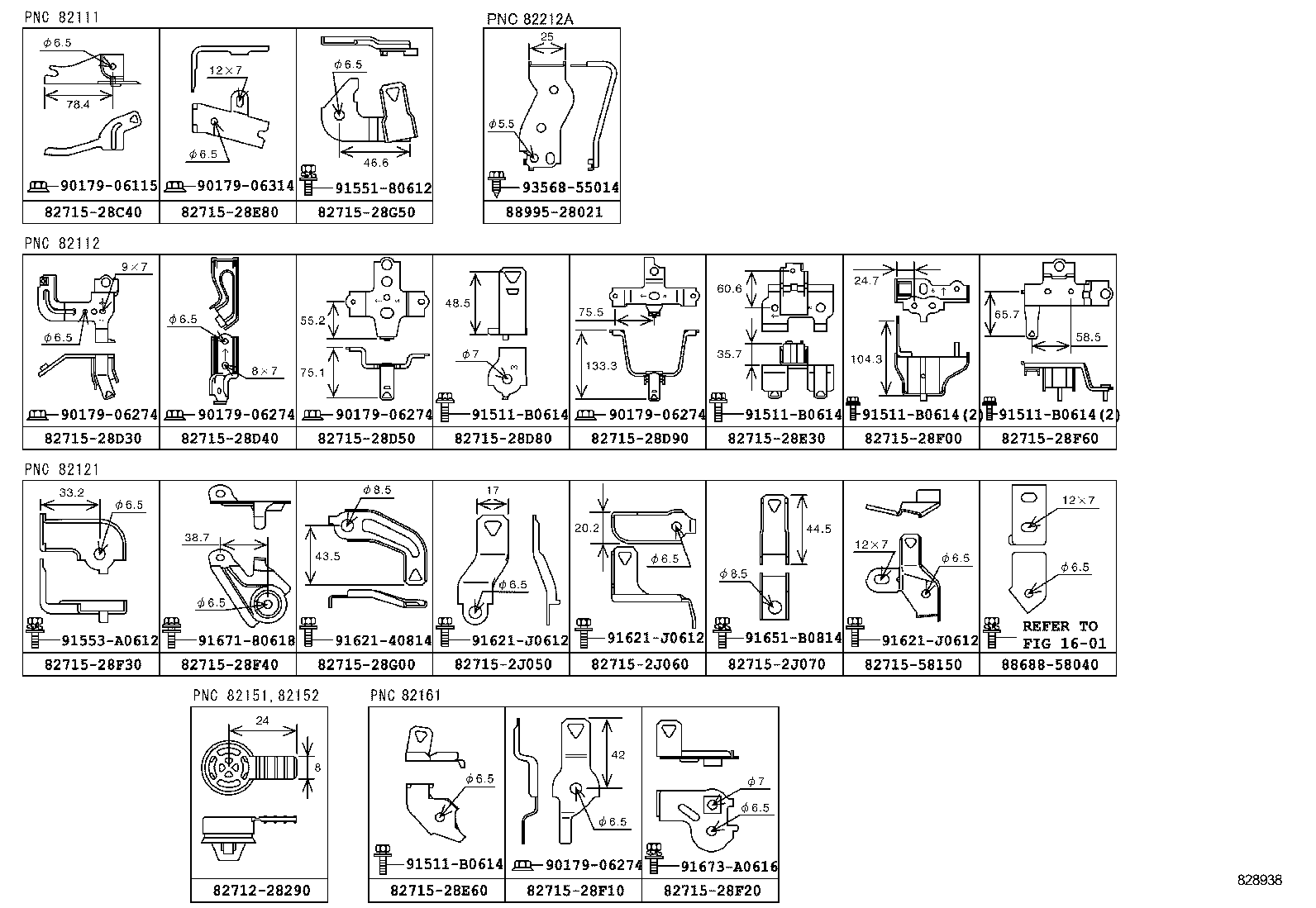

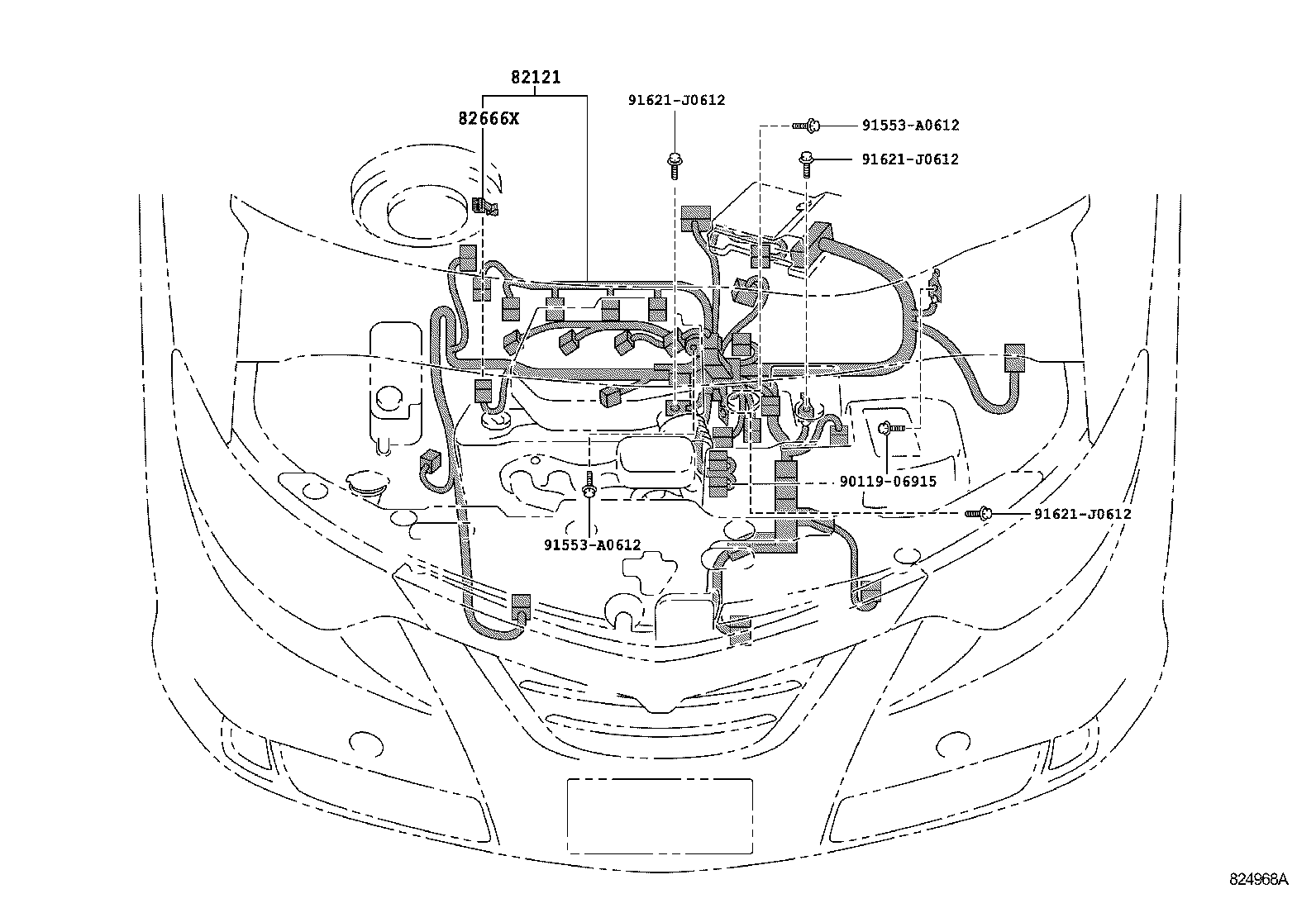

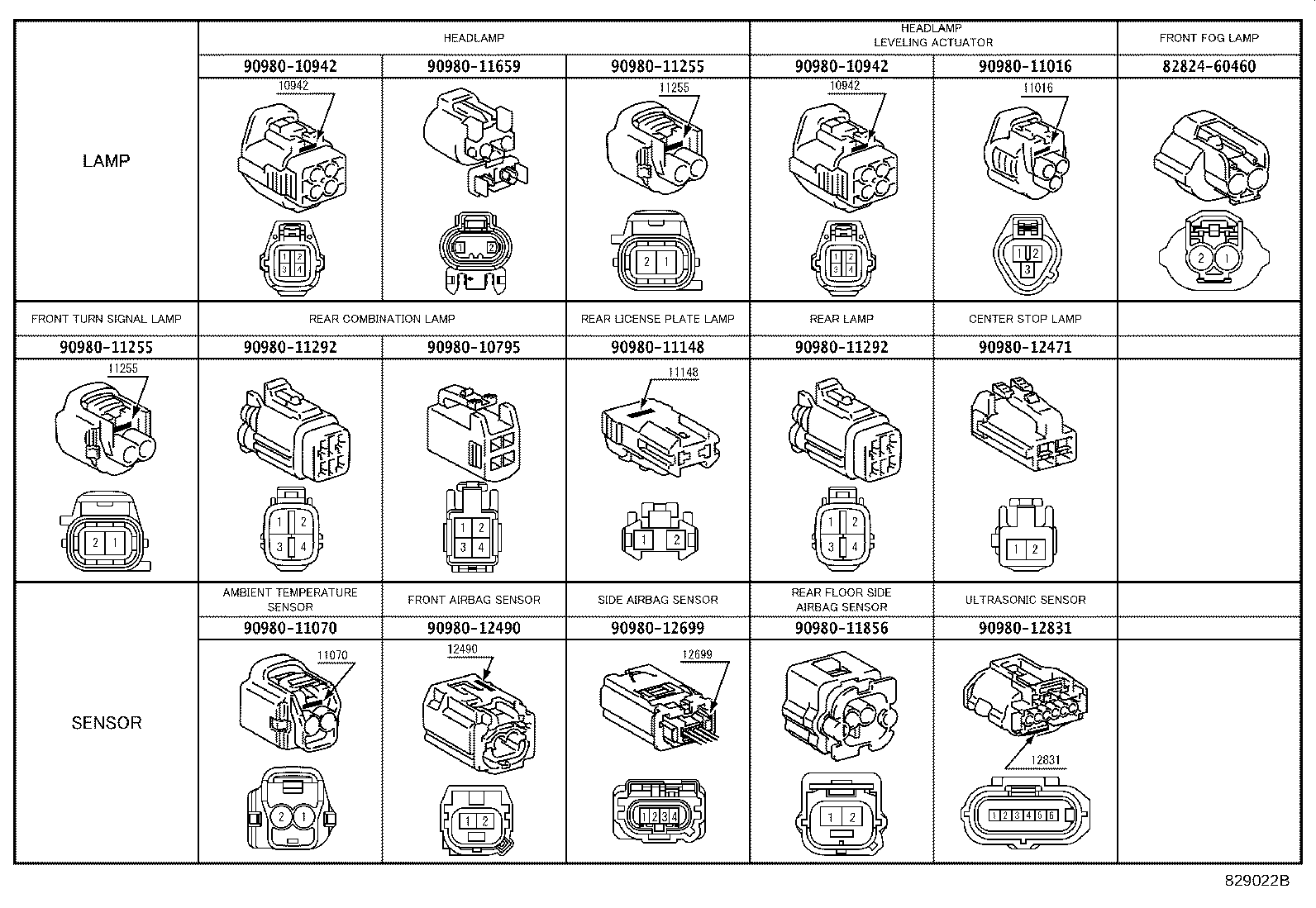

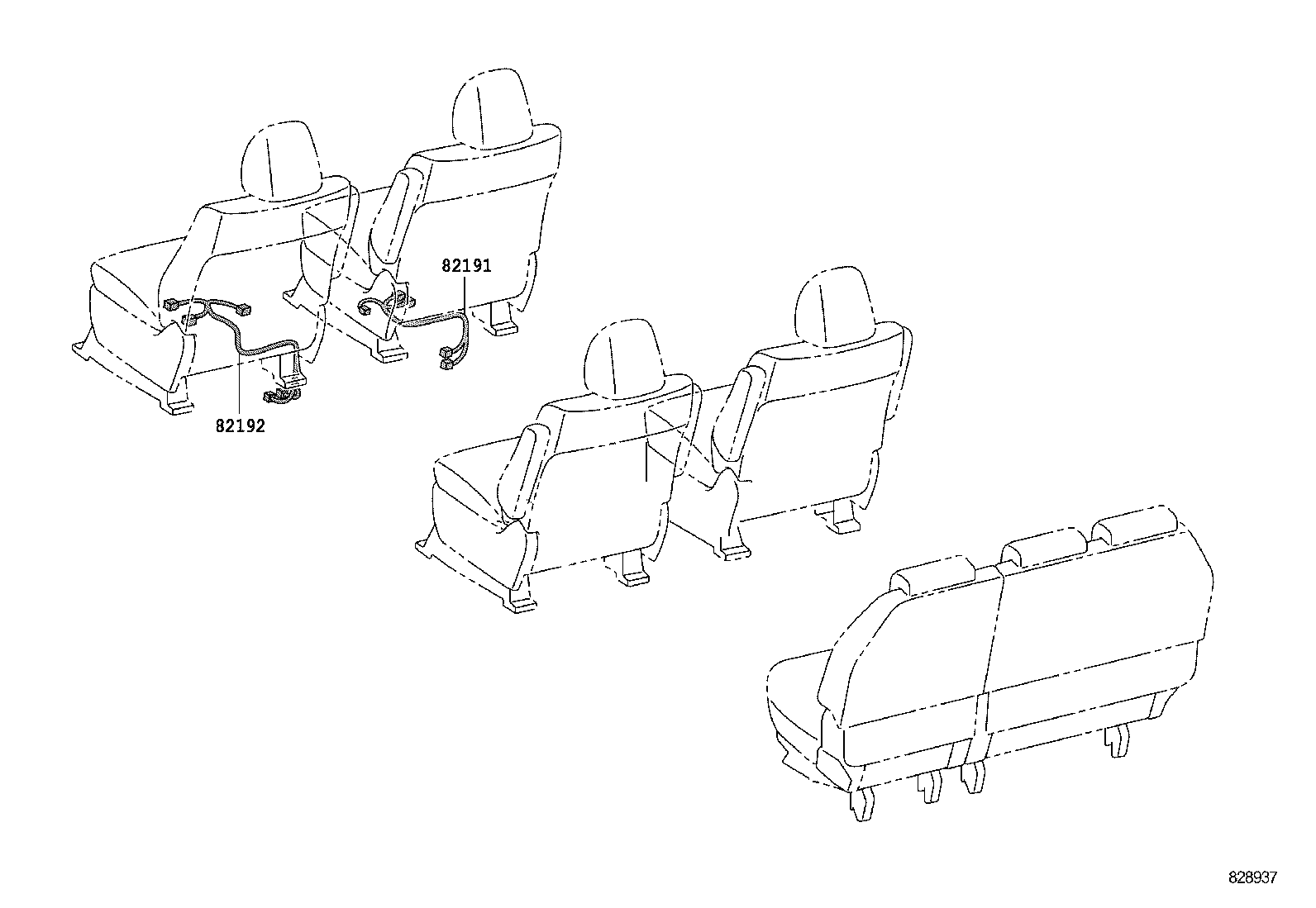

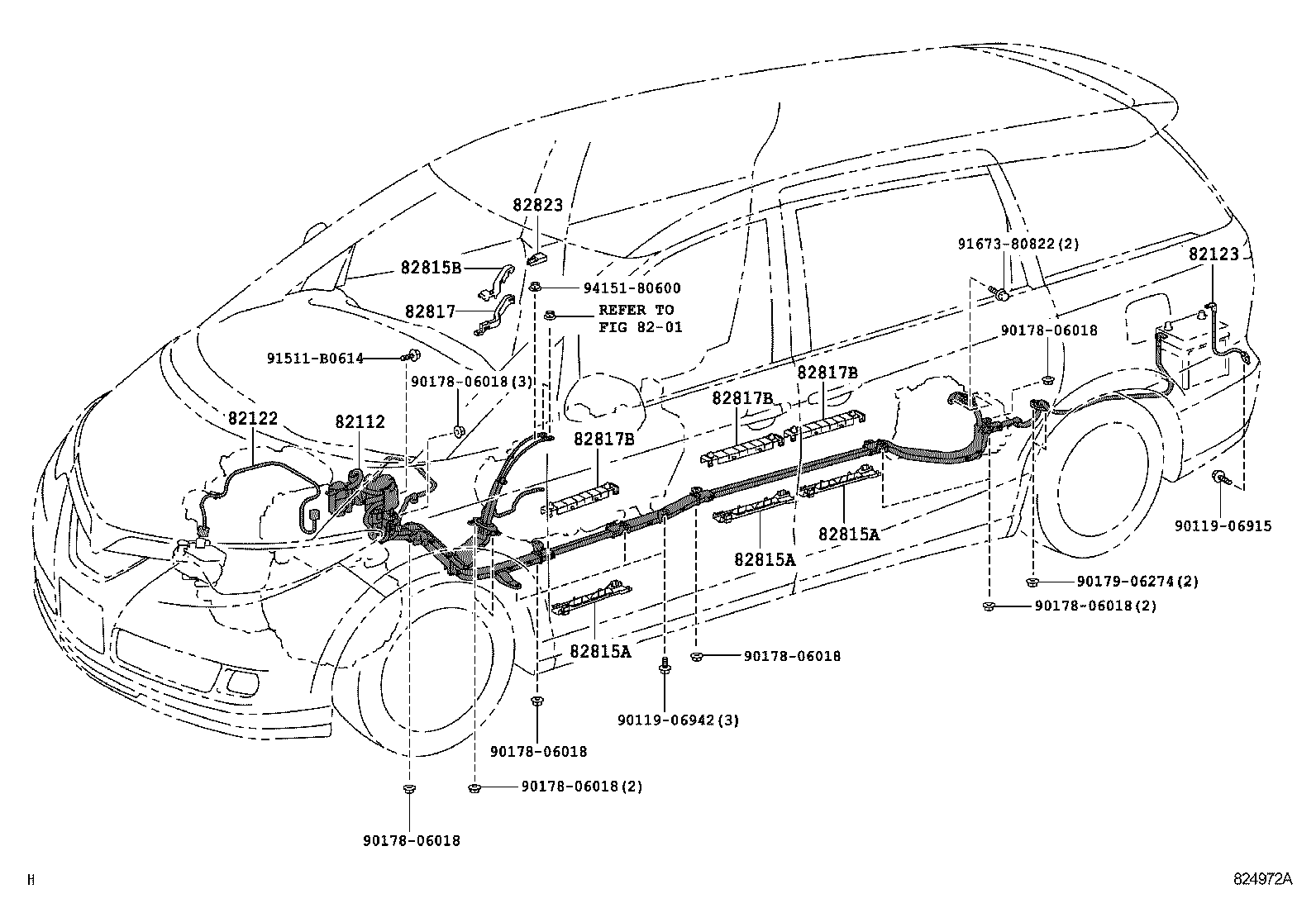

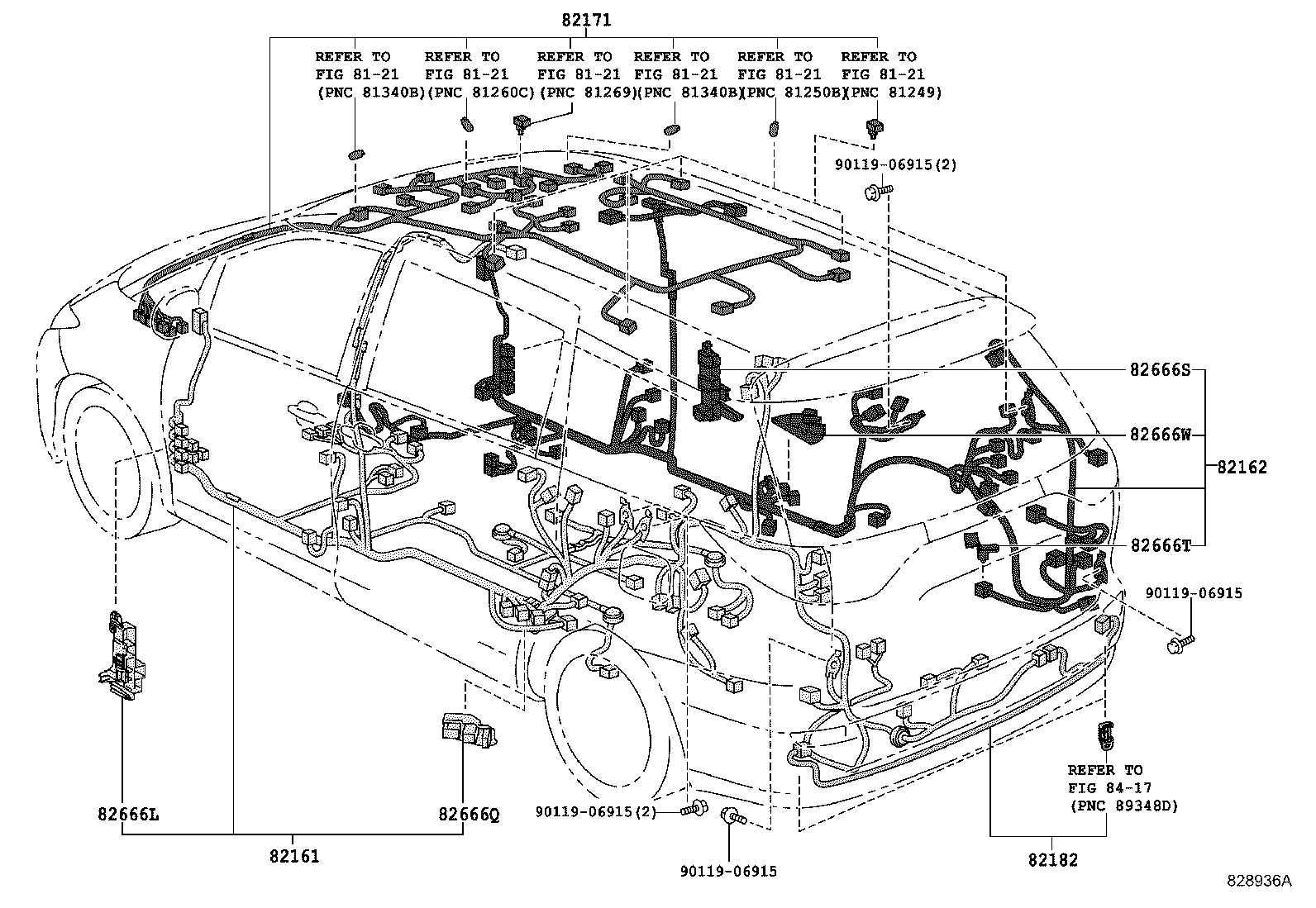

Figure 828934A 828934A 2013-04 → — Figure 824968A 824968A 2013-04 → — Figure 828935B 828935B 2013-04 → — Figure 824970 824970 2013-04 → — Figure 828936A 828936A 2013-04 → — Figure 824972A 824972A 2013-04 → — Figure 828937 828937 2013-04 → — Figure 828938 828938 2013-04 → — Figure 824975B 824975B 2013-04 → — Figure 829022B 829022B 2013-04 → — Figure 82F246 82F246 2013-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82212A Harness, Air Conditioner
82284 Wire, Earth
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Z Holder, Connector NO.19
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82821M Cover, Connector
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
