Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 5 illustrations

Illustrations

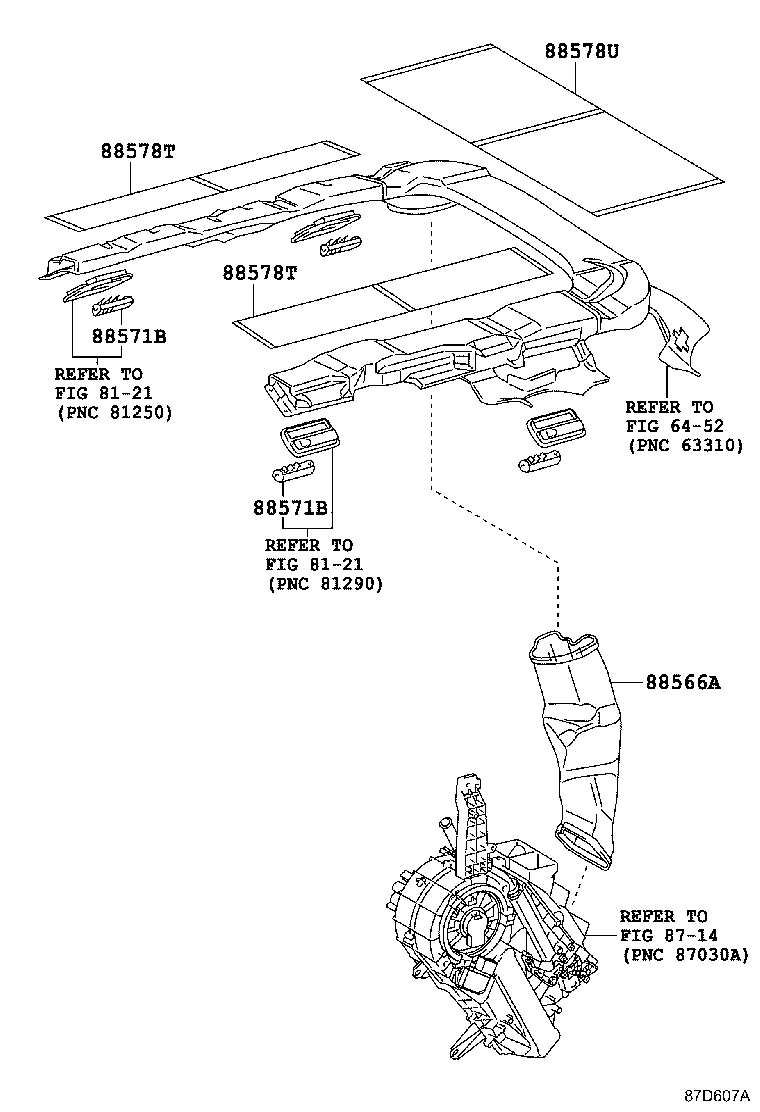

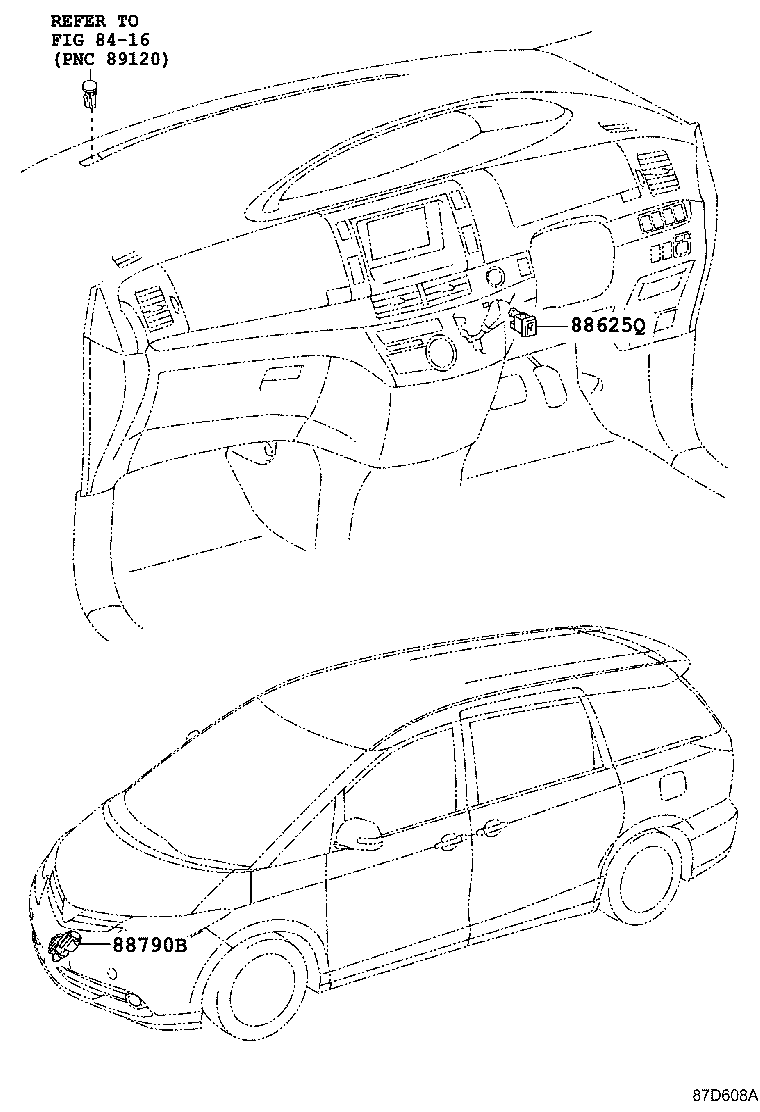

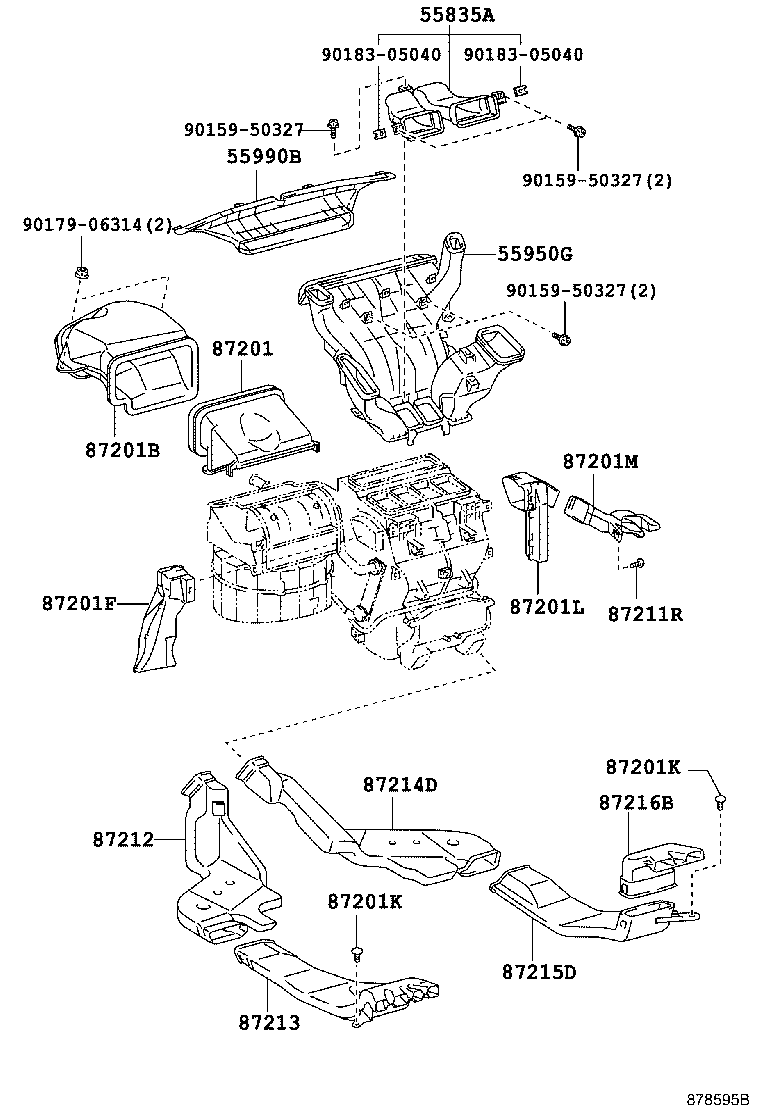

Figure 87D606A 87D606A 2013-04 → — Figure 87D609A 87D609A 2013-04 → — Figure 878595B 878595B 2013-04 → — Figure 87D607A 87D607A 2013-04 → — Figure 87D608A 87D608A 2013-04 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55900A Control & Accessory Assy, Heater
55902C Panel Sub-assy, Air Conditioner
55905J Knob Sub-assy, Control
55935A Circuit, Center Cluster Module
55941A Guide, Heater Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87201M Duct Sub-assy, Air, NO.5
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215D Duct, Air, Rear NO.4
87216B Duct, Air, Rear NO.4
88566A Duct, Cooler Air, NO.1
88571B Grille, Air Outlet
88578T Packing, Cooler, NO.1
88578U Packing, Cooler, NO.2
88601A Switch Sub-assy, Cooler Control
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
