Toyota Previa

2013-04 → 2016-05 · chassis AHR20 · catalogue 656250 · General

Supported model Data version 2016-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

Figure 87F772B

87F772B 2013-04 → —

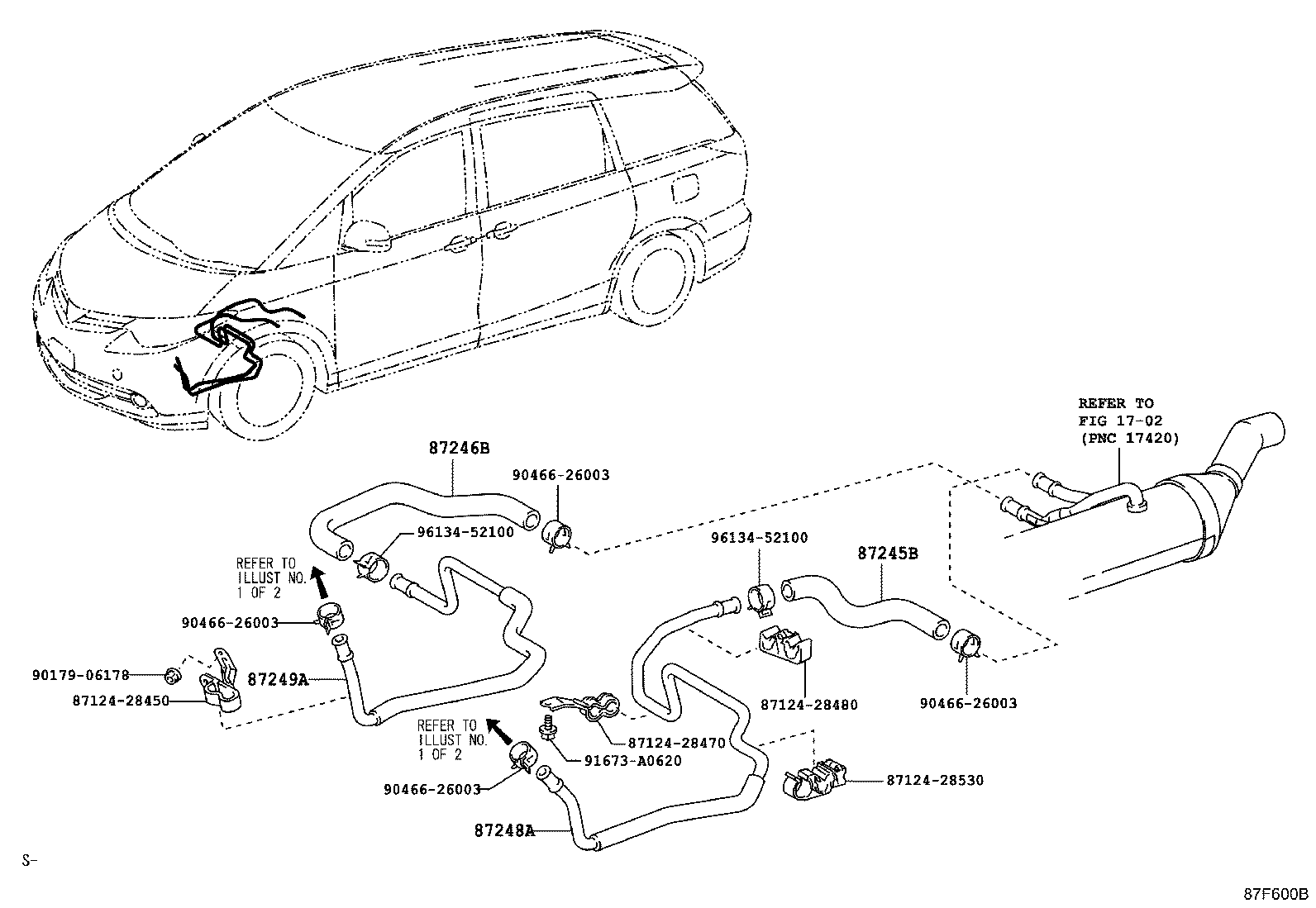

Figure 87F600B

87F600B 2013-04 → —

Part groups

PNC	Description
87200A	Pump Assy, Water(FOR HEATER)
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245L	Hose, Heater Water, L
87246	Hose, Heater Water, Outlet
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
