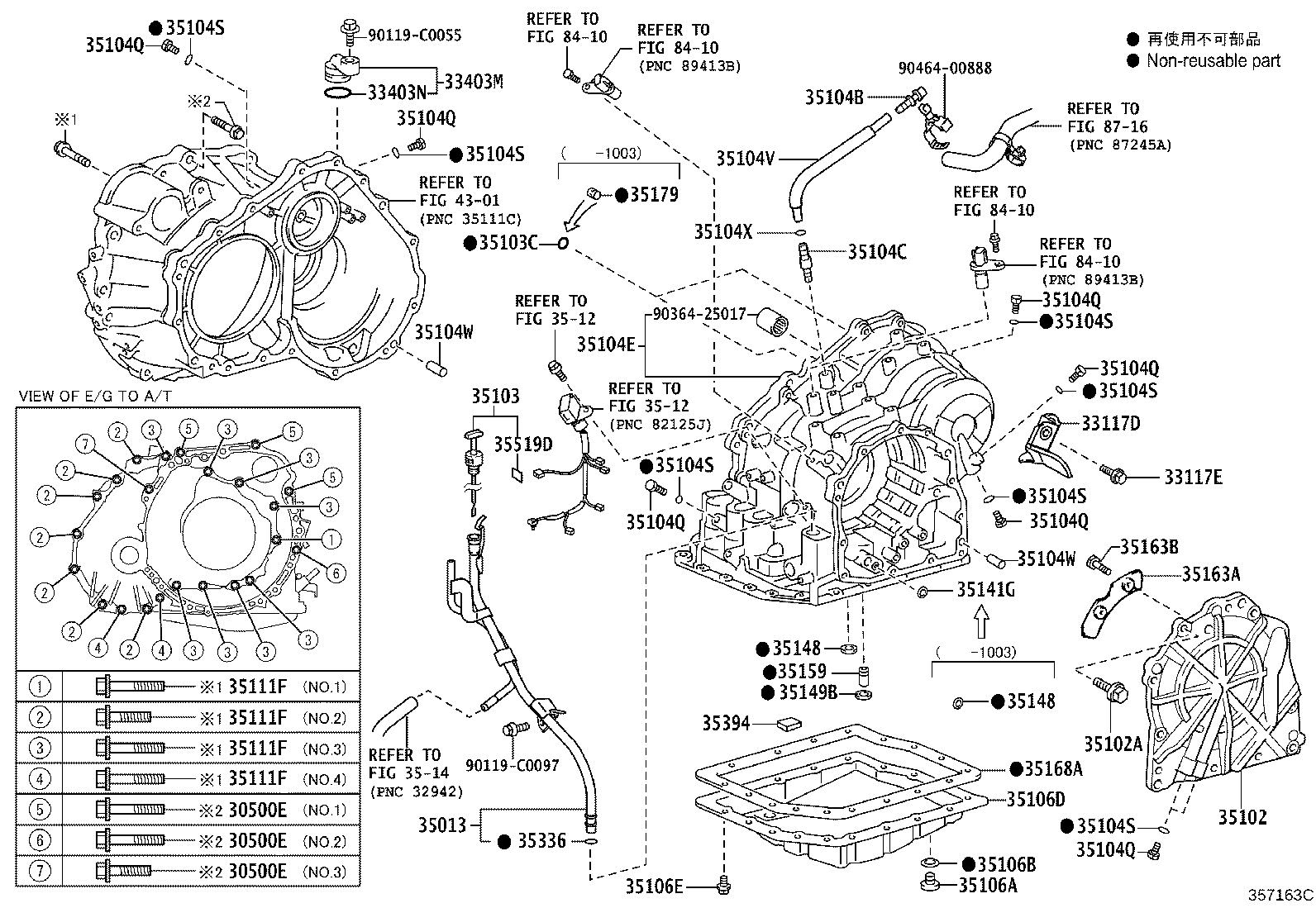

Exploded illustration 357163C 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 33403M — COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) (6 parts) 33403N — RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) (4 parts) 35103 — GAGE SUB-ASSY, TRANSMISSION OIL LEVEL (4 parts) 35519D — LABEL, AUTOMATIC TRANSMISSION INFORMATION (2 parts) 90119C0055 — not listed in this catalogue 35104X — RING, O (FOR BREATHER PLUG) (2 parts) 35104V — HOSE (FOR BREATHER PLUG) (2 parts) 35104C — PLUG, BREATHER, NO.2 (ATM) (2 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (2 parts) 33117E — BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) (2 parts) 35163B — SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE) (2 parts) 35163A — PLATE, TRANSAXLE REAR COVER (2 parts) 35102 — COVER SUB-ASSY, TRANSAXLE REAR (4 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (2 parts) 33117D — PROTECTOR, AUTOMATIC TRANSMISSION CASE (4 parts) 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (2 parts) 35104E — CASE SUB-ASSY, AUTOMATIC TRANSAXLE (6 parts) 35106E — BOLT (FOR TRANSAXLE OIL PAN) (2 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (2 parts) 35106B — GASKET, DRAIN PLUG (ATM) (2 parts) 35106D — PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL (2 parts) 35168A — GASKET, AUTOMATIC TRANSAXLE OIL PAN (2 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (3 parts) 35159 — GASKET, BRAKE DRUM (2 parts) 35149B — GASKET, TRANSAXLE CASE 2ND BRAKE (2 parts) 9036425017 — not listed in this catalogue 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (2 parts) 4301 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 3512 — not listed in this catalogue 3512 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8716 — not listed in this catalogue 35336 — RING, O (FOR TRANSMISSION OIL FILLER TUBE) (2 parts) 35013 — TUBE SUB-ASSY, TRANSMISSION OIL FILLER (2 parts) 90119C0097 — not listed in this catalogue 3514 — not listed in this catalogue 9046400888 — not listed in this catalogue 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (2 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (2 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (2 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (3 parts) 35103C — RING, O (2 parts) 35179 — GASKET, OVERDRIVE BRAKE (1 parts)
357163C · 53 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
98 parts on this figure
Part number Description Fitment Price
30500E — Bolt(FOR TRANSAXLE & ENGINE SETTING)
90105-C0031 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-C0032 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90119-C0040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-C0031 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2011-08 → —
ACA3# 4FC —
90105-C0032 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2011-08 → —
ACA3# 4FC —
90119-C0040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2011-08 → —
ACA3# 4FC —
33117D — Protector, Automatic Transmission Case
33117-21010 Protector, Automatic Transmission Case
2009-03 → 2011-08 ended
ACA33 4FC —
33117-28020 Protector, Automatic Transmission Case
2009-03 → 2011-08 ended
ACA37 4FC —
33117-21010 Protector, Automatic Transmission Case
2011-08 → —
ACA32,33 4FC —
33117-28020 Protector, Automatic Transmission Case
2011-08 → —
ACA37 4FC —
33117E — Bolt(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-C0006 Bolt(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-C0006 Bolt(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
2011-08 → —
ACA3# 4FC —
33403M — Cover Sub-assy, Speedometer Driven Hole (ATM)
33403-06010 note Cover Sub-assy, Speedometer Driven Hole (ATM)
2009-03 → 2011-08 ended
ACA37 4FC —
33403-20230 note Cover Sub-assy, Speedometer Driven Hole (ATM)
2009-03 → 2011-08 ended
ACA37 4FC —
33403-21020 Cover Sub-assy, Speedometer Driven Hole (ATM)
2009-03 → 2011-08 ended
ACA33 4FC —
33403-06010 note Cover Sub-assy, Speedometer Driven Hole (ATM)
2011-08 → —
ACA37 4FC —
33403-20230 note Cover Sub-assy, Speedometer Driven Hole (ATM)
2011-08 → —
ACA37 4FC —
33403-21020 Cover Sub-assy, Speedometer Driven Hole (ATM)
2011-08 → —
ACA32,33 4FC —
33403N — Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24018 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2009-03 → 2011-08 ended
ACA37 4FC —
96711-24020 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2009-03 → 2011-08 ended
ACA33 4FC —
96711-24018 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2011-08 → —
ACA37 4FC —
96711-24020 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2011-08 → —
ACA32,33 4FC —
35013 — Tube Sub-assy, Transmission Oil Filler
35013-42100 Tube Sub-assy, Transmission Oil Filler
2009-03 → 2011-08 ended
ACA3# 4FC —
35013-42100 Tube Sub-assy, Transmission Oil Filler
2011-08 → —
ACA3# 4FC —
35102 — Cover Sub-assy, Transaxle Rear
35102-42010 Cover Sub-assy, Transaxle Rear
2009-03 → 2011-08 ended
ACA33 4FC —
35102-42020 Cover Sub-assy, Transaxle Rear
2009-03 → 2011-08 ended
ACA37 4FC —
35102-42010 Cover Sub-assy, Transaxle Rear
2011-08 → —
ACA32,33 4FC —
35102-42020 Cover Sub-assy, Transaxle Rear
2011-08 → —
ACA37 4FC —
35102A — Bolt (FOR TRANSAXLE REAR COVER SETTING)
90105-08071 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-08071 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
2011-08 → —
ACA3# 4FC —
35103 — Gage Sub-assy, Transmission Oil Level
35103-42110 Gage Sub-assy, Transmission Oil Level
2009-03 → 2011-08 ended
ACA33 4FC —
35103-42120 Gage Sub-assy, Transmission Oil Level
2009-03 → 2011-08 ended
ACA37 4FC —
35103-42110 Gage Sub-assy, Transmission Oil Level
2011-08 → —
ACA32,33 4FC —
35103-42120 Gage Sub-assy, Transmission Oil Level
2011-08 → —
ACA37 4FC —
35103C — Ring, O
90301-06008 Ring, O
2010-03 → 2011-08 ended
ACA3# 4FC —
90301-06008 Ring, O
2011-08 → 2013-07 ended
ACA3# 4FC —
35104B — Plug, Breather, NO.1 (ATM)
90930-03149 Plug, Breather, NO.1 (ATM)
2009-03 → 2011-08 ended
ACA3# 4FC —
90930-03149 Plug, Breather, NO.1 (ATM)
2011-08 → —
ACA3# 4FC —
35104C — Plug, Breather, NO.2 (ATM)
90930-03157 Plug, Breather, NO.2 (ATM)
2009-03 → 2011-08 ended
ACA3# 4FC —
90930-03157 Plug, Breather, NO.2 (ATM)
2011-08 → —
ACA3# 4FC —
35104E — Case Sub-assy, Automatic Transaxle
35104-28082 Case Sub-assy, Automatic Transaxle
2009-03 → 2010-03 ended
ACA33 4FC —
35104-28083 Case Sub-assy, Automatic Transaxle
2010-03 → 2011-08 ended
ACA33 4FC —
35104-28092 Case Sub-assy, Automatic Transaxle
2009-03 → 2010-03 ended
ACA37 4FC —
35104-28093 Case Sub-assy, Automatic Transaxle
2010-03 → 2011-08 ended
ACA37 4FC —
35104-28083 Case Sub-assy, Automatic Transaxle
2011-08 → —
ACA32,33 4FC —
35104-28093 Case Sub-assy, Automatic Transaxle
2011-08 → —
ACA37 4FC —
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2009-03 → 2011-08 ended
ACA3# 4FC —
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2011-08 → —
ACA3# 4FC —
35104S — Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2009-03 → 2011-08 ended
ACA3# 4FC —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2011-08 → 2013-07 ended
ACA3# 4FC —
35104V — Hose (FOR BREATHER PLUG)
35121-21020 Hose (FOR BREATHER PLUG)
2009-03 → 2011-08 ended
ACA3# 4FC —
35121-21020 Hose (FOR BREATHER PLUG)
2011-08 → —
ACA3# 4FC —
35104W — Pin, Straight (FOR TRANSAXLE CASE)
90250-10034 Pin, Straight (FOR TRANSAXLE CASE)
2009-03 → 2011-08 ended
ACA3# 4FC —
90250-10034 Pin, Straight (FOR TRANSAXLE CASE)
2011-08 → —
ACA3# 4FC —
35104X — Ring, O (FOR BREATHER PLUG)
90301-06005 Ring, O (FOR BREATHER PLUG)
2009-03 → 2011-08 ended
ACA3# 4FC —
90301-06005 Ring, O (FOR BREATHER PLUG)
2011-08 → 2013-07 ended
ACA3# 4FC —
35106A — Plug Sub-assy, Drain (ATM)
90341-18016 Plug Sub-assy, Drain (ATM)
2009-03 → 2011-08 ended
ACA3# 4FC —
90341-18016 Plug Sub-assy, Drain (ATM)
2011-08 → —
ACA3# 4FC —
35106B — Gasket, Drain Plug (ATM)
90430-18008 Gasket, Drain Plug (ATM)
2009-03 → 2011-08 ended
ACA3# 4FC —
90430-18008 Gasket, Drain Plug (ATM)
2011-08 → —
ACA3# 4FC —
35106D — Pan Sub-assy, Automatic Transaxle Oil
35106-28090 Pan Sub-assy, Automatic Transaxle Oil
2009-03 → 2011-08 ended
ACA3# 4FC —
35106-28090 Pan Sub-assy, Automatic Transaxle Oil
2011-08 → —
ACA3# 4FC —
35106E — Bolt (FOR TRANSAXLE OIL PAN)
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
2009-03 → 2011-08 ended
ACA3# 4FC —
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
2011-08 → —
ACA3# 4FC —
35111F — Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-06320 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-08066 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA3# 4FC —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA37 4FC —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA33 4FC —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA33 4FC —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-03 → 2011-08 ended
ACA37 4FC —
90105-06320 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA3# 4FC —
90105-08066 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA3# 4FC —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA37 4FC —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA32,33 4FC —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA32,33 4FC —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2011-08 → —
ACA37 4FC —
35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-10189 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2010-03 → 2011-08 ended
ACA3# 4FC —
90301-10189 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2011-08 → 2013-07 ended
ACA3# 4FC —
35148 — Gasket, Governor Apply, NO.1
35145-21010 Gasket, Governor Apply, NO.1
2009-03 → 2010-03 ended
ACA3# 4FC —
35145-21010 Gasket, Governor Apply, NO.1
2010-03 → 2011-08 ended
ACA3# 4FC —
35145-21010 Gasket, Governor Apply, NO.1
2011-08 → —
ACA3# 4FC —
35149B — Gasket, Transaxle Case 2ND Brake
35149-21010 Gasket, Transaxle Case 2ND Brake
2009-03 → 2011-08 ended
ACA3# 4FC —
35149-21010 Gasket, Transaxle Case 2ND Brake
2011-08 → —
ACA3# 4FC —
35159 — Gasket, Brake Drum
35159-21010 Gasket, Brake Drum
2009-03 → 2011-08 ended
ACA3# 4FC —
35159-21010 Gasket, Brake Drum
2011-08 → —
ACA3# 4FC —
35163A — Plate, Transaxle Rear Cover
35163-28010 Plate, Transaxle Rear Cover
2009-03 → 2011-08 ended
ACA3# 4FC —
35163-28010 Plate, Transaxle Rear Cover
2011-08 → —
ACA3# 4FC —
35163B — Screw, Hex Lobular(FOR TRANSAXLE REAR COVER PLATE)
90148-60055 Screw, Hex Lobular(FOR TRANSAXLE REAR COVER PLATE)
2009-03 → 2011-08 ended
ACA3# 4FC —
90148-60055 Screw, Hex Lobular(FOR TRANSAXLE REAR COVER PLATE)
2011-08 → —
ACA3# 4FC —
35168A — Gasket, Automatic Transaxle Oil Pan
35168-21011 Gasket, Automatic Transaxle Oil Pan
2009-03 → 2011-08 ended
ACA3# 4FC —
35168-21011 Gasket, Automatic Transaxle Oil Pan
2011-08 → —
ACA3# 4FC —
35179 — Gasket, Overdrive Brake
35179-32010 Gasket, Overdrive Brake
2009-03 → 2010-03 ended
ACA3# 4FC —
35336 — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2009-03 → 2011-08 ended
ACA3# 4FC —
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2011-08 → —
ACA3# 4FC —
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2009-03 → 2011-08 ended
ACA3# 4FC —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2011-08 → —
ACA3# 4FC —
35519D — Label, Automatic Transmission Information
35519-28041 Label, Automatic Transmission Information
2009-03 → 2011-08 ended
ACA3# 4FC —
35519-28041 Label, Automatic Transmission Information
2011-08 → —
ACA3# 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
