Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

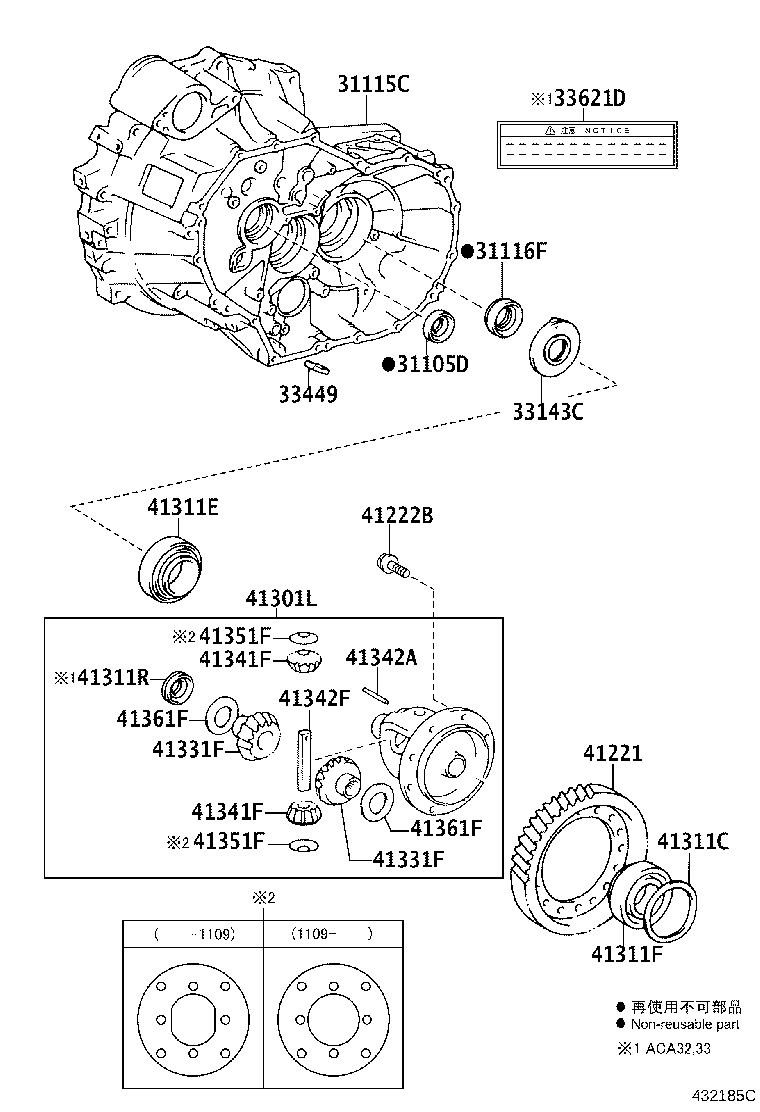

Exploded illustration 432185C 31115C — CASE, FRONT TRANSAXLE(MTM) (4 parts) 41341F — PINION, FRONT DIFFERENTIAL (5 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (8 parts) 31116F — SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER) (5 parts) 41311E — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) (6 parts) 33449 — MAGNET, TRANSMISSION (2 parts) 31105D — SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) (2 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (5 parts) 41301L — CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 (4 parts) 41222B — BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) (2 parts) 41342F — SHAFT, FRONT DIFFERENTIAL PINION, NO.1 (6 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (18 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (8 parts) 41341F — PINION, FRONT DIFFERENTIAL (5 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (18 parts) 41221 — GEAR, FRONT DIFFERENTIAL RING (7 parts) 41311C — SHIM (FOR FRONT DIFFERENTIAL CASE REAR) (162 parts) 41311F — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) (6 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (5 parts) 41342A — PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) (2 parts) 33143C — BAFFLE, FRONT DIFFERENTIAL OIL (2 parts) 41311R — SEAL, OIL (FOR FRONT DIFFERENTIAL CASE) (2 parts) 33621D — LABEL, TRANSAXLE OIL INFORMATION (4 parts)
432185C · 23 callouts Full size ↗
252 parts on this figure
Part number Description Fitment Price
31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30017 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2009-03 → 2011-08 ended
ACA3# 5F —
90311-30017 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2011-08 → —
ACA3# 5F —
31115C — Case, Front Transaxle(MTM)
31115-20072 Case, Front Transaxle(MTM)
2009-03 → 2011-08 ended
ACA37 5F —
31115-42041 Case, Front Transaxle(MTM)
2009-03 → 2011-08 ended
ACA33 5F —
31115-20072 Case, Front Transaxle(MTM)
2011-08 → —
ACA37 5F —
31115-42041 Case, Front Transaxle(MTM)
2011-08 → —
ACA32,33 5F —
31116F — Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
90311-40030 Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
2009-03 → 2011-02 ended
ACA37 5F —
90311-40036 Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
2011-02 → 2011-08 ended
ACA37 5F —
90311-55004 Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
2009-03 → 2011-08 ended
ACA33 5F —
90311-40036 Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
2011-08 → —
ACA37 5F —
90311-55004 Seal, Oil(FOR FRONT TRANSAXLE CASE COVER)
2011-08 → —
ACA32,33 5F —
33143C — Baffle, Front Differential Oil
33143-28010 Baffle, Front Differential Oil
2009-03 → 2011-08 ended
ACA3# 5F —
33143-28010 Baffle, Front Differential Oil
2011-08 → —
ACA3# 5F —
33449 — Magnet, Transmission
33449-20010 Magnet, Transmission
2009-03 → 2011-08 ended
ACA3# 5F —
33449-20010 Magnet, Transmission
2011-08 → —
ACA3# 5F —
33621D — Label, Transaxle Oil Information
33621-42010 Label, Transaxle Oil Information
2009-03 → 2011-08 ended
ACA33 4FC —
33621-42020 Label, Transaxle Oil Information
2009-03 → 2011-08 ended
ACA33 5F —
33621-42010 Label, Transaxle Oil Information
2011-08 → —
ACA32,33 4FC —
33621-42020 Label, Transaxle Oil Information
2011-08 → —
ACA32,33 5F —
41221 — Gear, Front Differential Ring
41221-28120 Gear, Front Differential Ring
2009-03 → 2011-08 ended
ACA33 4FC —
41221-33170 Gear, Front Differential Ring
2009-03 → 2011-08 ended
ACA37 4FC —
41221-42090 Gear, Front Differential Ring
2009-03 → 2011-08 ended
ACA3# 5F —
41221-28120 Gear, Front Differential Ring
2011-08 → —
ACA33 4FC —
41221-33170 Gear, Front Differential Ring
2011-08 → —
ACA37 4FC —
41221-42060 Gear, Front Differential Ring
2011-08 → —
ACA32 4FC —
41221-42090 Gear, Front Differential Ring
2011-08 → —
ACA3# 5F —
41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2009-03 → 2011-08 ended
ACA3# 5F —
90105-12319 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2011-08 → —
ACA3# 5F —
41301L — Case Sub-assy, Front Differential, NO.1
41301-28070 Case Sub-assy, Front Differential, NO.1
2009-03 → 2011-08 ended
ACA37 5F —
41301-42100 Case Sub-assy, Front Differential, NO.1
2009-03 → 2011-08 ended
ACA33 5F —
41301-28070 Case Sub-assy, Front Differential, NO.1
2011-08 → —
ACA37 5F —
41301-42100 Case Sub-assy, Front Differential, NO.1
2011-08 → —
ACA32,33 5F —
41311C — Shim (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56055 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56056 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56057 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56058 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56059 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56060 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56061 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56062 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56063 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56064 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56065 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56066 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56067 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56068 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56069 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56070 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56071 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56072 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2010-10 ended
ACA3# 5F —
90564-56091 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56092 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56093 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56094 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56095 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56096 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56097 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56098 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56099 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56100 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56101 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56102 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56103 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56104 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56105 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56106 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56107 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-56108 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2010-10 → 2011-08 ended
ACA3# 5F —
90564-68006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68019 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68020 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68021 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68022 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68023 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-68024 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90564-79001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79090 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79091 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79092 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79093 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79094 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79095 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79096 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79097 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79098 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79099 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79100 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79101 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79102 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79103 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79104 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79105 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-79106 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90564-56091 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56092 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56093 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56094 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56095 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56096 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56097 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56098 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56099 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56100 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56101 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56102 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56103 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56104 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56105 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56106 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56107 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-56108 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90564-68006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68019 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68020 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68021 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68022 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68023 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-68024 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90564-79001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79090 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79091 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79092 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79093 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79094 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79095 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79096 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79097 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79098 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79099 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79100 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79101 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79102 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79103 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79104 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79105 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
90564-79106 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
90366-50075 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2009-03 → 2011-08 ended
ACA37 4FC —
90366-57001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2009-03 → 2011-08 ended
ACA3# 5F —
90366-62004 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2009-03 → 2011-08 ended
ACA33 4FC —
90366-50075 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2011-08 → —
ACA37 4FC —
90366-57001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2011-08 → —
ACA3# 5F —
90366-62004 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2011-08 → —
ACA32,33 4FC —
41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
90366-50072 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA3# 5F —
90366-50078 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA37 4FC —
90366-50106 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2009-03 → 2011-08 ended
ACA33 4FC —
90366-50072 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA3# 5F —
90366-50078 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA37 4FC —
90366-50106 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2011-08 → —
ACA32,33 4FC —
41311R — Seal, Oil (FOR FRONT DIFFERENTIAL CASE)
90316-34001 Seal, Oil (FOR FRONT DIFFERENTIAL CASE)
2009-03 → 2011-08 ended
ACA33 —
90316-34001 Seal, Oil (FOR FRONT DIFFERENTIAL CASE)
2011-08 → —
ACA32,33 —
41331F — Gear, Front Differential Side
41331-12140 Gear, Front Differential Side
2009-03 → 2011-08 ended
ACA3# 5F —
41331-48050 Gear, Front Differential Side
2009-03 → 2011-08 ended
ACA33 4FC —
41331-12140 Gear, Front Differential Side
2011-08 → —
ACA3# 5F —
41331-48050 Gear, Front Differential Side
2013-02 → —
ACA32,33 4FC —
41331-48070 Gear, Front Differential Side
2011-08 → 2013-02 ended
ACA32,33 4FC —
41341F — Pinion, Front Differential
41341-12090 Pinion, Front Differential
2009-03 → 2011-08 ended
ACA3# 5F —
41341-48040 Pinion, Front Differential
2009-03 → 2011-08 ended
ACA33 4FC —
41341-12090 Pinion, Front Differential
2011-08 → —
ACA3# 5F —
41341-48040 Pinion, Front Differential
2013-02 → —
ACA32,33 4FC —
41341-48060 Pinion, Front Differential
2011-08 → 2013-02 ended
ACA32,33 4FC —
41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2009-03 → 2011-08 ended
ACA3# —
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2011-08 → —
ACA3# —
41342F — Shaft, Front Differential Pinion, NO.1
41342-28010 Shaft, Front Differential Pinion, NO.1
2009-03 → 2011-08 ended
ACA3# 5F —
41342-28020 Shaft, Front Differential Pinion, NO.1
2009-03 → 2011-08 ended
ACA33 4FC —
41342-28030 Shaft, Front Differential Pinion, NO.1
2009-03 → 2011-08 ended
ACA37 4FC —
41342-28010 Shaft, Front Differential Pinion, NO.1
2011-08 → —
ACA3# 5F —
41342-28020 Shaft, Front Differential Pinion, NO.1
2011-08 → —
ACA32,33 4FC —
41342-28030 Shaft, Front Differential Pinion, NO.1
2011-08 → —
ACA37 4FC —
41351F — Washer, Front Differential Pinion Thrust
41351-28010 Washer, Front Differential Pinion Thrust
2009-03 → 2011-08 ended
ACA37 4FC —
41351-28010 Washer, Front Differential Pinion Thrust
2010-01 → 2011-08 ended
ACA3# 5F —
41351-30060 Washer, Front Differential Pinion Thrust
2009-03 → 2010-01 ended
ACA3# 5F —
41351-33011 Washer, Front Differential Pinion Thrust
2009-03 → 2011-08 ended
ACA33 4FC —
41351-28010 Washer, Front Differential Pinion Thrust
2011-08 → 2011-09 ended
ACA3# 5F —
41351-28010 Washer, Front Differential Pinion Thrust
2011-08 → —
ACA37 4FC —
41351-30060 Washer, Front Differential Pinion Thrust
2011-09 → —
ACA3# 5F —
41351-33011 Washer, Front Differential Pinion Thrust
2011-08 → —
ACA32,33 4FC —
41361F — Washer, Front Differential Side Gear Thrust, NO.1
41361-28230 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
41361-28240 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
41361-28250 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
41361-28260 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
41361-33010 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA33 4FC —
41362-33080 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA33 4FC —
41363-33010 note Washer, Front Differential Side Gear Thrust, NO.1
2009-03 → 2011-08 ended
ACA33 4FC —
41361-28230 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA37 4FC —
41361-28230 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA3# 5F —
41361-28240 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA37 4FC —
41361-28240 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA3# 5F —
41361-28250 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA37 4FC —
41361-28250 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA3# 5F —
41361-28260 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA37 4FC —
41361-28260 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA3# 5F —
41361-33010 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA32,33 4FC —
41362-33080 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA32,33 4FC —
41363-33010 note Washer, Front Differential Side Gear Thrust, NO.1
2011-08 → —
ACA32,33 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
