Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

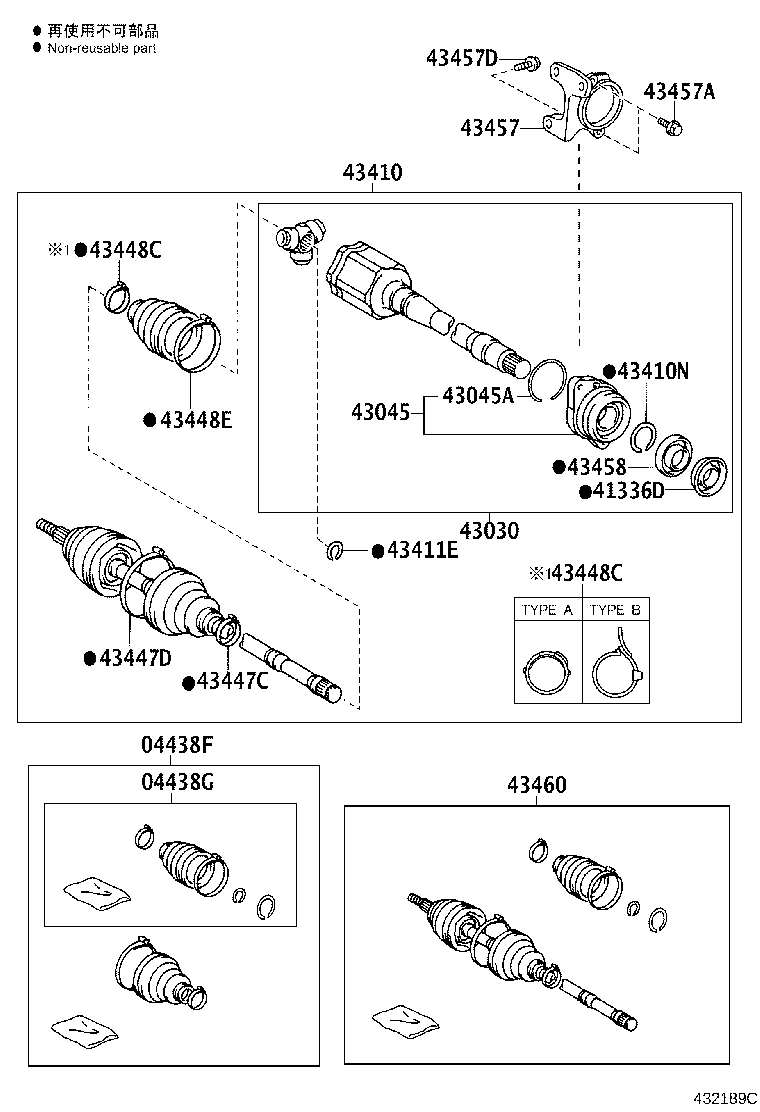

Exploded illustration 432189C 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (8 parts) 43045 — CASE SUB ASSY, DRIVE SHAFT BEARING (3 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (8 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (3 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (4 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (2 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (8 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (8 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (10 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (4 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43045A — RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) (1 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts)
432189C · 19 callouts Full size ↗
81 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-0R050 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-03 → 2011-08 ended
ACA37 5F —
04427-0R060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-03 → 2011-08 ended
ACA37 4FC —
04427-0R070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-03 → 2011-08 ended
ACA33 5F —
04427-0R080 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-03 → 2011-08 ended
ACA33 4FC —
04427-0R050 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2011-08 → 2013-03 ended
ACA37 5F —
04427-0R051 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-03 → —
ACA37 5F —
04427-0R060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2011-08 → —
ACA37 4FC —
04427-0R070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2011-08 → 2013-03 ended
ACA32,33 5F —
04427-0R071 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-03 → —
ACA32,33 5F —
04427-0R080 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2011-08 → —
ACA32,33 4FC —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-0R050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-03 → 2011-08 ended
ACA37 —
04437-0R060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-03 → 2011-08 ended
ACA33 —
04437-0R050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2011-08 → —
ACA37 —
04437-0R060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2011-08 → —
ACA32,33 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12020 Cover, Front Drive Shaft Dust, RH
2009-03 → 2011-08 ended
ACA37 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2009-03 → 2011-08 ended
ACA33 —
41336-12020 Cover, Front Drive Shaft Dust, RH
2011-08 → —
ACA37 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2011-08 → —
ACA32,33 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-0R010 Joint Assy, Front Drive Inboard, RH
2009-03 → 2011-08 ended
ACA37 —
43030-0R020 Joint Assy, Front Drive Inboard, RH
2009-03 → 2011-08 ended
ACA33 5F —
43030-0R030 Joint Assy, Front Drive Inboard, RH
2009-03 → 2011-08 ended
ACA33 4FC —
43030-0R010 Joint Assy, Front Drive Inboard, RH
2011-08 → 2012-12 ended
ACA37 —
43030-0R020 Joint Assy, Front Drive Inboard, RH
2011-08 → —
ACA32,33 5F —
43030-0R030 Joint Assy, Front Drive Inboard, RH
2011-08 → 2012-09 ended
ACA32,33 4FC —
43030-0R110 Joint Assy, Front Drive Inboard, RH
2012-12 → —
ACA37 —
43030-0R120 Joint Assy, Front Drive Inboard, RH
2012-09 → —
ACA32,33 4FC —
43045 — Case Sub Assy, Drive Shaft Bearing
43045-64020 Case Sub Assy, Drive Shaft Bearing
2009-03 → 2011-08 ended
ACA37 —
43045-0R010 Case Sub Assy, Drive Shaft Bearing
2012-12 → —
ACA37 —
43045-64020 Case Sub Assy, Drive Shaft Bearing
2011-08 → 2012-12 ended
ACA37 —
43045A — Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
90520-69002 Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
2009-03 → 2011-08 ended
ACA37 —
43410 — Shaft Assy, Front Drive, RH
43410-0R050 Shaft Assy, Front Drive, RH
2009-03 → 2011-08 ended
ACA37 5F —
43410-0R060 Shaft Assy, Front Drive, RH
2009-03 → 2011-08 ended
ACA37 4FC —
43410-0R070 Shaft Assy, Front Drive, RH
2009-03 → 2011-08 ended
ACA33 5F —
43410-0R080 Shaft Assy, Front Drive, RH
2009-03 → 2011-08 ended
ACA33 4FC —
43410-0R050 Shaft Assy, Front Drive, RH
2011-08 → 2013-07 ended
ACA37 5F —
43410-0R060 Shaft Assy, Front Drive, RH
2011-08 → 2013-07 ended
ACA37 4FC —
43410-0R070 Shaft Assy, Front Drive, RH
2011-08 → 2013-07 ended
ACA32,33 5F —
43410-0R080 Shaft Assy, Front Drive, RH
2011-08 → 2013-07 ended
ACA32,33 4FC —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-03 → 2011-08 ended
ACA33 —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-03 → 2011-08 ended
ACA37 —
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2011-08 → —
ACA32,33 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-03 → 2011-08 ended
ACA3# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2011-08 → —
ACA3# —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# 4FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# 5F —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-08 → —
ACA3# 4FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-08 → —
ACA3# 5F —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# 4FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# 5F —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-08 → —
ACA3# 4FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-08 → —
ACA3# 5F —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2011-08 → —
ACA3# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2011-08 → —
ACA3# —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-03 → 2011-08 ended
ACA3# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2011-08 → —
ACA3# —
43457 — Bracket, Drive Shaft Bearing
43457-42010 Bracket, Drive Shaft Bearing
2009-03 → 2011-08 ended
ACA37 5F —
43457-42050 Bracket, Drive Shaft Bearing
2009-03 → 2011-08 ended
ACA33 5F —
43457-42060 Bracket, Drive Shaft Bearing
2009-03 → 2011-08 ended
ACA33 4FC —
43457-42090 Bracket, Drive Shaft Bearing
2009-03 → 2011-08 ended
ACA37 4FC —
43457-42010 Bracket, Drive Shaft Bearing
2011-08 → —
ACA37 5F —
43457-42050 Bracket, Drive Shaft Bearing
2011-08 → —
ACA32,33 5F —
43457-42060 Bracket, Drive Shaft Bearing
2011-08 → —
ACA32,33 4FC —
43457-42090 Bracket, Drive Shaft Bearing
2011-08 → —
ACA37 4FC —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-C0124 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-03 → 2011-08 ended
ACA37 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-03 → 2011-08 ended
ACA33 —
90105-C0124 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2011-08 → —
ACA37 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2011-08 → —
ACA32,33 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-C0014 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2009-03 → 2011-08 ended
ACA3# —
90105-C0014 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2011-08 → —
ACA3# —
43458 — Cover, Front Drive Shaft Dust
43458-12010 Cover, Front Drive Shaft Dust
2009-03 → 2011-08 ended
ACA37 —
43458-12010 Cover, Front Drive Shaft Dust
2011-08 → —
ACA37 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43470-09X30 Shaft Assy, Front Drive Outboard Joint, RH
2009-03 → 2011-08 ended
ACA37 5F —
43470-09X40 Shaft Assy, Front Drive Outboard Joint, RH
2009-03 → 2011-08 ended
ACA37 4FC —
43470-09X50 Shaft Assy, Front Drive Outboard Joint, RH
2009-03 → 2011-08 ended
ACA33 5F —
43470-09X60 Shaft Assy, Front Drive Outboard Joint, RH
2009-03 → 2011-08 ended
ACA33 4FC —
43470-09X30 Shaft Assy, Front Drive Outboard Joint, RH
2011-08 → —
ACA37 5F —
43470-09X40 Shaft Assy, Front Drive Outboard Joint, RH
2011-08 → —
ACA37 4FC —
43470-09X50 Shaft Assy, Front Drive Outboard Joint, RH
2011-08 → —
ACA32,33 5F —
43470-09X60 Shaft Assy, Front Drive Outboard Joint, RH
2011-08 → —
ACA32,33 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
