Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

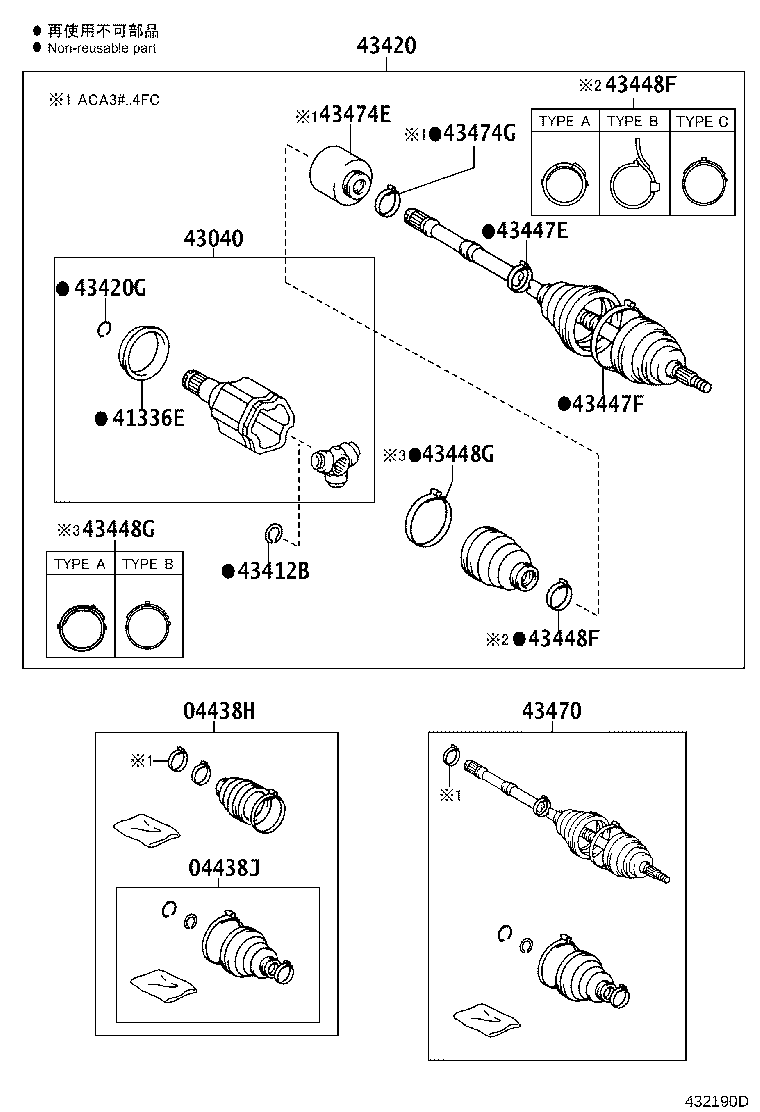

Exploded illustration 432190D 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (8 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (3 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (4 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (6 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (5 parts)
432190D · 16 callouts Full size ↗
61 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-0R030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-03 → 2011-08 ended
ACA3# 5F —
04428-0R040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-03 → 2011-08 ended
ACA3# 4FC —
04428-0R030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2011-08 → 2013-03 ended
ACA3# 5F —
04428-0R031 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-03 → —
ACA3# 5F —
04428-0R040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2011-08 → —
ACA3# 4FC —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-0R030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-03 → 2011-08 ended
ACA3# —
04438-0R030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2011-08 → —
ACA3# —
41336E — Cover, Front Drive Shaft Dust, LH
41336-28020 Cover, Front Drive Shaft Dust, LH
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
41336-28030 Cover, Front Drive Shaft Dust, LH
2009-03 → 2011-08 ended
ACA33 4FC —
41336-28020 Cover, Front Drive Shaft Dust, LH
2011-08 → 2012-12 ended
ACA37;ACA32,33 5F —
41336-28030 Cover, Front Drive Shaft Dust, LH
2011-08 → —
ACA32,33 4FC —
43040 — Joint Assy, Front Drive Inboard, LH
43040-0R010 Joint Assy, Front Drive Inboard, LH
2009-03 → 2011-08 ended
ACA37;ACA33 5F —
43040-0R020 Joint Assy, Front Drive Inboard, LH
2009-03 → 2011-08 ended
ACA33 4FC —
43040-06190 Joint Assy, Front Drive Inboard, LH
2012-12 → —
ACA3# 5F —
43040-06190 Joint Assy, Front Drive Inboard, LH
2012-12 → —
ACA37 4FC —
43040-06300 Joint Assy, Front Drive Inboard, LH
2012-09 → —
ACA32,33 4FC —
43040-0R010 Joint Assy, Front Drive Inboard, LH
2011-08 → 2012-12 ended
ACA3# 5F —
43040-0R010 Joint Assy, Front Drive Inboard, LH
2011-08 → 2012-12 ended
ACA37 4FC —
43040-0R020 Joint Assy, Front Drive Inboard, LH
2011-08 → 2012-09 ended
ACA32,33 4FC —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-03 → 2011-08 ended
ACA3# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2011-08 → —
ACA3# —
43420 — Shaft Assy, Front Drive, LH
43420-0R050 Shaft Assy, Front Drive, LH
2009-03 → 2011-08 ended
ACA3# 5F —
43420-0R060 Shaft Assy, Front Drive, LH
2009-03 → 2011-08 ended
ACA37 4FC —
43420-0R070 Shaft Assy, Front Drive, LH
2009-03 → 2011-08 ended
ACA33 4FC —
43420-0R050 Shaft Assy, Front Drive, LH
2011-08 → 2013-07 ended
ACA3# 5F —
43420-0R060 Shaft Assy, Front Drive, LH
2011-08 → 2013-07 ended
ACA37 4FC —
43420-0R070 Shaft Assy, Front Drive, LH
2011-08 → 2013-07 ended
ACA32,33 4FC —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-03 → 2011-08 ended
ACA3# —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2011-08 → 2012-12 ended
ACA37;ACA32,33 5F —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2011-08 → —
ACA32,33 4FC —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# 4FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# 5F —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-08 → —
ACA3# 4FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-08 → —
ACA3# 5F —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# 4FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# 5F —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-08 → —
ACA3# 4FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-08 → —
ACA3# 5F —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06410 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2010-10 ended
ACA37 4FC —
42345-06410 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-11 → 2010-10 ended
ACA3# 5F —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA33;ACA37 5F —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-10 → 2011-08 ended
ACA37 4FC —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2011-08 → —
ACA3# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2011-08 → —
ACA3# —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06400 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-11 → 2010-10 ended
ACA3# 5F —
42345-06400 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-07 → 2010-10 ended
ACA3# 4FC —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2011-08 ended
ACA3# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2011-08 → —
ACA3# —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09X70 Shaft Assy, Front Drive Outboard Joint, LH
2009-03 → 2011-08 ended
ACA3# 5F —
43470-09X80 Shaft Assy, Front Drive Outboard Joint, LH
2009-03 → 2011-08 ended
ACA37 4FC —
43470-09X90 Shaft Assy, Front Drive Outboard Joint, LH
2009-03 → 2011-08 ended
ACA33 4FC —
43470-09X70 Shaft Assy, Front Drive Outboard Joint, LH
2011-08 → —
ACA3# 5F —
43470-09X80 Shaft Assy, Front Drive Outboard Joint, LH
2011-08 → —
ACA37 4FC —
43470-09X90 Shaft Assy, Front Drive Outboard Joint, LH
2011-08 → —
ACA32,33 4FC —
43474E — Damper, Front Drive Shaft, LH
43474-0R010 Damper, Front Drive Shaft, LH
2009-03 → 2011-08 ended
ACA33 4FC —
43474-0R020 Damper, Front Drive Shaft, LH
2009-03 → 2011-08 ended
ACA37 4FC —
43474-0R010 Damper, Front Drive Shaft, LH
2011-08 → —
ACA32,33 4FC —
43474-0R020 Damper, Front Drive Shaft, LH
2011-08 → —
ACA37 4FC —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-03 → 2011-08 ended
ACA3# 4FC —
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2011-08 → —
ACA3# 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
