Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

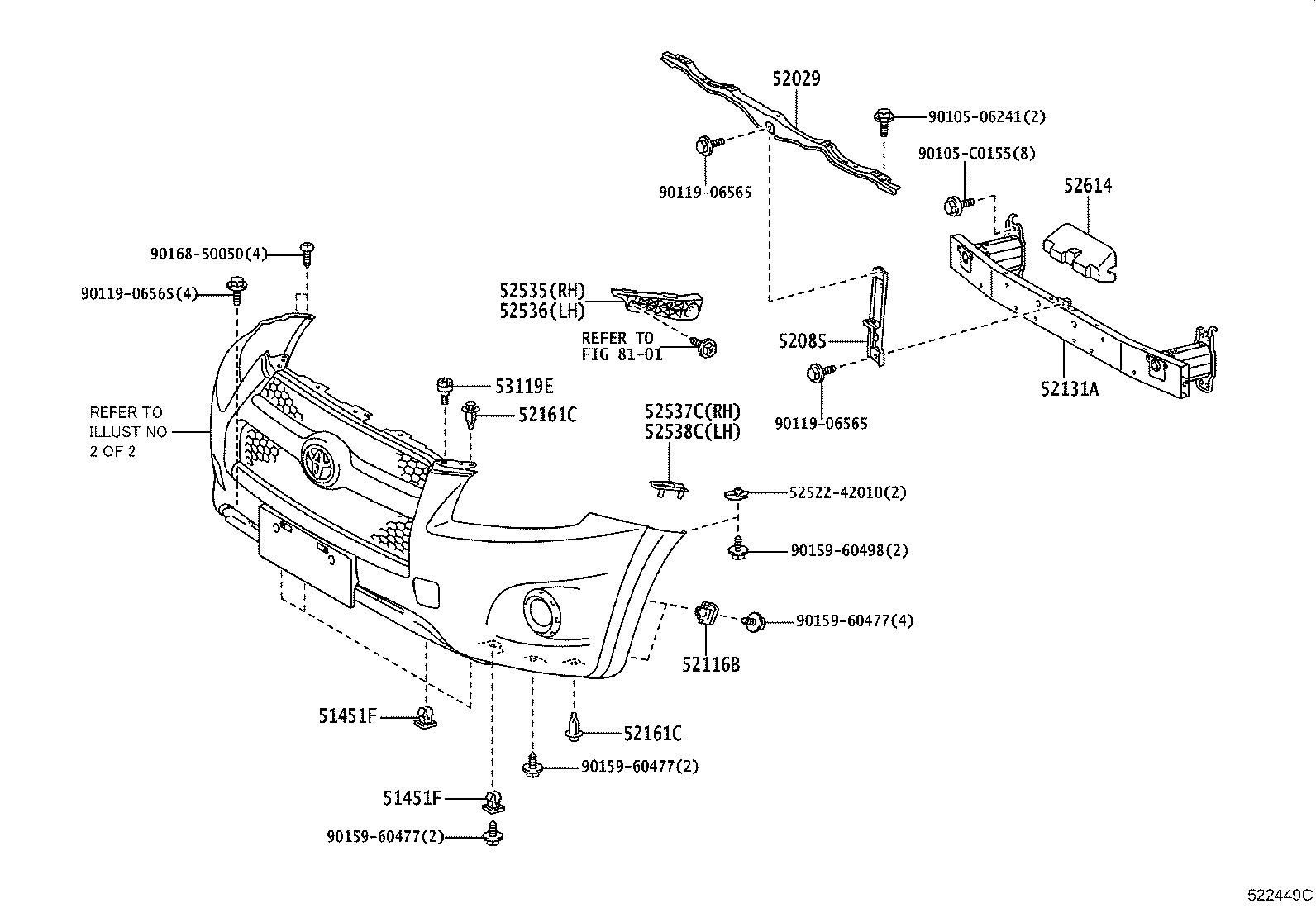

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51451F — Grommet, NO.1 | ||||
| 90189-06193 |
Grommet, NO.1
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 90189-06193 |
Grommet, NO.1
2011-08 → 2011-10
ended
|
ACA37 | — | |
| 90189-06193 |
Grommet, NO.1
2011-08 → 2011-10
ended
|
ACA32,33 | — | |
| 90189-06193 note |
Grommet, NO.1
2011-08 → 2011-10
ended
|
ACA37 | — | |
| 90189-06193 note |
Grommet, NO.1
2012-03 → 2013-03
ended
|
ACA33 | — | |
| 90189-06193 note |
Grommet, NO.1
2012-03 → 2013-03
ended
|
ACA32 | — | |
| 90189-C0006 note |
Grommet, NO.1
2011-10 → 2013-07
ended
|
ACA37 | — | |
| 90189-C0006 note |
Grommet, NO.1
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 90189-C0006 note |
Grommet, NO.1
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 90189-C0006 |
Grommet, NO.1
2011-10 → 2013-07
ended
|
ACA37 | — | |
| 90189-C0006 |
Grommet, NO.1
2011-10 → 2013-07
ended
|
ACA32,33 | — | |
| 90189-C0006 note |
Grommet, NO.1
2012-03 → 2013-03
ended
|
ACA32 | — | |
| 90189-C0006 note |
Grommet, NO.1
2012-03 → 2013-03
ended
|
ACA33 | — | |
| 52029 — Reinforcement Sub-assy, Front Bumper, Upper | ||||
| 52029-0R020 |
Reinforcement Sub-assy, Front Bumper, Upper
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52029-0R020 |
Reinforcement Sub-assy, Front Bumper, Upper
2011-08 → —
|
ACA3# | — | |
| 52085 — Stay Sub-assy, Front Bumper, Center | ||||
| 52085-0R010 |
Stay Sub-assy, Front Bumper, Center
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52085-0R010 |
Stay Sub-assy, Front Bumper, Center
2011-08 → —
|
ACA3# | — | |
| 52116B — Retainer, Front Bumper | ||||
| 52115-0R030 note |
Retainer, Front Bumper
2013-03 → —
|
ACA37 | — | |
| 52115-0R030 note |
Retainer, Front Bumper
2013-03 → —
|
ACA37 | — | |
| 52115-0R030 |
Retainer, Front Bumper
2011-08 → —
|
ACA32,33 | — | |
| 52115-0R030 note |
Retainer, Front Bumper
2011-08 → —
|
ACA37 | — | |
| 52131A — Reinforcement, Front Bumper | ||||
| 52021-0R030 |
Reinforcement, Front Bumper
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52021-0R030 |
Reinforcement, Front Bumper
2011-08 → —
|
ACA3# | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-02040 |
Piece, Front Bumper
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52161-02040 |
Piece, Front Bumper
2011-08 → —
|
ACA3# | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-0R020 |
Retainer, Front Bumper Side, RH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52535-0R020 |
Retainer, Front Bumper Side, RH
2011-08 → —
|
ACA3# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-0R020 |
Retainer, Front Bumper Side, LH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52536-0R020 |
Retainer, Front Bumper Side, LH
2011-08 → —
|
ACA3# | — | |
| 52537C — Retainer, Front Bumper Side, NO.2 RH | ||||
| 52537-0R020 note |
Retainer, Front Bumper Side, NO.2 RH
2011-08 → —
|
ACA37 | — | |
| 52537-0R020 note |
Retainer, Front Bumper Side, NO.2 RH
2013-03 → —
|
ACA37 | — | |
| 52537-0R020 note |
Retainer, Front Bumper Side, NO.2 RH
2013-03 → —
|
ACA37 | — | |
| 52537-0R020 |
Retainer, Front Bumper Side, NO.2 RH
2011-08 → —
|
ACA32,33 | — | |
| 52538C — Retainer, Front Bumper Side, NO.2 LH | ||||
| 52538-0R020 |
Retainer, Front Bumper Side, NO.2 LH
2011-08 → —
|
ACA32,33 | — | |
| 52538-0R020 note |
Retainer, Front Bumper Side, NO.2 LH
2011-08 → —
|
ACA37 | — | |
| 52538-0R020 note |
Retainer, Front Bumper Side, NO.2 LH
2013-03 → —
|
ACA37 | — | |
| 52538-0R020 note |
Retainer, Front Bumper Side, NO.2 LH
2013-03 → —
|
ACA37 | — | |
| 52614 — Absorber, Front Bumper Energy, NO.2 | ||||
| 52614-0R020 |
Absorber, Front Bumper Energy, NO.2
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52614-0R020 |
Absorber, Front Bumper Energy, NO.2
2011-08 → —
|
ACA3# | — | |
| 53119E — Protector, Radiator Grille | ||||
| 53119-20120 |
Protector, Radiator Grille
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53119-20120 |
Protector, Radiator Grille
2011-08 → —
|
ACA3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
