Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

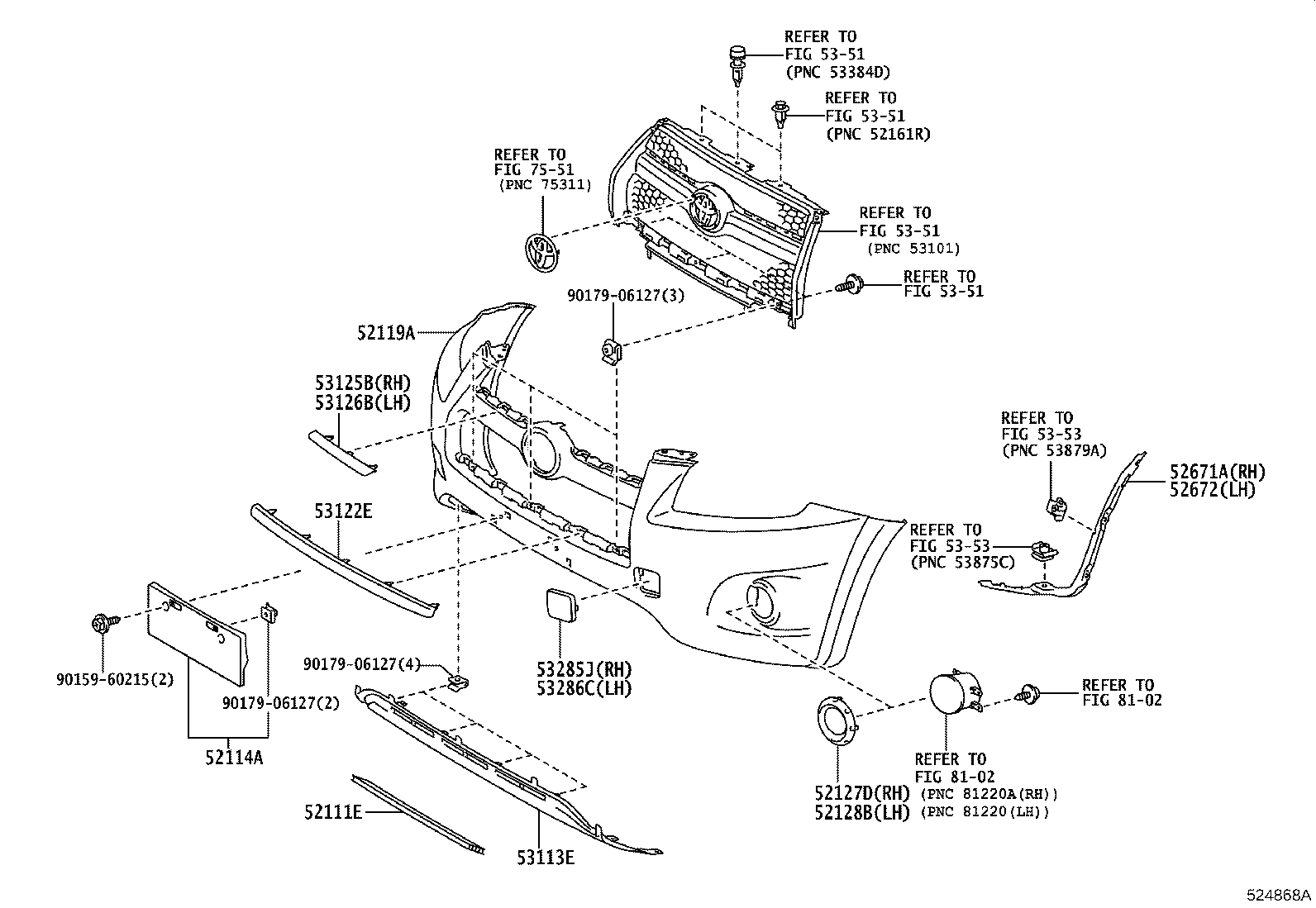

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52111E — Bar, Front Bumper | ||||
| 52111-0R020 note |
Bar, Front Bumper
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52111-0R020 note |
Bar, Front Bumper
2011-08 → 2013-07
ended
|
ACA37 | — | |
| 52111-0R040 note |
Bar, Front Bumper
2011-08 → 2013-07
ended
|
ACA32,33 | — | |
| 52111-0R040 note |
Bar, Front Bumper
2011-08 → 2013-07
ended
|
ACA37 | — | |
| 52111-0R040 note |
Bar, Front Bumper
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 52111-0R040 note |
Bar, Front Bumper
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-0R030 |
Bracket, Front Bumper Extension Mounting
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52114-0R030 |
Bracket, Front Bumper Extension Mounting
2011-08 → —
|
ACA37 | — | |
| 52114-0R050 |
Bracket, Front Bumper Extension Mounting
2011-08 → —
|
ACA32,33 | — | |
| 52114-0R050 note |
Bracket, Front Bumper Extension Mounting
2011-08 → —
|
ACA37 | — | |
| 52114-0R050 note |
Bracket, Front Bumper Extension Mounting
2013-03 → —
|
ACA37 | — | |
| 52114-0R050 note |
Bracket, Front Bumper Extension Mounting
2013-03 → —
|
ACA37 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-0R904 note |
Cover, Front Bumper
2009-03 → 2011-08
ended
|
ACA37 | — | |
| 52119-0R905 note |
Cover, Front Bumper
2009-03 → 2011-08
ended
|
ACA33 | — | |
| 52119-0R904 note |
Cover, Front Bumper
2011-08 → 2013-07
ended
|
ACA37 | — | |
| 52119-0R908 note |
Cover, Front Bumper
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 52119-0R908 note |
Cover, Front Bumper
2011-08 → 2013-07
ended
|
ACA32,33 | — | |
| 52119-0R909 note |
Cover, Front Bumper
2011-08 → 2013-07
ended
|
ACA33 | — | |
| 52119-0R909 note |
Cover, Front Bumper
2013-03 → 2013-07
ended
|
ACA33 | — | |
| 52119-0R909 note |
Cover, Front Bumper
2013-03 → 2013-07
ended
|
ACA37 | — | |
| 52119-0R909 note |
Cover, Front Bumper
2011-08 → 2013-07
ended
|
ACA37 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-0R040 |
Cover, Front Bumper Hole, RH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52127-0R040 |
Cover, Front Bumper Hole, RH
2011-08 → —
|
ACA37 | — | |
| 52127-0R060 note |
Cover, Front Bumper Hole, RH
2013-03 → —
|
ACA37 | — | |
| 52127-0R060 note |
Cover, Front Bumper Hole, RH
2013-03 → —
|
ACA37 | — | |
| 52127-0R060 note |
Cover, Front Bumper Hole, RH
2011-08 → —
|
ACA37 | — | |
| 52127-0R060 |
Cover, Front Bumper Hole, RH
2011-08 → —
|
ACA32,33 | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-0R040 |
Cover, Front Bumper Hole, LH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52128-0R040 |
Cover, Front Bumper Hole, LH
2011-08 → —
|
ACA37 | — | |
| 52128-0R060 |
Cover, Front Bumper Hole, LH
2011-08 → —
|
ACA32,33 | — | |
| 52128-0R060 note |
Cover, Front Bumper Hole, LH
2011-08 → —
|
ACA37 | — | |
| 52128-0R060 note |
Cover, Front Bumper Hole, LH
2013-03 → —
|
ACA37 | — | |
| 52128-0R060 note |
Cover, Front Bumper Hole, LH
2013-03 → —
|
ACA37 | — | |
| 52671A — Extension, Front Bumper Arm, RH | ||||
| 52671-0R030 |
Extension, Front Bumper Arm, RH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52671-0R030 |
Extension, Front Bumper Arm, RH
2011-08 → —
|
ACA37 | — | |
| 52671-0R040 note |
Extension, Front Bumper Arm, RH
2013-03 → —
|
ACA37 | — | |
| 52671-0R040 note |
Extension, Front Bumper Arm, RH
2013-03 → —
|
ACA37 | — | |
| 52671-0R040 |
Extension, Front Bumper Arm, RH
2011-08 → —
|
ACA32,33 | — | |
| 52671-0R040 note |
Extension, Front Bumper Arm, RH
2011-08 → —
|
ACA37 | — | |
| 52672 — Extension, Front Bumper Arm, LH | ||||
| 52672-0R030 |
Extension, Front Bumper Arm, LH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 52672-0R030 |
Extension, Front Bumper Arm, LH
2011-08 → —
|
ACA37 | — | |
| 52672-0R040 |
Extension, Front Bumper Arm, LH
2011-08 → —
|
ACA32,33 | — | |
| 52672-0R040 note |
Extension, Front Bumper Arm, LH
2011-08 → —
|
ACA37 | — | |
| 52672-0R040 note |
Extension, Front Bumper Arm, LH
2013-03 → —
|
ACA37 | — | |
| 52672-0R040 note |
Extension, Front Bumper Arm, LH
2013-03 → —
|
ACA37 | — | |
| 53113E — Grille, Radiator, Lower NO.2 | ||||
| 53113-0R020 |
Grille, Radiator, Lower NO.2
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53113-0R020 |
Grille, Radiator, Lower NO.2
2011-08 → —
|
ACA37 | — | |
| 53113-0R040 |
Grille, Radiator, Lower NO.2
2011-08 → —
|
ACA32,33 | — | |
| 53113-0R040 note |
Grille, Radiator, Lower NO.2
2011-08 → —
|
ACA37 | — | |
| 53113-0R040 note |
Grille, Radiator, Lower NO.2
2013-03 → —
|
ACA37 | — | |
| 53113-0R040 note |
Grille, Radiator, Lower NO.2
2013-03 → —
|
ACA37 | — | |
| 53113-0R050 note |
Grille, Radiator, Lower NO.2
2012-03 → 2013-03
ended
|
ACA32 | — | |
| 53113-0R050 note |
Grille, Radiator, Lower NO.2
2012-03 → 2013-03
ended
|
ACA33 | — | |
| 53122E — Moulding, Radiator Grille, Lower | ||||
| 53122-0R040 |
Moulding, Radiator Grille, Lower
2011-08 → —
|
ACA32,33 | — | |
| 53122-0R040 note |
Moulding, Radiator Grille, Lower
2011-08 → —
|
ACA37 | — | |
| 53122-0R040 note |
Moulding, Radiator Grille, Lower
2013-03 → —
|
ACA37 | — | |
| 53122-0R040 note |
Moulding, Radiator Grille, Lower
2013-03 → —
|
ACA37 | — | |
| 53125B — Moulding, Radiator Grille, Center RH | ||||
| 53125-0R040 |
Moulding, Radiator Grille, Center RH
2011-08 → —
|
ACA32,33 | — | |
| 53125-0R040 note |
Moulding, Radiator Grille, Center RH
2013-03 → —
|
ACA37 | — | |
| 53125-0R040 note |
Moulding, Radiator Grille, Center RH
2011-08 → —
|
ACA37 | — | |
| 53125-0R040 note |
Moulding, Radiator Grille, Center RH
2013-03 → —
|
ACA37 | — | |
| 53126B — Moulding, Radiator Grille, Center LH | ||||
| 53126-0R040 |
Moulding, Radiator Grille, Center LH
2011-08 → —
|
ACA32,33 | — | |
| 53126-0R040 note |
Moulding, Radiator Grille, Center LH
2011-08 → —
|
ACA37 | — | |
| 53126-0R040 note |
Moulding, Radiator Grille, Center LH
2013-03 → —
|
ACA37 | — | |
| 53126-0R040 note |
Moulding, Radiator Grille, Center LH
2013-03 → —
|
ACA37 | — | |
| 53285J — Cover, Front Bumper Arm Hole, RH | ||||
| 53285-0R906 |
Cover, Front Bumper Arm Hole, RH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53285-0R906 |
Cover, Front Bumper Arm Hole, RH
2011-08 → —
|
ACA37 | — | |
| 53285-0R907 note |
Cover, Front Bumper Arm Hole, RH
2011-08 → —
|
ACA37 | — | |
| 53285-0R907 note |
Cover, Front Bumper Arm Hole, RH
2013-03 → —
|
ACA37 | — | |
| 53285-0R907 note |
Cover, Front Bumper Arm Hole, RH
2013-03 → —
|
ACA37 | — | |
| 53285-0R907 |
Cover, Front Bumper Arm Hole, RH
2011-08 → —
|
ACA32,33 | — | |
| 53286C — Cover, Front Bumper Arm Hole, LH | ||||
| 53286-0R906 |
Cover, Front Bumper Arm Hole, LH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53286-0R906 |
Cover, Front Bumper Arm Hole, LH
2011-08 → —
|
ACA37 | — | |
| 53286-0R907 |
Cover, Front Bumper Arm Hole, LH
2011-08 → —
|
ACA32,33 | — | |
| 53286-0R907 note |
Cover, Front Bumper Arm Hole, LH
2011-08 → —
|
ACA37 | — | |
| 53286-0R907 note |
Cover, Front Bumper Arm Hole, LH
2013-03 → —
|
ACA37 | — | |
| 53286-0R907 note |
Cover, Front Bumper Arm Hole, LH
2013-03 → —
|
ACA37 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
