Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

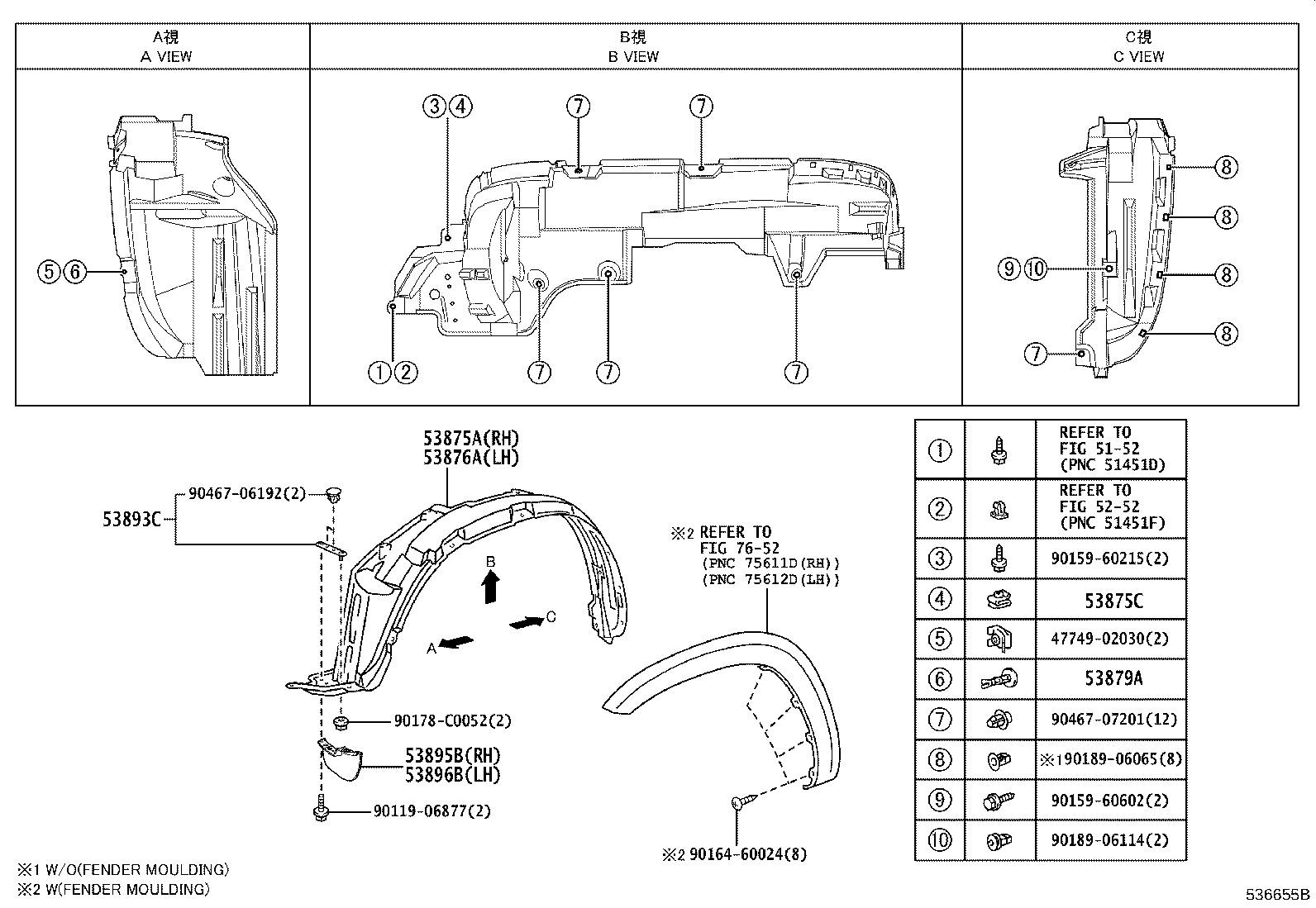

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53875A — Liner, Front Fender, RH | ||||
| 53875-0R030 |
Liner, Front Fender, RH
2009-03 → 2011-08
ended
|
ACA37 | — | |
| 53875-0R040 |
Liner, Front Fender, RH
2009-03 → 2011-08
ended
|
ACA33 | — | |
| 53875-0R030 |
Liner, Front Fender, RH
2011-08 → —
|
ACA37 | — | |
| 53875-0R040 |
Liner, Front Fender, RH
2011-08 → —
|
ACA32,33 | — | |
| 53875-0R040 note |
Liner, Front Fender, RH
2011-08 → —
|
ACA37 | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-05114 |
Clip, Front Fender Liner
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 90467-05114 |
Clip, Front Fender Liner
2011-08 → 2013-07
ended
|
ACA3# | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-0R030 |
Liner, Front Fender, LH
2009-03 → 2011-08
ended
|
ACA37 | — | |
| 53876-0R040 |
Liner, Front Fender, LH
2009-03 → 2011-08
ended
|
ACA33 | — | |
| 53876-0R030 |
Liner, Front Fender, LH
2011-08 → —
|
ACA37 | — | |
| 53876-0R040 |
Liner, Front Fender, LH
2011-08 → —
|
ACA32,33 | — | |
| 53876-0R040 note |
Liner, Front Fender, LH
2011-08 → —
|
ACA37 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-58010 |
Retainer, Front Fender Liner
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53879-02060 |
Retainer, Front Fender Liner
2011-10 → 2013-07
ended
|
ACA3# | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2011-08 → 2011-10
ended
|
ACA3# | — | |
| 53893C — Retainer, Front Fender Splash Shield, Front | ||||
| 53893-0R020 |
Retainer, Front Fender Splash Shield, Front
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53893-0R020 |
Retainer, Front Fender Splash Shield, Front
2011-08 → —
|
ACA3# | — | |
| 53895B — Shield, Front Fender Splash, Front RH | ||||
| 53895-0R020 |
Shield, Front Fender Splash, Front RH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53895-0R020 |
Shield, Front Fender Splash, Front RH
2011-08 → —
|
ACA3# | — | |
| 53896B — Shield, Front Fender Splash, Front LH | ||||
| 53896-0R020 |
Shield, Front Fender Splash, Front LH
2009-03 → 2011-08
ended
|
ACA3# | — | |
| 53896-0R020 |
Shield, Front Fender Splash, Front LH
2011-08 → —
|
ACA3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
