Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

26 part groups · 3 illustrations

Illustrations

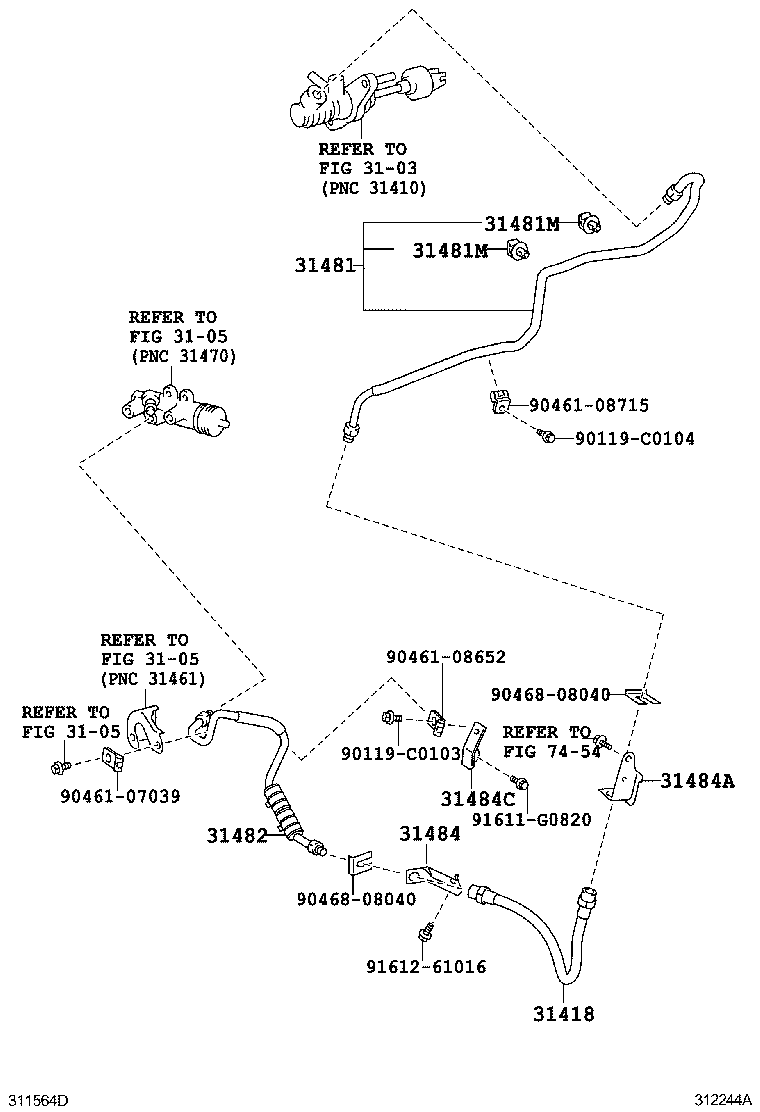

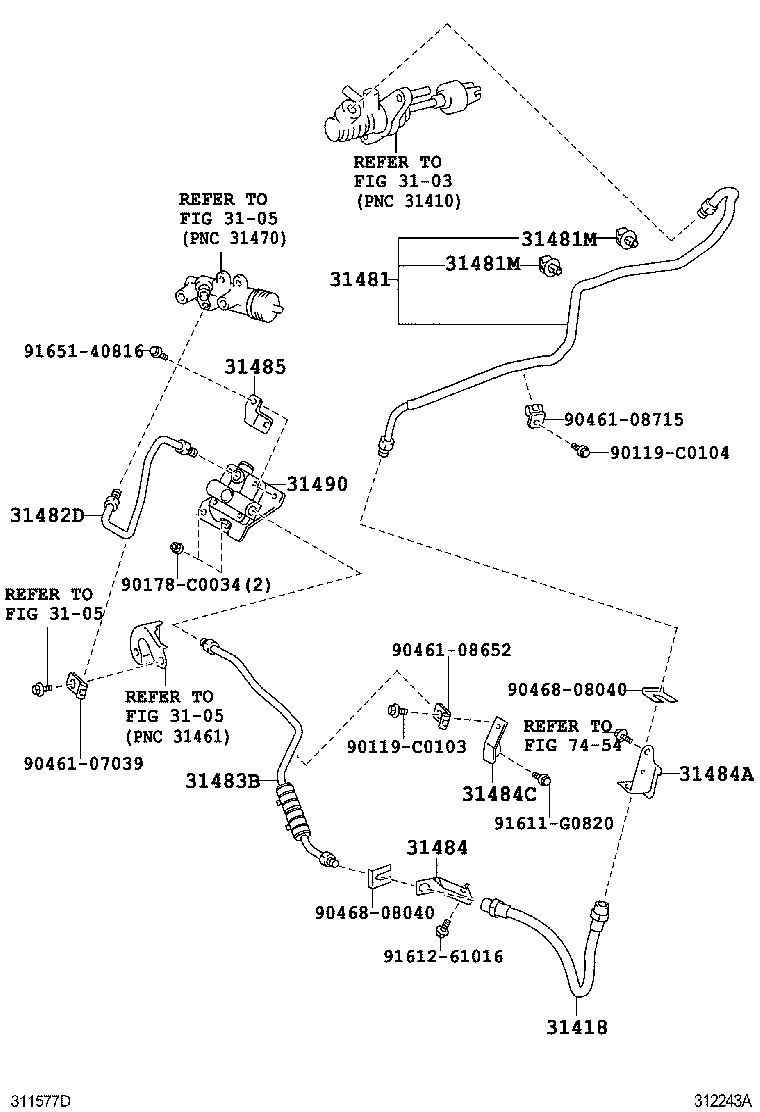

Figure 312242D 312242D 2009-03 → — Figure 312243A 312243A 2009-03 → — Figure 312244A 312244A 2009-03 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31321 Pad, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31394A Spring, Pedal W/Hook
31395A Hook, Pedal Spring, NO.1
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31483B Tube, Accumulator TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31490 Accumulator Assy, Clutch
55105D Bracket Sub-assy, Clutch Pedal
55107A Support Sub-assy, Clutch Pedal
55198C Holder, Brake Away Mounting Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
