Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

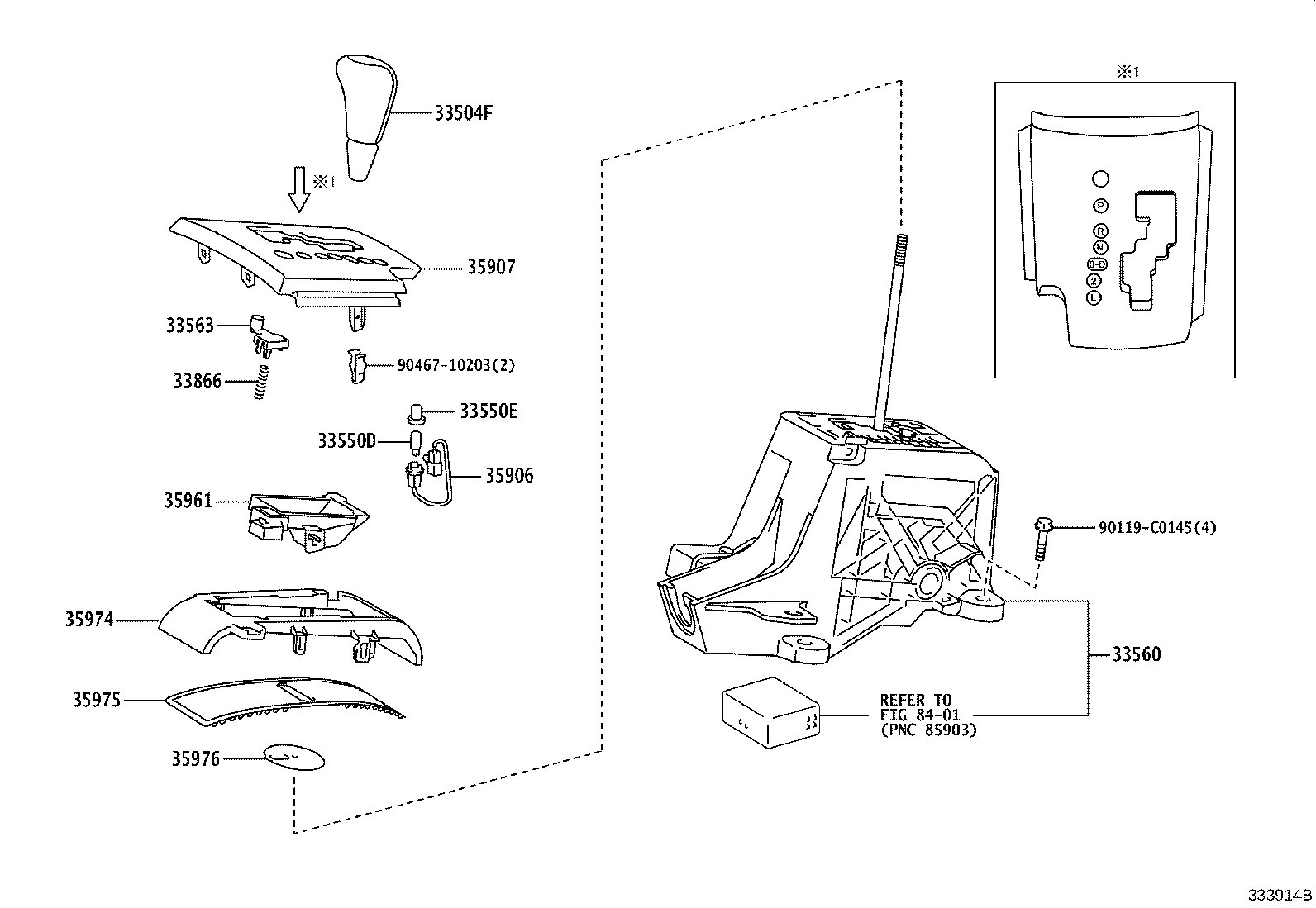

Shift Lever & Retainer
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33527B | Bush (FOR CONTROL SHIFT LEVER) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33826A | Bracket, Transmission Control Cable, NO.2 |
| 33829 | Support, Transmission Control Cable |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35961 | Housing, Position Indicator Lamp |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
