Rear Axle Shaft & Hub

30 part groups · 3 illustrations

Illustrations

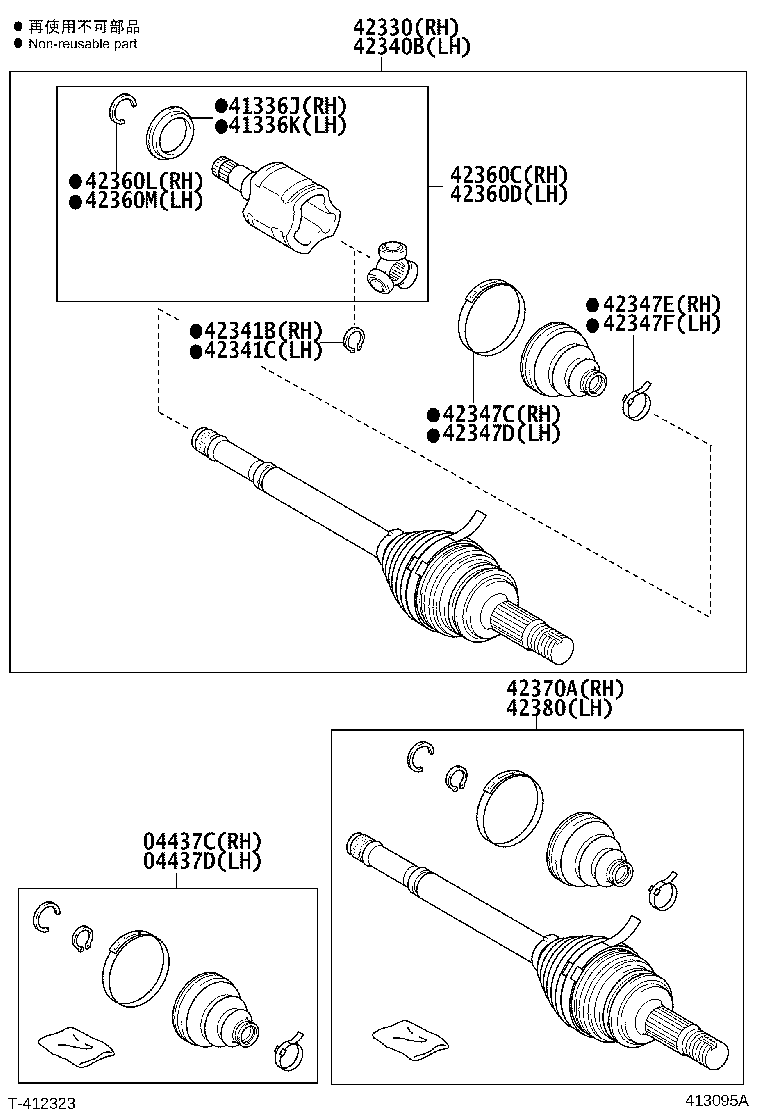

Figure 413093A 413093A 2009-03 → — Figure 413094A 413094A 2009-03 → — Figure 413095A 413095A 2009-03 → —

Part groups

PNCDescription
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
41336J Cover, Rear Drive Shaft Dust, RH
41336K Cover, Rear Drive Shaft Dust, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42341B Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C Ring, Snap (FOR REAR DRIVE SHAFT LH)
42347C Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360C Joint Assy, Rear Drive Shaft Inboard, RH
42360D Joint Assy, Rear Drive Shaft Inboard, LH
42360L Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360M Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42370A Shaft Assy, Rear Drive Outboard Joint, RH
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42410 Hub & Bearing Assy, Rear Axle, RH
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
