Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01
Brake Tube & Clamp

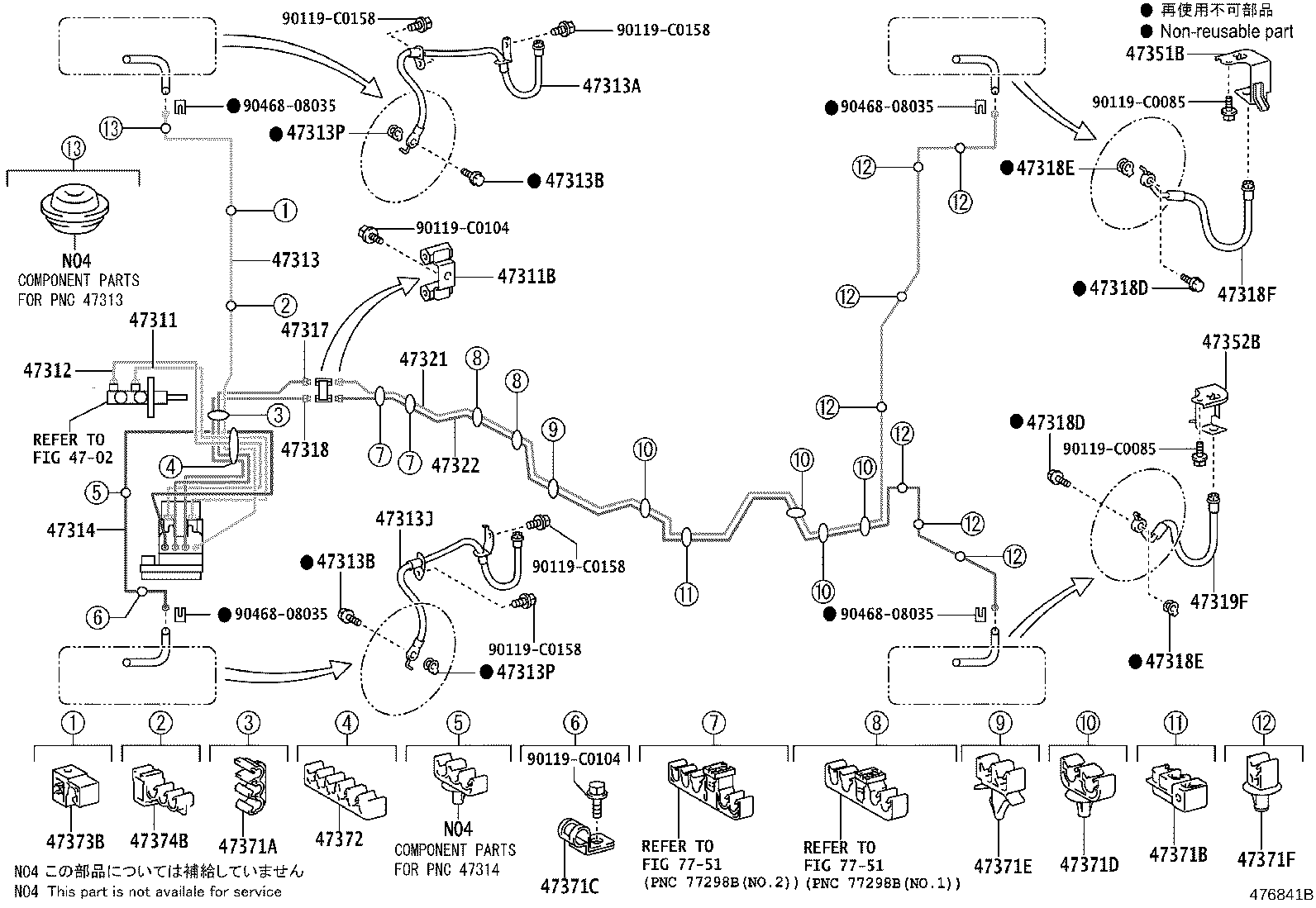

32 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44546A | Cushion, Brake Actuator Bolt |
| 44590 | Bracket Assy, Brake Actuator |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47351B | Bracket, Flexible Hose, NO.1 |
| 47352B | Bracket, Flexible Hose, NO.2 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
