Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 3 illustrations

Illustrations

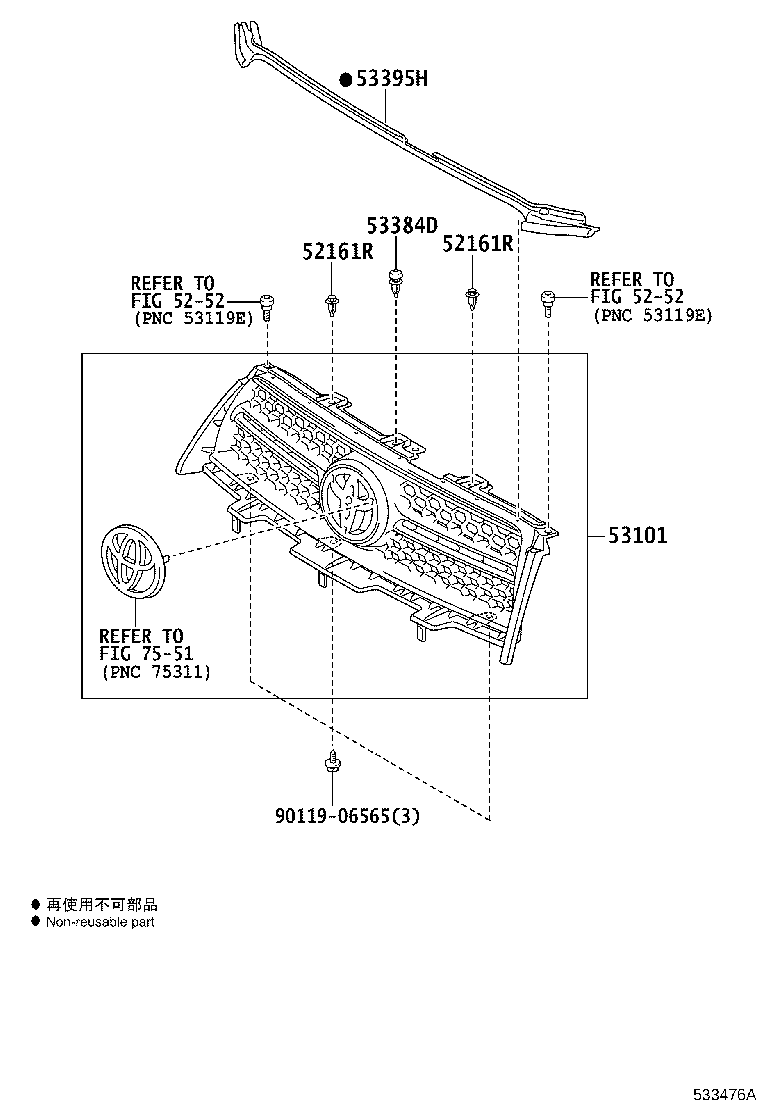

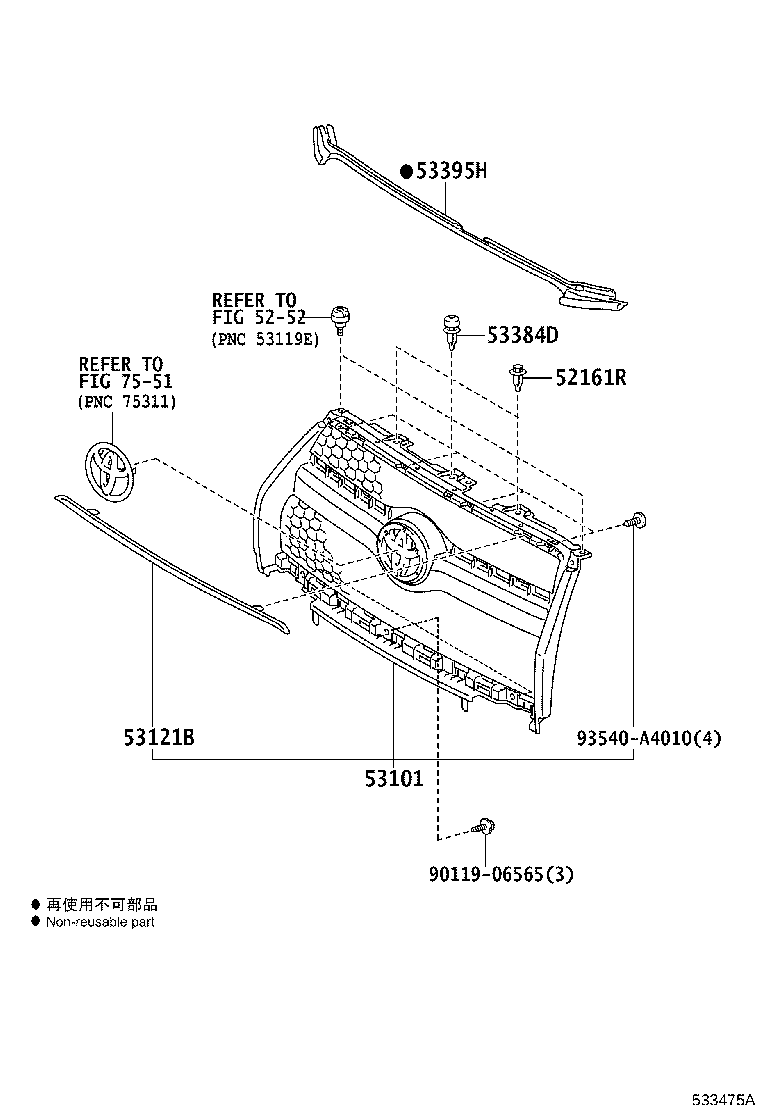

Figure 532990C 532990C 2009-03 → 2011-08 Figure 533476A 533476A 2011-08 → — Figure 533475A 533475A 2011-08 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53121B Moulding, Radiator Grille, Upper
53122A Moulding, Radiator Grille, Lower
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
