Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01

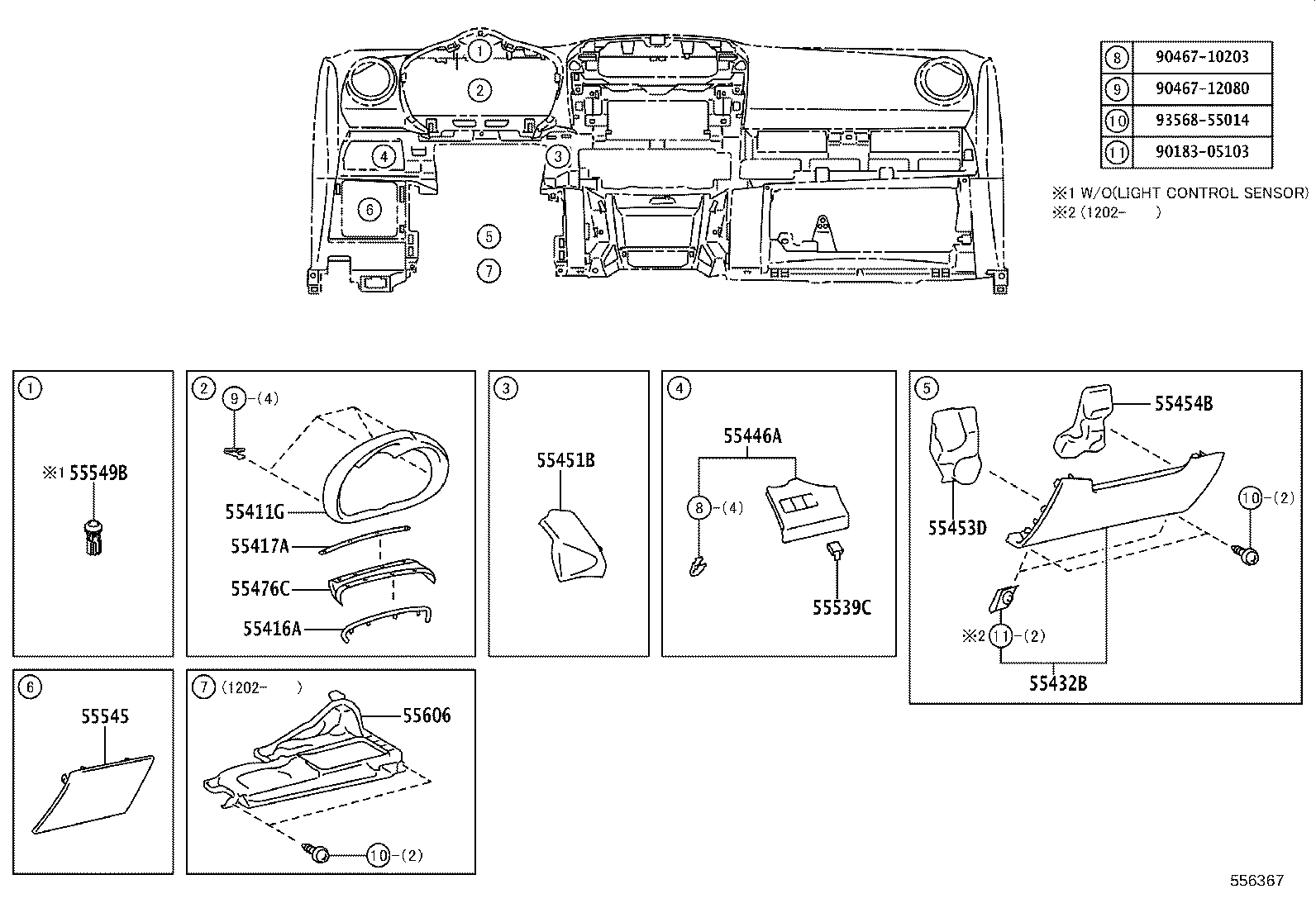

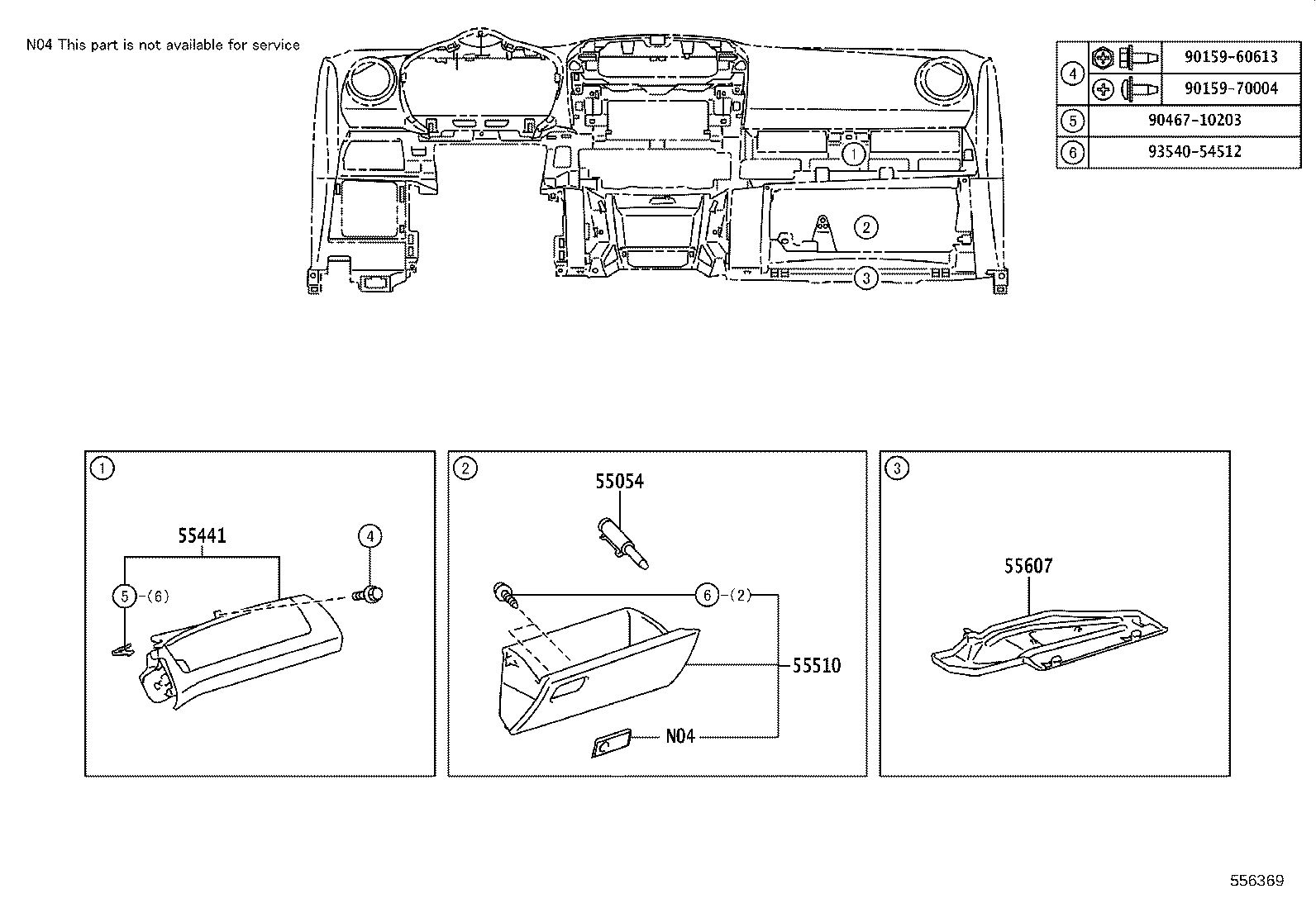

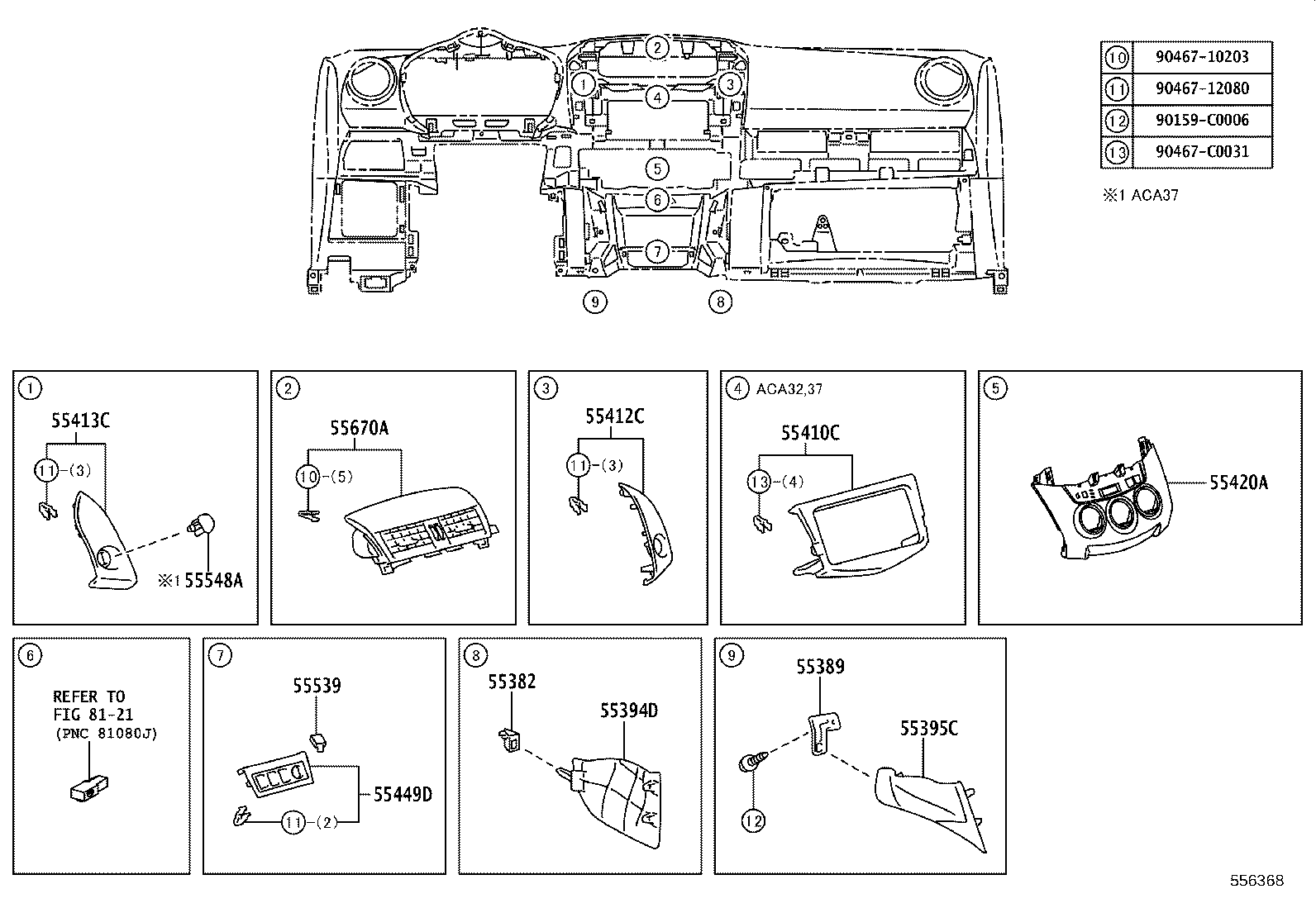

Instrument Panel & Glove Compartment

37 part groups · 4 illustrations

PNC	Description
55054	Stopper Sub-assy, Glove Compartment Door
55302A	Panel Sub-assy, Instrument, Upper
55306A	Brace Sub-assy, Instrument Panel, NO.1
55312	Panel, Instrument, Lower
55312A	Clip, Instrument Panel
55331	Reinforcement, Instrument Panel
55368C	Bracket, Meter Mounting
55382	Bracket, Finish Panel Mounting, NO.2
55389	Bracket, Console Mounting, LH
55394D	Cover, Instrument Panel Bracket, Inner NO.1 RH
55395C	Cover, Instrument Panel Bracket, Inner NO.1 LH
55410C	Panel Assy, Instrument Cluster Finish
55411G	Panel, Instrument Cluster Finish, NO.1
55412C	Panel, Instrument Cluster Finish, Center NO.1
55413C	Panel, Instrument Cluster Finish, Center NO.2
55416A	Retainer, Meter Hood, NO.1
55417A	Retainer, Meter Hood, NO.2
55420A	Panel Assy, Instrument Cluster Finish, Center
55432B	Panel, Instrument Panel Finish, Lower
55441	Box, Instrument Panel
55446A	Base, Switch Hole, NO.1
55449D	Base, Switch
55451B	Cover, Instrument Panel Safety Pad
55453D	Pad, Instrument Panel Safety, NO.1
55454B	Pad, Instrument Panel Safety, NO.2
55476C	Garnish, Instrument Panel Finish Plate
55510	Door Assy, Glove Compartment
55539	Cover, Spare Switch Hole
55539C	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55670A	Register Assy, Instrument Panel, Center
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
