Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01
Roof Panel & Back Panel
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63185D | Bracket, Roof Rack, Front |
| 63187A | Bracket, Roof Rack, Rear |

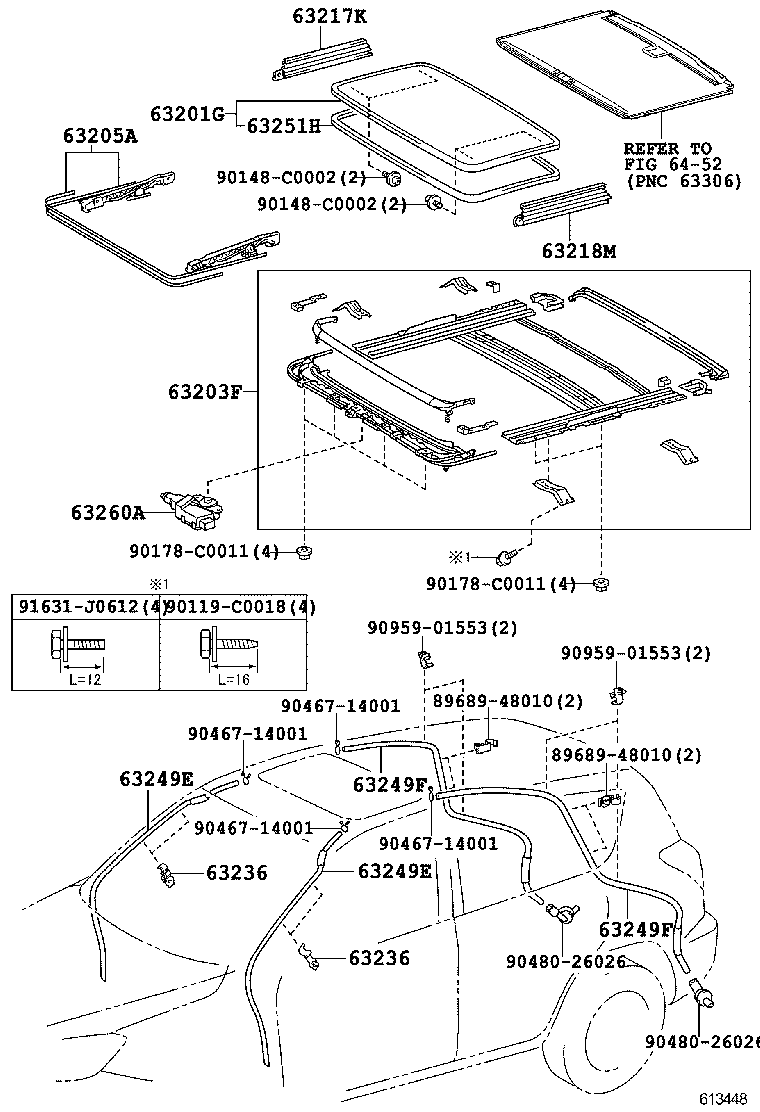

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63438A | Cover, Roof Rack End, NO.1 |
| 63439 | Cover, Roof Rack End, NO.2 |
| 63460A | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63479 | Retainer, Roof Inner Rack |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
