Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01

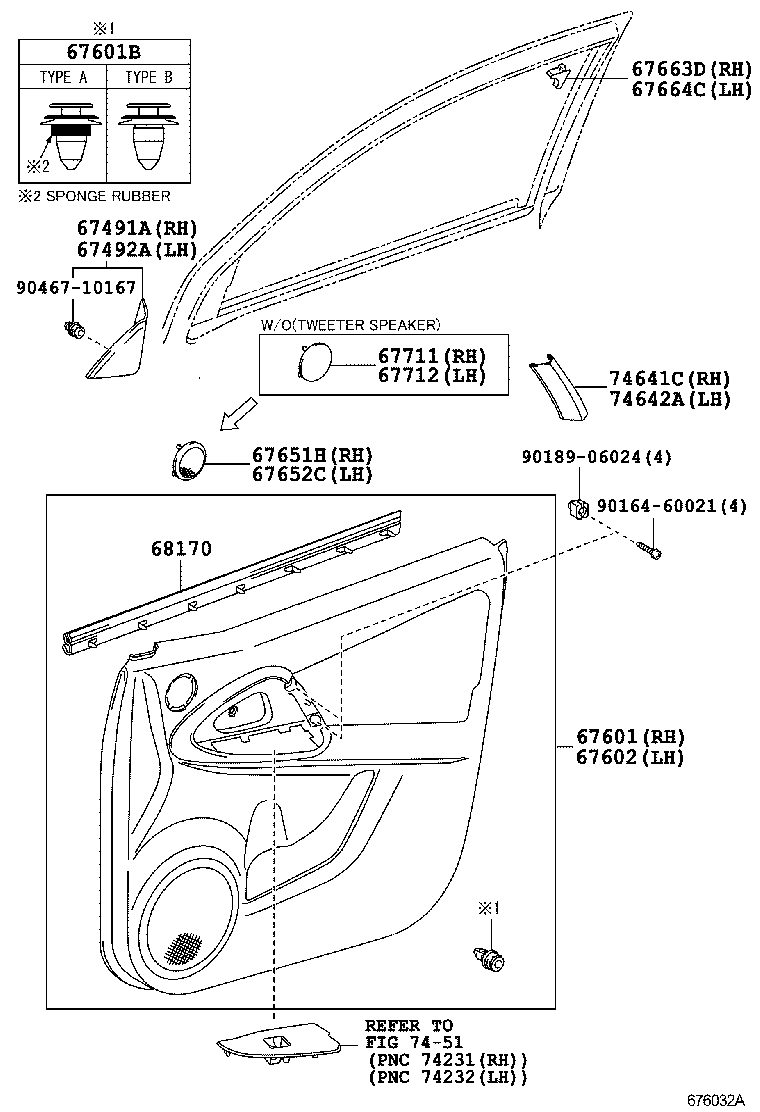

Front Door Panel & Glass

39 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67651H	Grille, Speaker Door, RH
67652C	Grille, Speaker Door, LH
67663D	Garnish, Door Frame, RH
67664C	Garnish, Door Frame, LH
67711	Cover, Front Door Trim, RH
67712	Cover, Front Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869J	Clip, Front Door Weatherstrip
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141E	Run, Front Door Glass, RH
68151D	Run, Front Door Glass, LH
68170	Weatherstrip Assy, Front Door Glass, Inner
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
74641C	Cover, Front Door Assist Grip, RH
74642A	Cover, Front Door Assist Grip, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH
75923B	Tape, Black Out, NO.2 RH
75924B	Tape, Black Out, NO.2 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
