Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

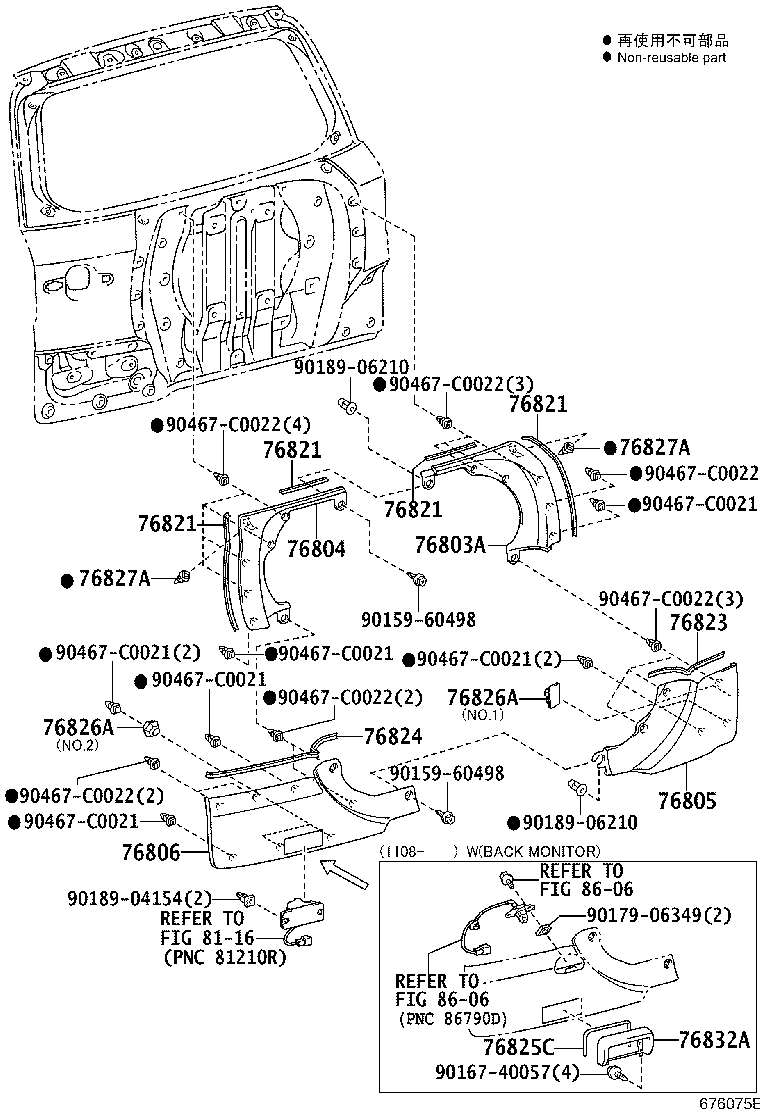

Back Door Panel & Glass
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67709B | Pocket Sub-assy, Back Door Trim |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68650C | Check Assy, Back Door, RH |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 75575D | Moulding, Back Window, Lower |
| 76803A | Garnish Sub-assy, Back Door, Outside Upper RH |
| 76804 | Garnish Sub-assy, Back Door, Outside Upper LH |
| 76805 | Garnish Sub-assy, Back Door, Outside Lower RH |
| 76806 | Garnish Sub-assy, Back Door, Outside Lower LH |
| 76821 | Protector, Back Door Garnish Moulding, Upper |
| 76823 | Protector, Back Door Garnish Moulding, RH |
| 76824 | Protector, Back Door Garnish Moulding, LH |
| 76825C | Protector, Back Door Outside Garnish |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76827A | Retainer, Back Door Garnish, NO.2 |
| 76832A | Cover, Back Door Finish Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
