Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

115 part groups · 7 illustrations

Illustrations

716171B 2009-03 → 2011-08

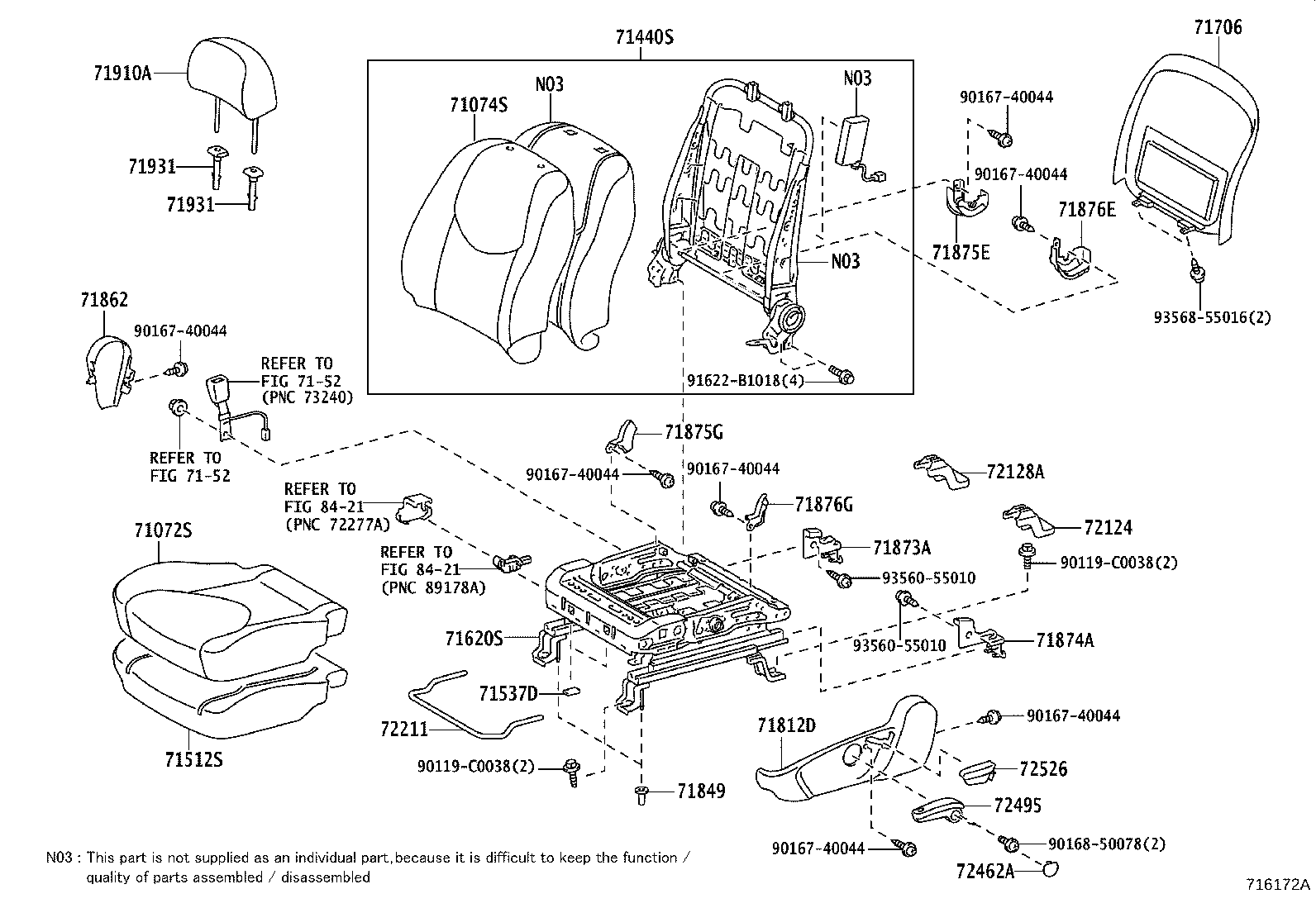

716172A 2009-03 → —

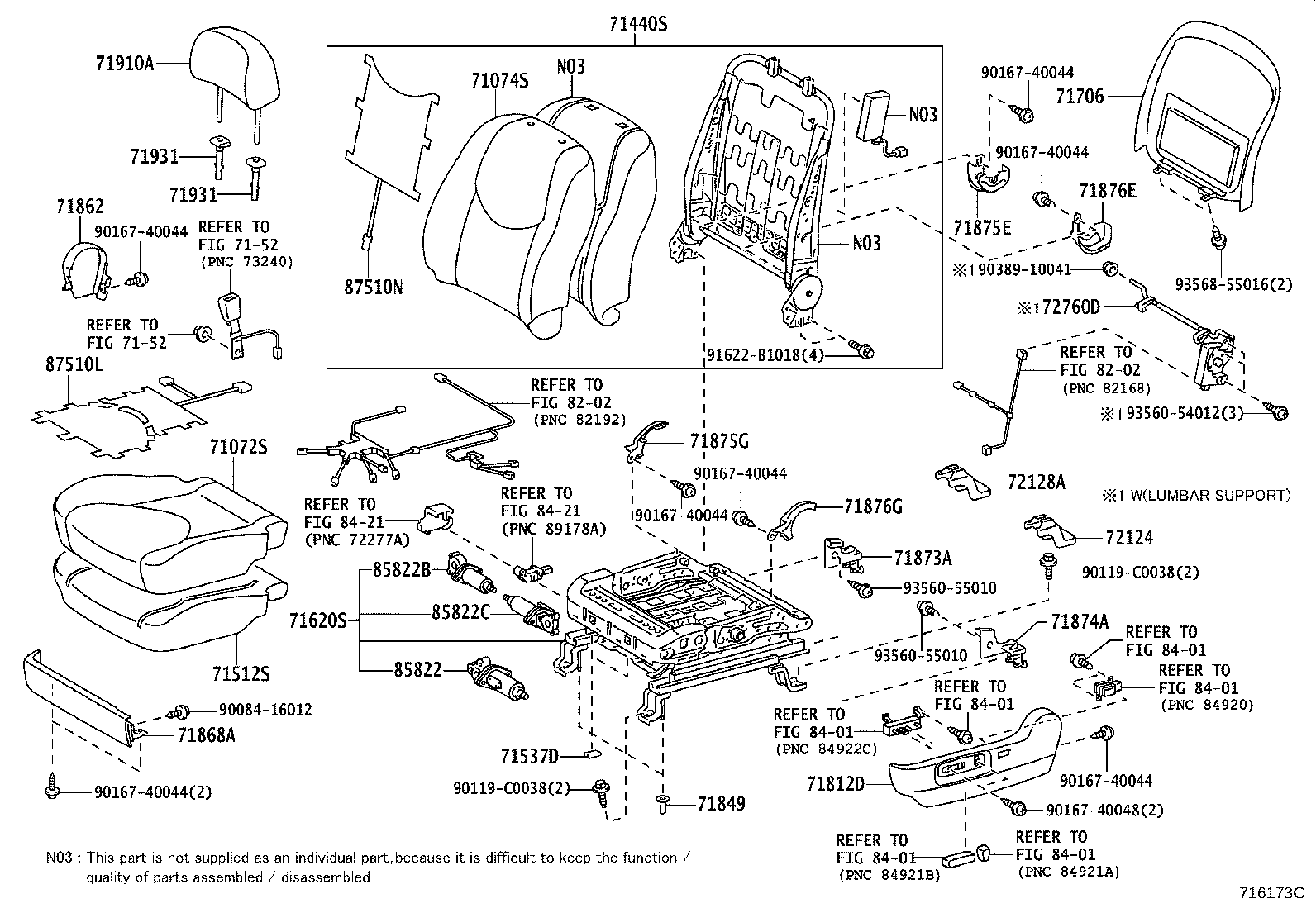

716173C 2009-03 → —

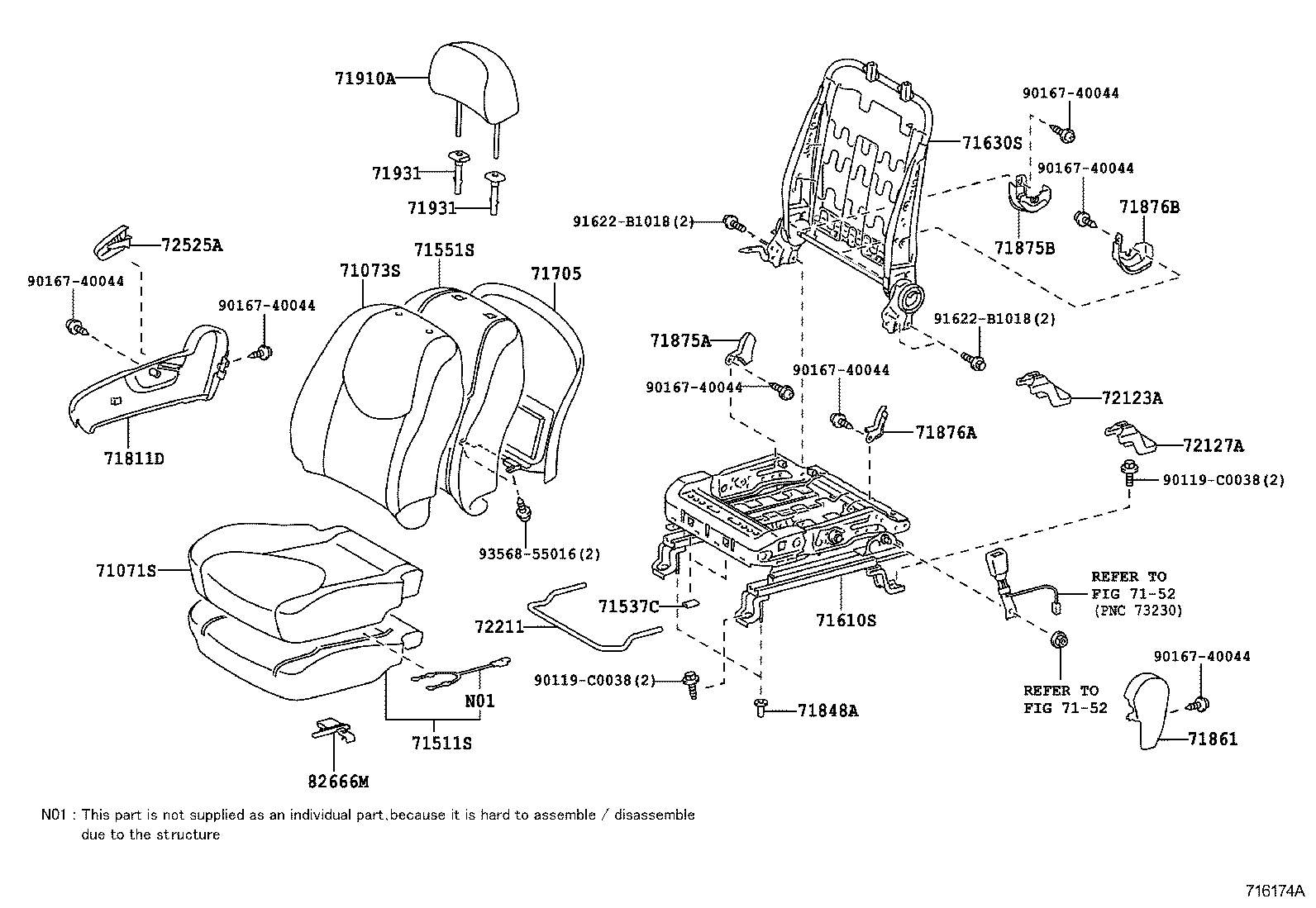

716174A 2009-03 → 2011-08

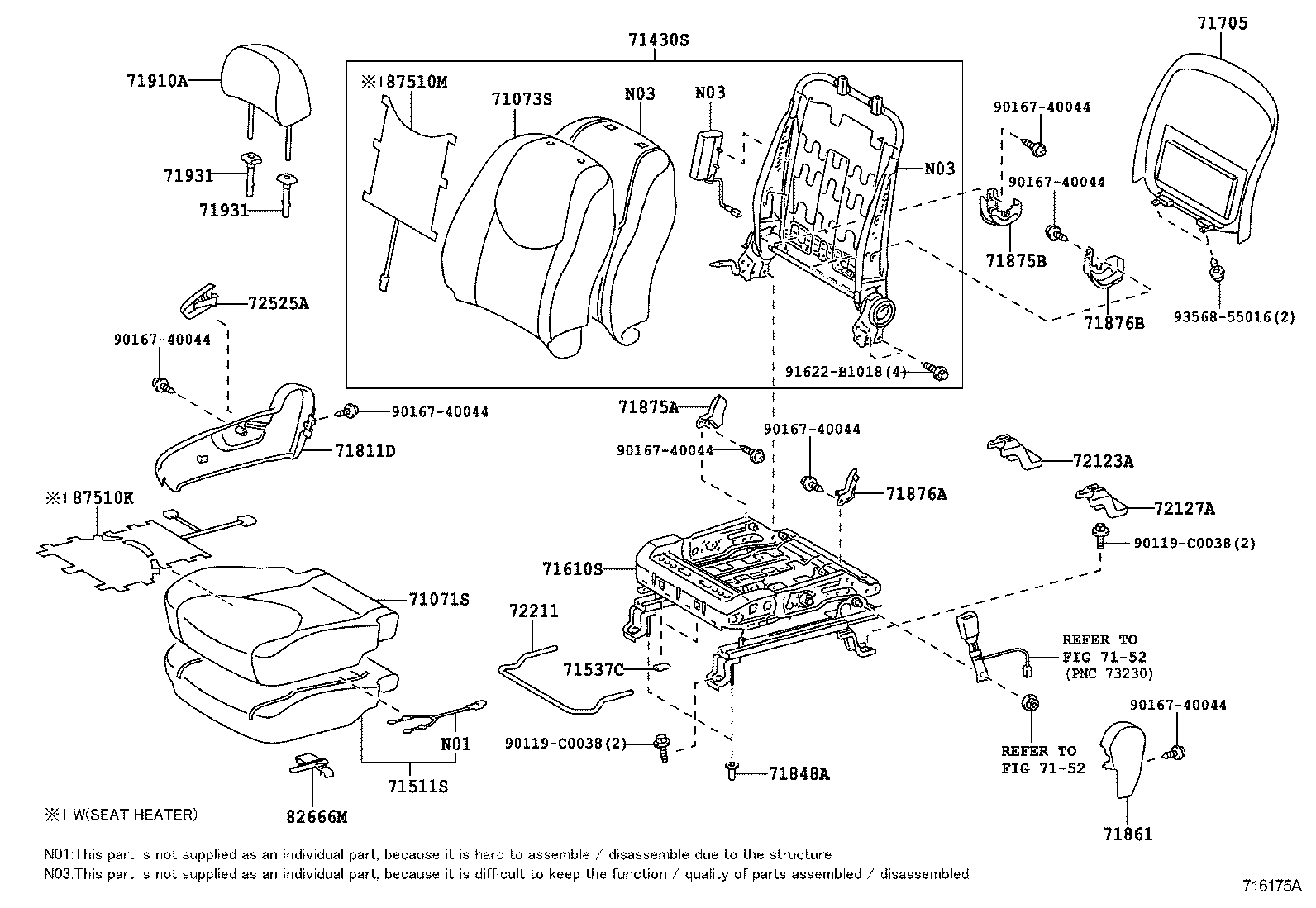

716175A 2009-03 → —

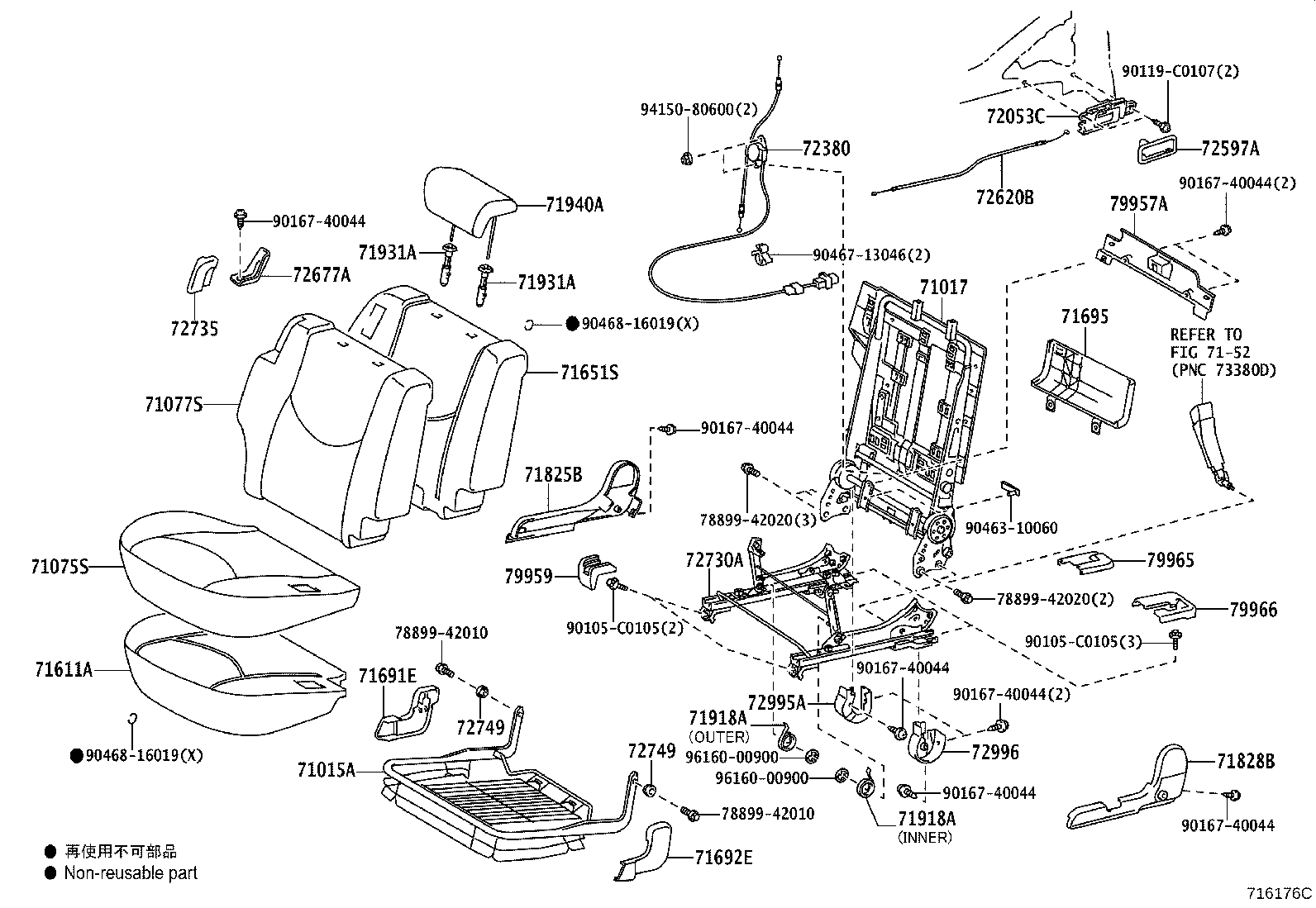

716176C 2009-03 → —

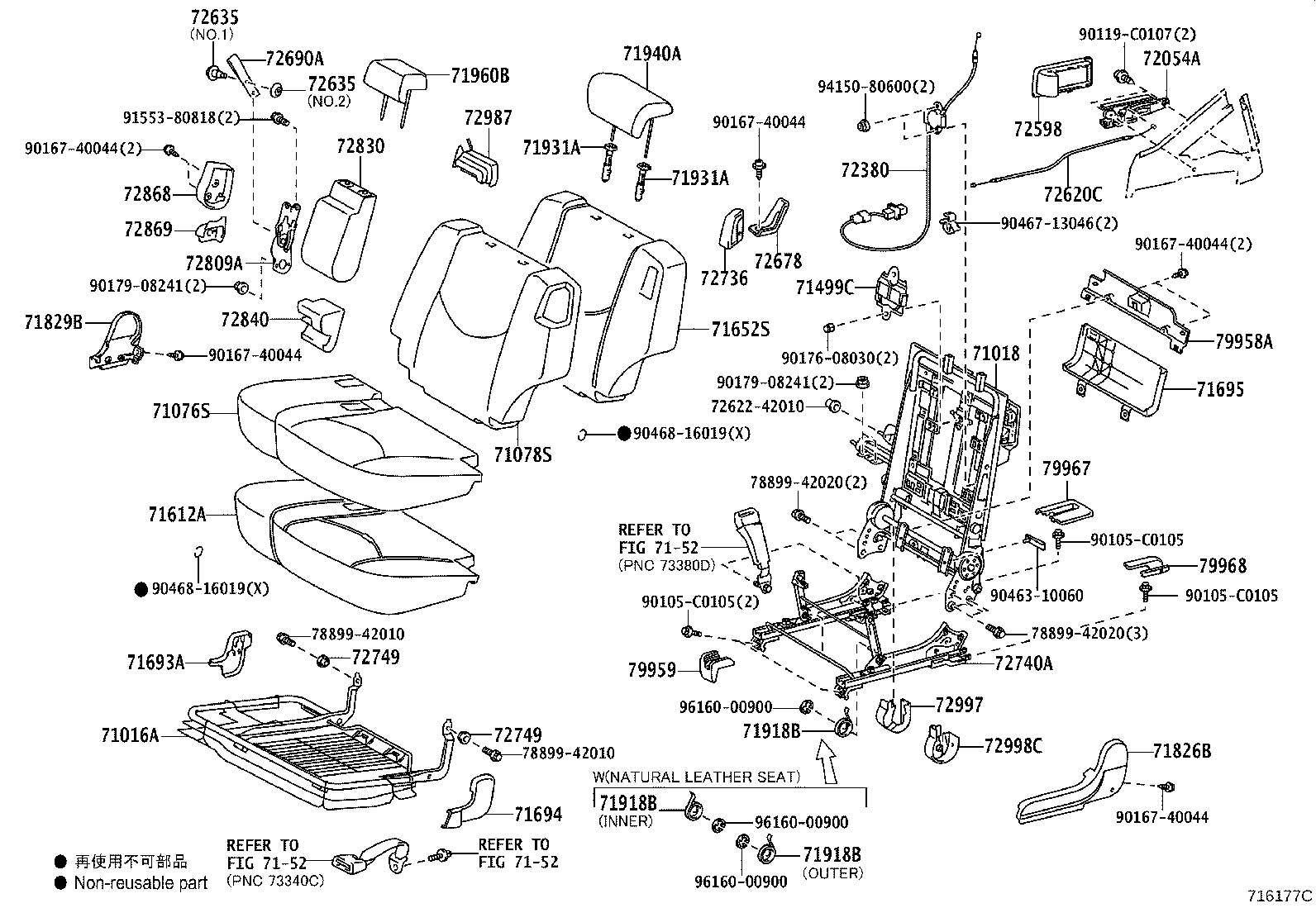

716177C 2009-03 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71499C	Damper, Rear Seat Cushion Spring
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E	Cover, Rear Seat Cushion Hinge, NO.1
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71693A	Cover, Rear Seat Cushion Hinge, NO.3
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71695	Protector, Rear Seatback
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873A	Shield, Front Seat Cushion, Lower
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71918A	Spring, Center Seat Cushion Catch
71918B	Spring, Center Seat Cushion Catch, NO.2
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
72053C	Lever Sub-assy, Reclining Remote Control, RH
72054A	Lever Sub-assy, Reclining Remote Control, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72211	Handle, Seat Track Adjusting
72380	Cable Assy, Seat Adjuster Control, NO.2
72462A	Cover, Vertical Adjuster LH
72495	Handle, Vertical Adjusting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72597A	Bezel, Reclining Remote Control Lever, RH
72598	Bezel, Reclining Remote Control Lever, LH
72620B	Cable Assy, Rear NO.1 Seat Lock
72620C	Cable Assy, Rear NO.1 Seat Lock
72635	Hook, Rear Seatback Lock
72677A	Base, Rear Seatback Lock Control Lever, RH
72678	Base, Rear Seatback Lock Control Lever, LH
72690A	Strap Assy, Rear Seat Lock Release
72730A	Adjuster Assy, Rear Seat Reclining, RH
72735	Lever, Rear Seat Reclining Release
72736	Lever, Rear Seat Reclining Release, LH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72749	Spacer, Rear Seat Reclining
72760D	Adjuster Assy, Lumbar Support, LH
72809A	Lock Sub-assy, Center Armrest
72830	Armrest Assy, Rear Seat, Center
72840	Armrest Assy, Rear NO.1 Seat, LH
72868	Cover, Center Armrest Hinge, RH
72869	Cover, Center Armrest Hinge, LH
72987	Cover, Rear Seat Center Armrest
72995A	Cover, Rear Seat
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
72998C	Cover, Rear Seat, LH
79957A	Cover, Rear Seat Rear Bracket, RH
79958A	Cover, Rear Seat Rear Bracket, LH
79959	Cover, RR Seat Leg
79965	Cover, Rear Seat Leg Side, NO.2
79966	Cover, Rear Seat Leg Side, NO.3
79967	Cover, Rear Seat Leg Side, NO.4
79968	Cover, Rear Seat Leg Side, NO.5
82666M	Holder, Connector
85822	Motor Assy, Power Seat Slide, LH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
