Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

24 part groups · 2 illustrations

Illustrations

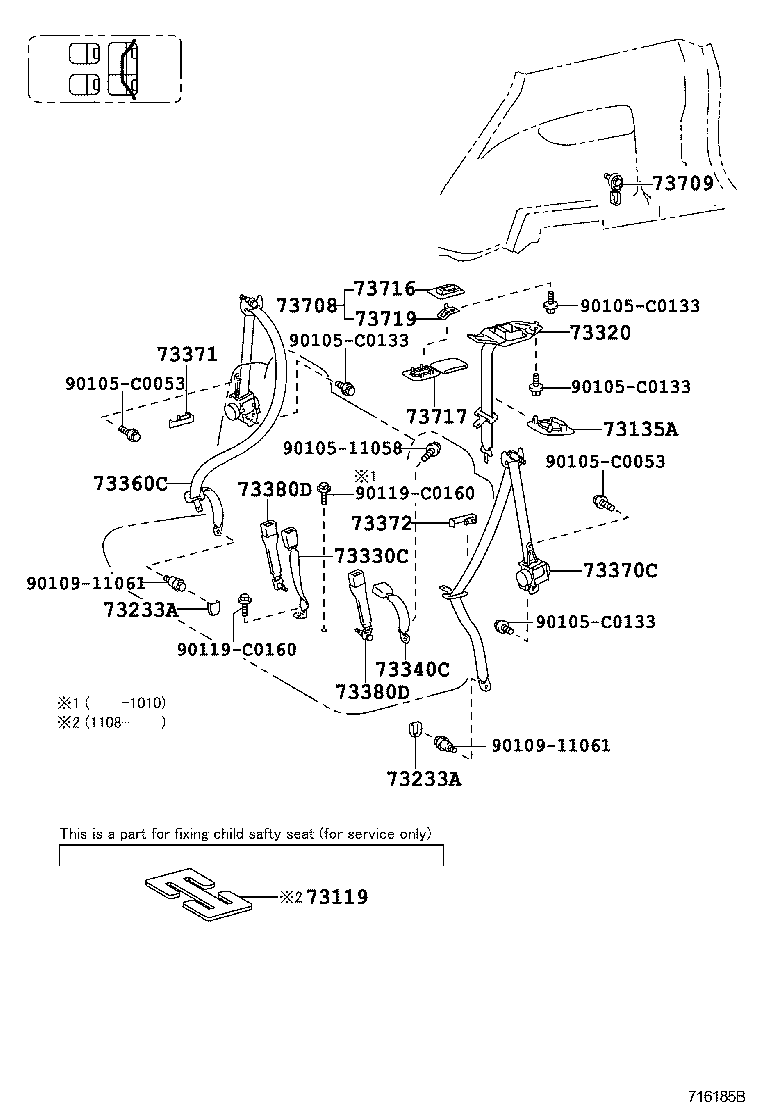

Figure 716184A 716184A 2009-03 → — Figure 716185B 716185B 2009-03 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73135A Cover, Shoulder Belt Anchor, RH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73240 Belt Assy, Front Seat Inner, LH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380D Belt Assy, Rear Seat, Inner
73708 Bracket Set, Tether Anchor
73709 Bracket Sub-assy, Tether Anchor
73716 Protector, Child Restraint Seat
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
