Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01

Spoiler & Side Mudguard

37 part groups · 2 illustrations

PNC	Description
52112H	Extension, Front Bumper, RH
52113F	Extension, Front Bumper, LH
53847C	Extension, Front Wheel Opening, RH
53848B	Extension, Front Wheel Opening, LH
53851W	Pad, Front Wheel Opening Extension, NO.1
53851X	Pad, Front Wheel Opening Extension, NO.1
61681E	Extension, Rear Wheel Opening, NO.1 RH
61682D	Extension, Rear Wheel Opening, NO.1 LH
61691C	Extension, Rear Wheel Opening, NO.2 RH
61692E	Extension, Rear Wheel Opening, NO.2 LH
65631D	Plate, Rear Wheel House, Front RH
65632D	Plate, Rear Wheel House, Front LH
67857H	Protector, Rear Door Panel, RH
67858C	Protector, Rear Door Panel, LH
75392C	Retainer, Outside Moulding
75395D	Clip, Outside Moulding, NO.1
75611D	Moulding, Front Fender, Outside Front RH
75612D	Moulding, Front Fender, Outside Front LH
75653B	Moulding, Quarter Outside, RH NO.3
75654B	Moulding, Quarter, Outside NO.4
75687A	Protector, Quarter Moulding, Lower Rear RH
75688A	Protector, Quarter Moulding, Lower Rear LH
75861H	Protector, Rocker Panel Moulding, NO.1
75861L	Retainer, Rocker Panel Moulding, NO.1
75862F	Protector, Rocker Panel Moulding, NO.2
75865J	Retainer, Rocker Panel Moulding, NO.2
75869D	Retainer, Quarter Opening, LH
75879C	Retainer, Quarter Opening, RH
75993F	Stripe, Quarter, Front RH
75994G	Stripe, Quarter, Front LH

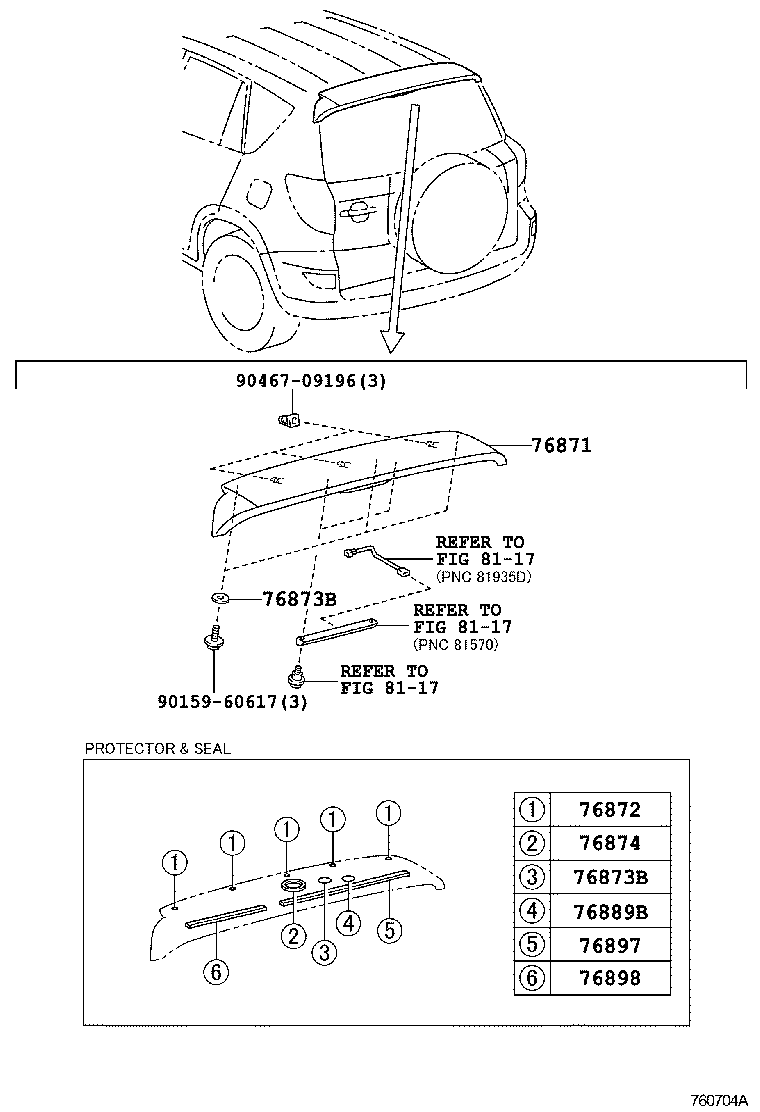

76871	Spoiler, Rear
76872	Protector, Rear Spoiler, NO.1
76873B	Protector, Rear Spoiler, NO.2
76874	Protector, Rear Spoiler, NO.3
76889B	Seal, Rear Spoiler, NO.1
76897	Protector, Rear Spoiler, Side RH
76898	Protector, Rear Spoiler, Side LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
