Toyota RAV4 (CHINA)

2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

96 part groups · 9 illustrations

Illustrations

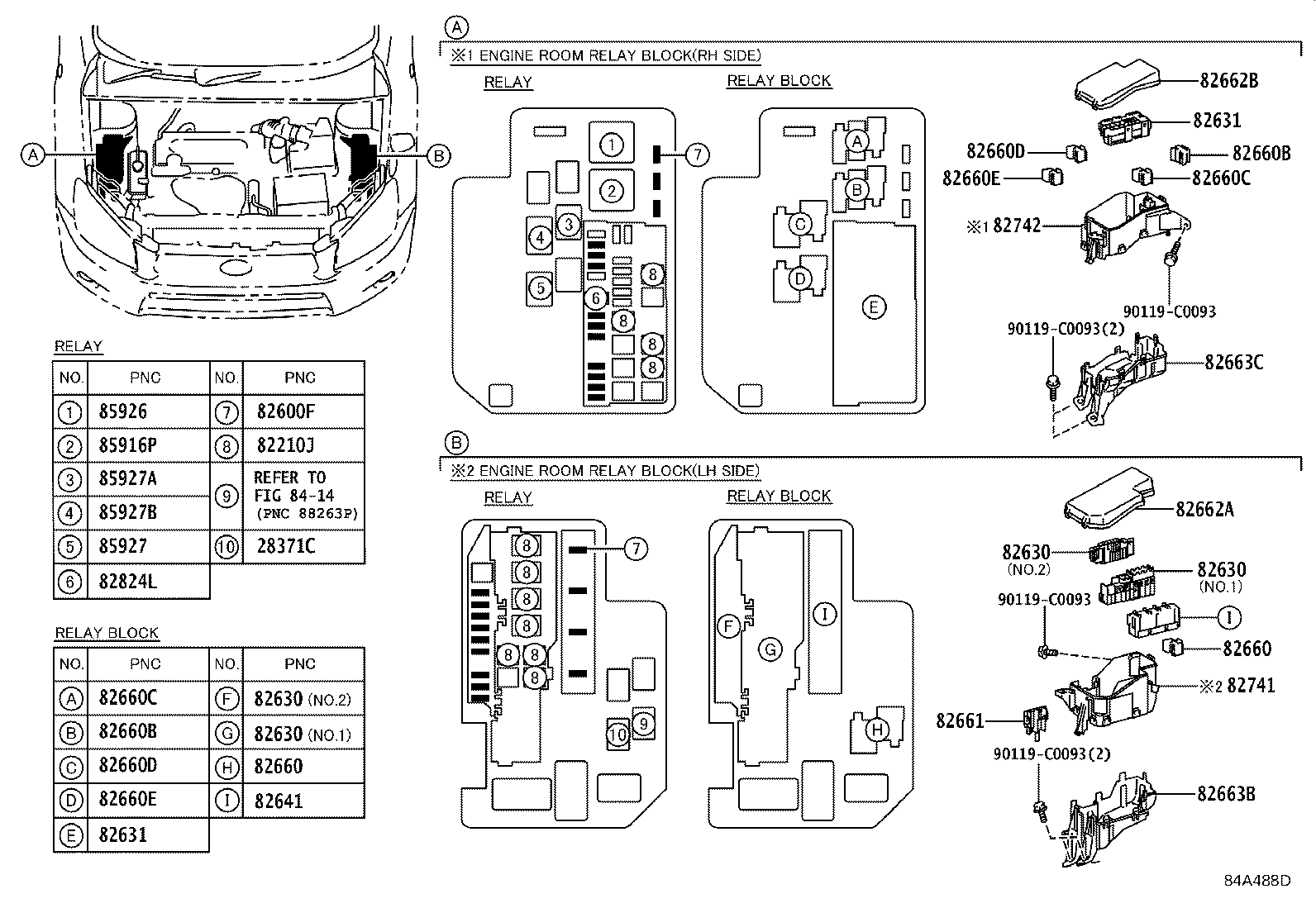

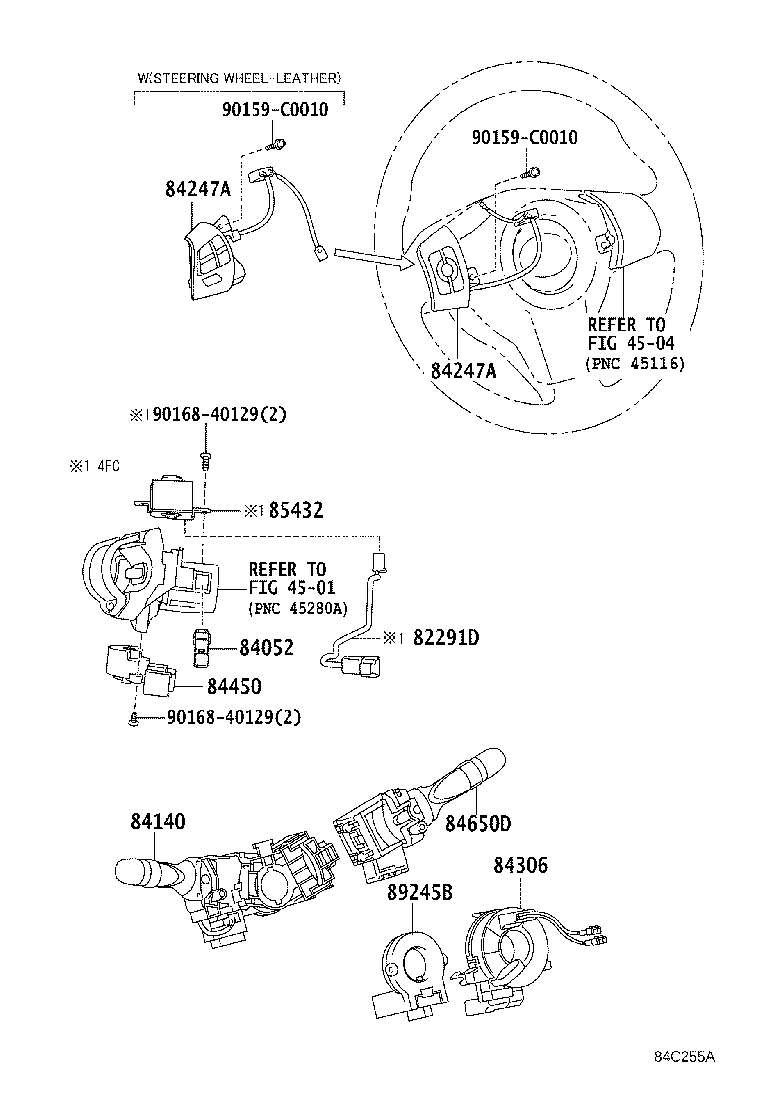

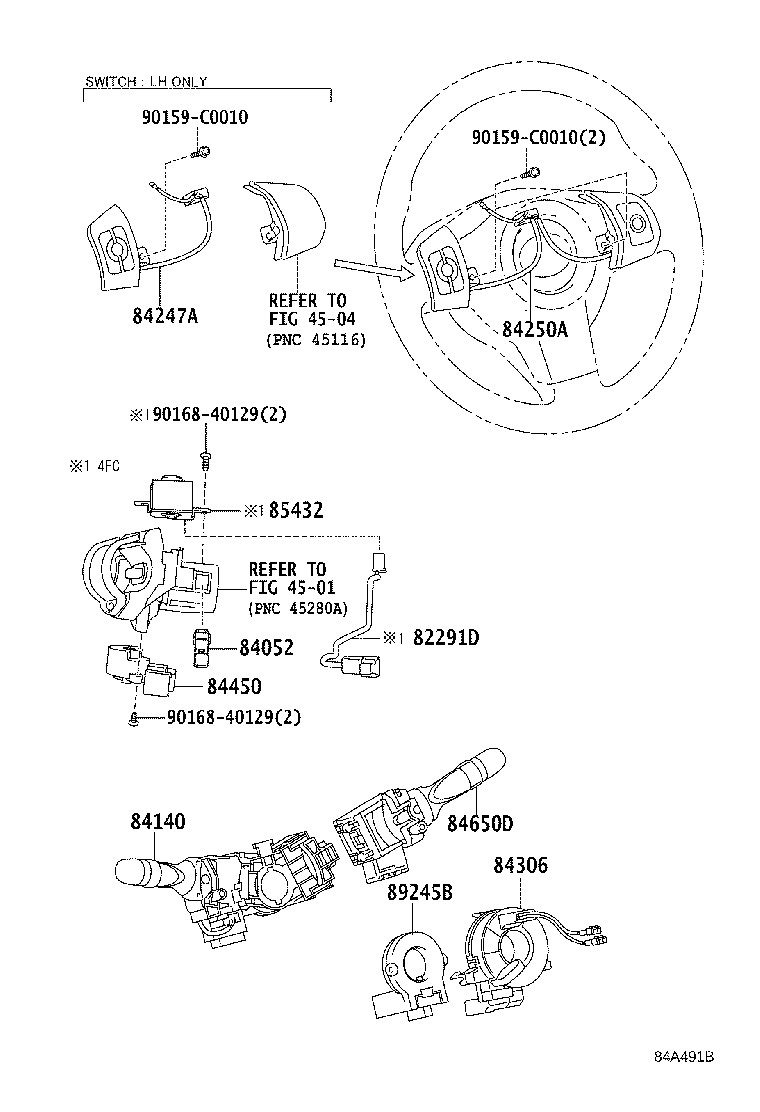

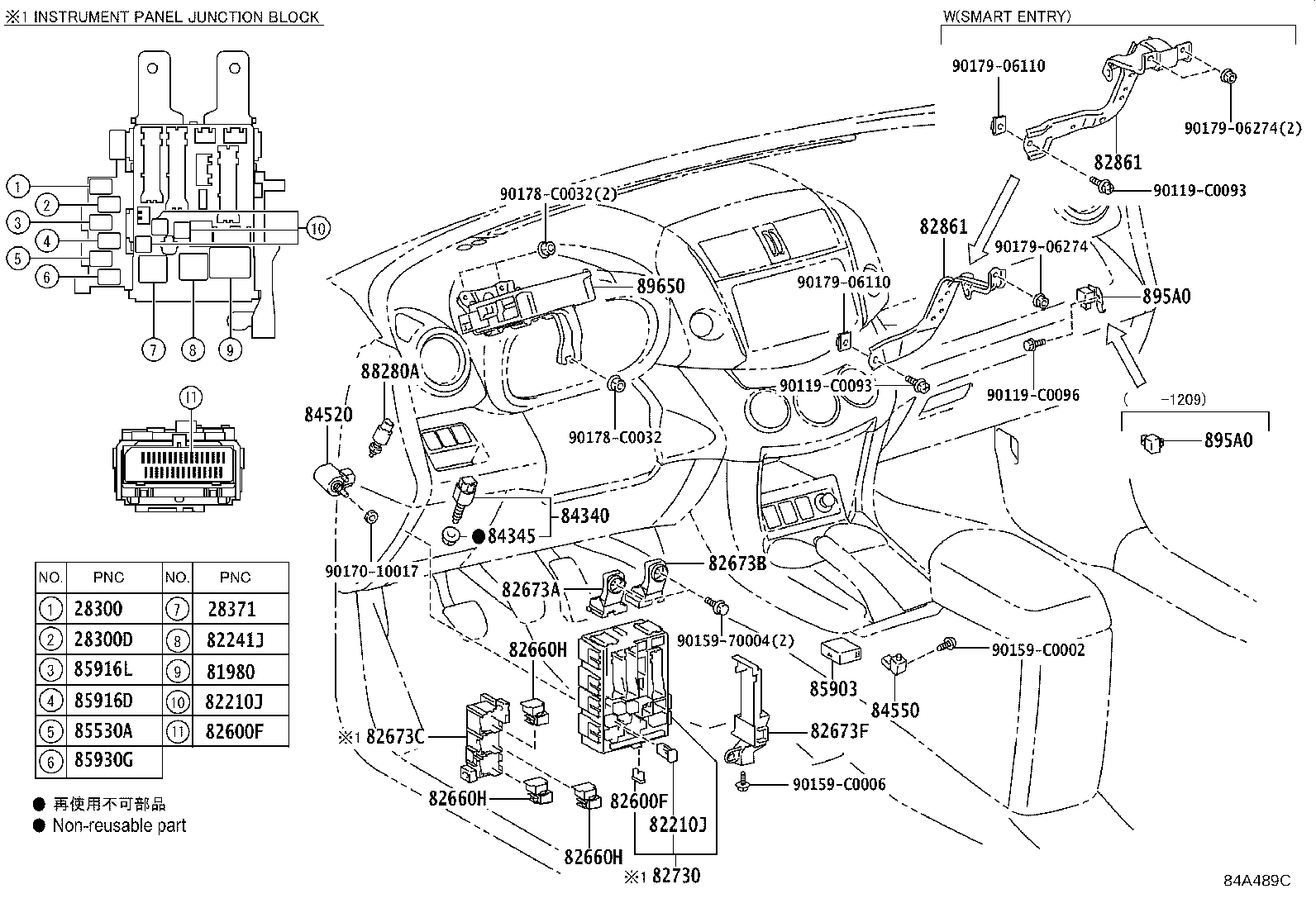

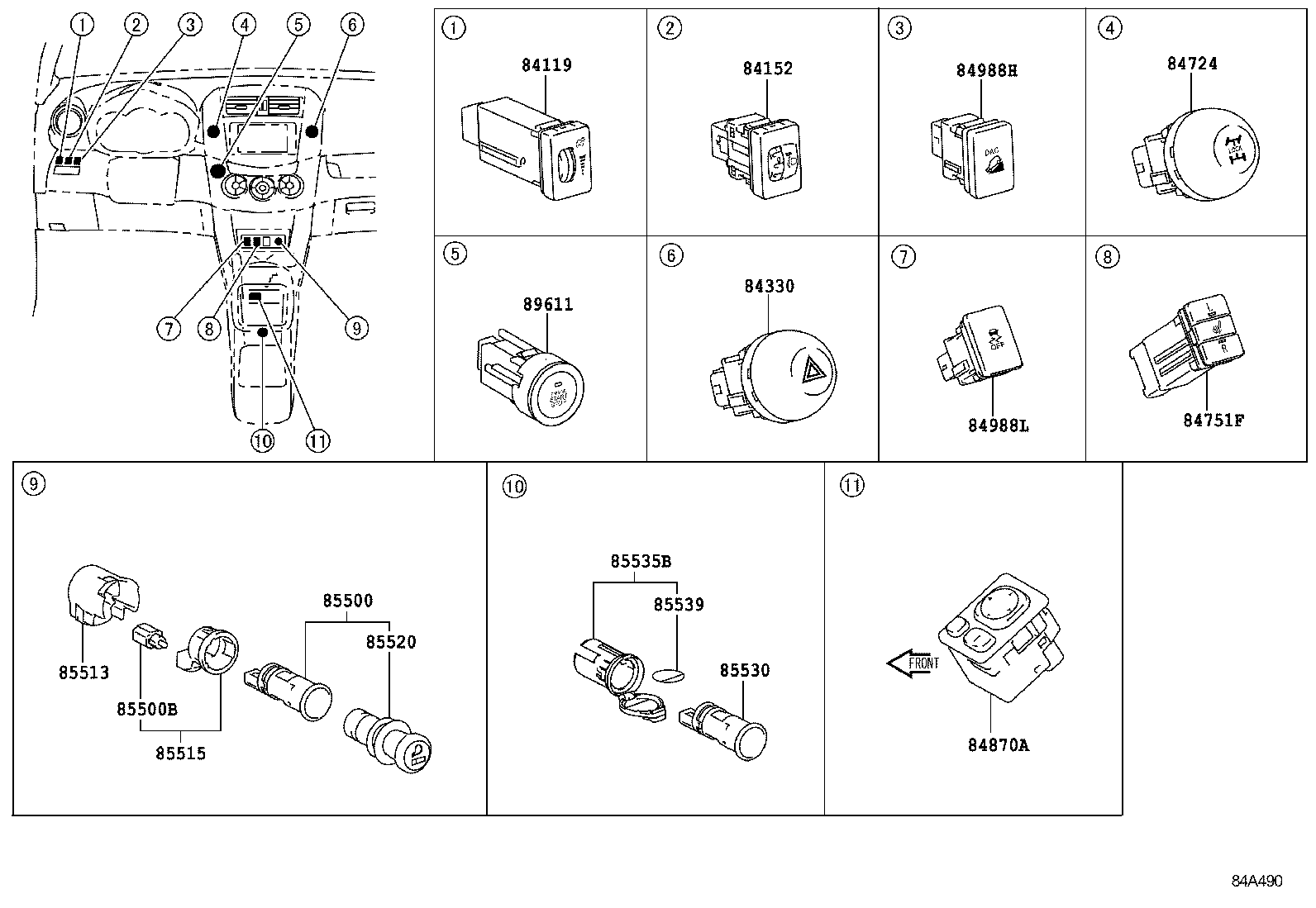

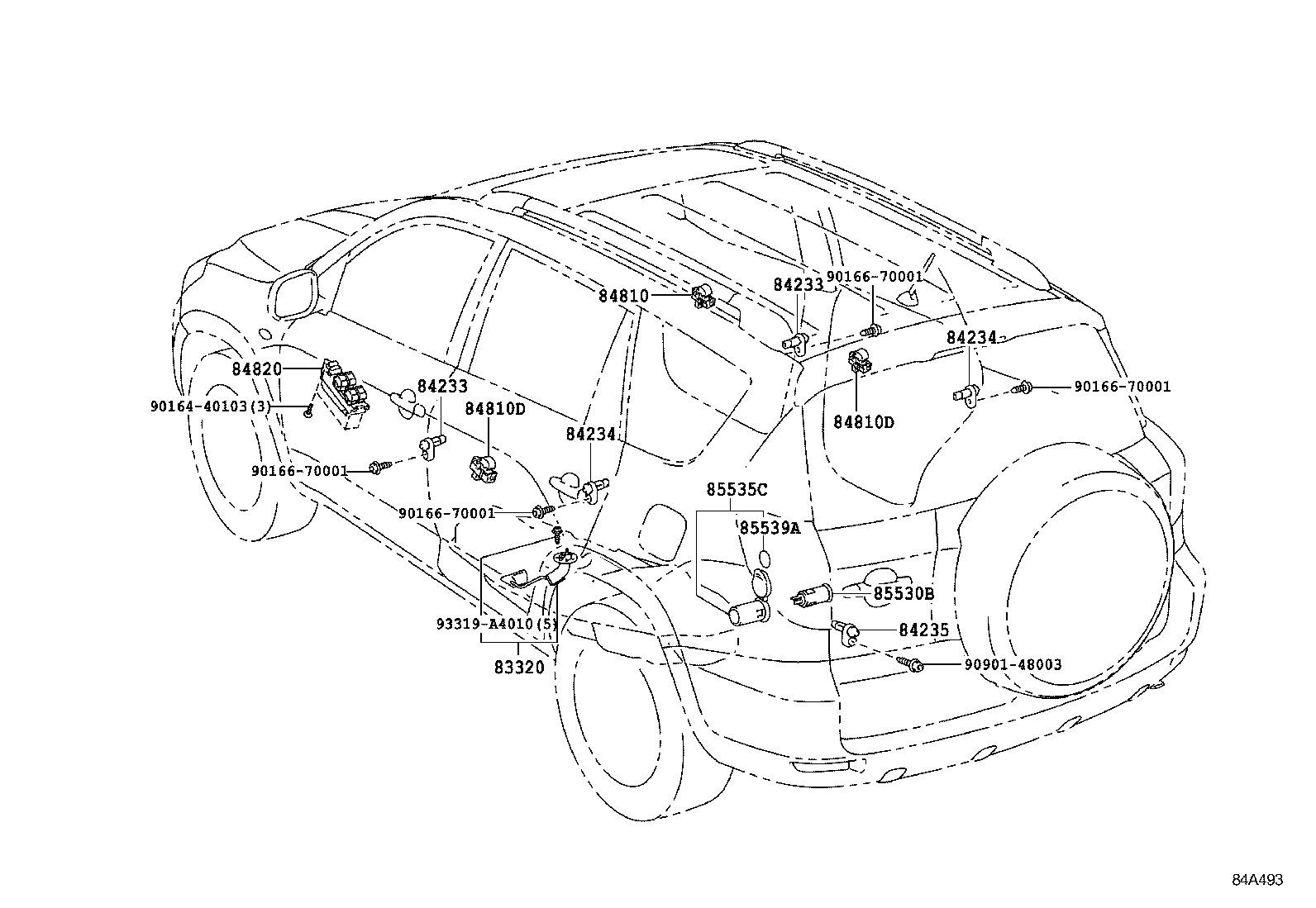

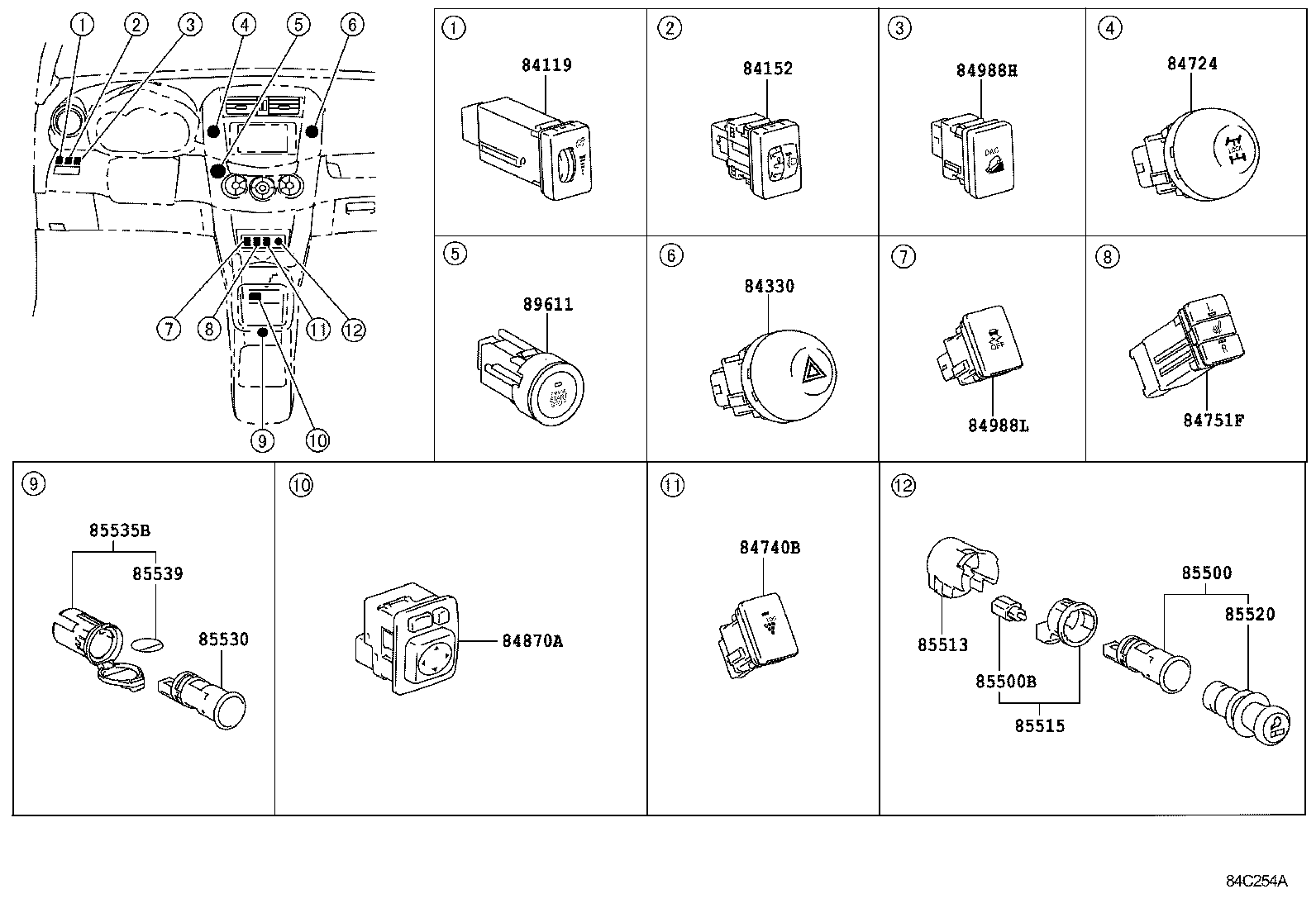

Figure 84A487B 84A487B 2009-03 → — Figure 84A488D 84A488D 2009-03 → — Figure 84A489C 84A489C 2009-03 → — Figure 84A490 84A490 2009-03 → 2011-08 Figure 84C254A 84C254A 2011-08 → — Figure 84A491B 84A491B 2009-03 → 2011-08 Figure 84C255A 84C255A 2011-08 → — Figure 84A492 84A492 2009-03 → — Figure 84A493 84A493 2009-03 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82630 Holder Assy, Fuse
82631 Holder, Fuse
82641 Relay, Integration NO.1
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660H Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82673F Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82824L Pin, Short
82861 Bracket, Computer Integration, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724 Switch, 4 Wheel Drive Control
84740B Switch Assy, Air Purifier
84751F Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922C Switch, Front Power Seat, LH
84988H Switch, Downhill Assist Control
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85903 Computer Sub-assy, Shift Lock Control
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
88280A Switch Assy, Clutch
89245B Sensor, Steering
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
