Toyota RAV4 (CHINA)
2009-03 → 2013-07 · chassis ACA3# · catalogue 660310 · General
Supported model
Data version 2014-01

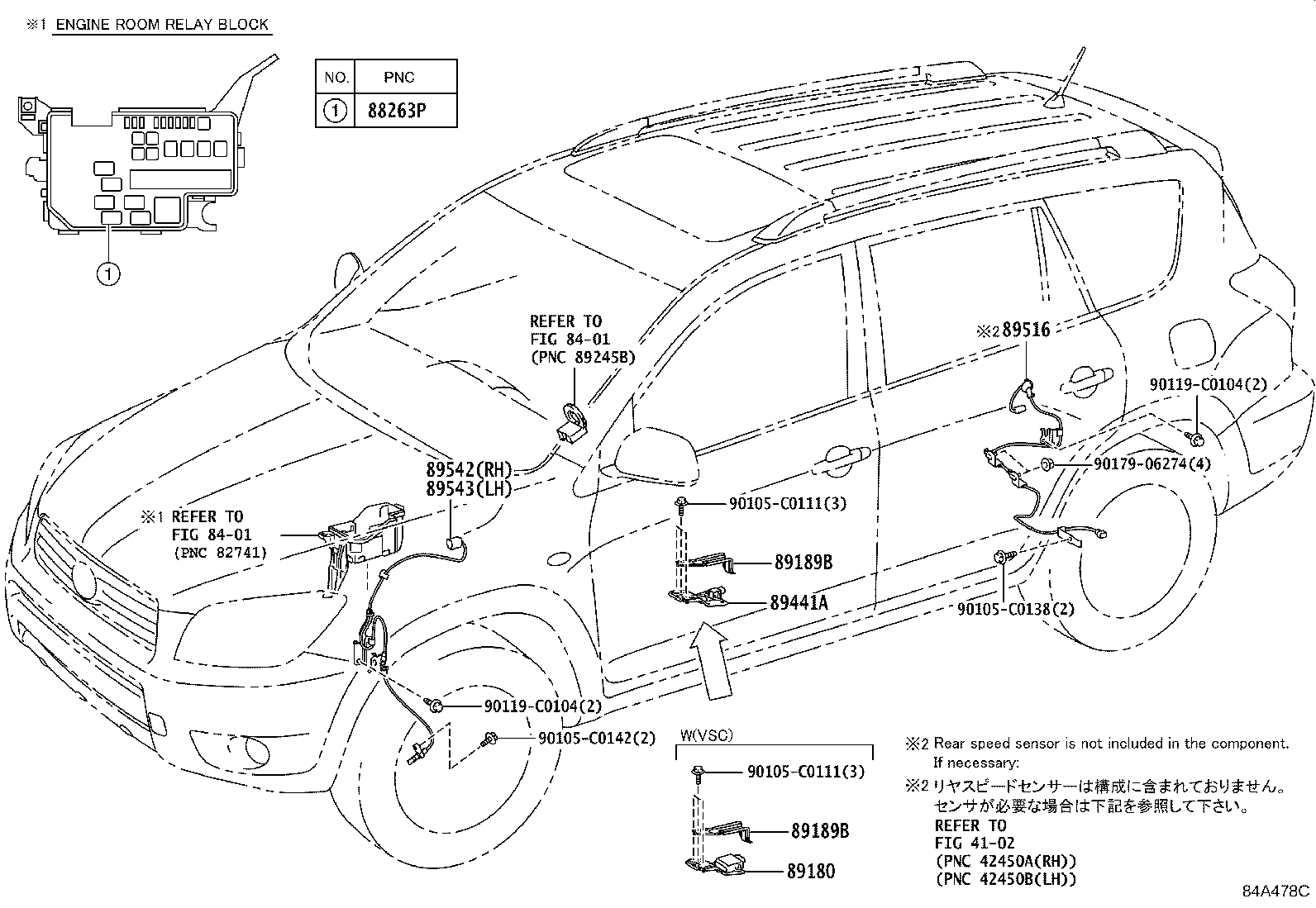

Abs & Vsc
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263P | Relay, Stop Lamp Control |
| 89180 | Sensor Assy, Yawrate |
| 89189B | Bracket, Yawrate Sensor |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89630A | Computer Assy, 4WD |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
