Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

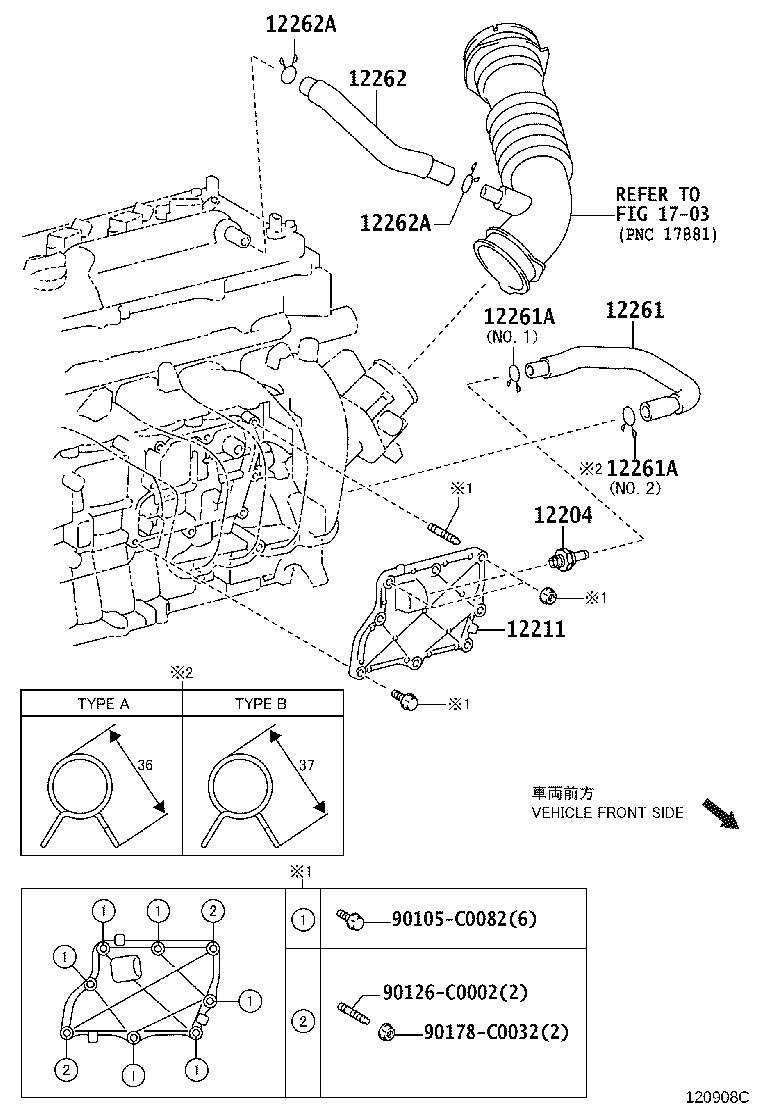

Exploded illustration 120908C 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 12204 — VALVE SUB-ASSY, VENTILATION (5 parts) 12211 — CASE, VENTILATION, NO.1 (3 parts) 12261 — HOSE, VENTILATION (4 parts) 12262 — HOSE, VENTILATION, NO.2 (5 parts) 90126C0002 — not listed in this catalogue 90105C0082 — not listed in this catalogue 90178C0032 — not listed in this catalogue 1703 — not listed in this catalogue
120908C · 8 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-36020 Valve Sub-assy, Ventilation
2013-08 → 2015-01 ended
5ARFE ASA44 —
12204-36030 Valve Sub-assy, Ventilation
2015-01 → 2016-07 ended
5ARFE ASA44 —
12204-37040 Valve Sub-assy, Ventilation
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
12204-36030 Valve Sub-assy, Ventilation
2016-07 → —
2ARFE,5ARFE ASA4# —
12204-37040 Valve Sub-assy, Ventilation
2016-07 → —
6ZRFAE ZSA4# —
12211 — Case, Ventilation, NO.1
12211-0T030 Case, Ventilation, NO.1
2014-06 → 2016-07 ended
6ZRFE ZSA4# —
12211-37010 Case, Ventilation, NO.1
2013-08 → 2014-06 ended
6ZRFE ZSA4# —
12211-0T030 Case, Ventilation, NO.1
2016-07 → —
6ZRFAE ZSA4# —
12261 — Hose, Ventilation
12261-0T040 Hose, Ventilation
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
12261-0V030 Hose, Ventilation
2013-08 → 2016-07 ended
5ARFE ASA44 —
12261-0T040 Hose, Ventilation
2016-07 → —
6ZRFAE ZSA4# —
12261-0V030 Hose, Ventilation
2016-07 → —
2ARFE,5ARFE ASA4# —
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
90467-21004 Clip OR Clamp(FOR VENTILATION HOSE)
2013-08 → 2016-07 ended
5ARFE ASA44 —
90467-22010 note Clip OR Clamp(FOR VENTILATION HOSE)
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
90467-23002 note Clip OR Clamp(FOR VENTILATION HOSE)
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2016-07 → —
6ZRFAE ZSA4# —
90467-21004 Clip OR Clamp(FOR VENTILATION HOSE)
2016-07 → —
2ARFE,5ARFE ASA4# —
90467-22010 note Clip OR Clamp(FOR VENTILATION HOSE)
2016-07 → —
6ZRFAE ZSA4# —
90467-23002 note Clip OR Clamp(FOR VENTILATION HOSE)
2016-07 → —
6ZRFAE ZSA4# —
12262 — Hose, Ventilation, NO.2
12262-0T030 Hose, Ventilation, NO.2
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
12262-0V010 Hose, Ventilation, NO.2
2013-08 → 2016-07 ended
5ARFE ASA44 —
12262-0T030 Hose, Ventilation, NO.2
2016-07 → —
6ZRFAE ZSA4# —
12262-0V010 Hose, Ventilation, NO.2
2016-07 → —
5ARFE ASA44 —
12262-36040 Hose, Ventilation, NO.2
2019-01 → —
2ARFE ASA45 —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90467-16035 Clip(FOR VENTILATION HOSE NO.2)
2013-08 → 2016-07 ended
5ARFE ASA44 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
90467-16035 Clip(FOR VENTILATION HOSE NO.2)
2016-07 → —
2ARFE,5ARFE ASA4# —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2016-07 → —
6ZRFAE ZSA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
