Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01

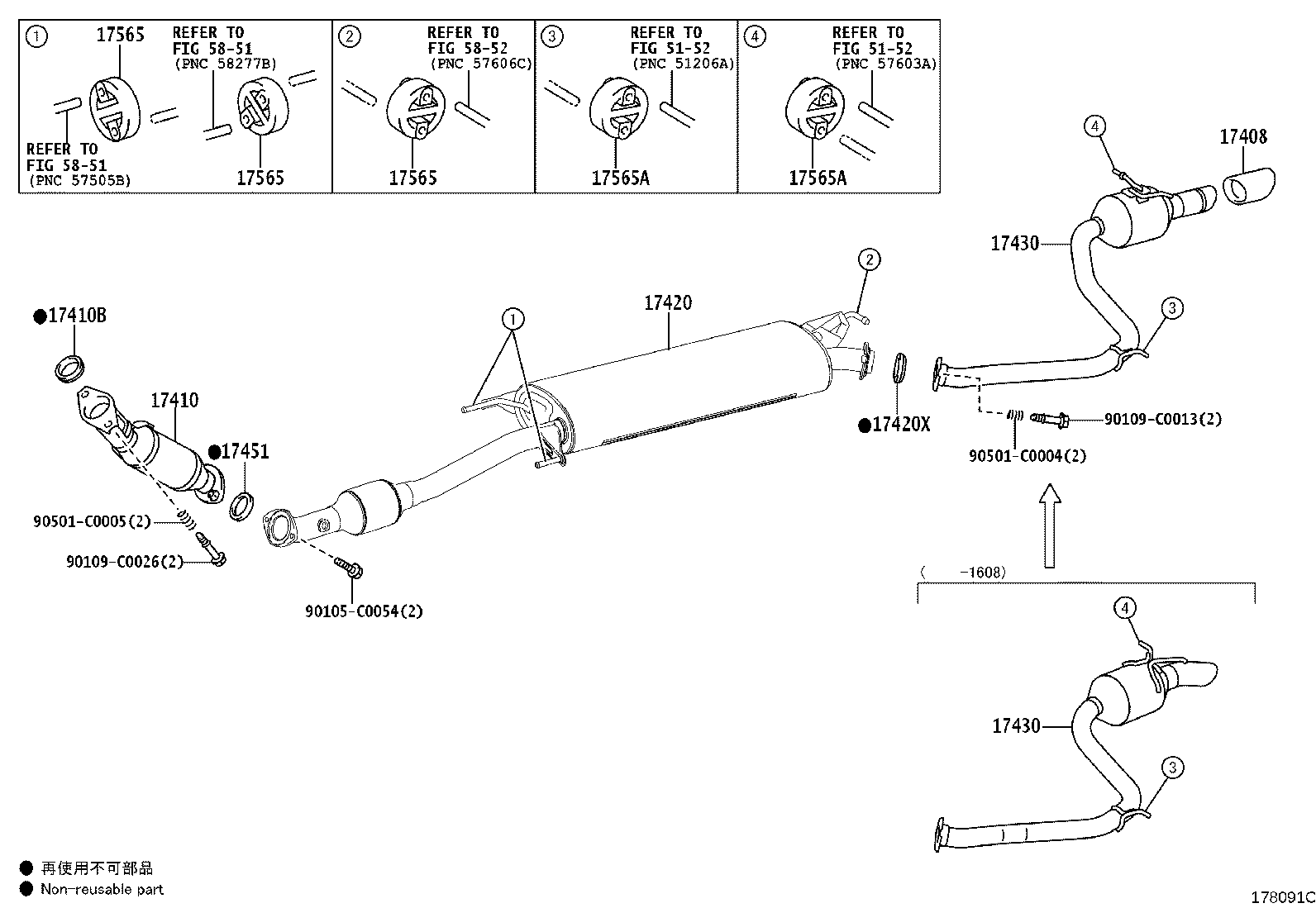

178091C · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
17408 — Baffle Sub Assy, Exhaust Tailpipe
17408-0T050 Baffle Sub Assy, Exhaust Tailpipe
2016-07 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
17410 — Pipe Assy, Exhaust, Front
17410-0T640 Pipe Assy, Exhaust, Front
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
17410-0T610 Pipe Assy, Exhaust, Front
2016-07 → —
6ZRFAE ZSA4# —
17410-0TD10 note Pipe Assy, Exhaust, Front
2018-09 → —
6ZRFAE ZSA4# —
17410B — Gasket, Exhaust Pipe
17451-0H020 Gasket, Exhaust Pipe
2013-08 → 2016-01 ended
5ARFE,6ZRFE ASA44,ZSA4# —
17451-0T010 Gasket, Exhaust Pipe
2016-01 → 2016-07 ended
5ARFE,6ZRFE ASA44,ZSA4# —
17451-0T010 Gasket, Exhaust Pipe
2016-07 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
17420 — Pipe Assy, Exhaust, Center
17420-0T050 Pipe Assy, Exhaust, Center
2013-08 → 2015-07 ended
6ZRFE ZSA4# —
17420-0T051 Pipe Assy, Exhaust, Center
2015-08 → 2016-07 ended
6ZRFE ZSA4# —
17420-0V290 Pipe Assy, Exhaust, Center
2013-08 → 2015-07 ended
5ARFE ASA44 —
17420-0V291 Pipe Assy, Exhaust, Center
2015-08 → 2016-07 ended
5ARFE ASA44 —
17420-0T100 Pipe Assy, Exhaust, Center
2016-07 → —
6ZRFAE ZSA4# —
17420-0T110 note Pipe Assy, Exhaust, Center
2018-09 → —
6ZRFAE ZSA4# —
17420-0V291 Pipe Assy, Exhaust, Center
2016-07 → —
2ARFE,5ARFE ASA4# —
17420X — Gasket, Exhaust Pipe, Center
17451-0V060 Gasket, Exhaust Pipe, Center
2013-08 → 2016-07 ended
5ARFE,6ZRFE ASA44,ZSA4# —
17451-0V060 Gasket, Exhaust Pipe, Center
2016-07 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
17430 — Pipe Assy, Exhaust, Tail
17430-0T290 Pipe Assy, Exhaust, Tail
2013-08 → 2016-07 ended
6ZRFE ZSA4# —
17430-0V280 Pipe Assy, Exhaust, Tail
2013-08 → 2016-07 ended
5ARFE ASA44 —
17430-0T310 Pipe Assy, Exhaust, Tail
2016-07 → 2017-02 ended
6ZRFAE ZSA4# —
17430-0T610 Pipe Assy, Exhaust, Tail
2017-02 → —
6ZRFAE ZSA4# —
17430-0V460 Pipe Assy, Exhaust, Tail
2016-07 → —
2ARFE,5ARFE ASA4# —
17451 — Gasket, Exhaust Pipe
90917-06078 Gasket, Exhaust Pipe
2013-08 → 2014-05 ended
5ARFE,6ZRFE ASA44,ZSA4# —
90917-C6001 Gasket, Exhaust Pipe
2014-05 → 2016-07 ended
5ARFE,6ZRFE ASA44,ZSA4# —
90917-C6001 Gasket, Exhaust Pipe
2016-07 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
17565 — Support, Exhaust Pipe, NO.5
17565-0T010 Support, Exhaust Pipe, NO.5
2013-08 → 2016-07 ended
5ARFE,6ZRFE ASA44,ZSA4# —
17565-0T010 Support, Exhaust Pipe, NO.5
2016-07 → 2017-07 ended
5ARFE,6ZRFAE ASA44,ZSA4# —
17565-0T011 Support, Exhaust Pipe, NO.5
2017-08 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
17565A — Support, Exhaust Pipe, NO.4
17565-0D070 Support, Exhaust Pipe, NO.4
2013-08 → 2016-07 ended
5ARFE,6ZRFE ASA44,ZSA4# —
17565-0D070 Support, Exhaust Pipe, NO.4
2016-07 → —
2ARFE,5ARFE,6ZRFAE ASA4#,ZSA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
