Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

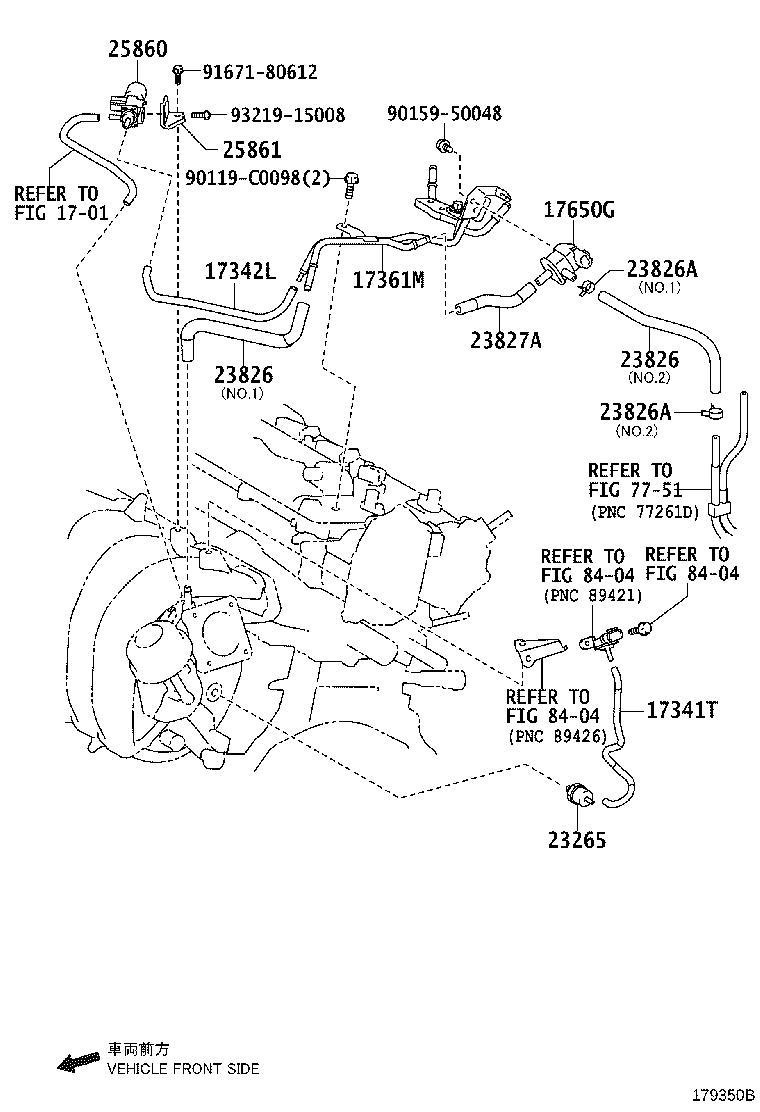

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17341T — Hose, Air, NO.1 | ||||
| 17341-37060 |
Hose, Air, NO.1
2016-07 → 2018-03
ended
|
6ZRFAE ZSA4# | — | |
| 17341-37100 |
Hose, Air, NO.1
2018-04 → —
|
6ZRFAE ZSA4# | — | |
| 17342L — Hose, Air, NO.2 | ||||
| 17342-37060 |
Hose, Air, NO.2
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 17342-37050 |
Hose, Air, NO.2
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 17361M — Tube, Air | ||||
| 17361-37070 |
Tube, Air
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 17361-0T010 |
Tube, Air
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 17361-0T030 note |
Tube, Air
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 17650G — Valve, Duty Vacuum Switching | ||||
| 90910-12276 |
Valve, Duty Vacuum Switching
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 90910-12276 |
Valve, Duty Vacuum Switching
2016-07 → 2016-12
ended
|
6ZRFAE ZSA4# | — | |
| 90910-12283 note |
Valve, Duty Vacuum Switching
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 90910-TC001 |
Valve, Duty Vacuum Switching
2016-12 → —
|
6ZRFAE ZSA4# | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11022 |
Filter, Gas, NO.1
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-0T110 note |
Hose, Fuel Vapor Feed, NO.1
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 23826-0T170 note |
Hose, Fuel Vapor Feed, NO.1
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 23826-0V060 |
Hose, Fuel Vapor Feed, NO.1
2013-08 → 2016-07
ended
|
5ARFE ASA44 | — | |
| 23826-0T270 note |
Hose, Fuel Vapor Feed, NO.1
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 23826-0T310 note |
Hose, Fuel Vapor Feed, NO.1
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 23826-0T321 note |
Hose, Fuel Vapor Feed, NO.1
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 23826-0V060 |
Hose, Fuel Vapor Feed, NO.1
2016-07 → —
|
2ARFE,5ARFE ASA4# | — | |
| 23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2013-08 → 2016-07
ended
|
5ARFE ASA44 | — | |
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-07 → —
|
2ARFE,5ARFE ASA4# | — | |
| 90466-C0037 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 96133-41501 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 96136-41901 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-37060 |
Hose, Fuel Vapor Feed, NO.2
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 23827-0T080 note |
Hose, Fuel Vapor Feed, NO.2
2018-09 → —
|
6ZRFAE ZSA4# | — | |
| 23827-37030 |
Hose, Fuel Vapor Feed, NO.2
2016-07 → 2018-03
ended
|
6ZRFAE ZSA4# | — | |
| 95328-07009 |
Hose, Fuel Vapor Feed, NO.2
2018-04 → —
|
6ZRFAE ZSA4# | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-0V060 |
Valve Assy, Vacuum Switching, NO.1
2013-08 → 2016-07
ended
|
5ARFE ASA44 | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 25860-0V060 |
Valve Assy, Vacuum Switching, NO.1
2016-07 → —
|
2ARFE,5ARFE ASA4# | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2016-07 → —
|
6ZRFAE ZSA4# | — | |
| 25861 — Bracket, Vacuum Switching Valve | ||||
| 25861-37010 |
Bracket, Vacuum Switching Valve
2013-08 → 2016-07
ended
|
6ZRFE ZSA4# | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2016-07 → —
|
6ZRFAE ZSA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
