Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

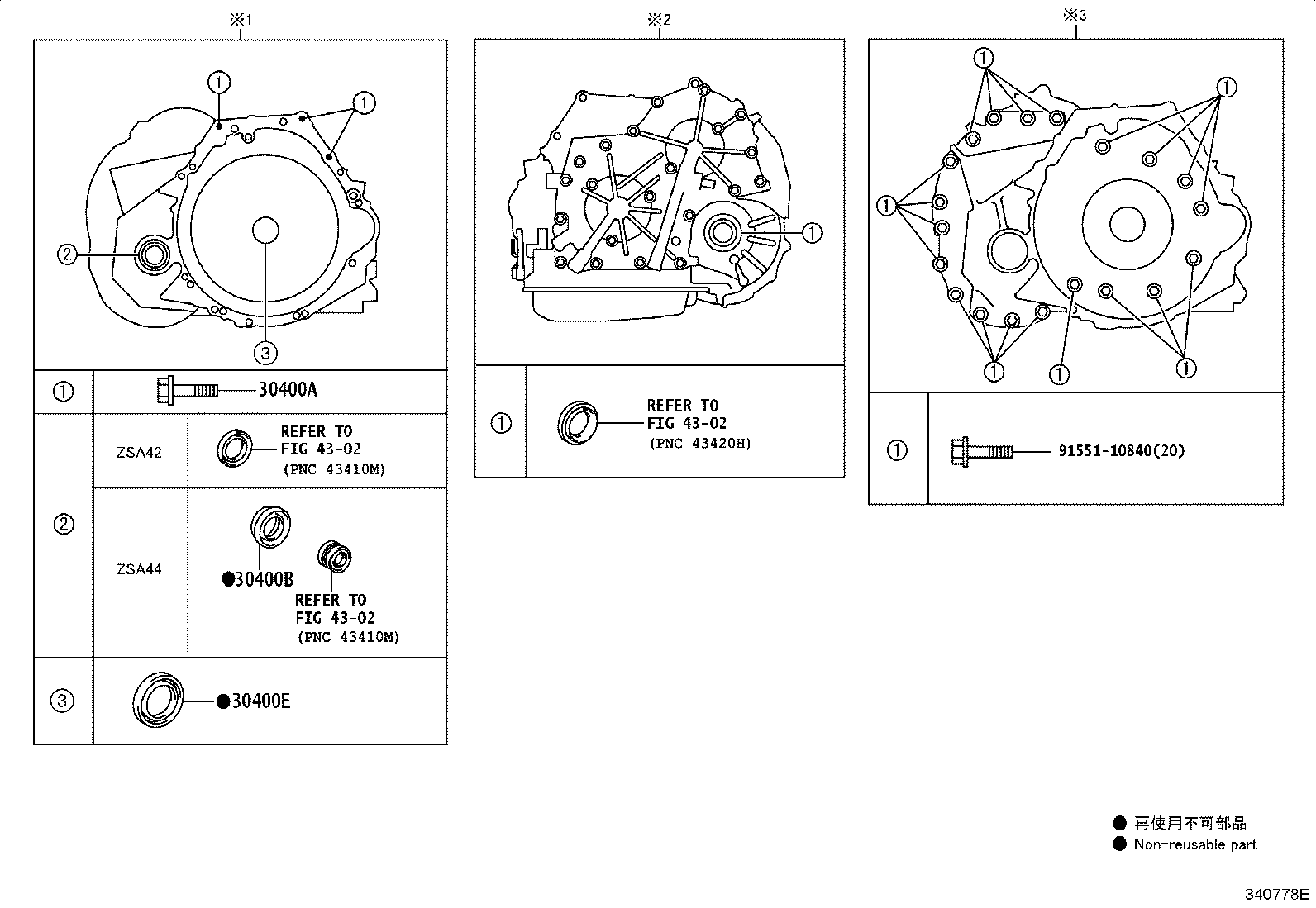

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-C0227 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2013-08 → 2016-07
ended
|
ZSA4# CVT HTWC | — | |
| 90105-C0227 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-07 → —
|
ZSA4# | — | |
| 91512-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-07 → —
|
ZSA4# | — | |
| 30400B — Seal, Type T Oil, NO.1(FOR CVT) | ||||
| 90311-49002 |
Seal, Type T Oil, NO.1(FOR CVT)
2013-08 → 2016-07
ended
|
ZSA44 HTWC | — | |
| 90311-55004 |
Seal, Type T Oil, NO.1(FOR CVT)
2016-07 → 2019-11
ended
|
ZSA44 | — | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2013-08 → 2016-07
ended
|
ZSA4# CVT HTWC | — | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2016-07 → 2019-11
ended
|
ZSA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
