Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

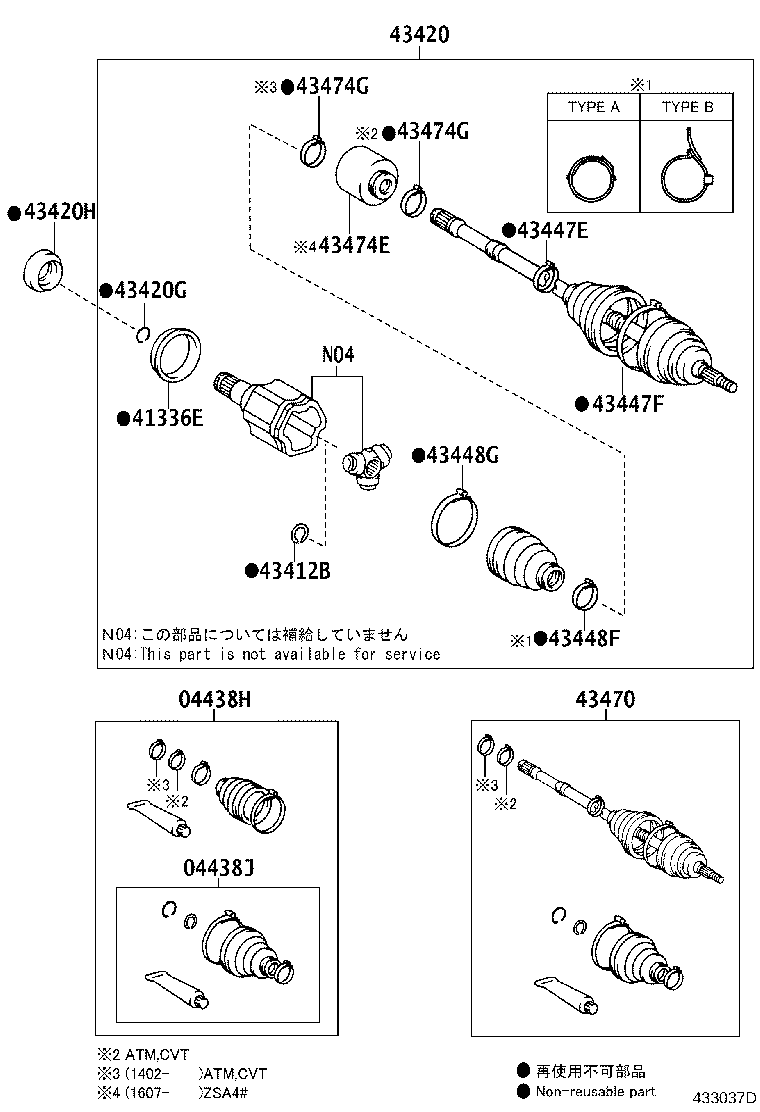

Exploded illustration 433037D 43420 — SHAFT ASSY, FRONT DRIVE, LH (5 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (8 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (5 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (8 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (6 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (1 parts)
433037D · 15 callouts Full size ↗
58 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-0E071 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-08 → 2014-02 ended
ASA44 —
04428-0E072 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-02 → 2016-07 ended
ASA44 —
04428-0R031 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-08 → 2016-07 ended
ZSA42 6F —
04428-0R040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-08 → 2014-02 ended
ZSA4# CVT —
04428-0R042 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-02 → 2016-07 ended
ZSA4# CVT —
04428-0E072 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-07 → 2018-06 ended
ASA44 —
04428-0E074 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2018-06 → —
ASA4# —
04428-0R090 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-07 → —
ZSA4# —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-0R030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2013-08 → 2016-07 ended
ASA44,ZSA4# —
04438-0R030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-07 → 2018-06 ended
ASA44 —
04438-0R031 Boot Kit, Front Drive Shaft Inboard Joint, LH
2018-06 → —
ASA4# —
04438-0R070 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-07 → —
ZSA4# —
41336E — Cover, Front Drive Shaft Dust, LH
41336-28020 Cover, Front Drive Shaft Dust, LH
2013-08 → 2016-07 ended
ASA44,ZSA4# —
41336-28020 Cover, Front Drive Shaft Dust, LH
2016-07 → —
ASA4#,ZSA4# —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2013-08 → 2015-09 ended
ASA44,ZSA4# —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-09 → 2016-07 ended
ASA44,ZSA4# —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-09 → 2016-07 ended
ASA44,ZSA4# —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-07 → —
ASA4#,ZSA4# —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-07 → —
ASA4#,ZSA4# —
43420 — Shaft Assy, Front Drive, LH
43420-0R100 Shaft Assy, Front Drive, LH
2013-08 → 2016-07 ended
ZSA4# CVT —
43420-0R110 Shaft Assy, Front Drive, LH
2013-08 → 2016-07 ended
ZSA42 6F —
43420-0R120 Shaft Assy, Front Drive, LH
2013-08 → 2016-07 ended
ASA44 —
43420-0R120 Shaft Assy, Front Drive, LH
2016-07 → —
ASA4# —
43420-0R130 Shaft Assy, Front Drive, LH
2016-07 → —
ZSA4# —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → —
ASA4#,ZSA4# —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2016-07 → 2019-09 ended
ASA4#,ZSA4# —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → —
ASA4#,ZSA4# —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50045 Oil Seal, Front Drive Shaft, LH
2013-08 → 2016-07 ended
ASA44 —
90311-50046 Oil Seal, Front Drive Shaft, LH
2013-08 → 2016-07 ended
ZSA42 6F —
90311-50050 Oil Seal, Front Drive Shaft, LH
2013-08 → 2016-07 ended
ZSA4# CVT —
90311-50045 Oil Seal, Front Drive Shaft, LH
2016-07 → 2019-03 ended
ASA4# —
90311-50050 Oil Seal, Front Drive Shaft, LH
2016-07 → 2019-11 ended
ZSA4# —
90311-50064 Oil Seal, Front Drive Shaft, LH
2019-04 → 2019-11 ended
ASA4# —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ZSA4# CVT —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ASA44,ZSA42 6F,6FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-07 → —
ASA4#,ZSA4# —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ZSA4# CVT —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ASA44,ZSA42 6F,6FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-07 → —
ASA4#,ZSA4# —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-07 → —
ASA4#,ZSA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-07 → —
ASA4#,ZSA4# —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-07 → —
ASA4#,ZSA4# —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-8Z160 Shaft Assy, Front Drive Outboard Joint, LH
2013-08 → 2014-02 ended
ZSA4# CVT —
43470-8Z161 Shaft Assy, Front Drive Outboard Joint, LH
2014-02 → 2016-07 ended
ZSA4# CVT —
43470-8Z170 Shaft Assy, Front Drive Outboard Joint, LH
2013-08 → 2016-07 ended
ZSA42 6F —
43470-8Z181 Shaft Assy, Front Drive Outboard Joint, LH
2013-08 → 2014-02 ended
ASA44 —
43470-8Z182 Shaft Assy, Front Drive Outboard Joint, LH
2014-02 → 2016-07 ended
ASA44 —
43470-8Z182 Shaft Assy, Front Drive Outboard Joint, LH
2016-07 → 2018-06 ended
ASA44 —
43470-8Z276 Shaft Assy, Front Drive Outboard Joint, LH
2016-07 → —
ZSA4# —
43470-8Z311 Shaft Assy, Front Drive Outboard Joint, LH
2018-06 → —
ASA4# —
43474E — Damper, Front Drive Shaft, LH
43474-06190 Damper, Front Drive Shaft, LH
2016-07 → —
ZSA4# —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2013-08 → 2014-02 ended
ASA44,ZSA4# ATM,CVT —
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2014-02 → 2016-07 ended
ASA44,ZSA4# ATM,CVT —
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-07 → —
ASA4#,ZSA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
