Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

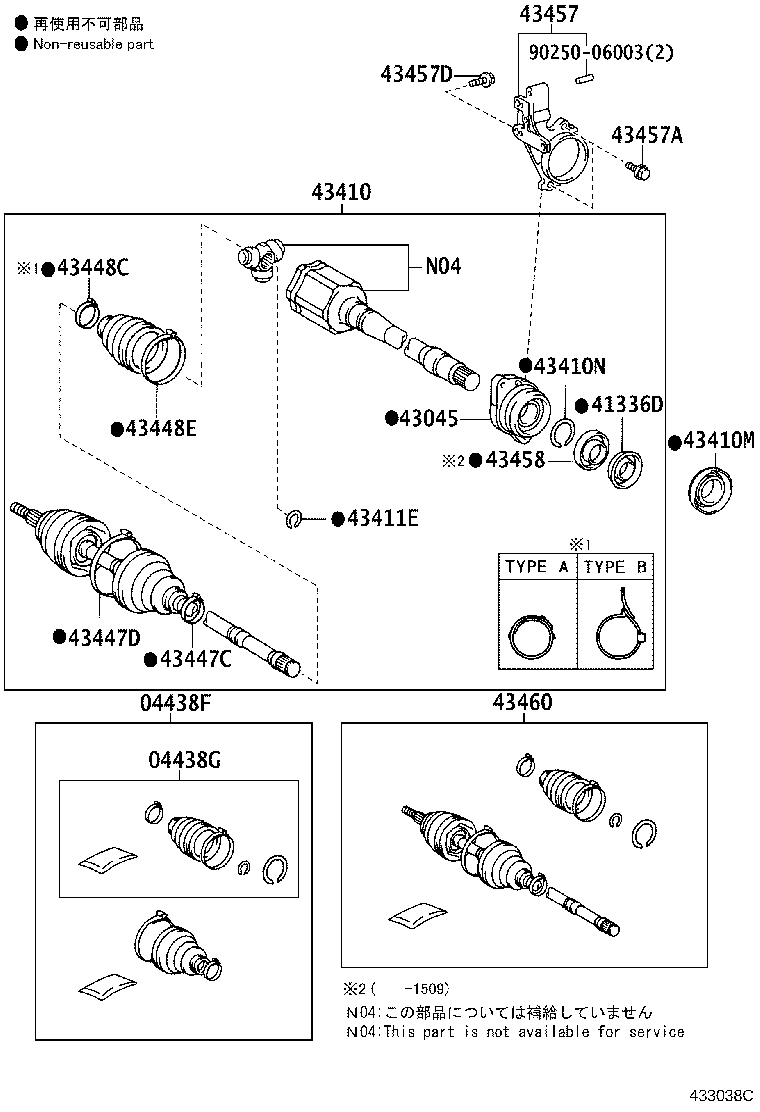

Exploded illustration 433038C 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (7 parts) 43045 — CASE SUB ASSY, DRIVE SHAFT BEARING (2 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (7 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (10 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (6 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (6 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (1 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (5 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (10 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (11 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 9025006003 — not listed in this catalogue
433038C · 17 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-0R051 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-08 → 2016-07 ended
ZSA42 6F —
04427-0R060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-08 → 2016-07 ended
ZSA42 CVT —
04427-0R080 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-08 → 2014-02 ended
ZSA44 —
04427-0R081 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-02 → 2016-07 ended
ZSA44 —
04427-0R120 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2013-08 → 2014-02 ended
ASA44 —
04427-0R121 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-02 → 2014-07 ended
ASA44 —
04427-0R122 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-07 → 2016-07 ended
ASA44 —
04427-0R122 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2016-07 → 2018-06 ended
ASA44 —
04427-0R123 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2018-06 → —
ASA4# —
04427-0R130 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2016-07 → —
ZSA42 —
04427-0R140 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2016-07 → —
ZSA44 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-0R050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2013-08 → 2016-07 ended
ZSA42 —
04437-0R060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2013-08 → 2016-07 ended
ASA44,ZSA44 —
04437-0R060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-07 → 2018-06 ended
ASA44 —
04437-0R080 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-07 → —
ZSA42 —
04437-0R090 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-07 → —
ZSA44 —
04437-0R110 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-06 → —
ASA4# —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12020 Cover, Front Drive Shaft Dust, RH
2013-08 → 2016-07 ended
ZSA42 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2013-08 → 2016-07 ended
ASA44,ZSA44 —
41336-0R090 note Cover, Front Drive Shaft Dust, RH
2019-10 → —
ASA4#,ZSA44 —
41336-12020 Cover, Front Drive Shaft Dust, RH
2016-07 → —
ZSA42 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2016-07 → 2019-10 ended
ASA4#,ZSA44 —
41336-52020 note Cover, Front Drive Shaft Dust, RH
2019-10 → —
ASA4#,ZSA44 —
43045 — Case Sub Assy, Drive Shaft Bearing
43045-0R010 Case Sub Assy, Drive Shaft Bearing
2013-08 → 2016-07 ended
ZSA42 —
43045-0R010 Case Sub Assy, Drive Shaft Bearing
2016-07 → —
ZSA42 —
43410 — Shaft Assy, Front Drive, RH
43410-0R110 Shaft Assy, Front Drive, RH
2013-08 → 2016-07 ended
ZSA42 CVT —
43410-0R120 Shaft Assy, Front Drive, RH
2013-08 → 2016-07 ended
ZSA42 6F —
43410-0R130 Shaft Assy, Front Drive, RH
2013-08 → 2016-07 ended
ZSA44 —
43410-0R140 Shaft Assy, Front Drive, RH
2013-08 → 2016-07 ended
ASA44 —
43410-0R140 Shaft Assy, Front Drive, RH
2016-07 → —
ASA4# —
43410-0R160 Shaft Assy, Front Drive, RH
2016-07 → —
ZSA42 —
43410-0R170 Shaft Assy, Front Drive, RH
2016-07 → —
ZSA44 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40036 Oil Seal, Front Drive Shaft, RH
2013-08 → 2016-07 ended
ZSA42 6F —
90311-40041 Oil Seal, Front Drive Shaft, RH
2013-08 → 2016-07 ended
ZSA42 CVT —
90316-28003 Oil Seal, Front Drive Shaft, RH
2013-08 → 2016-07 ended
ZSA44 —
90316-34001 Oil Seal, Front Drive Shaft, RH
2013-08 → 2016-07 ended
ASA44 —
90311-40041 Oil Seal, Front Drive Shaft, RH
2016-07 → 2019-11 ended
ZSA42 —
90316-34001 Oil Seal, Front Drive Shaft, RH
2016-07 → 2019-11 ended
ASA4#,ZSA44 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2013-08 → 2015-04 ended
ASA44,ZSA44 —
90520-33008 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-04 → 2016-07 ended
ASA44,ZSA44 —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2013-08 → 2015-04 ended
ZSA42 —
90520-38015 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-04 → 2016-07 ended
ZSA42 —
90520-C0031 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-04 → 2016-07 ended
ASA44,ZSA44 —
90520-C0032 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-04 → 2016-07 ended
ZSA42 —
90520-33008 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2016-07 → —
ASA4#,ZSA44 —
90520-38015 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2016-07 → —
ZSA42 —
90520-C0031 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2016-07 → —
ASA4#,ZSA44 —
90520-C0032 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2016-07 → —
ZSA42 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2013-08 → 2015-09 ended
ASA44,ZSA4# —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-09 → 2016-07 ended
ASA44,ZSA4# —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-09 → 2016-07 ended
ASA44,ZSA4# —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-07 → —
ASA4#,ZSA4# —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-07 → —
ASA4#,ZSA4# —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ZSA4# CVT —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ASA44,ZSA42 6F,6FC —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-07 → —
ASA4#,ZSA4# —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ZSA4# CVT —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ASA44,ZSA42 6F,6FC —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-07 → —
ASA4#,ZSA4# —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-07 → —
ASA4#,ZSA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-07 → —
ASA4#,ZSA4# —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-07 → —
ASA4#,ZSA4# —
43457 — Bracket, Drive Shaft Bearing
43457-0R060 Bracket, Drive Shaft Bearing
2013-08 → 2016-07 ended
ZSA42 CVT —
43457-0R070 Bracket, Drive Shaft Bearing
2013-08 → 2016-07 ended
ZSA42 6F —
43457-0R080 Bracket, Drive Shaft Bearing
2013-08 → 2016-07 ended
ZSA44 —
43457-0R090 Bracket, Drive Shaft Bearing
2013-08 → 2016-07 ended
ASA44 —
43457-0R070 Bracket, Drive Shaft Bearing
2016-07 → —
ZSA42 —
43457-0R090 Bracket, Drive Shaft Bearing
2016-07 → —
ASA4# —
43457-0R100 Bracket, Drive Shaft Bearing
2016-07 → —
ZSA44 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-C0124 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2013-08 → 2016-07 ended
ZSA42 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2013-08 → 2016-07 ended
ASA44,ZSA44 —
90105-C0124 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2016-07 → —
ZSA42 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2016-07 → —
ASA4#,ZSA44 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-C0014 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2013-08 → 2016-07 ended
ASA44,ZSA4# —
90105-C0014 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2016-07 → —
ASA4#,ZSA4# —
43458 — Cover, Front Drive Shaft Dust
43458-12010 Cover, Front Drive Shaft Dust
2013-08 → 2015-09 ended
ZSA42 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43470-09X50 Shaft Assy, Front Drive Outboard Joint, RH
2013-08 → 2014-02 ended
ASA44 —
43470-09X51 Shaft Assy, Front Drive Outboard Joint, RH
2014-02 → 2016-07 ended
ASA44 —
43470-8Z120 Shaft Assy, Front Drive Outboard Joint, RH
2013-08 → 2016-07 ended
ZSA42 CVT —
43470-8Z130 Shaft Assy, Front Drive Outboard Joint, RH
2013-08 → 2016-07 ended
ZSA42 6F —
43470-8Z141 Shaft Assy, Front Drive Outboard Joint, RH
2013-08 → 2014-02 ended
ZSA44 —
43470-8Z142 Shaft Assy, Front Drive Outboard Joint, RH
2014-02 → 2016-07 ended
ZSA44 —
43470-09X51 Shaft Assy, Front Drive Outboard Joint, RH
2016-07 → 2018-06 ended
ASA44 —
43470-09X52 Shaft Assy, Front Drive Outboard Joint, RH
2018-06 → —
ASA4# —
43470-8Z274 Shaft Assy, Front Drive Outboard Joint, RH
2016-07 → —
ZSA42 —
43470-8Z275 Shaft Assy, Front Drive Outboard Joint, RH
2016-07 → —
ZSA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
