Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

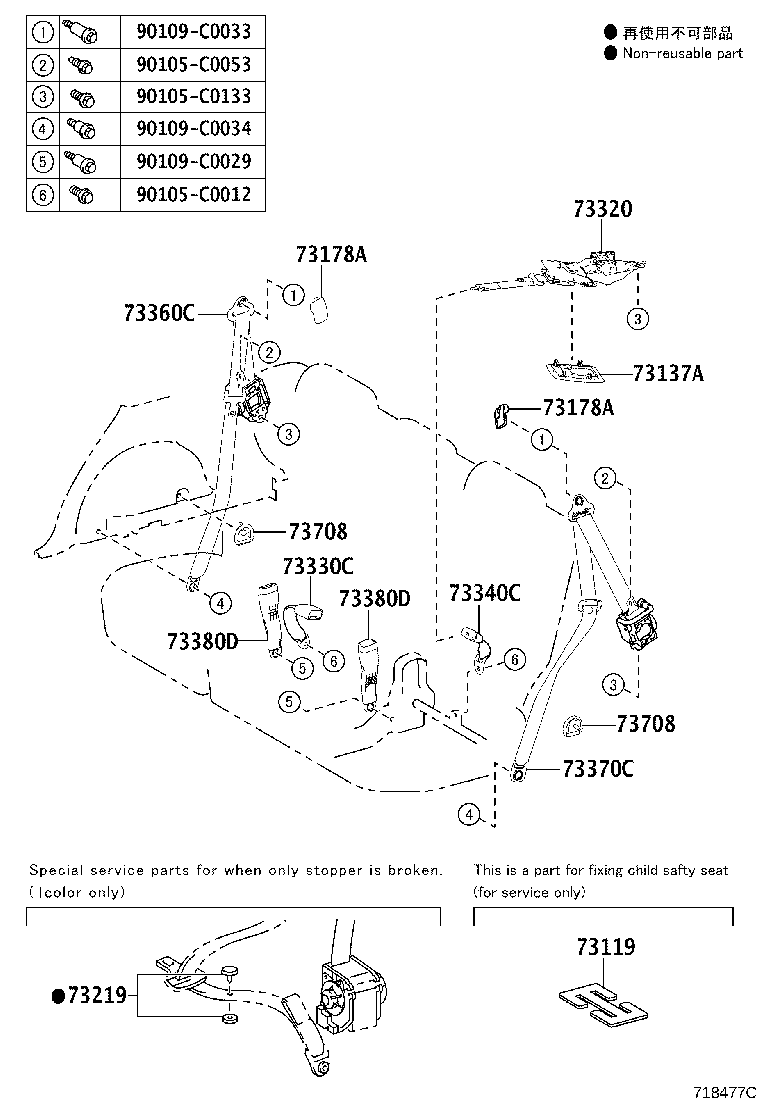

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73119 — Plate, Seat Belt Webbing Clip | ||||
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2013-08 → 2016-07
ended
|
ASA44,ZSA4# | — | |
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2016-07 → —
|
ASA4#,ZSA4# | — | |
| 73137A — Cover, Shoulder Belt Anchor, Upr | ||||
| 73137-0R030-B0 note |
Cover, Shoulder Belt Anchor, Upr
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73137-0R030-B0 note |
Cover, Shoulder Belt Anchor, Upr
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73137-0R030-B0 note |
Cover, Shoulder Belt Anchor, Upr
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73137-0R030-B0 note |
Cover, Shoulder Belt Anchor, Upr
2016-07 → —
|
ZSA42 X | — | |
| 73137-0R030-B0 note |
Cover, Shoulder Belt Anchor, Upr
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73178A — Cap, Seat Belt Anchor Cover | ||||
| 73178-0R020-B0 note |
Cap, Seat Belt Anchor Cover
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73178-0R020-B0 note |
Cap, Seat Belt Anchor Cover
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73178-0R020-B0 note |
Cap, Seat Belt Anchor Cover
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73178-0R020-B0 note |
Cap, Seat Belt Anchor Cover
2016-07 → —
|
ZSA42 X | — | |
| 73178-0R020-B0 note |
Cap, Seat Belt Anchor Cover
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2013-08 → 2016-07
ended
|
ASA44,ZSA4# | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2016-07 → —
|
ASA4#,ZSA4# | — | |
| 73320 — Belt Assy, Rear Seat 3 Point Type, LH | ||||
| 73320-0R040-C0 note |
Belt Assy, Rear Seat 3 Point Type, LH
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73320-0R040-C0 note |
Belt Assy, Rear Seat 3 Point Type, LH
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73320-0R040-C0 note |
Belt Assy, Rear Seat 3 Point Type, LH
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73320-0R040-C0 note |
Belt Assy, Rear Seat 3 Point Type, LH
2016-07 → —
|
ZSA42 X | — | |
| 73320-0R040-C0 note |
Belt Assy, Rear Seat 3 Point Type, LH
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73330C — Belt Assy, Rear Seat Lap Type, Center RH | ||||
| 73330-0R050-C1 note |
Belt Assy, Rear Seat Lap Type, Center RH
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73330-0R050-C1 note |
Belt Assy, Rear Seat Lap Type, Center RH
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73330-0R050-C1 note |
Belt Assy, Rear Seat Lap Type, Center RH
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73330-0R050-C1 note |
Belt Assy, Rear Seat Lap Type, Center RH
2016-07 → —
|
ZSA42 X | — | |
| 73330-0R050-C1 note |
Belt Assy, Rear Seat Lap Type, Center RH
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73340C — Belt Assy, Rear Seat Lap Type, Center LH | ||||
| 73340-0R040-C1 note |
Belt Assy, Rear Seat Lap Type, Center LH
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73340-0R040-C1 note |
Belt Assy, Rear Seat Lap Type, Center LH
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73340-0R040-C1 note |
Belt Assy, Rear Seat Lap Type, Center LH
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73340-0R040-C1 note |
Belt Assy, Rear Seat Lap Type, Center LH
2016-07 → —
|
ZSA42 X | — | |
| 73340-0R040-C1 note |
Belt Assy, Rear Seat Lap Type, Center LH
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73360C — Belt Assy, Rear NO.1 Seat, Outer RH | ||||
| 73360-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73360-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73360-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73360-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2016-07 → —
|
ZSA42 X | — | |
| 73360-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73370C — Belt Assy, Rear NO.1 Seat, Outer LH | ||||
| 73370-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73370-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73370-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2016-07 → —
|
ZSA42 X | — | |
| 73370-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73370-0R050-C0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73380D — Belt Assy, Rear Seat, Inner | ||||
| 73380-0R040-C0 note |
Belt Assy, Rear Seat, Inner
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73380-0R040-C0 note |
Belt Assy, Rear Seat, Inner
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73380-0R040-C0 note |
Belt Assy, Rear Seat, Inner
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73380-0R040-C0 note |
Belt Assy, Rear Seat, Inner
2016-07 → —
|
ZSA42 X | — | |
| 73380-0R040-C0 note |
Belt Assy, Rear Seat, Inner
2016-07 → —
|
ASA45;ASA44 M | — | |
| 73708 — Bracket Set, Tether Anchor | ||||
| 73708-42060-C0 note |
Bracket Set, Tether Anchor
2013-08 → 2016-07
ended
|
ZSA4# M,X | — | |
| 73708-42060-C0 note |
Bracket Set, Tether Anchor
2013-08 → 2016-07
ended
|
ASA44;ZSA44 G | — | |
| 73708-42060-C0 note |
Bracket Set, Tether Anchor
2016-07 → —
|
ASA44 Q;ZSA4# G,M | — | |
| 73708-42060-C0 note |
Bracket Set, Tether Anchor
2016-07 → —
|
ZSA42 X | — | |
| 73708-42060-C0 note |
Bracket Set, Tether Anchor
2016-07 → —
|
ASA45;ASA44 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
