Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

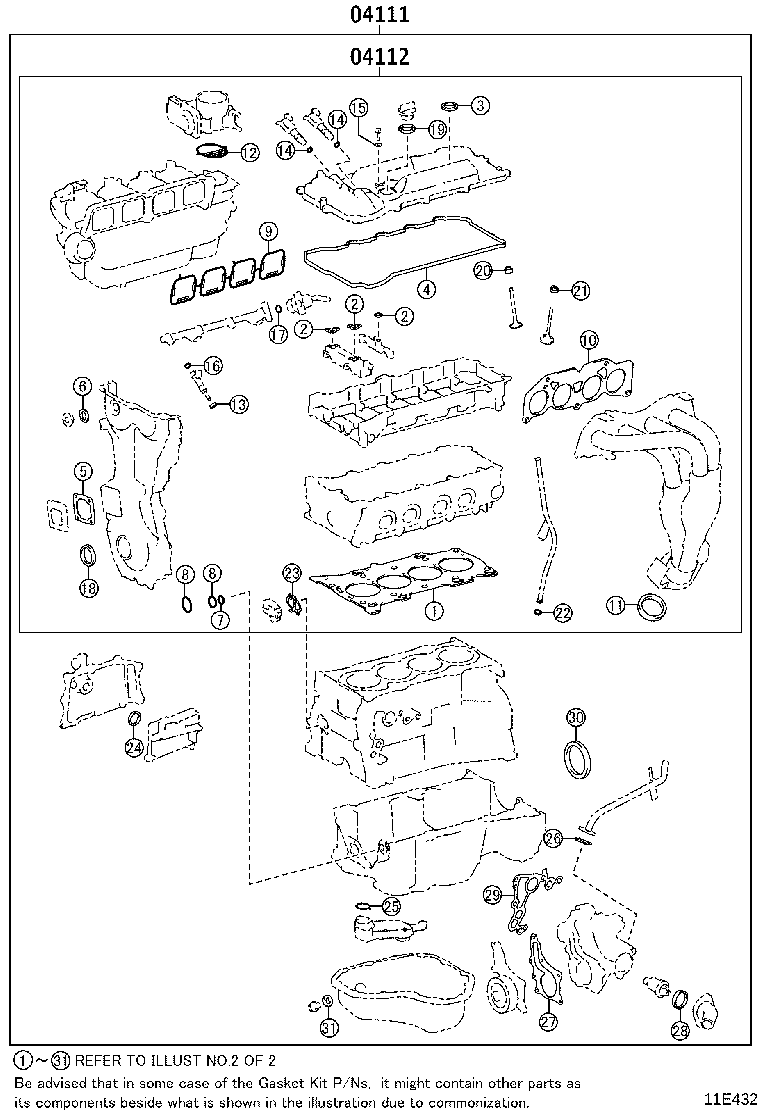

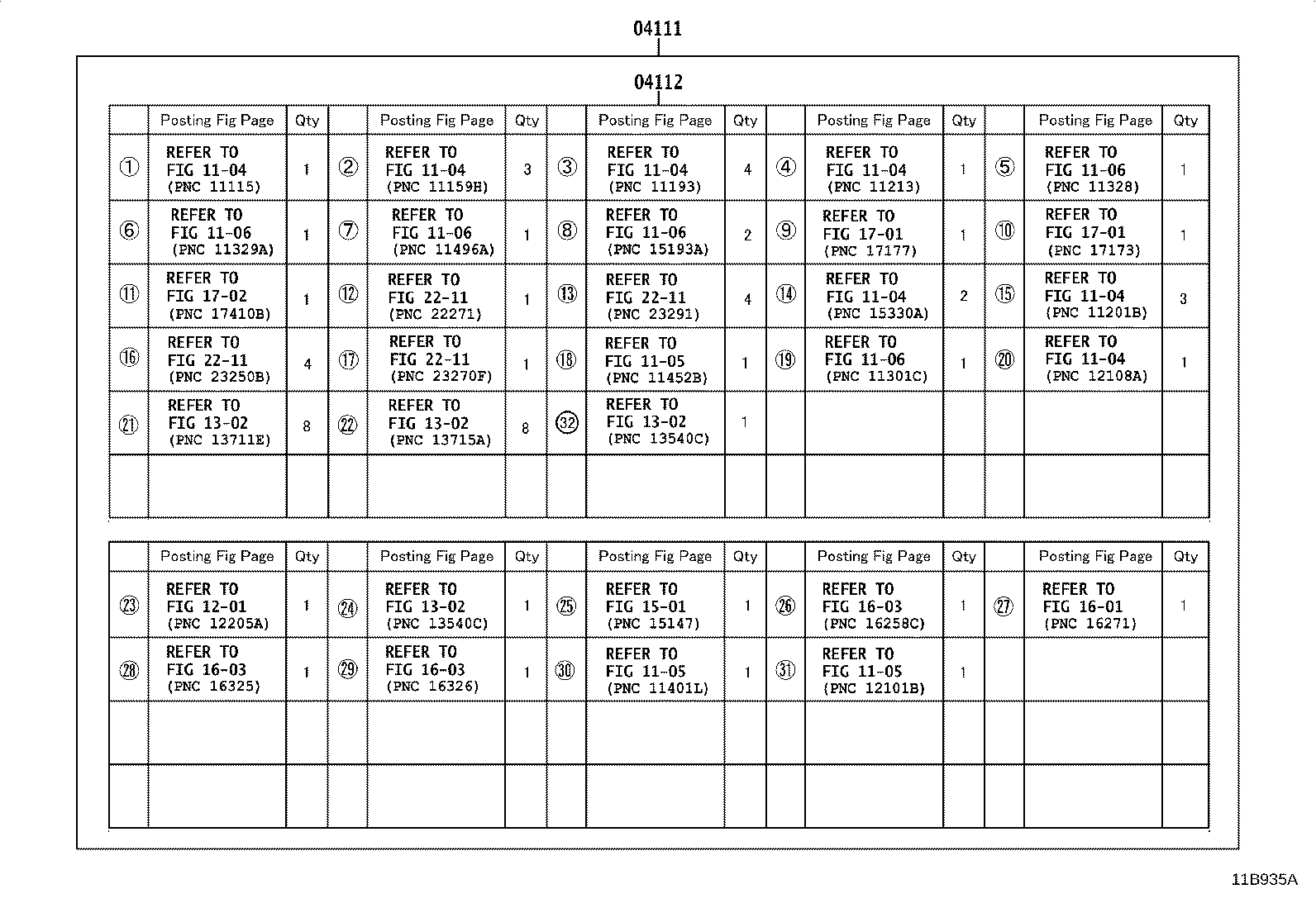

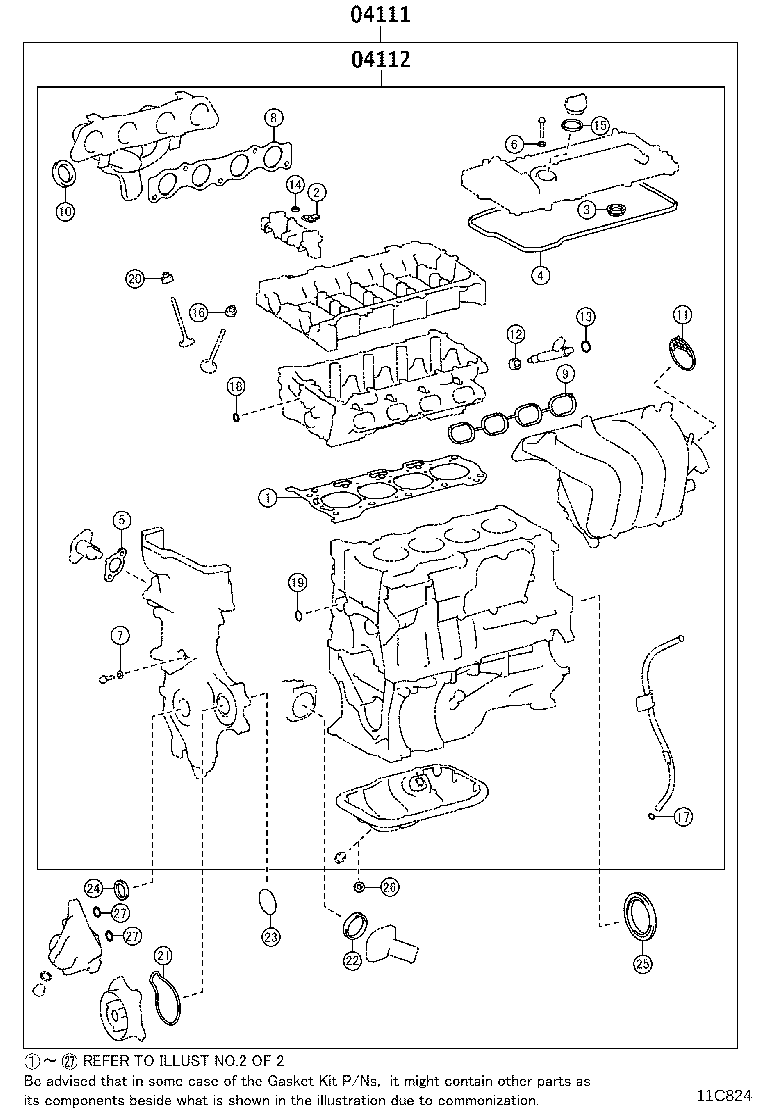

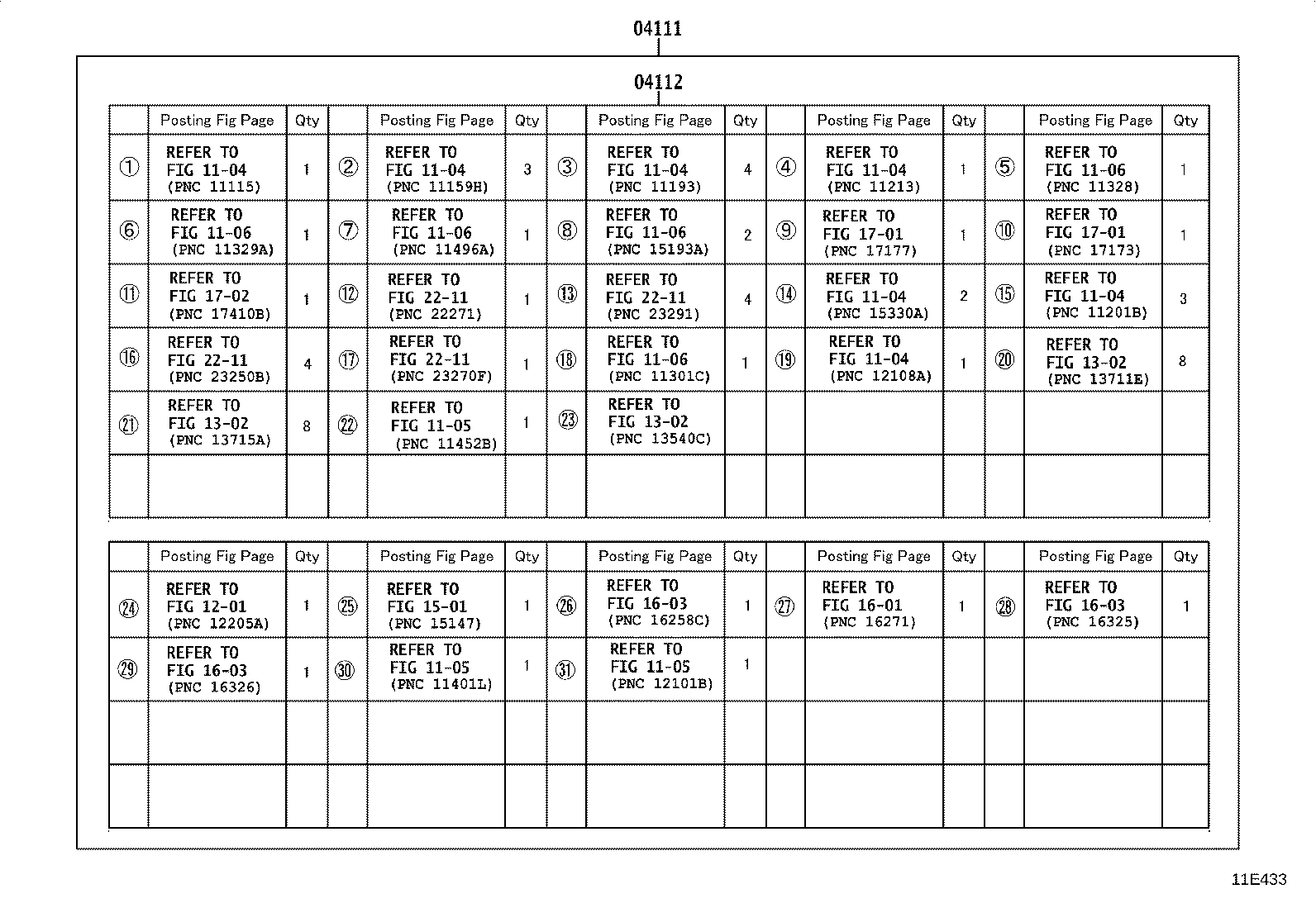

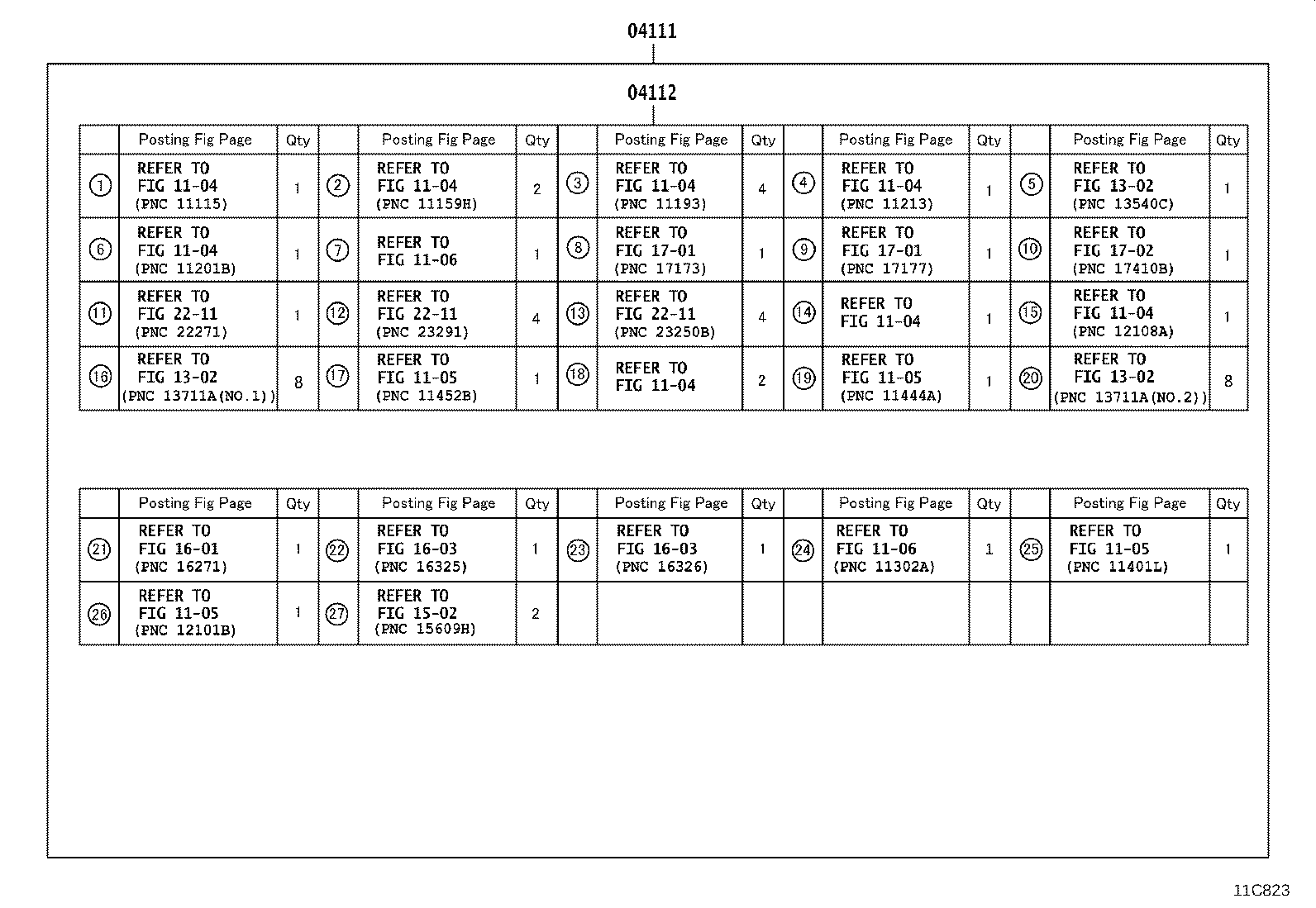

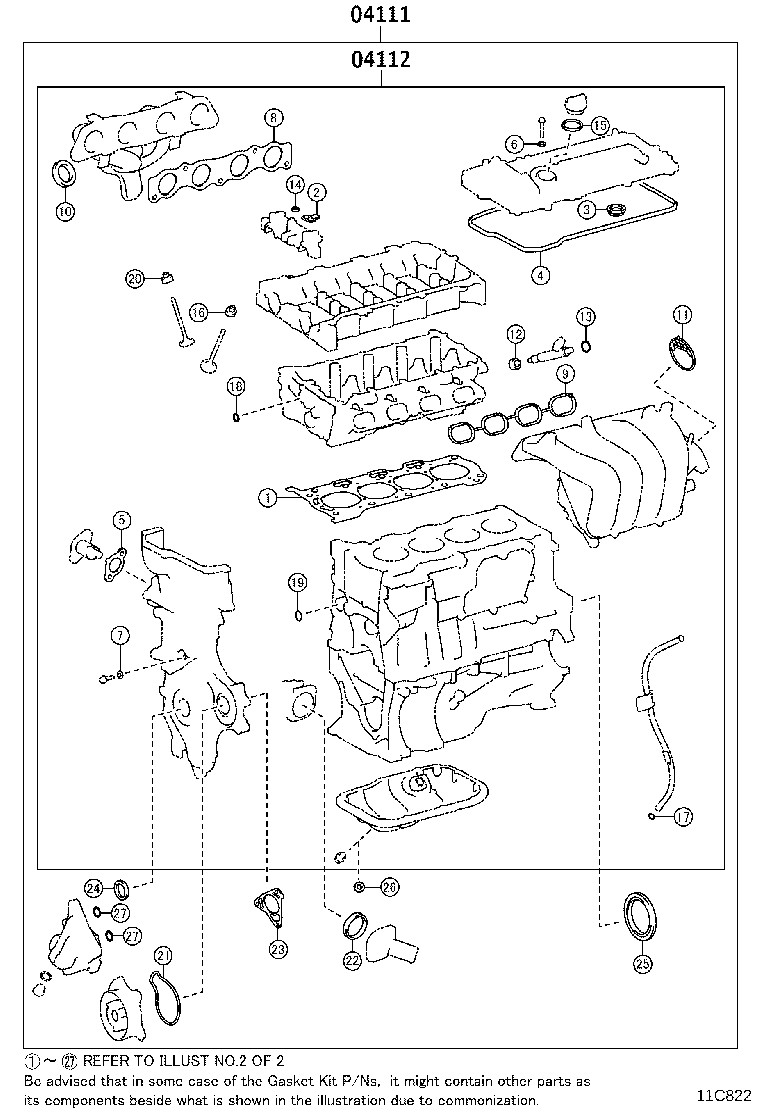

Figure 118607C 118607C 2013-08 → — Figure 11E432 11E432 2019-01 → — Figure 11B935A 11B935A 2013-08 → — Figure 11E433 11E433 2019-01 → — Figure 11C822 11C822 2013-08 → 2016-07 Figure 11C823 11C823 2013-08 → 2016-07 Figure 11C824 11C824 2016-07 → — Figure 11C825 11C825 2016-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
