Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 2 illustrations

Illustrations

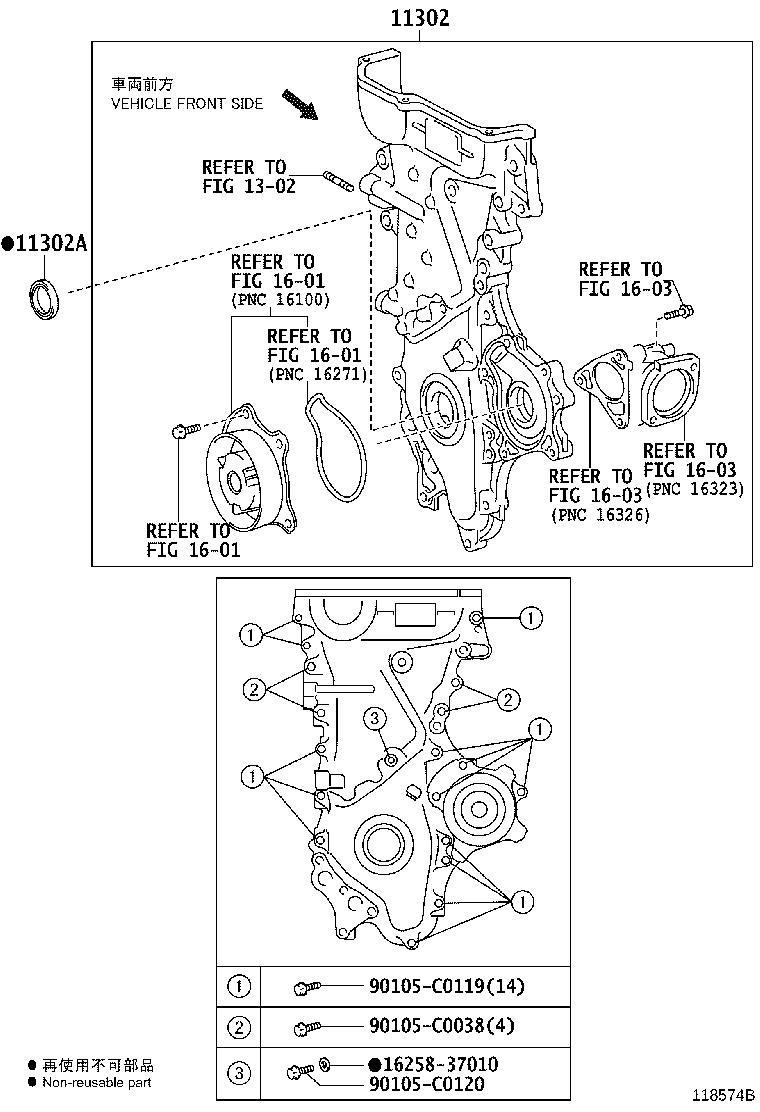

Figure 118601E 118601E 2013-08 → — Figure 118574B 118574B 2013-08 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11496A Gasket, Oil Hole Cover
15133B Plug, Oil Pump Relief Valve
15193A Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
