Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 3 illustrations

Illustrations

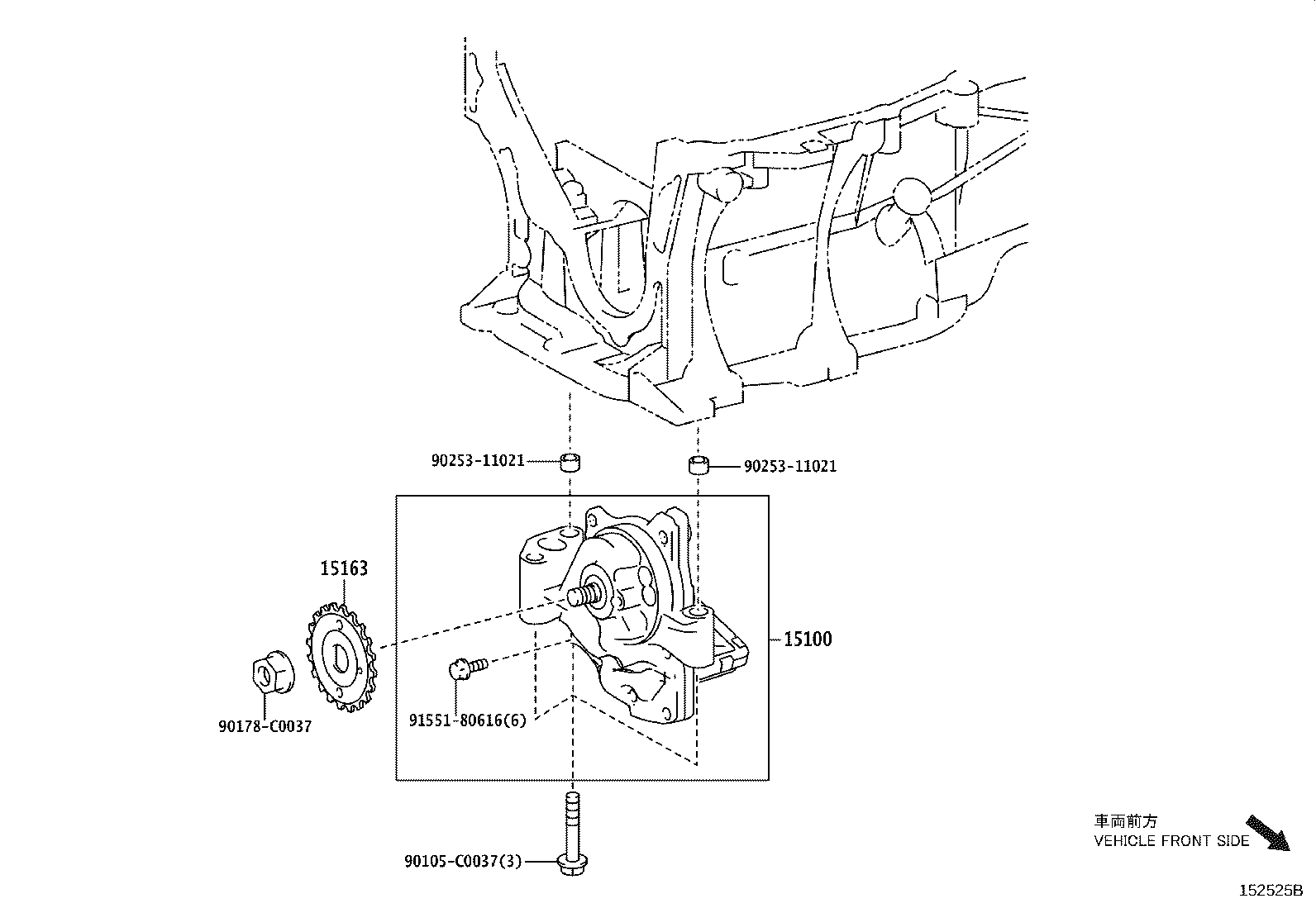

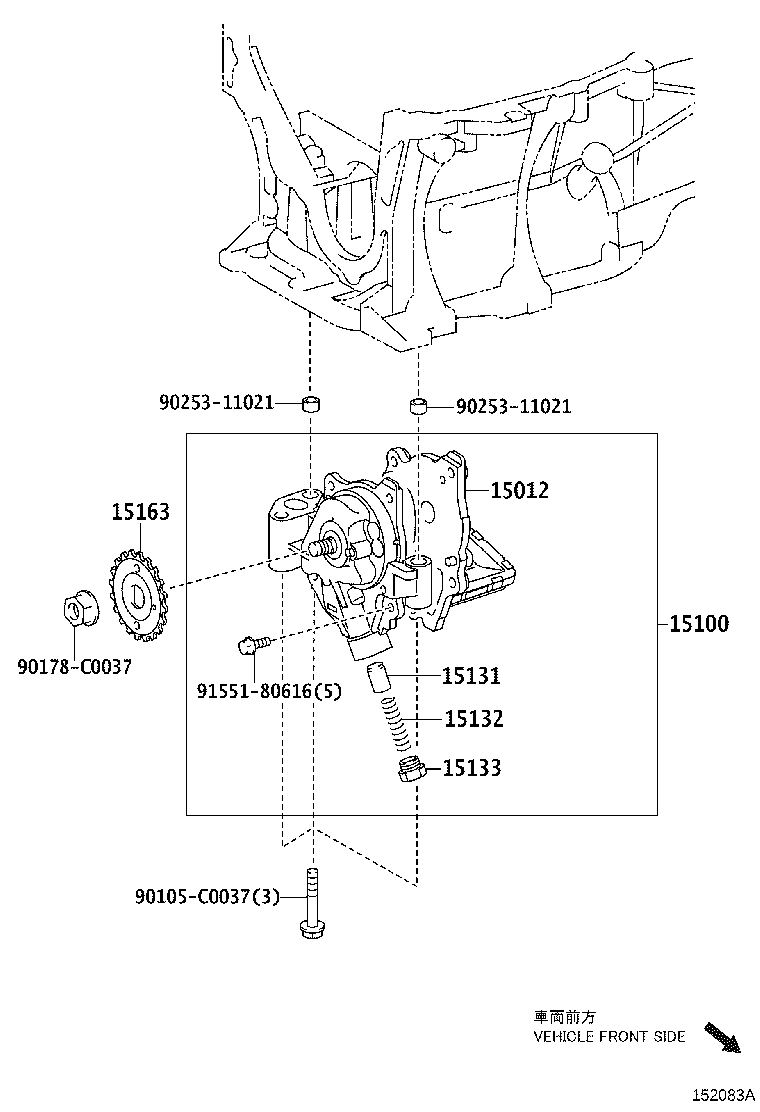

Figure 152086D 152086D 2013-08 → — Figure 152083A 152083A 2013-08 → 2016-07 Figure 152525B 152525B 2016-07 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
