Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 3 illustrations

Illustrations

Figure 165449D

165449D 2013-08 → —

Figure 165441B

165441B 2013-08 → 2016-07

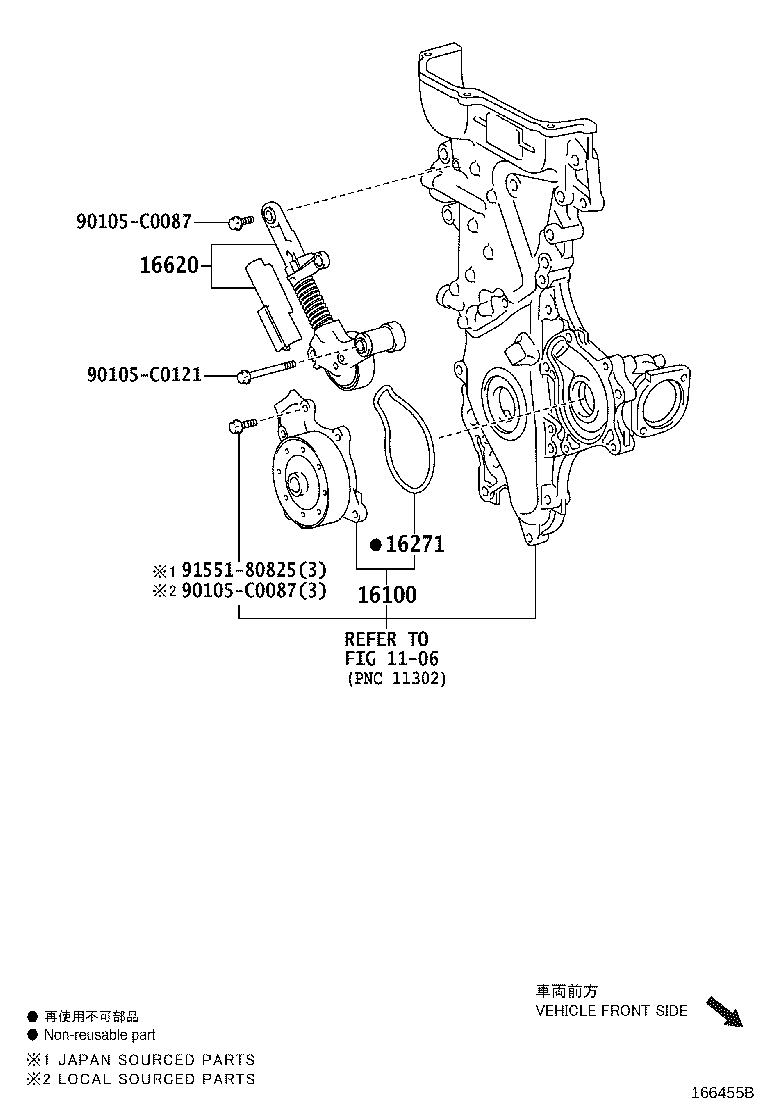

Figure 166455B

166455B 2016-07 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt
16634D	Cover, Dust

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
