Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 3 illustrations

Illustrations

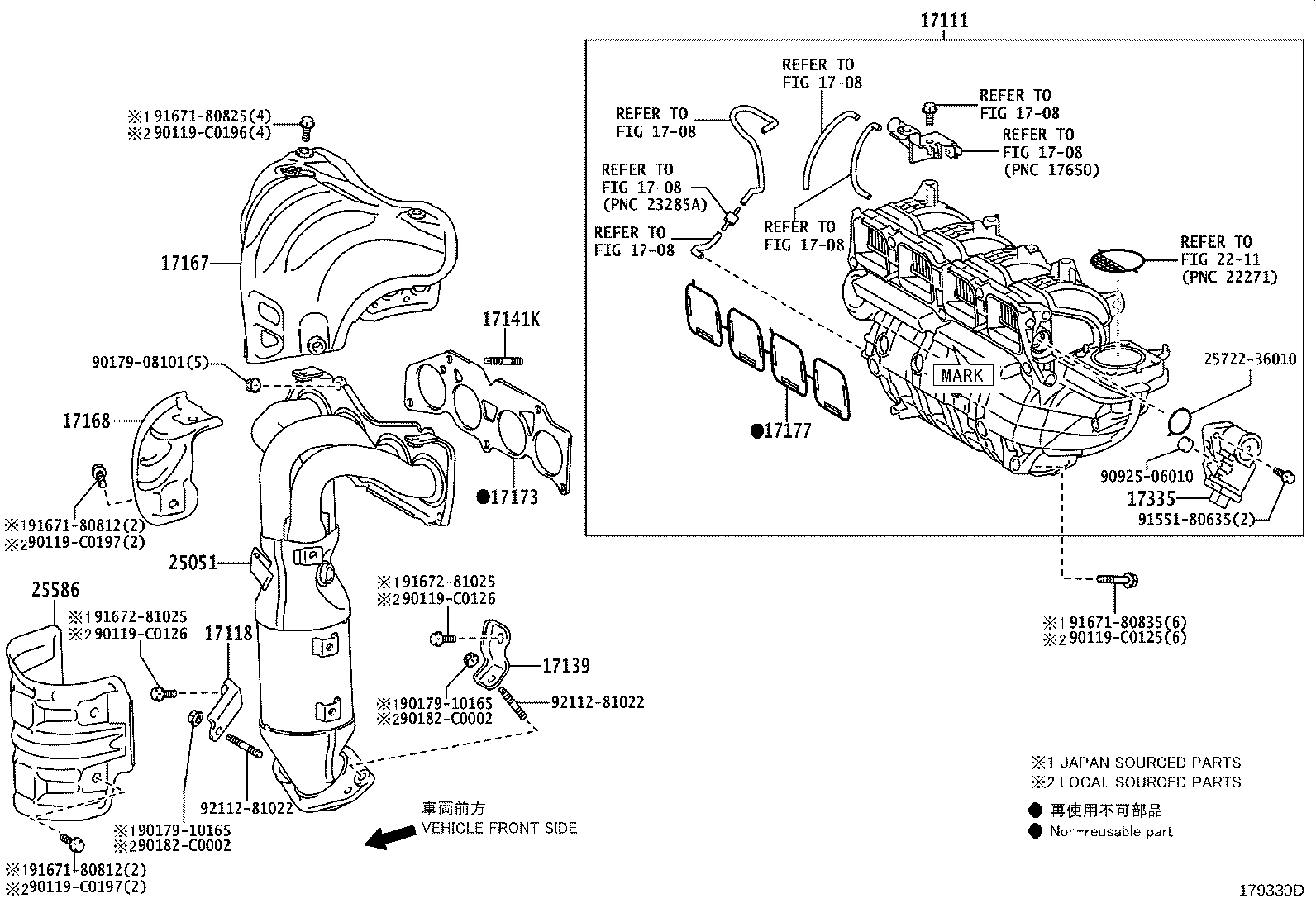

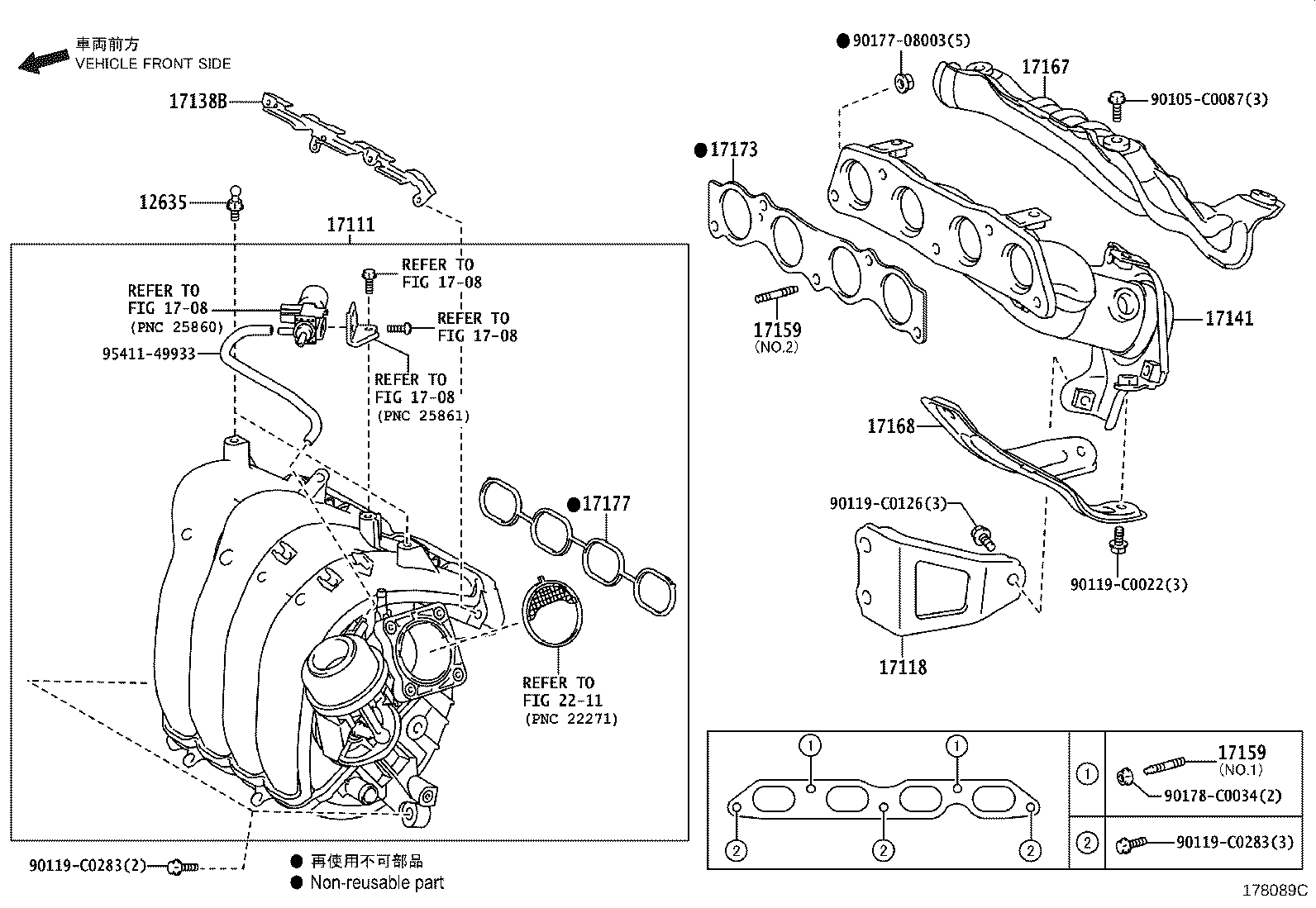

Figure 178092B 178092B 2013-08 → 2016-07 Figure 179330D 179330D 2016-07 → — Figure 178089C 178089C 2013-08 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17335 Actuator, Intake Air Control Valve
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
