Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

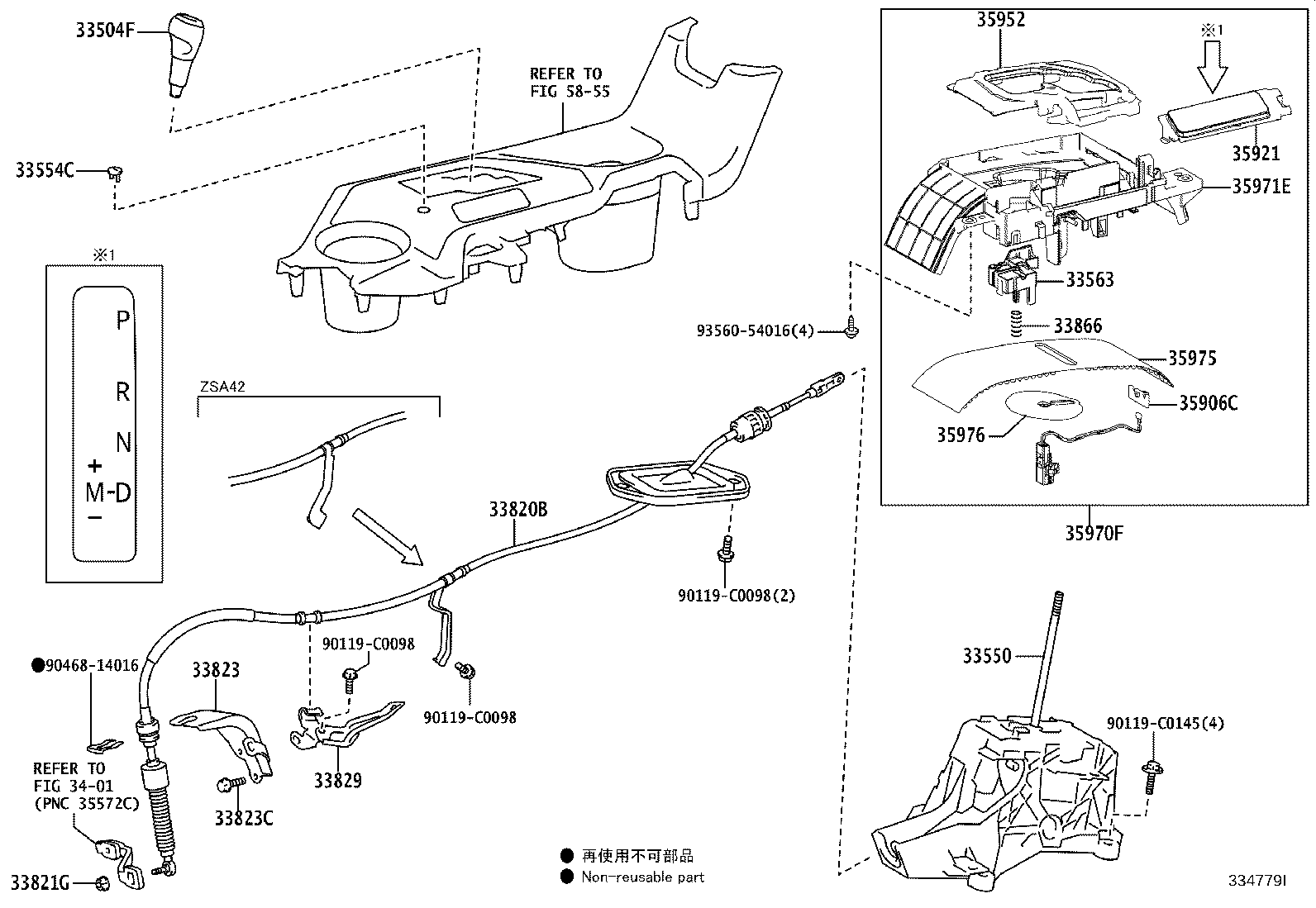

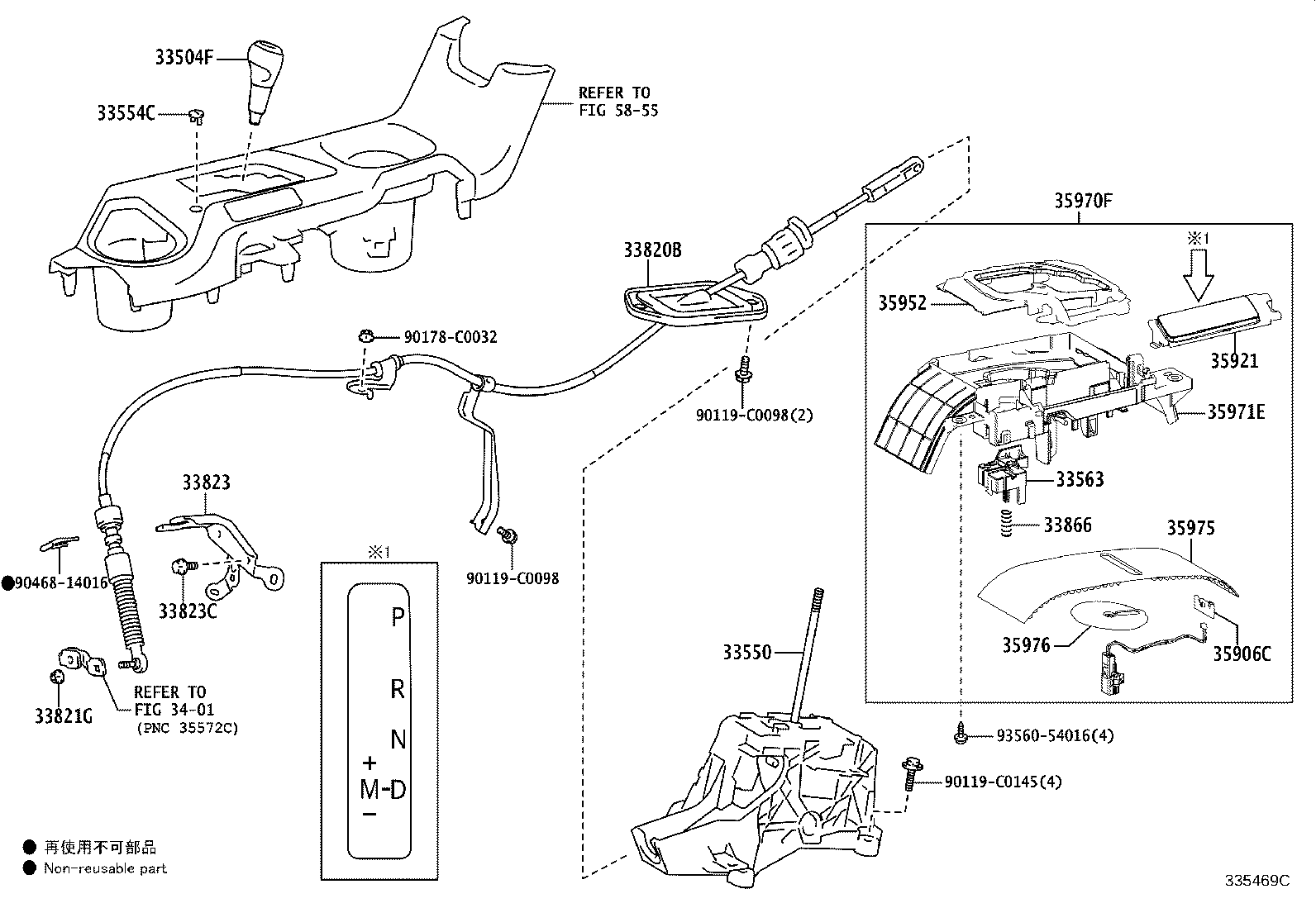

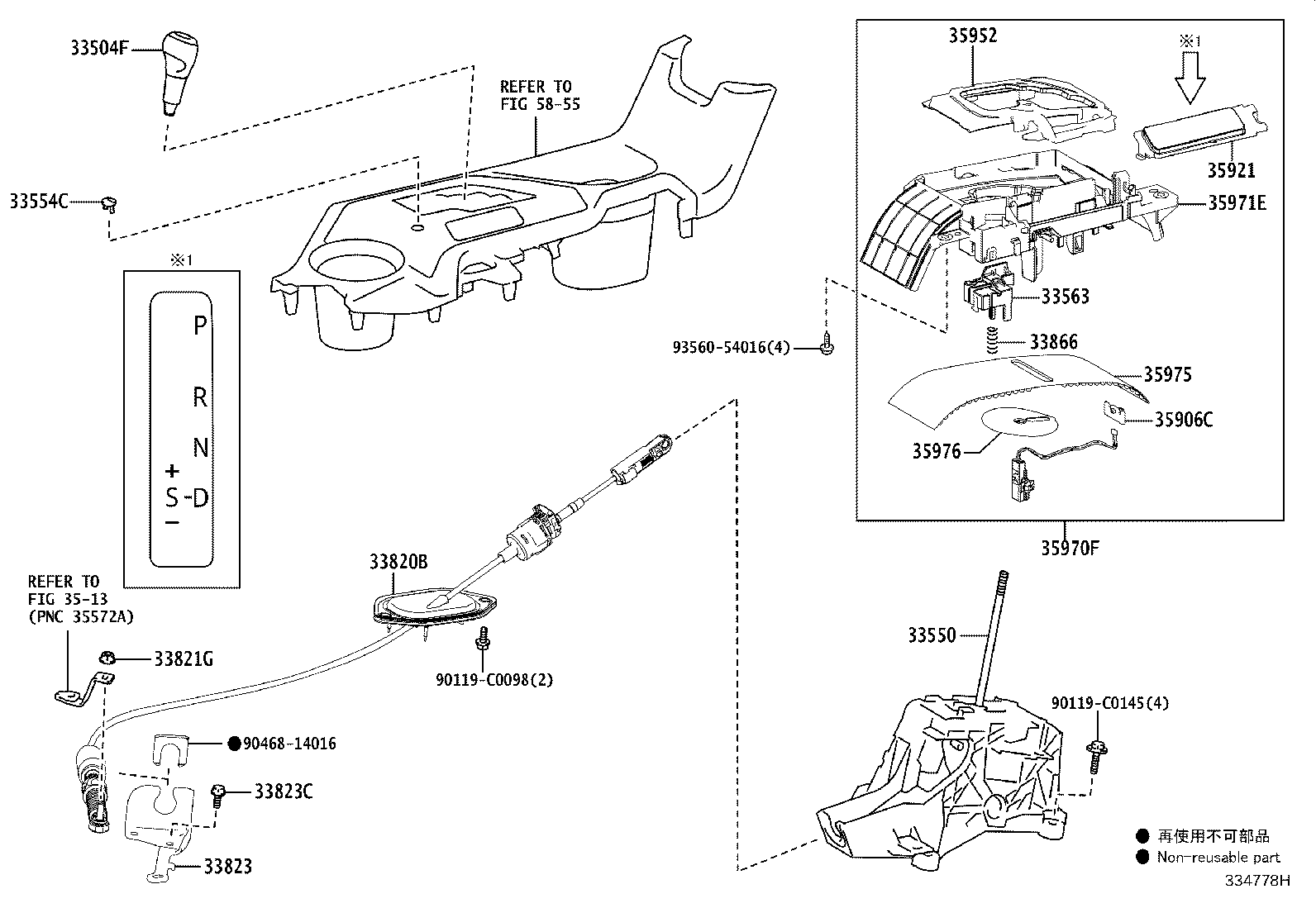

Shift Lever & Retainer
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33554C | Cover, Shift Lock Release Button |
| 33563 | Button, Shift Lock Release |
| 335A0 | Bracket Assy, Control Cable |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829 | Support, Transmission Control Cable |
| 33866 | Spring, Shift Lock Release |
| 35906C | Chip, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35952 | Lens, Position Indicator |
| 35970F | Housing Assy, Position Indicator |
| 35971E | Housing, Position Indicator |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
