Toyota RAV4 (CHINA)
2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General
Discontinued model
Data version 2020-01

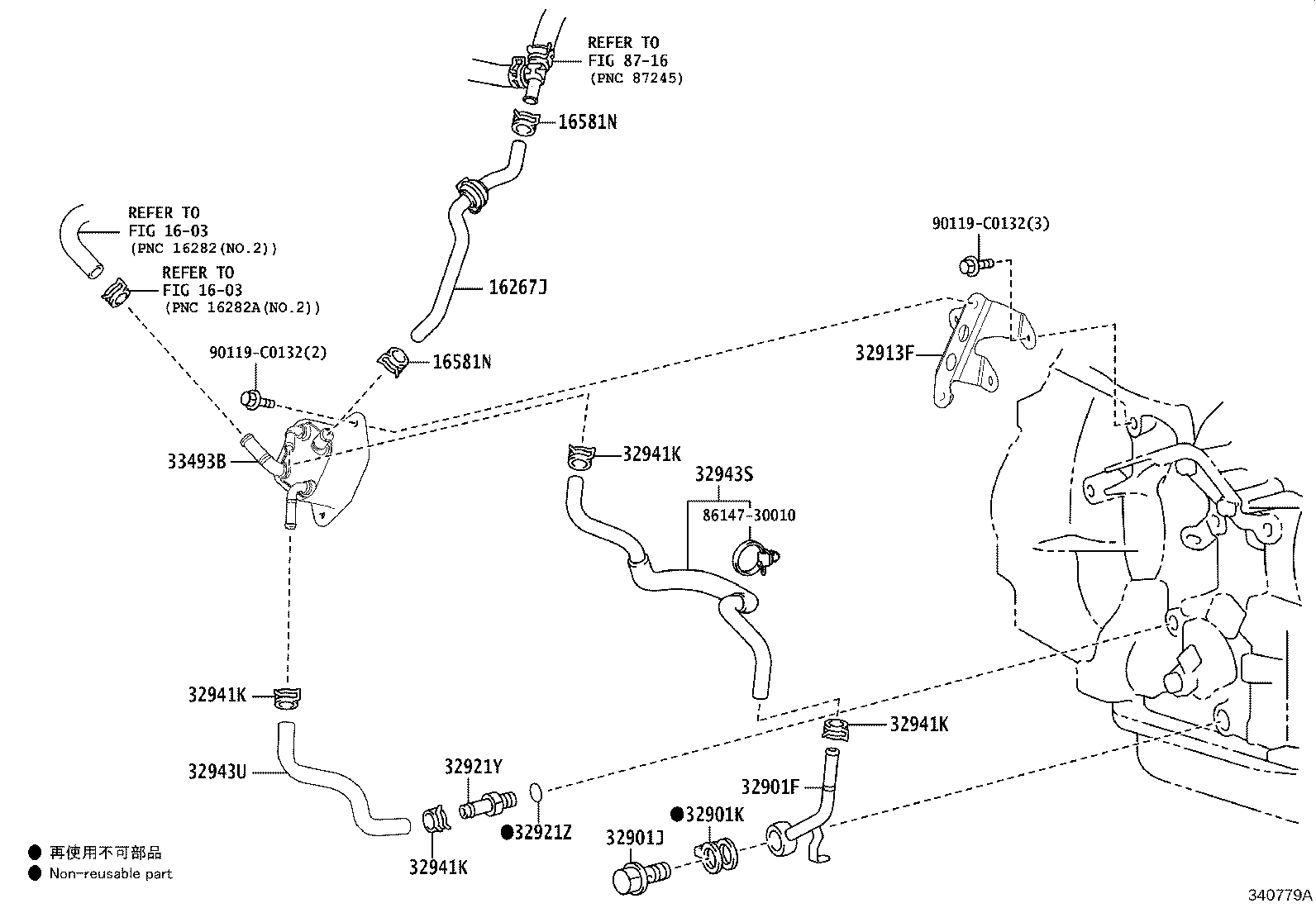

Oil Cooler & Tube(CVT)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16267J | Hose, Water By-pass, NO.3 |
| 16581N | Clamp, Hose(FOR WATER HOSE) |
| 32901F | Elbow Sub-assy, Oil Cooler |
| 32901J | Bolt, Union(FOR OIL COOLER) |
| 32901K | Gasket(FOR OIL COOLER UNION) |
| 32913F | Bracket, Transmission Oil Cooler |
| 32921N | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921P | Union(FOR OIL COOLER TUBE) |
| 32921Y | Connector, Tube |
| 32921Z | Ring, O(FOR TUBE CONNECTOR) |
| 32941D | Hose, Oil Cooler Inlet |
| 32941E | Clip(FOR OIL COOLER TUBE) |
| 32941K | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942C | Hose, Oil Cooler Outlet, NO.1 |
| 32942F | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943S | Hose, Transmission Oil Cooler, NO.1 |
| 32943U | Hose, Transmission Oil Cooler, NO.2 |
| 33493B | Cooler, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
