Toyota RAV4 (CHINA)

2013-08 → 2019-11 · chassis ASA4#,ZSA4# · catalogue 660320 · General

Discontinued model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

17 part groups · 3 illustrations

Illustrations

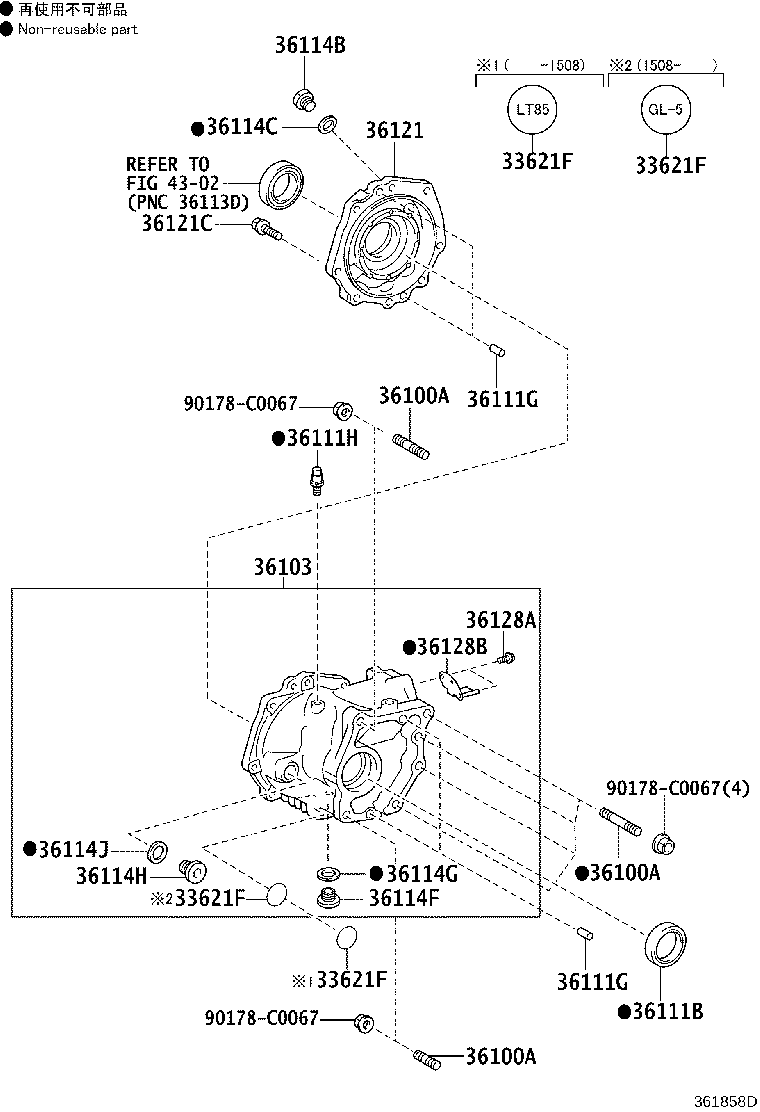

Figure 361857E 361857E 2013-08 → — Figure 361857E 361857E 2016-07 → — Figure 361858D 361858D 2013-08 → 2016-07

Part groups

PNCDescription
33621F Label, Transaxle Oil Information
36100A Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
36100B Bolt (FOR TRANSFER & TRANSAXLE SETTING)
36103 Case Sub-assy, Transfer
36111B Seal, Oil (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36114F Plug (FOR TRANSFER DRAIN)
36114G Gasket (FOR TRANSFER DRAIN PLUG)
36114H Plug, NO.2 (FOR TRANSFER CASE)
36114J Gasket, NO.2 (FOR TRANSFER CASE)
36121 Cover, Transfer Case, NO.1
36121C Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
36128A Bolt (FOR BREATHER OIL DEFLECTOR)
36128B Deflector, Breather Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
